Atari Lynx II Manuel utilisateur

ATTENTION !

Installing the LCD replacement is on your own risk! Your LYNX-II could be damaged,

if you are not able to do this modification!

Liability impossible!

Required materials:

LYNX-kit, VGA connector with screws, 18 wires round about 20 cm (8 inches) length

(IDE cable)

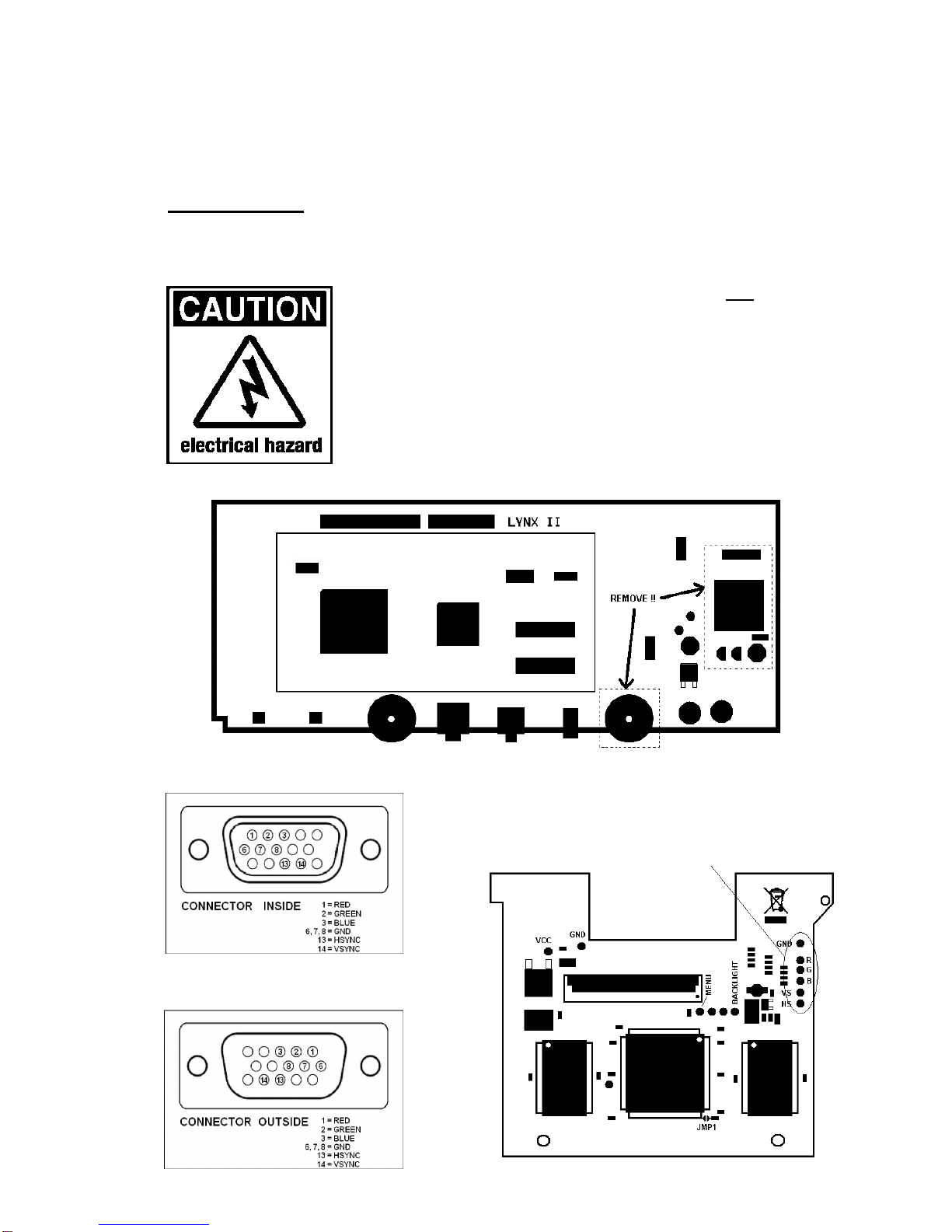

1. Step: Remove not needed Parts and 5 Volt check

ATTENTION !

Make sure that all power is

off

. Disconnect

ALL

cables.

1. Remove

VR1

trim potentiometer (if VGA connector is needed)

2. Remove

L17

coil

3. Remove

Q13

and

Q14

transistors

4. Remove

C55

and

C56

capicitors

5. Remove

power module

!!! Now check the 5 Volt with a voltmeter on

VCC point

(see 3rd step). If the

voltage exceeds 5.45 Volt, repair your LYNX ! Otherwise the LYNX mod will

damaged

!!!

2. Step: VGA connector (if needed)

After that you solder the other side of

the wires to the LYNX mod.

Connect the pins 6, 7 and 8 together.

Solder 6 wires to the pins 1, 2, 3, 13,

14 and (6, 7, 8) to the VGA connector.

LYNX-II LCD Replacement MOD REV2.0

(see picture below)

!!! Use hot glue for the internal screws of VGA connector. Otherwise the screws may cause short circuit !!!

Quick Guide

3. Step: Power and backlight button

Now solder one wire to

VCC

(+5 Volt) and one wire to

GND

(Ground)

The wire of the

backlight

has to be soldered to

U11

(74HC74A) on

pin 2.

Power

(VCC and GND)

!!! ATTENTION !!!

Don't damage the flexcable (FPC) of the LCD !

You may disconnect the FPC, but don't forget

connecting it correct after soldering

GND.

BACKLIGHT

pin 4

on the right

If you

DON'T

want to install the VGA connector

you can solder 1 wire from

MENU pin 1

on the

left to

GND.

Then you only have two selectable

modes (only internal LCD) by pressing the

backlight button. Otherwise:

Internal LCD;

Same as 1 with retro-style

VGA;

VGA with scanlines

4. Step: Soldering data lines

LYNX-II mod

. After that solder the other

side of the wires to the

LYNX-II

You can use

RES

TPR

, not both together !

For LYNX-II with chipset 1 (

C104129-001

)

you have to use

TPR

(testpoint 27) only.

For using

TPR

jumper is

closed

, for using

RES

jumper is

open

Last step is to solder the last 9 wires. Above you can

see the

LYNX-II mod

and on the picture below you

can see the

LYNX-II

. First solder all 9 wires to the If you made everything correct, you'll love it!

!!! At last check all connections again !!!
