AT&T DEFINITY 8101 Manuel utilisateur
DEFINITY
®
Communications System
Generic 1, Generic 3, and System 75
Generic 2 and System 85
8101, 8102, and 8110 Telephones
User's Guide
NOTICE
While reasonable efforts were made to ensure that the information in this document
was complete and accurate at the time of printing, AT&T can assume no
responsibility for any errors. Changes or corrections to the information contained in
this document may be incorporated into future issues.
TO ORDER COPIES OF THIS DOCUMENT
Contact:
AT&T Customer Information Center
2855 North Franklin Road
P.O. Box 19901
Indianapolis, IN 46219
1-800 432-6600,
In Canada:
1 800 255-1242
Order: Document No. AT&T 555-230-746
Issue 2, December 1993
For more information about AT&T documents, see Business Communications
Systems Publications Catalog, 555-000-010.
HEARING AID COMPATIBILITY
This equipment is compatible with the inductively coupled hearing aids prescribed
by the Federal Communications Commission (FCC).
YOUR RESPONSIBILITY FOR YOUR SYSTEM'S SECURITY
You are responsible for the security of your system. AT&T does not warrant that
this product is immune from or will prevent unauthorized use of common-carrier
telecommunication services or facilities accessed through or connected to it. AT&T
will not be responsible for any charges that result from such unauthorized use.
Product administration to prevent unauthorized use is your responsibility and your
system manager should read all documents provided with this product to fully
understand the features available that may reduce your risk of incurring charges.
Prepared by
©1993 AT&T
AT&T GBCS Documentation Development All Rights Reserved
Middletown, New Jersey 07748-1998 Printed in USA
Contents
Your 8101, 8102, and 8110 Telephones
1
What the Features Do
8
Phone Features
8
System Features
9
How to Use the Features
11
Special Instructions for General Use
Conventions Used in Procedure Descriptions
Quick Reference Lists
11
11
12
Phone Features
13
Answering and Placing a Call
13
Auto Answer (for 8110 Users)
14
Hold
15
Message
16
Mute (for 8110 Users)
16
Personalized Ring (for 8102 and 8110 Users)
17
Programmable Dialing Buttons (8102 and 8110)
17
Redial
19
Redial (With Auto-Pause) (8102 and 8110 Users) 20
Speakerphone (for 8110 Users)
21
System Features
23
Special Instructions
23
Abbreviated Dialing
23
Automatic Callback
25
Call Forwarding All Calls
25
Call Park
26
Call Pickup
27
Call Waiting
27
Conference
28
Drop (for 8102 and 8110 Users)
28
Hold (with Second Dial Tone)
29
Leave Word Calling
31
Priority Calling
31
Send All Calls
32
Transfer
32
Voice Message Retrieval
33
i
Tones and Their Meanings
34
Ringing Tones
34
Handset Tones
34
Key Words to Know
35
Quick Reference Lists
ii
Your 8101, 8102, and 8110 Telephones
The 8101, 8102, and 8110 telephones are similar in appearance; however, the 8110
telephone has an added built-in speakerphone. (If you have an 8110 telephone, you
may also be able to use the Auto Answer feature; check with your system manager.)
These telephones are designed to help you use the many features of the AT&T
DEFINITY® Communications System Generic 1 and Generic 3 (System 75) and
Generic 2 (System 85).
Figures 1 and 2 show the 8101 telephone, Figures 3 and 4 show the 8102 telephone,
and Figures 5 and 6 show the 8110 telephone. The explanations that follow these
figures will help familiarize you with the many features available for each telephone.
1
Data jack
Handset
Flash button
Handset jack
Labeling
designation
card
Redial button
Hold light
Hold button
Message light
Dial pad
TOP VIEW

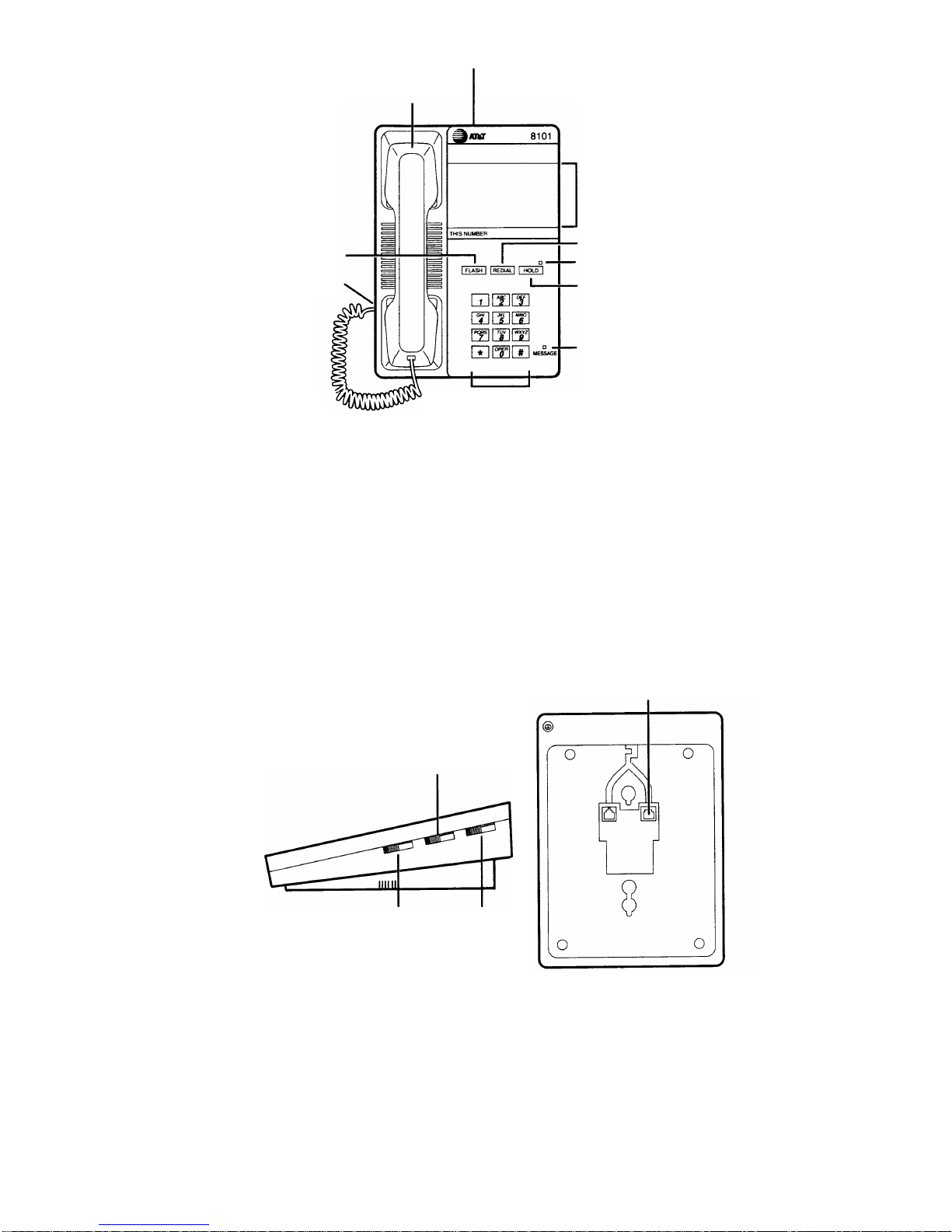

Figure 1. 8101 Telephone, Top View
Line jack
Positive disconnect
(Off/On)
Ringer Mode
SIDE VIEW volume selector
control (pulse/tone)
(Lo/Med/Hi) BOTTOM VIEW
Figure 2. 8101 Telephone, Side and Bottom Views
2
Program Button
Flash Button
Handset Jack
Handset Data Jack
Adjunct (equipment)
Jack
Pause Button
Programmable
Dialing Buttons
Redial Button
Hold Light
Hold Button
Message Light
Dial Pad
TOP VIEW

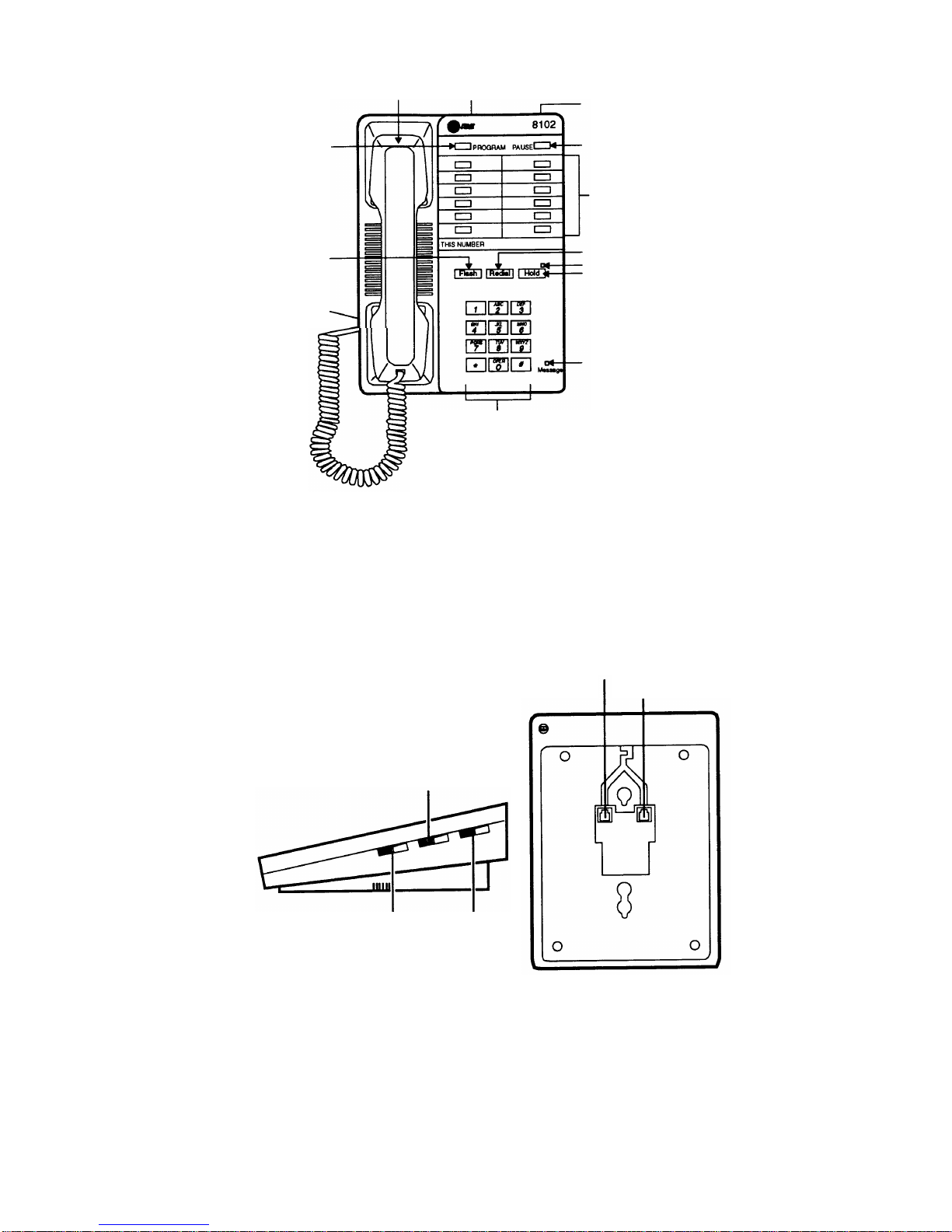

Figure 3. 8102 Telephone, Top View
Adjunct
Power Jack
Line Jack
Tone Selector
(Slow/Fast)
SIDE VIEW
Ringer
Tone
Volume Selector
Control (Lo/Hi)
BOTTOM VIEW
Figure 4. 8102 Telephone, Side and Bottom Views
3
Handset Data Jack Auxiliary
Power Jack
Program Button Pause Button
Flash Button
Speaker Button
Handset Jack
Programmable
Dialing Buttons
Redial Button
Hold Light
Hold Button
Auto Answer Button
Mute Button
Dial Pad
TOP VIEW
Figure 5. 8110 Telephone, Top View
Tone Selector
(Slow/Fast)
Speaker Ringer
Tone
Volume
Volume Selector
Control
Control
(Lo/Hi)
SIDE VIEW
Line Jack
BOTTOM VIEW
Message Light
Figure 6. 8110 Telephone, Side and Bottom Views
4
Starting with the handset on the TOP VIEW and continuing clockwise:
Handset
Data jack
Adjunct (equipment) jack (on
the 8102 only)
Auxiliary power jack (on the
8110 only)
Pause button (on the 8102 and
8110 only)
For placing and receiving calls (also known as the
receiver).
For connecting a device such as a modem to your
telephone. This jack is labeled DATA.
For connecting adjunct equipment such as a
speakerphone or headset to your telephone. This jack is
labeled ADJUNCT.
For improving the performance of the built-in
speakerphone on long loops where there is limited power
available from the line. This jack is
labeled
For inserting a .5-second pause/delay into a telephone
number stored on a programmable dialing button or into
a dialing access code in the Auto-Pause feature of
Redial. See “Redial (With Auto-Pause)” in the section
titled How to Use the Features.
Programmable Dialing buttons
(on the 8102 and 8110 only)
Hold light
Hold button
Redial button
Auto Answer button (on the
8110 only)
Mute button (on the 8110 only)
Message light
The 12 buttons on which you can program frequently
dialed telephone numbers, emergency numbers, or
feature codes.
A red light that remains on to remind you that you have
a call on hold.
For putting a call on hold.
For redialing the last number you dialed from the dial
pad.
For automatically activating the built-in speakerphone
whenever a call comes in. Your system manager can tell
you whether you have this feature.
For turning off the microphone associated with the
handset or the built-in speakerphone.
A red light that flashes when a message has been left for
you.
5
