AT&T CL84109 Manuel utilisateur

Quick start guide

CL84109/CL84209/CL84309

DECT 6.0 corded/cordless

telephone/answering system

with caller ID/call waiting

See pages 5-6

for easy instructions.

You must install and charge

the battery before using the

telephone. STOP!

Installation

Install the telephone base close to a telephone jack and a power outlet not

controlled by a wall switch. The telephone base can be placed on a flat surface

or vertically mounted on the wall. For optimum range and better reception,

place the telephone base in a central and open location.

If you subscribe to high-speed Internet service (digital subscriber line -

DSL) through your telephone line, you must install a DSL filter between

the telephone line cord and the telephone wall jack (see page 3). The filter

prevents noise and caller ID problems caused by DSL interference. Please

contact your DSL service provider for more information about DSL filters.

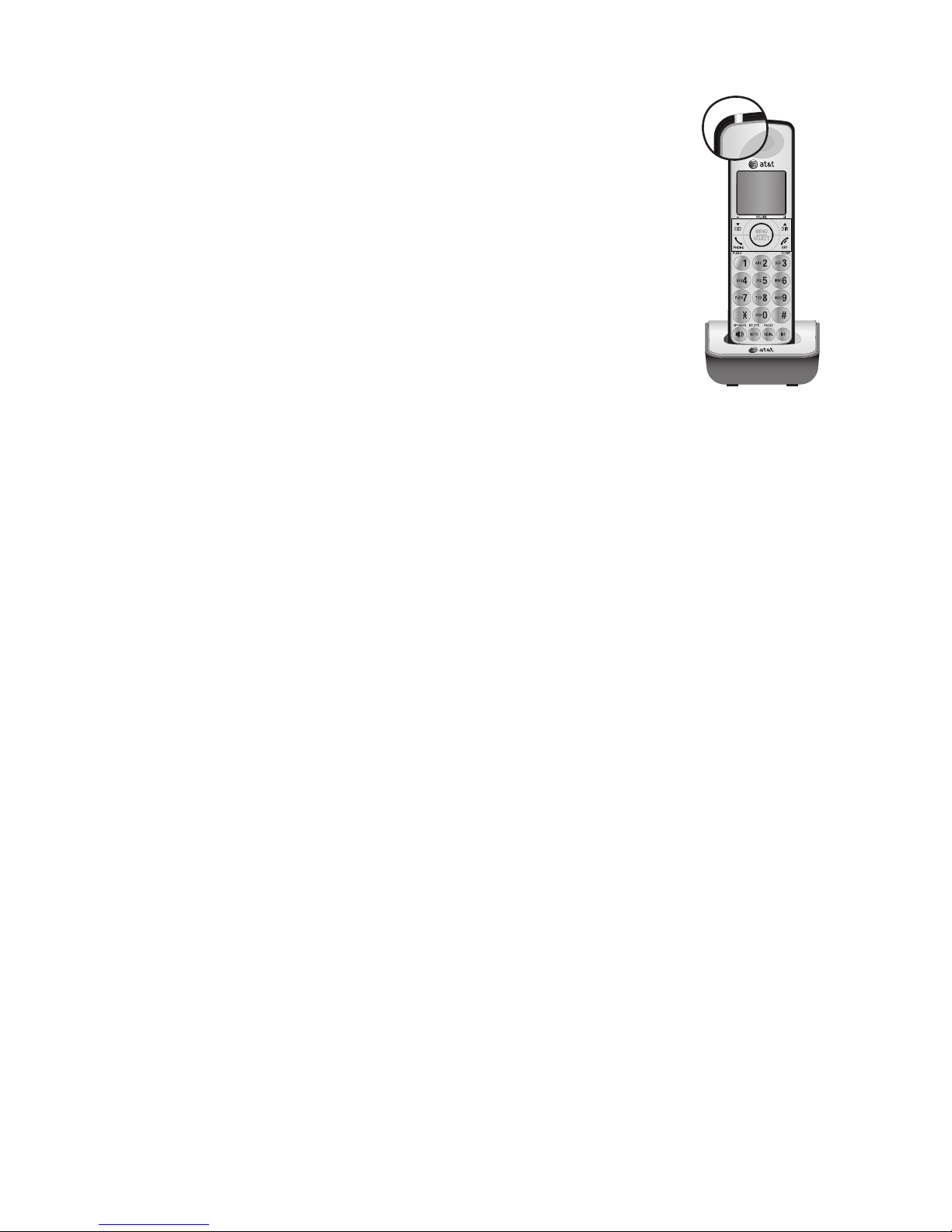

Your product may be shipped with a protective sticker covering the handset or

telephone base display - remove it before use.

For customer service or product information, visit our website at

www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial

1 (866) 288-4268.

Avoid placing the telephone base too close to:

Communication devices such as: television sets, VCRs, or other cordless

telephones.

Excessive heat sources.

Noise sources such as a window with traffic outside, motors, microwave

ovens, refrigerators, or fluorescent lighting.

Excessive dust sources such as a workshop or garage.

Excessive moisture.

Extremely low temperature.

Mechanical vibration or shock such as on top of the washing machine or

workbench.

•

Backup batteries installation and use

In the event of a power failure, your telephone can still operate with limited

functions if there are backup batteries (purchased separately) installed in the

telephone base. If a power failure happens during a call on the corded handset,

the call continues (at the lowest volume) until you hang up; while a call on the

cordless handset or speakerphone disconnects immediately.

During a power failure, you can still make and answer calls using the corded

handset. However, you cannot make or answer calls on the cordless handset or

speakerphone.

If power resumes while you are on a call, the call continues and the telephone

resets once you hang up.

Follow the steps below to install backup batteries.

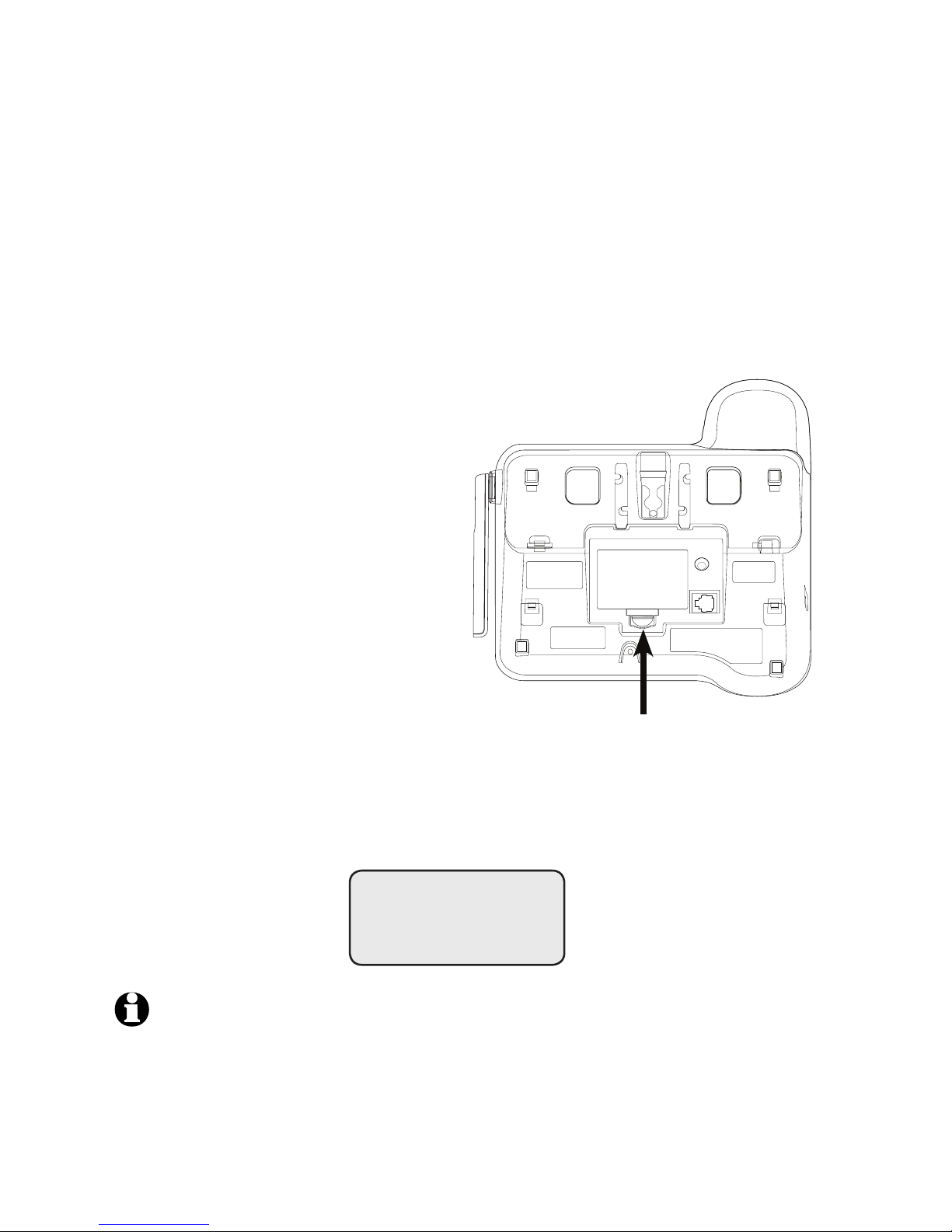

2. Press the tab on the base battery

cover (on the bottom of the

telephone base) toward the cover

and swing open the battery door.

3. Insert three new AAA alkaline

batteries, matching the + and

- signs engraved on the telephone

base.

4. Replace the backup battery cover

onto the telephone base; the

cover clicks into place when it is

attached properly.

During a power failure, if the backup batteries are installed, the telephone

base displays CHECK AC POWER.

1. Make sure the telephone line cord

and power adapter cord are not

connected to the telephone base.

NOTES:

1. With backup batteries, the base ringer and the handset listening volume will be at the lowest setting.

2. We recommend changing the batteries every nine months.

Battery compartment tab

BASE

CHECK AC POWER

Telephone base installation

Install the telephone base as shown below.

The telephone base is ready for tabletop use. If you want to change to wall

mounting, see the user’s manual for details.

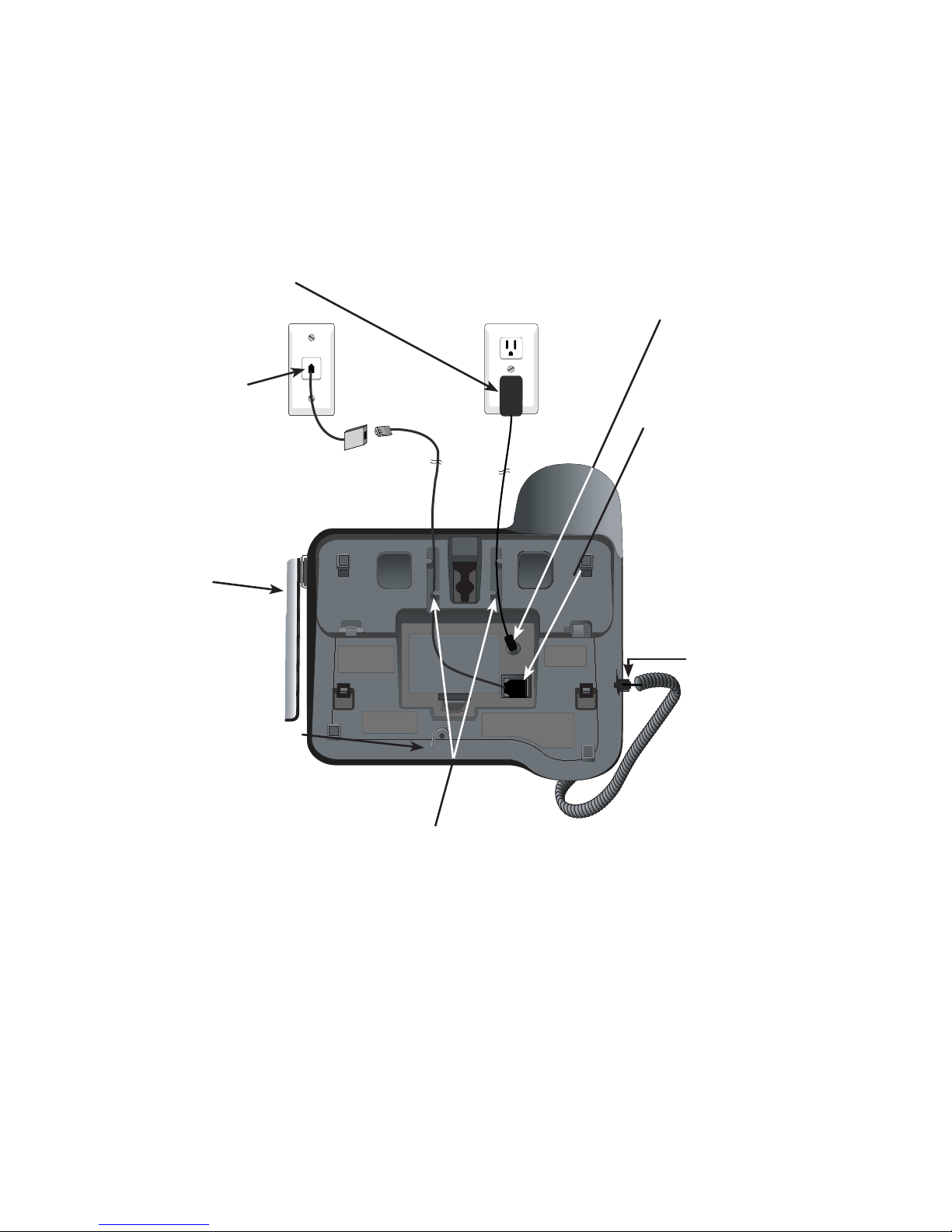

1. Plug the small end of the

power adapter into the

power jack on the bottom

of the telephone base.

2. Plug one end of the

telephone line cord

into the telephone

jack on the bottom of

the telephone base.

4. Place the cords into

the channels.

7. Plug the large end

of the power adapter

into a power outlet

not controlled by a

wall switch.

If you have DSL high

speed Internet service,

a DSL filter (not

included) is required.

6. Plug the other

end of the

telephone line

cord into a

telephone jack or

a DSL filter.

3. Plug the other

end of the coiled

handset cord

into the jack at

the left of the

telephone base.

5. Raise the

antenna.

Charger installation

Install the charger as shown below.

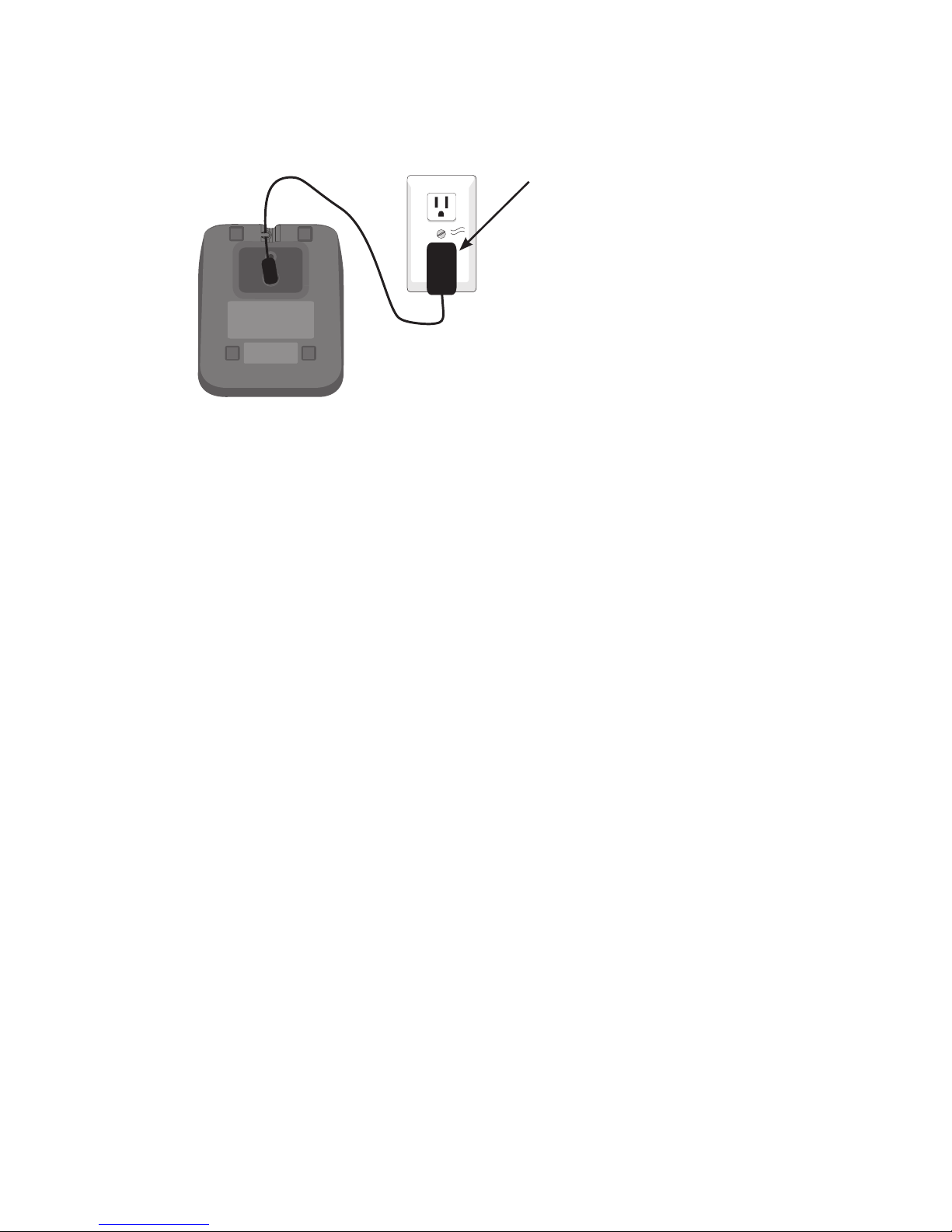

Plug the power adapter

into an electrical outlet

not controlled by a wall

switch.

IMPORTANT INFORMATION

1. Use only the power adapter(s) supplied with this product. To order a replacement

power adapter, visit our website at www.telephones.att.com or call

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

2. The power adapters are intended to be correctly oriented in a vertical or floor mount

position. The prongs are not designed to hold the plug in place if it is plugged into a

ceiling, under-the-table or cabinet outlet.

Battery installation & charging

Install the battery as shown below. Once you have installed the battery, the

screen indicates the battery status (see table below). If necessary, place the

handset in the telephone base or charger to charge the battery. For best

performance, keep the handset in the charger when not in use. The battery

is fully charged after 16 hours of continuous charging. See the table on the

Technical specifications page in the user’s manual for battery operating times.

If the screen is blank, you need to charge the handset without interruption for

at least 10 minutes to give the handset enough charge to use the telephone

for a short time. The screen shows LOW BATTERY and the backlight is off until

you have charged the battery without interruption for at least one hour. The

following table summarizes the battery charge indicators and actions to take.

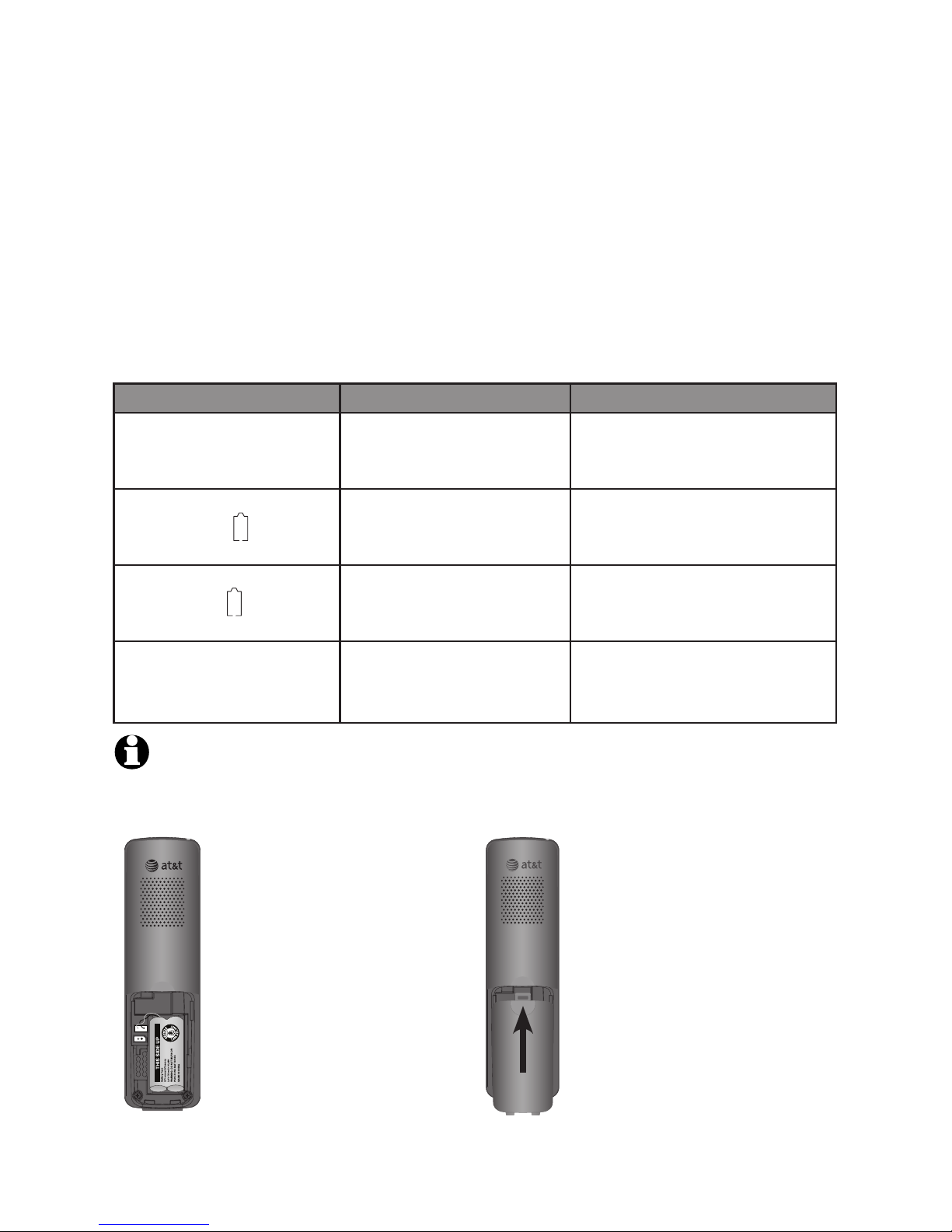

Step 1

Plug the battery connector

securely into the socket

inside the handset battery

compartment, matching the

color-coded label. Insert

the supplied battery with

the label THIS SIDE UP

facing up as indicated.

Step 2

Align the cover flat against

the battery compartment,

then slide it upwards until it

clicks into place.

Battery indicators Battery status Action

The screen is blank. Battery has no charge and

the handset cannot be used.

Charge without interruption until

the screen shows LOW BATTERY

(at least 10 minutes).

The screen shows PLACE IN

CHARGER and flashes.

Battery has very little charge

and the handset cannot be

used.

Charge without interruption until

the screen shows LOW BATTERY

(at least four minutes).

The screen shows LOW

BATTERY and flashes.

Battery has enough charge

to be used for a short time.

Charge without interruption until

the screen shows HANDSET X (at

least one hour).

The screen shows

HANDSET X.

Battery is charged. To keep the battery charged,

place it in the charger when not

in use.

NOTE: If you are on a phone call in low battery mode, you hear four short beeps every

minute.

Battery installation & charging

Step 3

Charge the handset by placing it face up in the charger. The

CHARGE light will be on when charging.

IMPORTANT INFORMATION

1. Use only the supplied rechargeable battery or replacement battery (model BT8001).

To order, visit our website at www.telephones.att.com or call 1 (800)

222-3111. In Canada, dial 1 (866) 288-4268.

2. If you do not use the handset for a long time, disconnect and remove the battery to

prevent possible leakage.

Quick reference guide - handset

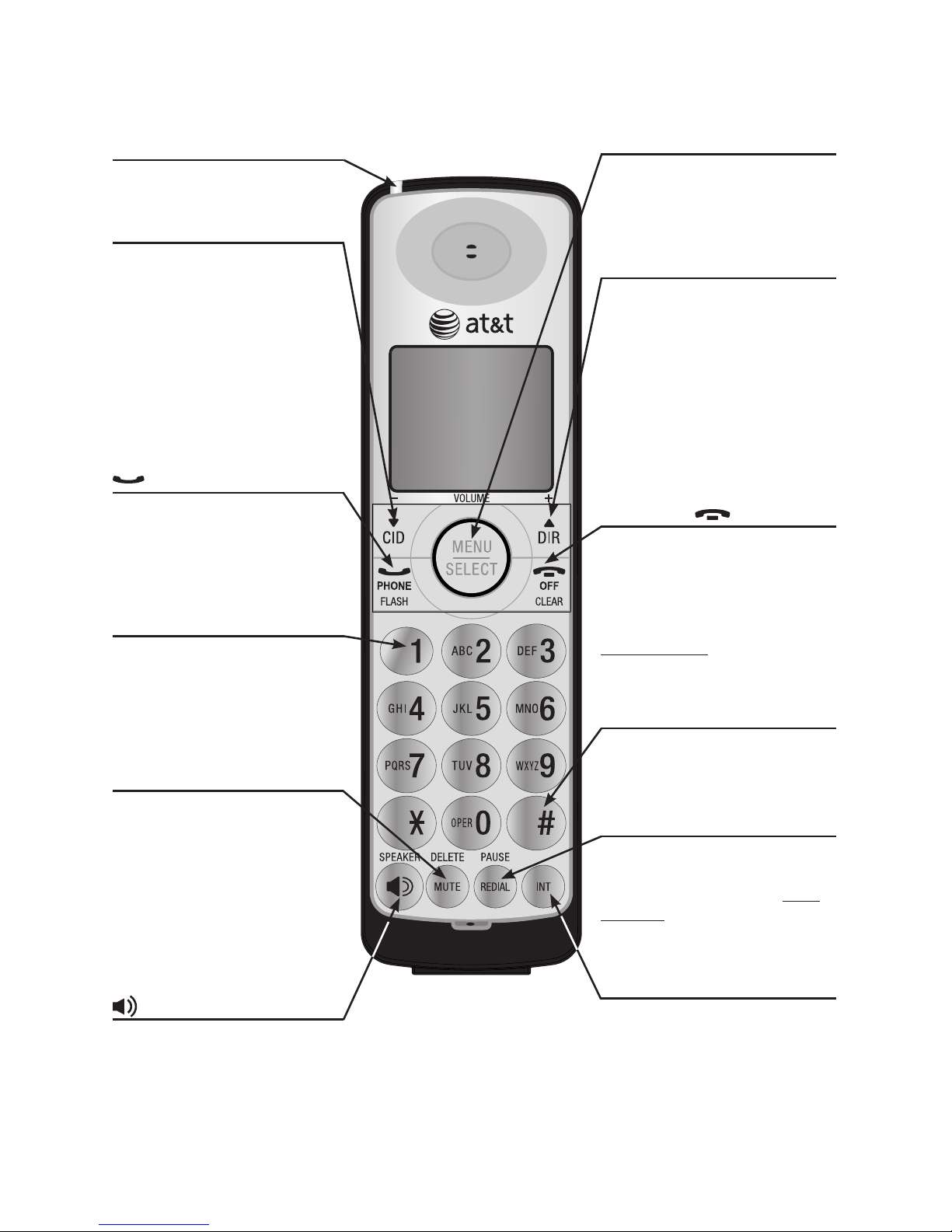

CHARGE indicator

On when the handset is

charging in the charger.

qCID/-VOLUME

Press qCID to show caller ID

history.

Press to scroll down while in

menus.

While entering names or

numbers, press to move the

cursor to the left.

Press to decrease the listening

volume when on a call.

PHONE/FLASH

Press to make or answer a call.

During a call, press to answer

an incoming call when you

receive a call waiting alert.

While reviewing a call log

entry, press repeatedly to

add or remove 1 in front of

the telephone number before

dialing or saving it in the

directory.

MENU/SELECT

Press to show the menu.

While in the menu, press to

select an item or save an entry

or setting.

DIRp/+VOLUME

Press DIRpto show directory

entries.

Press to scroll up while in

menus.

While entering names or

numbers, press to move the

cursor to the right.

Press to increase the listening

volume when on a call.

OFF/CLEAR

During a call, press to hang up.

While in a menu, press to

cancel an operation, back up to

the previous menu, or exit the

menu display.

Press and hold while the

telephone is not in use to erase

the missed calls indicator.

Press repeatedly to display

other dialing options when

reviewing a call log entry.

REDIAL/PAUSE

Press repeatedly to view the

last five numbers dialed.

While entering numbers, press

and hold to insert a dialing

pause.

INT

Press to begin an intercom

conversation or to transfer a

call.

MUTE/DELETE

During a call, press to mute the

microphone.

While reviewing the caller ID

history, or the directory or the

redial memory, press to delete

an individual entry.

While predialing, press to

delete digits.

SPEAKER

Press to turn on the handset

speakerphone, press again to

resume normal handset use.

Quick reference guide - handset

Main menu

> Highlights a menu

item.

>ANS. SYSTEM

DIRECTORY

CALL LOG

RINGER VOLUME

RINGER TONE

KEY TONE

LCD LANGUAGE

SET DATE/TIME

CLR VOICEMAIL

HOME AREA CODE

Using menus

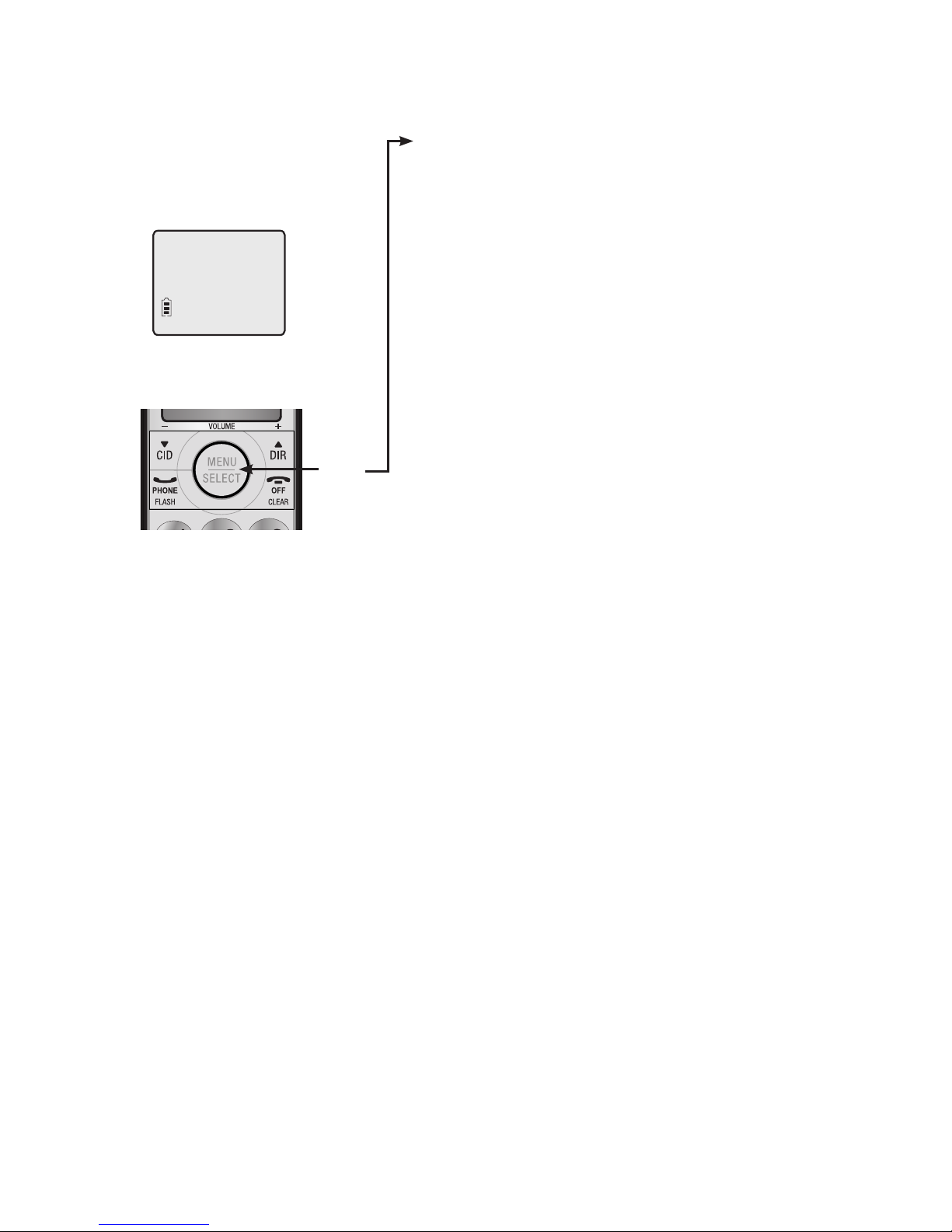

Press MENU/SELECT to show the main menu.

Press qCID or DIRpto scroll through menu

items.

Press MENU/SELECT to select or save

changes to a highlighted menu item.

Press OFF/CLEAR to cancel an operation,

back up to the previous menu, or exit the

menu display.

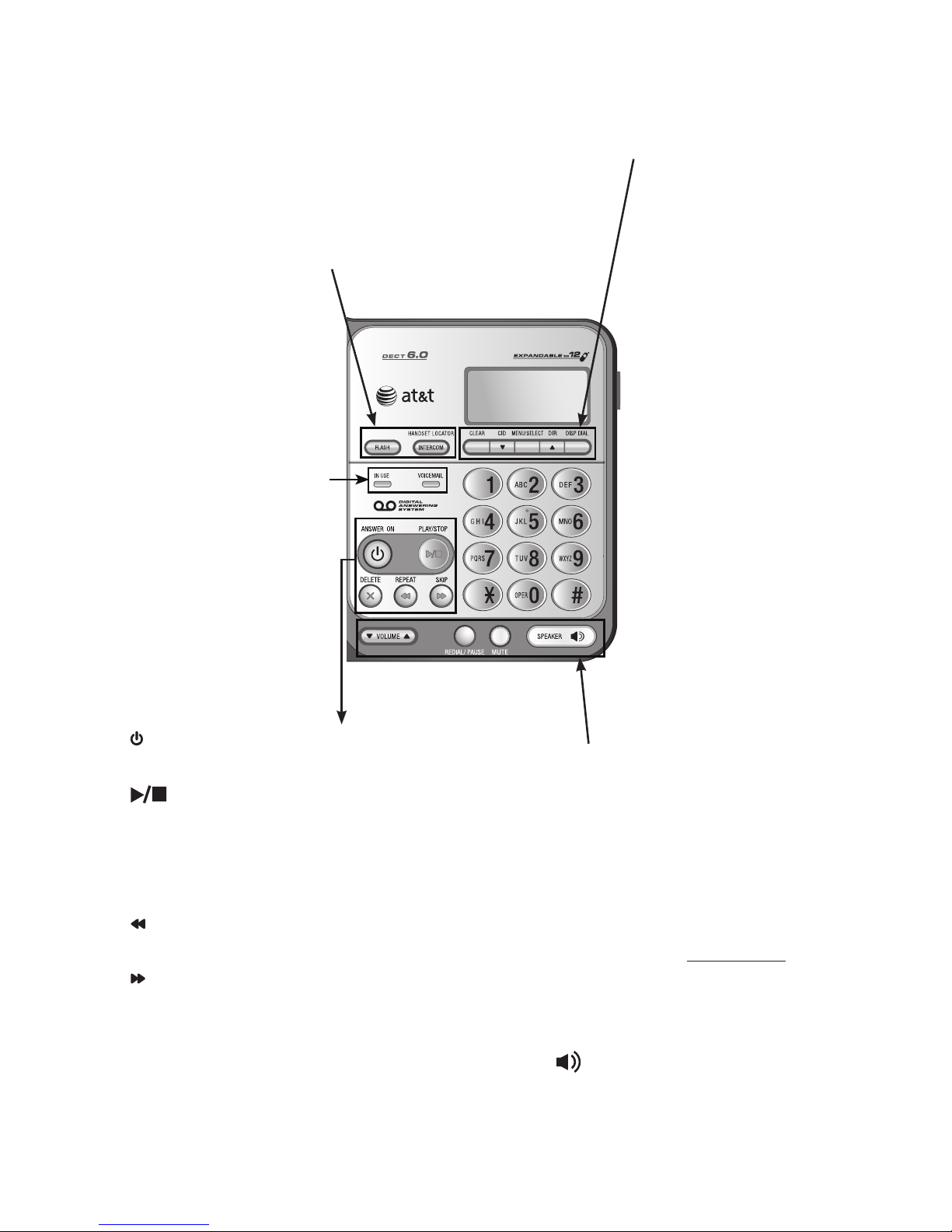

Quick reference guide - telephone base

IN USE

On when a handset is in

use, when the answering

system is answering an

incoming call or you are

registering a handset.

Flashes when another

telephone is in use on

the same line or you are

deregistering handset from

the telephone base.

Flashes quickly when there

is an incoming call.

VOICEMAIL

• Flashes when you have new

voicemail. Voicemail is a

service offered by your local

telephone company, and

is different from answering

system messages.

•

• INTERCOM/HANDSET LOCATOR: While phone is idle,

press to page all handsets or initiate an intercom call.

• FLASH: During a call, press to answer an incoming call when

you receive a call waiting alert.

• CLEAR: While using

menus, press to cancel an

operation, back up to the

previous menu or exit the

menu display.

• qCID: Press when the

phone is idle to display the

call history.

Press to scroll down while

in menus and lists. While

entering numbers or

letters, press to move the

cursor to the left.

• MENU/SELECT: Press

to show the menu. While

in the menu, press to

select an item or save an

entry or setting.

• DIRp: Press when the

phone is idle to display

the directory. Press to

scroll up while in menus

and lists. While entering

or modifying names, press

to move the cursor to the

right.

• DISP DIAL: Press to

dial the number currently

displayed.

• ANSWER ON: Press to turn the answering system

on or off.

• PLAY/STOP: Press to start or stop message

playback.

• X DELETE: Press to delete the message currently

playing. When in idle mode, press twice to delete all

old messages.

• REPEAT: Press to repeat the message; press twice

to play the previous message.

• SKIP: Press to skip the message.

• VOLUME pq: Press to adjust

the volume of the speakerphone (if

speakerphone is on), message playback

(during playback) or ringer (when the

telephone base is not in use).

• REDIAL/PAUSE:Before dialing any

numbers, press to display the last five

numbers dialed.

While predialing or entering numbers

into your directory, press and hold to

insert a dialing pause.

• MUTE: Press to turn off the microphone;

press again to resume your conversation.

• SPEAKER:Press to switch

between speakerphone and corded

handset.

Autres manuels pour CL84109

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AT&T Téléphone

AT&T

AT&T Trimline TR1909 Manuel utilisateur

AT&T

AT&T CRL81112 Manuel utilisateur

AT&T

AT&T MERLIN LEGEND Release 3.1 Calling Group Manuel utilisateur

AT&T

AT&T EL51110 Manuel utilisateur

AT&T

AT&T CL80119 Manuel utilisateur

AT&T

AT&T CL4939 Manuel utilisateur

AT&T

AT&T Synapse SB67035 Manuel utilisateur

AT&T

AT&T CL83203 Manuel utilisateur

AT&T

AT&T Bell System Practices 881A102 Manuel utilisateur

AT&T

AT&T 993 Manuel utilisateur

AT&T

AT&T 1477/1177 Manuel utilisateur

AT&T

AT&T Four-Line Intercom Speakerphone 955 Manuel utilisateur

AT&T

AT&T Trimline TR1909 Manuel utilisateur

AT&T

AT&T Definity 7406 Plus Manuel utilisateur

AT&T

AT&T PARTNER CIB 3169 Manuel utilisateur

AT&T

AT&T CL2939 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

AT&T

AT&T CL4940 Manuel utilisateur

AT&T

AT&T 2634DA Manuel utilisateur

AT&T

AT&T CL84100 Manuel utilisateur

AT&T

AT&T CL2940 Manuel utilisateur

AT&T

AT&T ML17939 Manuel utilisateur

AT&T

AT&T Voice Terminal 6434 Manuel utilisateur

AT&T

AT&T E2555 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur

Ericsson

Ericsson Dialog 3213 Manuel utilisateur
