AT&T TL7610 Manuel utilisateur

User’s manual

TL7600

DECT 6.0 expansion headset

Congratulations

on your purchase

of this AT&T product.

Before using this AT&T product, please read the

Important safety information

on pages 39-42 of this manual. Please thoroughly

read the user’s manual for all the feature operations

and troubleshooting information necessary to install

and operate your new AT&T product. You can also

visit our website at www.telephones.att.com

or call 1 (800) 222-3111.

In Canada, dial 1 (866) 288-4268.

Model #: TL7600

Type: DECT 6.0 expansion headset

Serial #:

(found on the bottom of the headset charger)

Purchase date:

Place of purchase:

the AT&T logo are trademarks of AT&T Intellectual Property licensed to

Advanced American Telephones, San Antonio, TX 78219. Printed in China.

Save your sales receipt and original packaging in case it is necessary

to return your telephone for warranty service.

Headset charger Battery for headset

Cordless headset

User's manual

User’s manual

TL7600

DECT 6.0 expansion headset

Battery compartment

cover

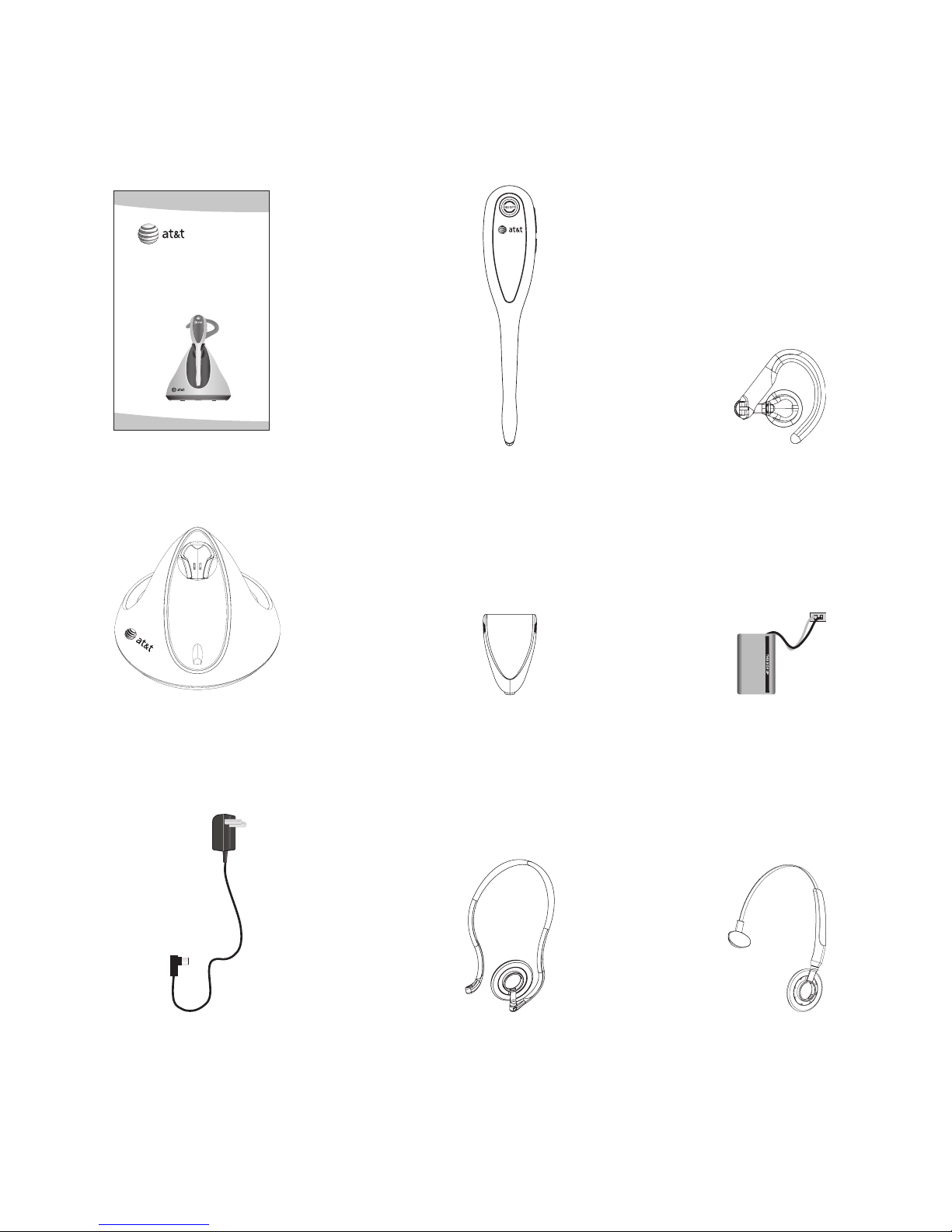

Parts checklist

Check to make sure the headset package includes the following items:

Over-the-ear hook

Charger power adapter Behind-the-neckband Over-the-headband

User’s manual

TL7600

DECT 6.0 expansion headset

Getting started

Installation preparation.............1

Charger installation.....................2

Battery installation......................3

Battery charging...........................4

Registering the headset............5

To register a headset to

the DECT headset base.....6

To register the headset to

an AT&T DECT cordless

telephone base......................7

Quick reference guide ...............8

Headset attachments

Over-the-ear hook ..................9

Over-the-headband.............12

Behind-the-neckband.........14

Operation

Headset operation

Making a call...........................17

Answering a call on

the headset ..........................18

Ending a call on

the headset. .........................18

Auto off .....................................18

Temporary ring

tone silencing....................19

Intercom and intercom

call transfer.........................19

Options while on calls

Volume control. .....................20

Call waiting..............................20

Switching a call between

handset and headset .....21

Multiple headset

/handset use......................22

Mute ............................................22

Alert tones....................................23

Indicator lights............................24

Deregistration

Replacing a headset ................25

To deregister all headsets

from the headset base ...25

To deregister all headset(s)

from an AT&T cordless

telephone base...................26

Table of contents

Getting started

Avoid placing the headset charger too close to:

• Communication devices such as: television sets, VCRs, or other

cordless telephones.

• Excessive heat sources.

• Noise sources such as a window with traffic outside, motors,

microwave ovens, refrigerators, or fluorescent lighting.

• Excessive dust sources such as a workshop or garage.

• Excessive moisture.

• Extremely low temperature.

• Mechanical vibration or shock such as on top of the washing

machine or work bench.

Installation preparation

See pages 3-4

for easy instructions.

You must install and

charge the battery before

using the headset. STOP!

If you subscribe to high-speed Internet service (digital subscriber

line - DSL) through your telephone lines, you must install a DSL

filter between the telephone line cord and the telephone wall jack.

The filter prevents noise and caller ID problems caused by DSL

interference. Please contact your DSL service provider for more

information about DSL filters.

For customer service or product information, visit our website at

www.telephones.att.com or call 1 (800) 222-3111.

In Canada, dial 1 (866) 288-4268.

Getting started

IMPORTANT INFORMATION

Use only the power adapter supplied with this product. To order a

replacement power adapter, visit our website at

www.telephones.att.com, or call 1 (800) 222-3111.

In Canada, dial 1 (866) 288-4268.

The power adapter is intended to be correctly oriented in a vertical

or floor mount position. The prongs are not designed to hold the

plug in place if it is plugged into a ceiling, under-the-table or

cabinet outlet.

2. Plug the large end

of the charger power

adapter into a power

outlet not controlled

by a wall switch.

Charger installation

1. Plug the small end

of the charger power

adapter into the jack

on the underside of the

charger, then route the

cord through the slot

as shown.

Getting started

Battery installation

Install the battery as shown below. For optimal performance,

charge the headset battery for at least six hours before use.

When not in use, recharge the headset by returning it to the

headset charger.

NOTE: Remove the ear hook from the headset (see page 11) before

battery replacement.

2. Insert the battery into the battery

compartment with the label THIS

SIDE UP facing up.

3. Push the battery plug into the

connector inside the compartment

according to the color-coded label

and place the wires neatly inside

the compartment.

1. If the battery door is attached,

press on both sides of the battery

compartment cover and lift the

cover up and off.

4. Insert the tab on the bottom of

the battery cover into the battery

compartment.

5. Press down gently on the battery

cover until it snaps into place.

Getting started

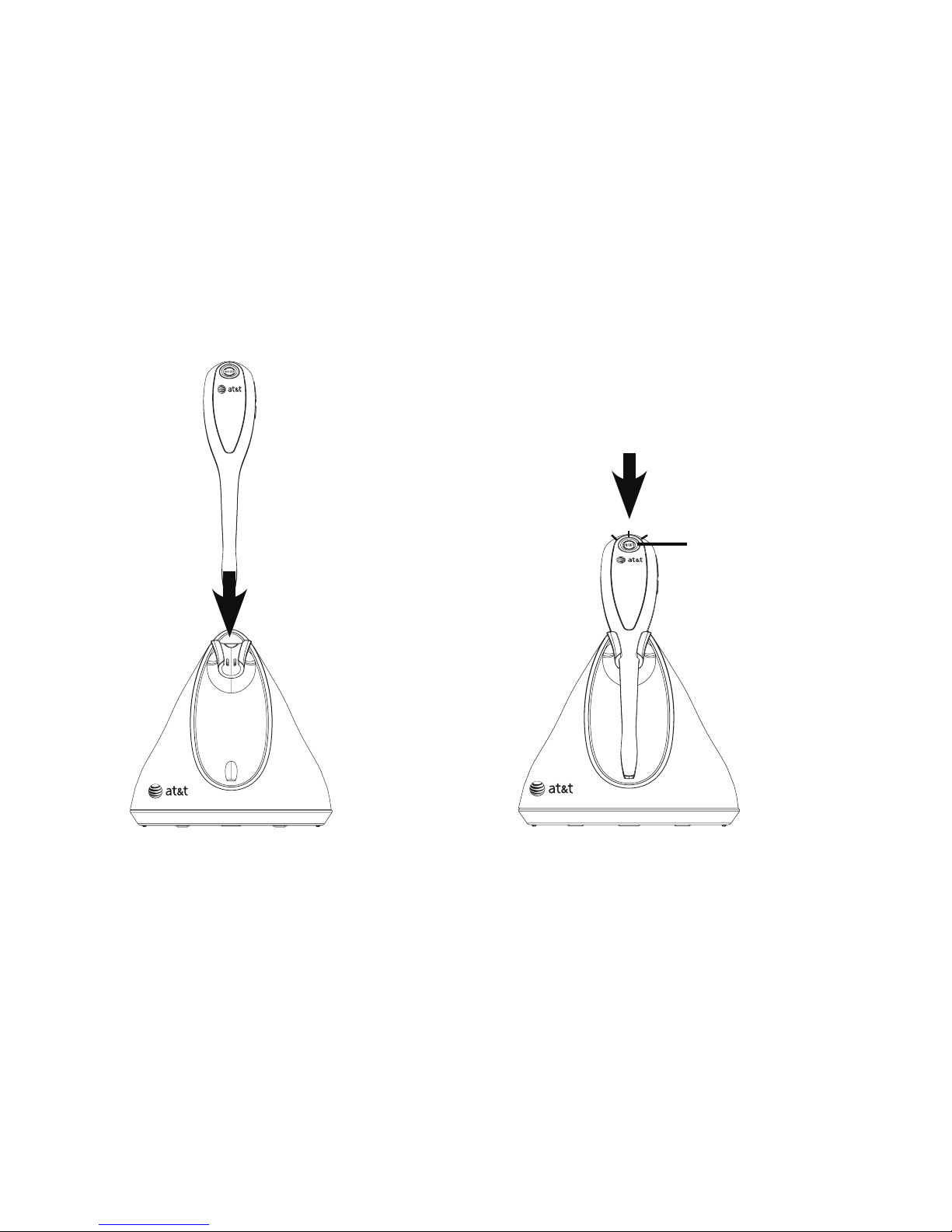

Battery charging

After installing the battery, charge the headset by placing it in

the headset charger as shown below. Before registration, the

headset ON/OFF light flashes twice every five seconds whether

the headset is charging or not. After registration, the headset

ON/OFF light is on when the headset is charging.

1. Insert the headset into the

charging cradle.

2. Push the headset downward

until the ON/OFF light on the

headset turns on.

Insert

Push

ON/OFF light

IMPORTANT INFORMATION

Use only the supplied rechargeable battery or replacement battery

(model BT191545). To obtain a replacement battery, visit our website at

www.telephones.att.com or call 1 (800) 222-3111.

In Canada, dial 1 (866) 288-4268.

Getting started

Registering the headset

You must register your new TL7600 headset with one of the

following models before use:

AT&T DECT cordless headset TL7610/TL7611 (see page 6).

You can register a maximum of two headsets to each headset base.

-OR-

A compatible AT&T DECT cordless telephone (see page 7).

You can register a maximum of two headsets to each

cordless telephone.

The telephone base recognizes and counts a headset the same as

a handset. Refer to your telephone user’s manual for the maximum

number of handsets that you can register to the telephone base.

If you have the maximum number of handsets registered, you

need to follow the deregistration information in your telephone

user’s manual.

Visit www.telephones.att.com for a list of compatible telephones.

The first headset provided with your TL7610/TL7611 has a

blue ON/OFF light. When you register a second headset, the

ON/OFF light of the headset turns orange to help you identify

the headsets.

You can only register the headset to one product at a time, so

the headset must be unregistered before registering to a headset

base or a cordless phone.

NOTE: See pages 25 and 26 for instructions on deregistering.

•

Getting started

Registering the headset

To register a headset to the DECT headset base:

Make sure the battery is properly installed in

the headset (see page 3). The ON/OFF light

flashes twice every five seconds to indicate the

headset is not registered.

Place the headset in the headset charger and

allow it to charge for at least five minutes

before beginning registration. Remove the

headset from the charger and replace the

headset back into the charger.

On the headset base, press and hold the PAIR

button until the MUTE light on the headset

base turns on (about four seconds) and release

the button.

Registration may take about 30 seconds to

complete. The MUTE light on the headset base

turns off. The headset ON/OFF light turns blue

on the first headset registered. The headset

ON/OFF light turns orange on the second

headset registered.

To verify registration was successful, press the

headset ON/OFF button and check for a dial tone.

If the registration is not successful, the

ON/OFF light on the headset flashes twice every

five seconds. To reset the headset, remove the

headset from the headset charger and try the

registration process again.
