Atag KU1190B Manuel utilisateur

instructions for use

fridge with freezer

compartment

KU1190B

541752

We thank you for the

confidence you have shown by

purchasing our appliance.

We wish you find a lot of pleasure in its

use.

The appliance is intended solely for

household use.

The lower part is the refrigerator

compartment intended for storing fresh

food at temperatures above 0°C.

The upper part is the freezer

compartment intended for freezing fresh

food and long-term storage of frozen

food (up to one year, depending on

the type of food). This compartment is

labeled with four stars / asterisks.

TABLE OF CONTENTS

541752

INTRODUCTION

APPLIANCE

DESCRIPTION

DEFROSTING

AND CLEANING

THE APPLIANCE

OTHER

STORING AND

FREEZING FOOD

4 IMPORTANT NOTES AND WARNINGS

8 ADVICE FOR SAVING POWER WITH REFRIGERATION

APPLIANCES

9 APPLIANCE DESCRIPTION

10 INSTALLATION AND CONNECTION

11 OPERATING THE APPLIANCE

13 APPLIANCE INTERIOR EQUIPMENT

15 STORING FOOD IN THE REFRIGERATOR

16 FREEZING AND STORING FROZEN FOOD

16 Freezing process

16 Important warnings on freezing fresh food

17 Storage of industrially frozen food

17 Frozen food storage time

17 Defrosting frozen food

18 DEFROSTING THE APPLIANCE

19 CLEANING THE APPLIANCE

20 TROUBLESHOOTING

22 INFORMATION ABOUT APPLIANCE NOISE

IMPORTANT

NOTES AND WARNINGS

541752

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or metal capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

Before connecting the appliance to the power mains,

please read carefully the instructions for use which

describe the appliance and its correct and safe use. The

instructions apply for several appliance types/models;

thus, settings or equipment may be described herein

which is not available in your appliance.

Integrated appliances are supplied with installation

instructions intended for the expert installing the

appliance into the kitchen cabinet.

Remove the packaging intended for protecting the

appliance or particular parts during transport.

Before connecting the appliance to the power

mains, let the appliance rest in a vertical position for

approximately 2 hours. This will reduce the possibility

of operation faults due to the effect of transport on the

cooling system.

541752

The appliance must be connected to the power

mains and grounded in compliance with the effective

standards and regulations.

The appliance may not be used outdoors and it may

not be exposed to rain.

After installation, the appliance plug has to be readily

accessible.

Do not store explosive substances such as aerosol cans

with a flammable propellant in this appliance.

Before cleaning the appliance, unplug the appliance

from the power mains (unplug the power cord from the

wall outlet).

If the power cord is damaged, it must be replaced by a

service technician or other adequately trained person.

If the appliance will be out of use for a prolonged

period of time, switch it off using the relevant button,

and unplug the appliance from the power mains. Empty

the appliance, defrost it, clean it, and leave the door

ajar.

To protect the environment, take the obsolete

appliance to an authorized home appliance collection

center.

Packaging is made of environmentally friendly materials

that can be recycled, disposed of, or destroyed without

any hazard to the environment.

541752

Rating plate can be found in the appliance interior. If

the language on the rating plate is not the language of

your choice or the language of your country, replace it

with the one supplied.

WARNING! Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of

obstruction.

WARNING! Do not use mechanical devices or other

means to accelerate the defrosting process, other than

those recommended by the manufacturer.

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use electrical appliances inside

the food storage compartments of the appliance,

unless they are of the type recommended by the

manufacturer.

WARNING: To avoid any hazard resulting from poor

instability of the appliance, make sure it is installed as

instructed.

541752

The symbol on the product or its packaging indicates that the product should not

be treated as normal household waste. The product should be taken to an

authorized collection center for waste electric and electronic equipment

processing. Correct disposal of the product will help prevent any negative effects

on the environment and health of people which could occur in case of incorrect product

removal. For detailed information on removal and processing of the product, please

contact the relevant municipal body in charge of waste management, your waste

disposal service, or the store where you bought the product.

ADVICE FOR SAVING POWER

WITH REFRIGERATION

APPLIANCES

541752

• Install the appliance as speciﬁed in the instruction manual.

• Do not open the door more often than necessary.

• Occasionally make sure air circulation underneath the appliance is unobstructed.

• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the

appliance).

• If the gasket is damaged or does not provide a perfect seal for other reasons, have it

replaced as soon as possible.

• Store the food in tightly sealed containers or appropriate packaging.

• Before placing the food in the appliance, cool it to room temperature.

• Defrost frozen food in the refrigerator compartment.

• Remove some of the drawers from the freezer compartment as described in the

instruction manual, in order to make use of the entire interior.

• Defrost your conventional freezer when an approximately 3-5 milimeter layer of of frost

or ice has built up on the refrigerated surfaces.

• Make sure the layout of shelves in the compartment is uniform and that the food

is placed so that the air can freely circulate in the appliance interior (observe the

recommended placement of food as described in the instructions).

• In appliances with a fan, do not block the fan slots.

• If you do not need the fan or the ionizer, switch them o to reduce power consumption.

APPLIANCE DESCRIPTION

541752

• Appliance interior equipment may change according to the appliance model.

A Refrigerator

B Freezer

1 Control unit

2 Refrigerator interior lighting

3 Glass shelf (height

adjustable)

4 Drain port

5 Serving tray

6 Fruit and vegetable bin

7 Height-adjustable door bin

8 Bottle bin

9 Condensate tank

INSTALLATION AND CONNECTION

541752

SELECTING THE ROOM

• Install the appliance in a dry and well ventilated room. The appliance will operate correctly

if the environment temperature is in the interval speciﬁed in the table. The appliance class is

indicated on the rating plate / label with the basic information on the appliance.

Class Temperature

SN (subnormal) from +10°C to +32°C

N (normal) from +16°C to +32°C

ST (subtropical) from +16°C to +38°C

T (tropical) from +16°C to +43°C

Warning: Make sure the room where the appliance is installed is large enough. There

should be at least 1 m3of space per 8 grams of refrigerant. Amount of refrigerant is stated

on the rating plate in the appliance interior.

APPLIANCE PLACEMENT

• The appliance has four height-adjustable feet that allow setting the appliance height

between 82 cm and 90 cm.

Set the appliance height before installing it in the opening in the kitchen cabinetry.

Appliance height should be set so that the upper edge of the appliance is just under the

worktop (see Installation Instructions)

• Do not expose the appliance to direct sunlight and do not place it near sources of heat.

If this cannot be avoided, install an insulation panel.

CONNECTING THE APPLIANCE

• Connect the appliance to the power mains using a connection cable. The wall outlet

should be ﬁtted with a ground contact (safety socket). Nominal voltage and frequency

are indicated on the rating plate/label with basic information on the appliance.

• The appliance must be connected to the power mains and grounded in compliance

with the eective standards and regulations. The appliance will withstand short-term

deviations from the nominal voltage, but not more than +/- 6%.

Table des matières

Autres manuels Atag Réfrigérateur

Atag

Atag KS37178B Manuel utilisateur

Atag

Atag KD84178BF Manuel utilisateur

Atag

Atag KD63140B/A01 Manuel utilisateur

Atag

Atag KD80178DN Manuel utilisateur

Atag

Atag KA2411R/A01 Manuel utilisateur

Atag

Atag KA8074K1C Manuel utilisateur

Atag

Atag KA2011LPUU/A01 Manuel utilisateur

Atag

Atag KS23178B Manuel utilisateur

Atag

Atag KS23178A Manuel utilisateur

Atag

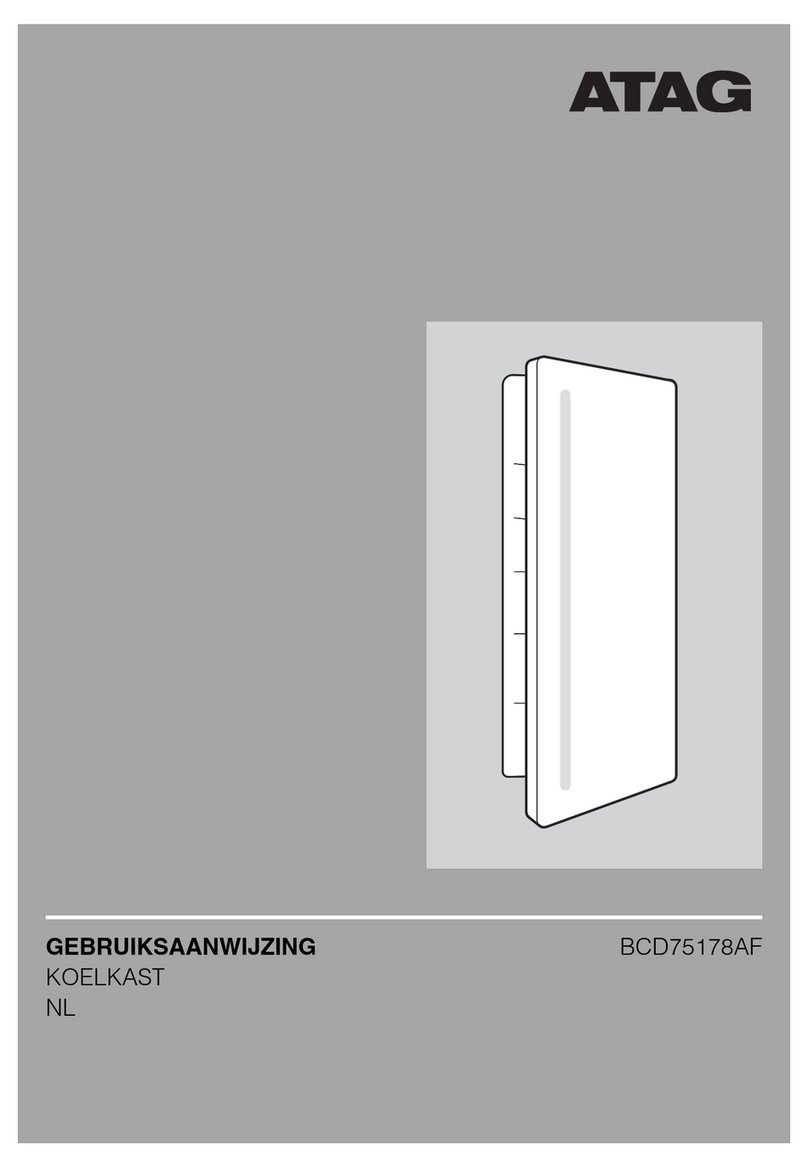

Atag BCD75178AF Manuel utilisateur
