Asus VW202B Manuel utilisateur

English

VW202xR/VW202B

LCD Monitor

Quick start guide

2 Quick start guide

English

Safety information

• Before setting up the monitor, carefully read all the documentation that came

with the package.

• To prevent fire or shock hazard, never expose the monitor to rain or moisture.

• The monitor should be operated only from the type of power source indicated

on the label. If you are not sure of the type of power supplied to your home,

consult your dealer or local power company.

• Use the appropriate power plug which complies with your local power standard.

• To ensure satisfactory operation, use the monitor only with UL listed computers

which have appropriate configured receptacles marked between 100-240V AC.

• If you encounter technical problems with the monitor, contact a qualified service

technician or your retailer.

Monitor introduction

Front view Rear view

1. SPLENDID™ mode hotkey

2. Decrease button/Volume hotkey

3. MENU button

4. Increase button/Brightness hotkey

5. Power button

1. Audio-in port

2. AC-in port

3. DVI port / USB port (VW202B only)

4. VGA port

Base

1 2 3 4 5 12 3 4

Stereo

speakers

2 3 4

VW202xR

VW202B

3Quick start guide

English

Connecting the cables

Assembling the monitor base

To assemble the monitor base:

1. Have the front of the monitor face down on a table.

2. Connect the base with the arm according to the below drawing. A click shows

that the base has been connected successfully.

We recommend that you cover the table surface with soft cloth to prevent

damage to the monitor.

1. Connect the cables as the following instructions:

• To connect the power cord: connect one end of the power cord securely to

the monitor’s AC input port, the other end to a power outlet.

• To connect the USB cable (VW202B only): connect the B-type end of the

USB cable to the monitor's USB port, and the A-type end to the computer's

USB 2.0 port.

• To connect the VGA cable / DVI cable:

a. Plug the VGA / DVI connector to the LCD monitor’s VGA / DVI port.

b. Connect the other end of the VGA / DVI cable to your computer’s VGA /

DVI port.

c. Tighten the two screws to secure the VGA / DVI connector.

When both the VGA and the DVI cables are connected, you can choose either

VGA mode or DVI mode from the Input Select item of the OSD functions.

• To connect the audio cable: connect one end of the audio cable to the

monitor’s Audio-in port, the other end to the computer's audio-out port.

(B-Type)

2.0

VW202B

VW202xR

4 Quick start guide

English

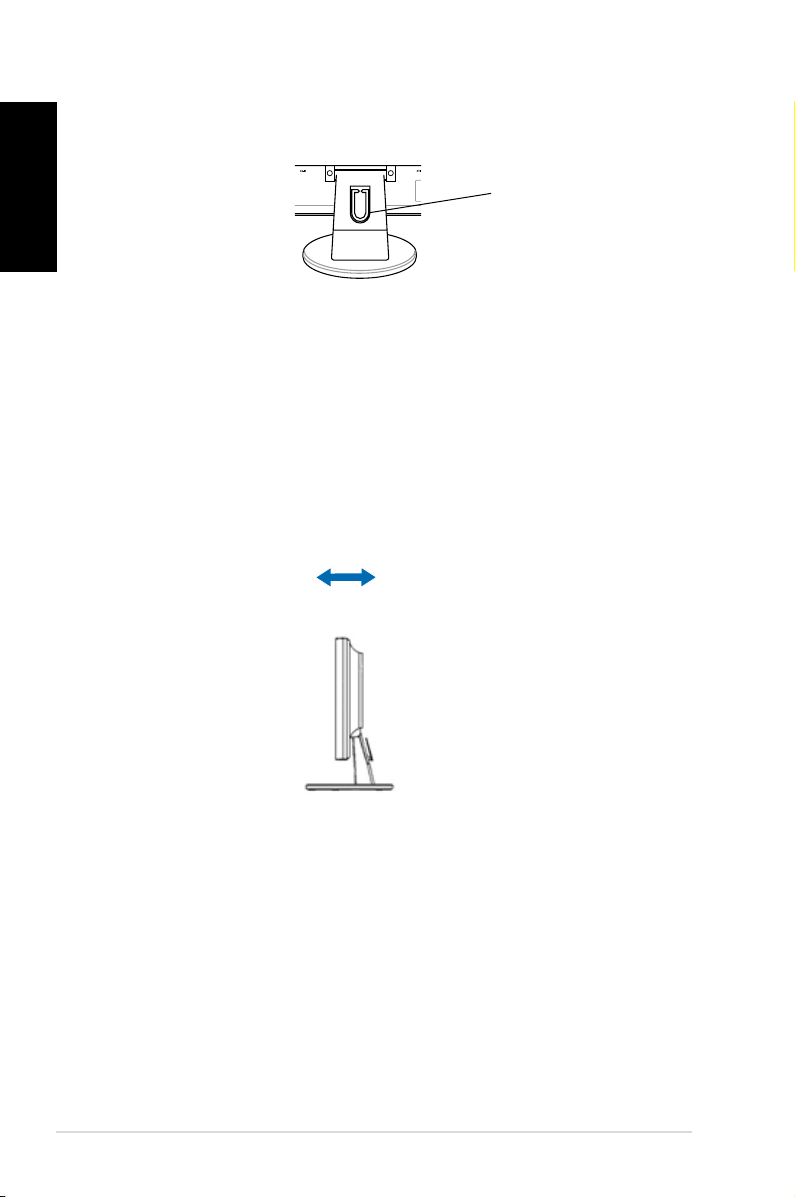

Adjusting the monitor

• For optimal viewing, we recommend that you look at the full face of the monitor,

then adjust the monitor to the angle that is most comfortable for you.

• Hold the stand to prevent the monitor from falling when you change its angle.

• You can adjust the monitor’s angle from -3° to 20°.

-3º–20º

2. Gather all the cables with the cable hook.

Cable hook

5Quick start guide

English

ASUS EzLink Display (VW202B only)

ASUS VW202B provides the easy-to-use EzLink Display that allows you to transfer

digital video signal from your PC to your LCD via a standard USB 2.0 cable.

Without the necessity of purchasing additional graphics cards, EzLink Display

provides the flexibility for multi-screen applications.

Installing ASUS EzLink Display:

1. Close all other applications.

2. Insert the support CD into the optical drive and select the EzLink Driver.

3. Select the language of the software end user licence agreement and click I

Accept.

4. The software installation starts. When finished, click Yes to restart the

computer.

• Refer to www.asus.com for details about ASUS EzLink Display.

• ASUS EzLink Display supports 32-bit Windows®OS environment only. No

image will be displayed under computer POST, motherboard BIOS, or DOS

environment.

• ASUS EzLink Display supports 16-bit and 32-bit desktop color depth only.

• We recommend that you use the following media players for the optimum

video playback quality:

1. Windows Media Player 11

(www.microsoft.com/windows/windowsmedia/default.mspx)

2. WinDVD 8 (www.intervideo.com)

3. RealPlayer 11 (www.real.com)

• Your system might encounter low performance or stop responding when

running 3D applications or screensaver with ASUS EzLink Display. We

recommend that you run 3D applications on a monitor connected to a

discrete graphics card instead.

System requirements

Before you install the ASUS EzLink Display software, check if your system meets

the following requirements:

Supporting operating system:

• Windows 2000 SP4

• Windows XP SP2/SP3

• Windows Vista

Hardware:

• PC with 1.2 GHz or higher

• 512MB of RAM or higher

• USB 2.0 port

• 30MB of available disk space

• Super VGA (800 x 600) video

adaptor or higher resolution

• USB cable A-type to B-type

6 Quick start guide

English

Using ASUS EzLink Display:

Right-click the EzLink system tray icon to show the EzLink software menu.

Check and congure software update

options

Fast-switch supported screen

resolutions (Recommended: 1680x1050)

Sets the color depth between 16 bit and

32 bit (Recommended: 32 bit)

Sets the direction of screen rotation

Sets the location of the extended desktop

Enables desktop extension

Mirrors the content of the primary

desktop to the extended desktop

Turn off the mirror/extended display

Launches the Windows®Display

Settings tool

3. ASUS EzLink Display (USB_XXXX-XXXXXXXXXXXX)

7Quick start guide

English

Troubleshooting (FAQ)

Problem Possible Solution

Power LED is not ON • Press the button to check if the monitor

is in the ON mode.

• Check if the power cord is properly

connected to the monitor and the power

outlet.

The power LED lights amber and there is no

screen image

• Check if the monitor and the computer are

in the ON mode.

• Make sure the signal cable is properly

connected the monitor and the computer.

• Inspect the signal cable and make sure

none of the pins are bent.

• Connect the computer with another

available monitor to check if the computer

is properly working.

Screen image is too light or dark • Adjust the Contrast and Brightness

settings via OSD.

Screen image is not centered or sized

properly

• Press the button for two seconds to

automatically adjust the image.

• Adjust the H-Position or V-Position

settings

via OSD.

Screen image bounces or a wave pattern is

present in the image

• Make sure the signal cable is properly

connected to the monitor and the

computer.

• Move electrical devices that may cause

electrical interference.

Screen image has color defects (white does

not look white)

• Inspect the signal cable and make sure

that none of the pins are bent.

• Perform Reset via OSD.

• Adjust the R/G/B color settings or select

the Color Temperature via OSD.

Screen image is blurry or fuzzy • Press the button for two seconds to

automatically adjust the image (for VGA

mode only).

• Adjust the Phase and Clock settings via

OSD.

No sound or sound is low • Ensure that the audio cable is properly

connected to the monitor and the

computer.

• Adjust the volume settings of both your

monitor and computer.

• Ensure that the computer sound card

driver is properly installed and activated.

8 Quick start guide

English

Supported operating modes

* Modes not listed in the table may not be supported. For optimal resolution, we recommend that

you choose a mode listed in the table above.

Standard Resolution

Frequency

Horizontal

Frequency

Vertical

Frequency

Pixel

DOS 720 x 400 31.47KHz 70Hz 28.32MHz

VGA 640 x 480 31.47KHz 60Hz 25.18MHz

640 x 480 37.90KHz 72Hz 31.50MHz

640 x 480 37.50KHz 75Hz 31.50MHz

SVGA 800 x 600 35.16KHz 56Hz 36.00MHz

800 x 600 37.90KHz 60Hz 40.00MHz

800 x 600 48.10KHz 72Hz 50.00MHz

800 x 600 46.90KHz 75Hz 49.50MHz

XGA 1024 x 768 48.40KHz 60Hz 65.00MHz

1024 x 768 56.50KHz 70Hz 75.00MHz

1024 x 768 60.02KHz 75Hz 78.75MHz

SXGA 1280 x 960 60.00KHz 60Hz 108.00MHz

1280 x 1024 64.00KHz 60Hz 108.00MHz

1280 x 1024 80.00KHz 75Hz 135.00MHz

VESA 1152 x 864 67.50KHz 75Hz 108.00MHz

1440 x 900 55.94KHz 60Hz 106.5MHz

UXGA 1600 x 1200 75.00KHz 60Hz 162.00MHz

VESA (Primary) 1680 x 1050 65.29KHz 60Hz 146.25MHz
