Asus W5F Instructions d'installation

Disassembly Procedure

2 - 1

Disassembly Procedure

Please follow the information provided in this section to perform the complete

disassembly procedure of the notebook. Be sure to use proper tools

described before.

SUS W5F Series Notebook consists of various modules. This chapter describes the

procedures for the complete notebook disassembly. In addition, in between procedures,

the detailed disassembly procedure of individual modules will be provided for your

service needs.

The disassembly procedure consists of the following steps:

•Battery Module

•HDD Module

•Second Memory Module

•CPU Module

•Optical Drive Module

•Keyboard Module

•First Memory Module

•LCD Module

•Top Case Module

•Motherboard Module

•Mini PCI Module

Chapter

Disassembly Procedure

2 - 2

Battery Module

The illustration below shows how to remove the battery module.

1. Press latch to open the battery module, then lift battery module away from the

system.

HDD Module

The illustrations below show how to remove the HDD module from the notebook.

Removing HDD Module

1. Remove 2 screws (M2*5L(K)), then remove the HDD door.

2. Remove 1 screw (M2*12L(K)), lift the hard disk module and take away the hard

disk module

BATTERY

HDD

MODULE

HDD

MODULE

REMOVAL

M2*5L

Disassembly Procedure

2 - 3

Memory Module

The W5F Series Notebook have onboard RAM. There is one SO-DIMM sockets for

installing SO-DIMM RAM. It can upgrade the total memory size up to 1GB with a

512MB module on each socket.

Removing Memory module

1. Remove 2 screws (M2*4L(K)), then remove the Memory cover.

2. Pop the module up to a 45°angles, and then pulling out the module in that angle.

SECOND

MEMORY

MODULE

MEMORY

REMOVAL

M2*4L

Disassembly Procedure

2 - 4

CPU Module

The illustrations below show how to remove the CPU module from the notebook.

Removing CPU Module

1. Remove 3 screws (M2*4L(K)), then remove the back cover.

2. Remove 4 screws (M2*4L(K)) and disconnect the FAN connector and then take

away the Fan Module.

3. Turn the non-removable screw here 180 degrees counter-clockwise to loosen the

CPU and take the CPU away

Note: If thermal module has no thermal pad on it, please plus a thermal pad

on the CPU die before assembling.

CPU MODULE

REMOVAL

CPU

REMOVAL

M2*4L

Disassembly Procedure

2 - 5

Optical Drive Module

Remove 3 screws and use tweezers to put the Optical Drive Module out.

Keyboard Module

The illustration of below shows how to remove the keyboard

Removing Keyboard Cover

1. Unlock 3 keyboard latches then pull out the keyboard forward and lay the keyboard

on the front side then disconnect the FPC.

KEYBOARD

K/B COVER

REMOVAL

OPTICAL

DRIVE

REMOVAL

M2*4L

Disassembly Procedure

2 - 6

Top Case Module

Removing Top Case Module

1. Disconnect all FPC and 2 screws on the top case.

2. Take away the both hinge cover.

3. Remove 17 screws (M2*6L(K)) on bottom case.

M2*6L

TOP CASE

MODULE

REMOVAL

Disassembly Procedure

2 - 7

4. Remove 2 Antenna cables from Wireless LAN Module and organize tables.

5. Separate the Bottom Case from the Top Case module.

Removing Top Case Module

6. Remove 2 screws (M2*5L(K)) from the both hinge.

M2*5L

TOP CASE

MODULE

REMOVE

Disassembly Procedure

2 - 8

7. Separate the top case from the LCD module.

8. Remove 2 screws (M2*3.5L(K)) and take away the LID board.

9. Remove 2 screws (M2*3.5L(K)) and take away the Power board.

M2*3.5L

Disassembly Procedure

2 - 9

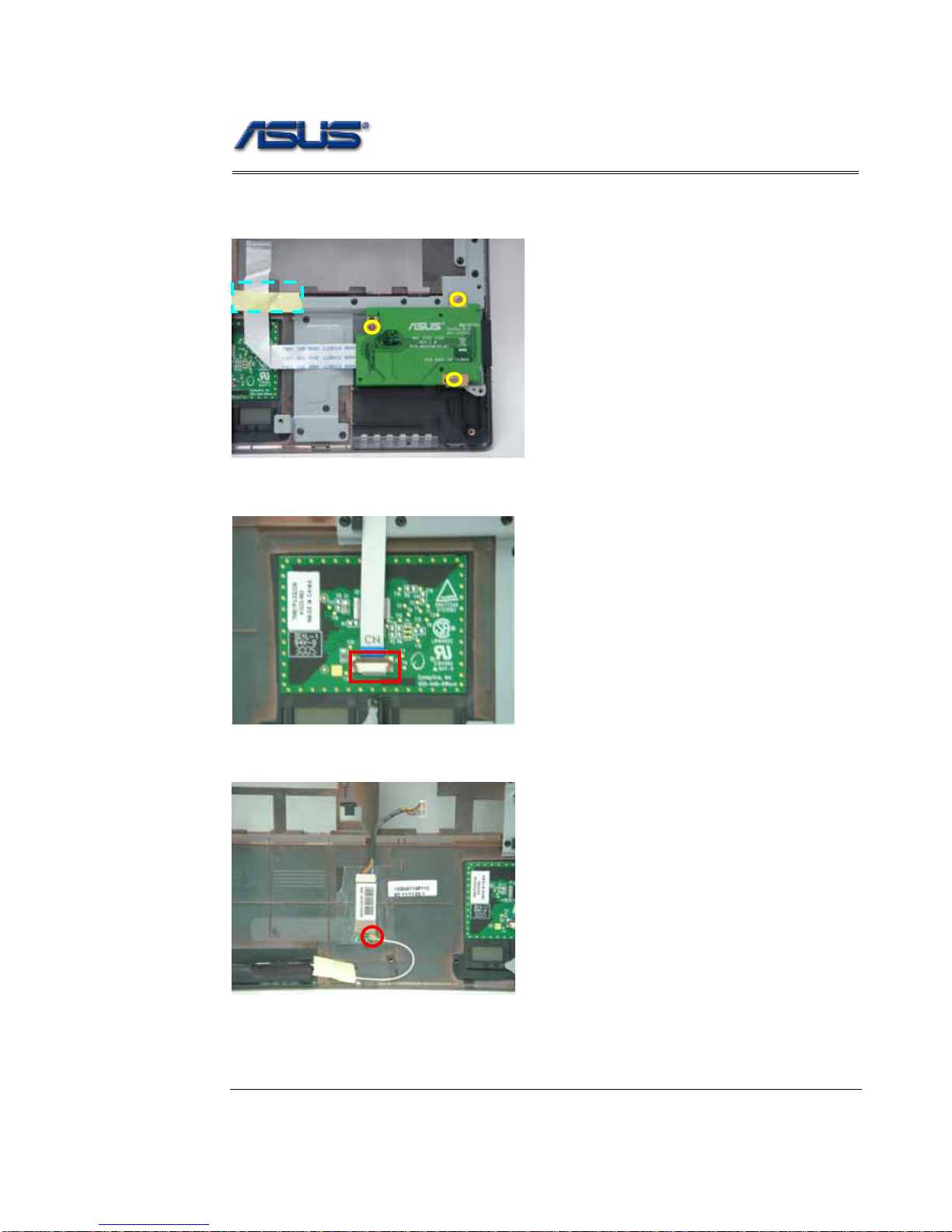

10. Remove 3 screws (M2*3L(K)) & 1 piece of tape then take away the Card reader

module.

11. Disconnect the FPC on the Touchpad and take it away.

12. Disconnect the Bluetooth antenna and take the Bluetooth module away.

M2*3L

Disassembly Procedure

2 - 10

LCD Module

The illustrations below show how to remove and disassemble the LCD module. The

module contains LCD panel, Inverter board, LCD Hinge bracket, Hinge cover, LCD

front cover, LCD back cover

Removing LCD Module

1. Remove 6 rubber pads and 6 screws (M2.5 x 4L) from LCD module.

2. Prying the inside edges of the top front bezel, then separate it from LCD back

cover and take LCD front bezel away.

3. Disconnect the cable and remove 1 screw then take away Inverter board and

disconnect the LCD cable.

LCD

MODULE

LCD

REMOVAL

M2.5*4L
