disassembly procedure
W3A
3 - 1
Disassembly Procedure
Please follow the information provided in this section to perform the complete
disassembly procedure of the notebook. Be sure to use proper tools
described before.
SUS W3000A Series Notebook consists of various modules. This chapter describes the
procedures for the complete notebook disassembly. In addition, in between procedures, the
detailed disassembly procedure of individual modules will be provided for your service needs.
The disassembly procedure consists of the following steps:
•Battery Module
•HDD Module
•Optical Drive Module
•CPU Module
•Second Memory Module
•Mini PCI Module
•Keyboard Module
•First Memory Module
•LCD Module
•Top Case Module
•Motherboard Module
Chapter
3
A
disassembly procedure
W3A
3 - 2
Battery Module

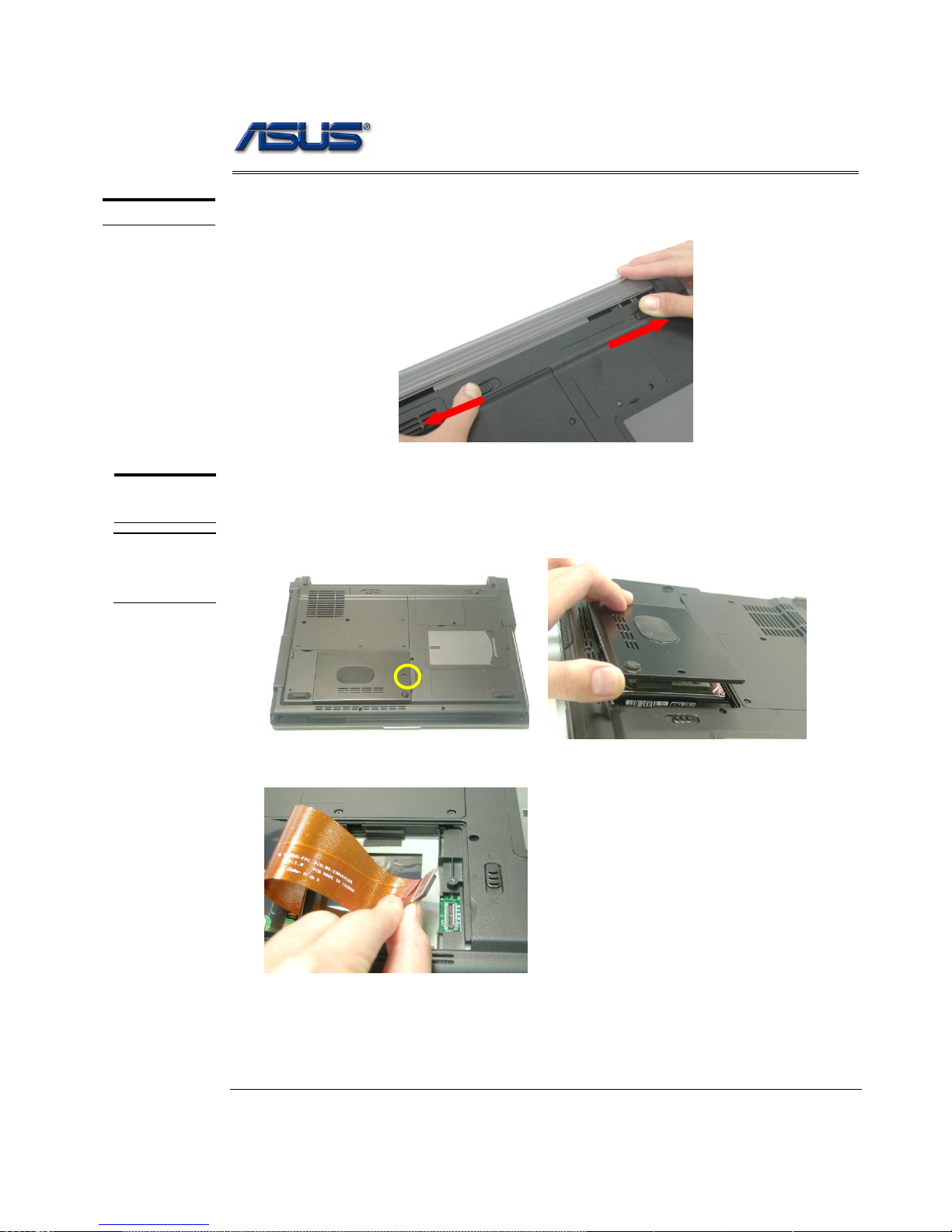

The illustration below shows how to remove the battery module.
1. Press latch to open the battery module, then lift battery module away from the system.
HDD Module
The illustrations below show how to remove the HDD module from the notebook.
Removing HDD Module
1. Remove 1 screw (M2*4L(K)), then remove the HDD door.
2. Lift the hard disk module and disconnect the FPC then take away the hard disk module.
BATTERY
HDD
MODULE
HDD
MODULE
REMOVAL
M2*4L
disassembly procedure
W3A
3 - 3
Optical Drive Module
Press latch here then pull it out.
CPU Module
The illustrations below show how to remove the CPU module from the notebook.
Removing CPU
1. Remove 6 screws(M2*4L(K)) and take the Fan bracket away.
2. Disconnect the FAN connector and remove 2 screws(M2*4L(K)) then take away the Fan Module.
OPTICAL
DRIVE
REMOVAL
CPU MODULE
REMOVAL
CPU
REMOVAL
M2*4L
disassembly procedure
W3A
3 - 4
3. Remove the 4 screws (M2*4L(K)) upon the thermal module and take away the CPU heat sink
module gently
4. Turn the non-removable screw here 180 degrees counter-clockwise to loosen the CPU and take the
CPU away
Note: If thermal module has no thermal pad on it, please plus a thermal pad on the CPU die
before assembling.
disassembly procedure
W3A
3 - 5
Second Memory Module
The W3000A Series Notebook does not have onboard RAM. There are two SO-DIMM sockets for
installing SO-DIMM RAM. It can upgrade the total memory size up to 2GB with a 1GB module on each
socket.

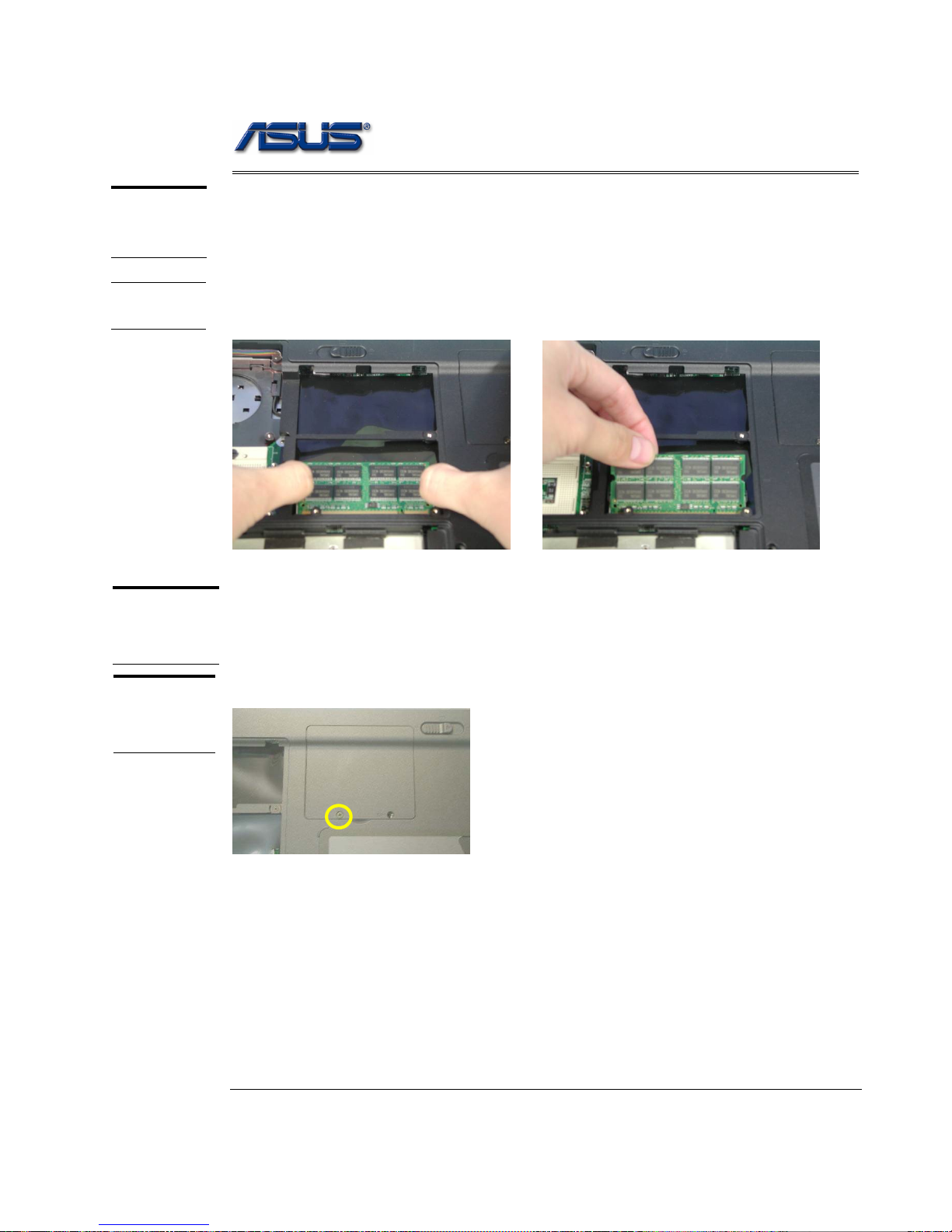

Removing Memory module
1. Pull 2 latches
2. Pop the module up to a 45°angles, and then pulling out the module in that angle.
Wireless LAN Module
This slot usually has Wireless LAN module when leaving the factory, this slot is for optional system
upgrade.

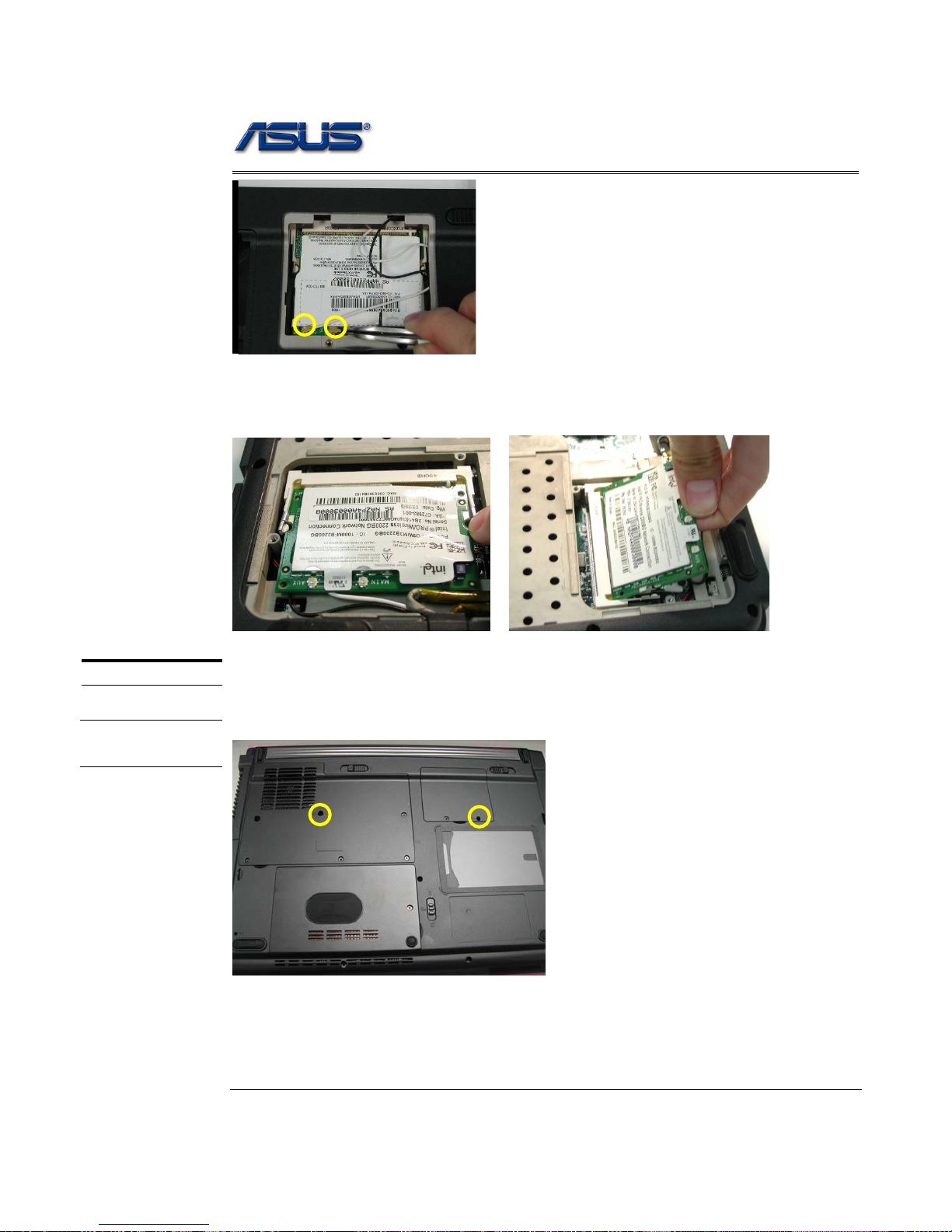

Removing Wireless LAN Module
1. Remove 1 screw (M2*4L(K)), then take the mini-PCI cover off.
2. Remove 2 Antenna cables from Wireless LAN Module
W
IRELESS
LAN
MODULE
W
IRELESS
LAN
REMOVAL
SECOND
MEMORY
MODULE
MEMORY
REMOVAL
disassembly procedure
W3A
3 - 6
3. Remove the Wireless LAN module by opening the 2 latches aside, which will pop
the module up to an angle of 30°, then pull out the module in that angle just like
memory module.
Keyboard Module
The illustration of below shows how to remove the keyboard
Removing Keyboard and Keyboard Cover
1. Remove 2 screws (M2*4L(K))
2. Unlock 3 keyboard latches then pull out the keyboard forward and lay the keyboard on the front side
then disconnect the FPC.
KEYBOARD
K/B COVER
REMOVAL
disassembly procedure
W3A
3 - 7
First Memory Module
1. The first memory module is under keyboard. Push the memory cover to the left side and lift the
memory cover and open the two latches to pop up memory module at 45 degrees angle then pull it
out.
LCD Module
The illustrations below show how to remove and disassemble the LCD module. The module contains
LCD panel, Inverter board, LCD Hinge bracket, Hinge cover, LCD front cover, LCD back cover
1. Remove 2 screws(M2*4L(K)) and FPC on top case and take away the Keyboard Cover.
2. Remove Coaxial cable and inverter cable
FIRST
MEMORY
MODULE
REMOVAL
LCD
MODULE
disassembly procedure
W3A
3 - 8

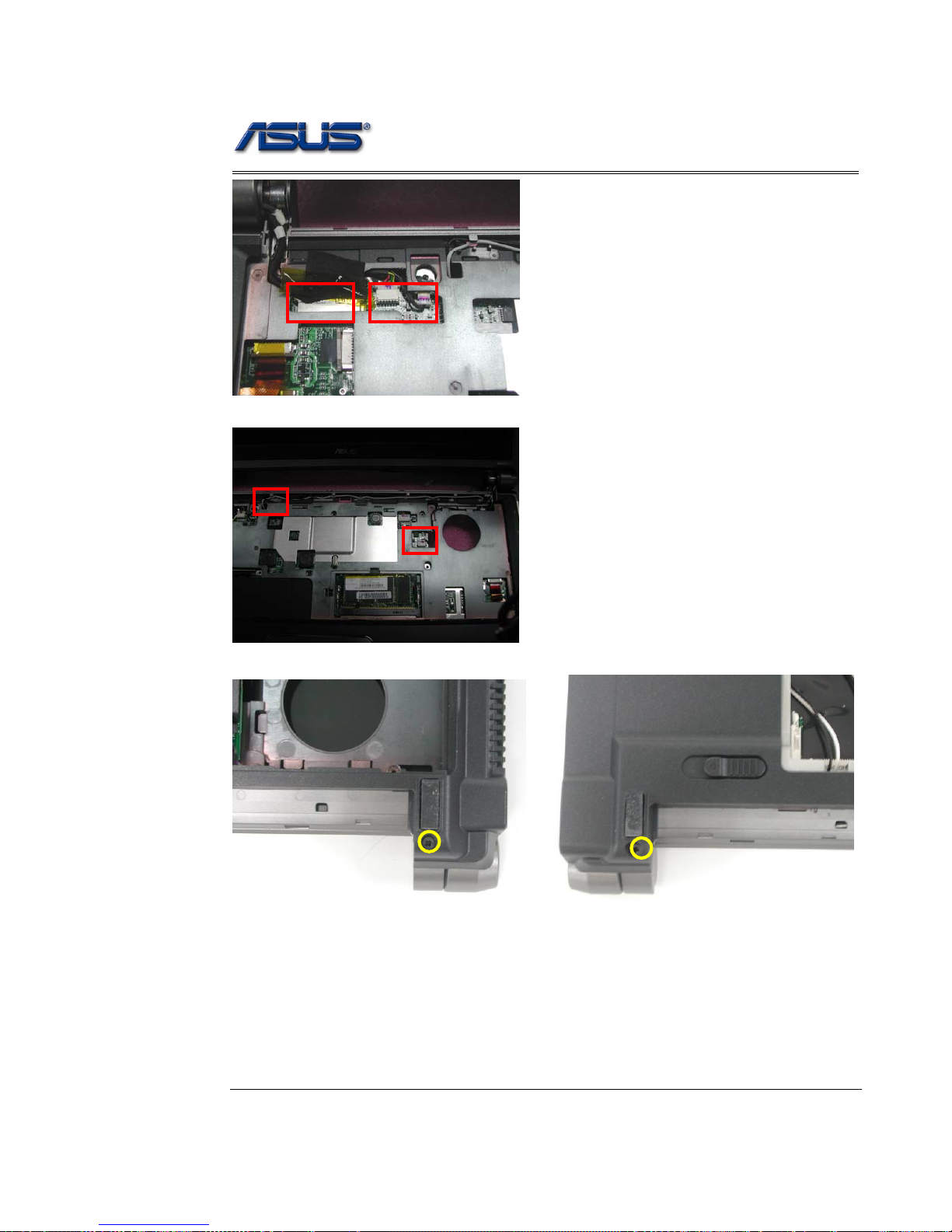

3. Remove Antenna and switch cable.
4. Remove 2 screws(M2*8L(K)) on bottom case
5. Remove 2 screws(M2*8L(K)) on both ends
M2*8L
disassembly procedure
W3A
3 - 9

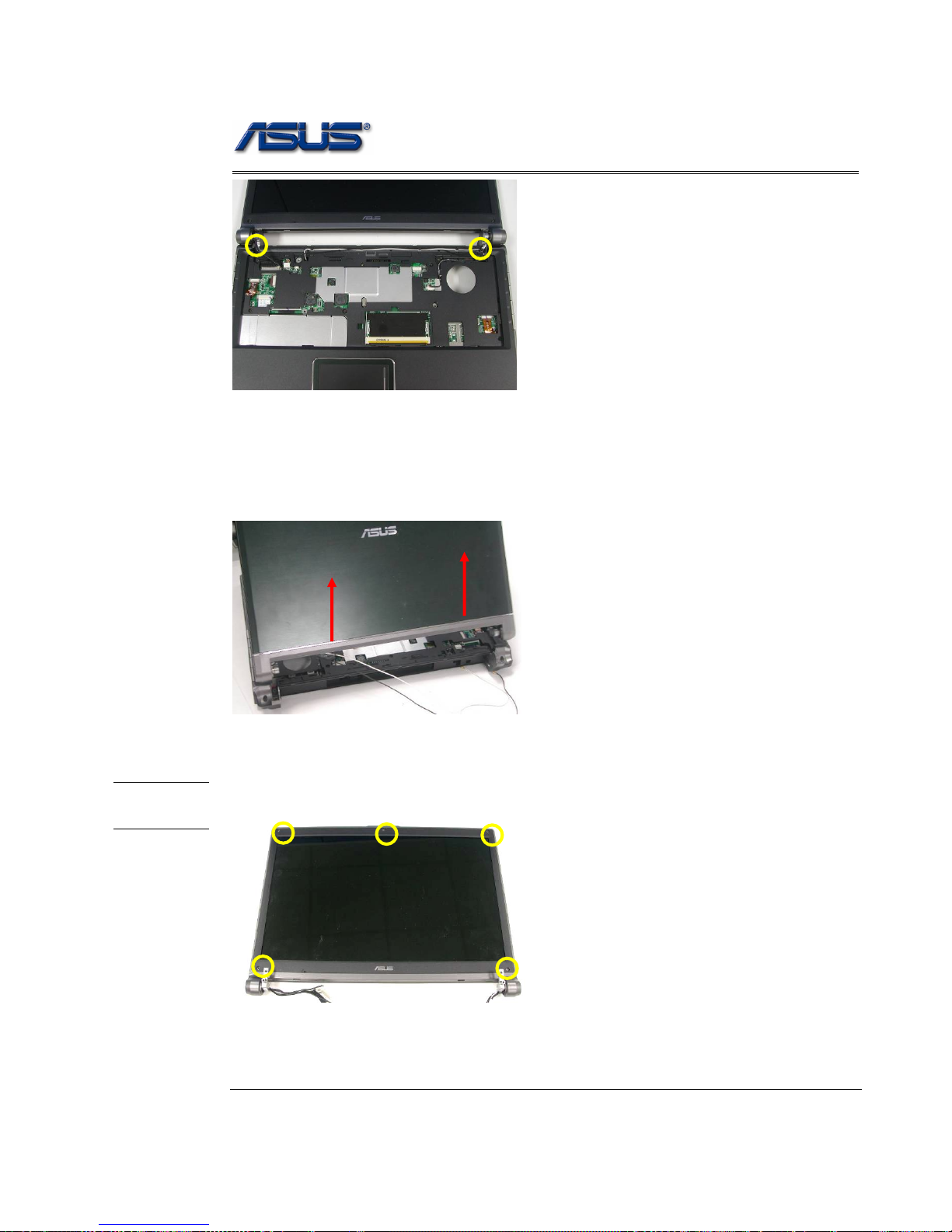

6. Take away the LCD Module
Removing LCD Module
1. Remove 5 rubber pads and 5 screws(M2 x 4L) from LCD module.
2. Prying the inside edges of the top front bezel, then separate it from LCD back cover and take
LCD
REMOVAL
M2*8L
disassembly procedure
W3A
3 - 10

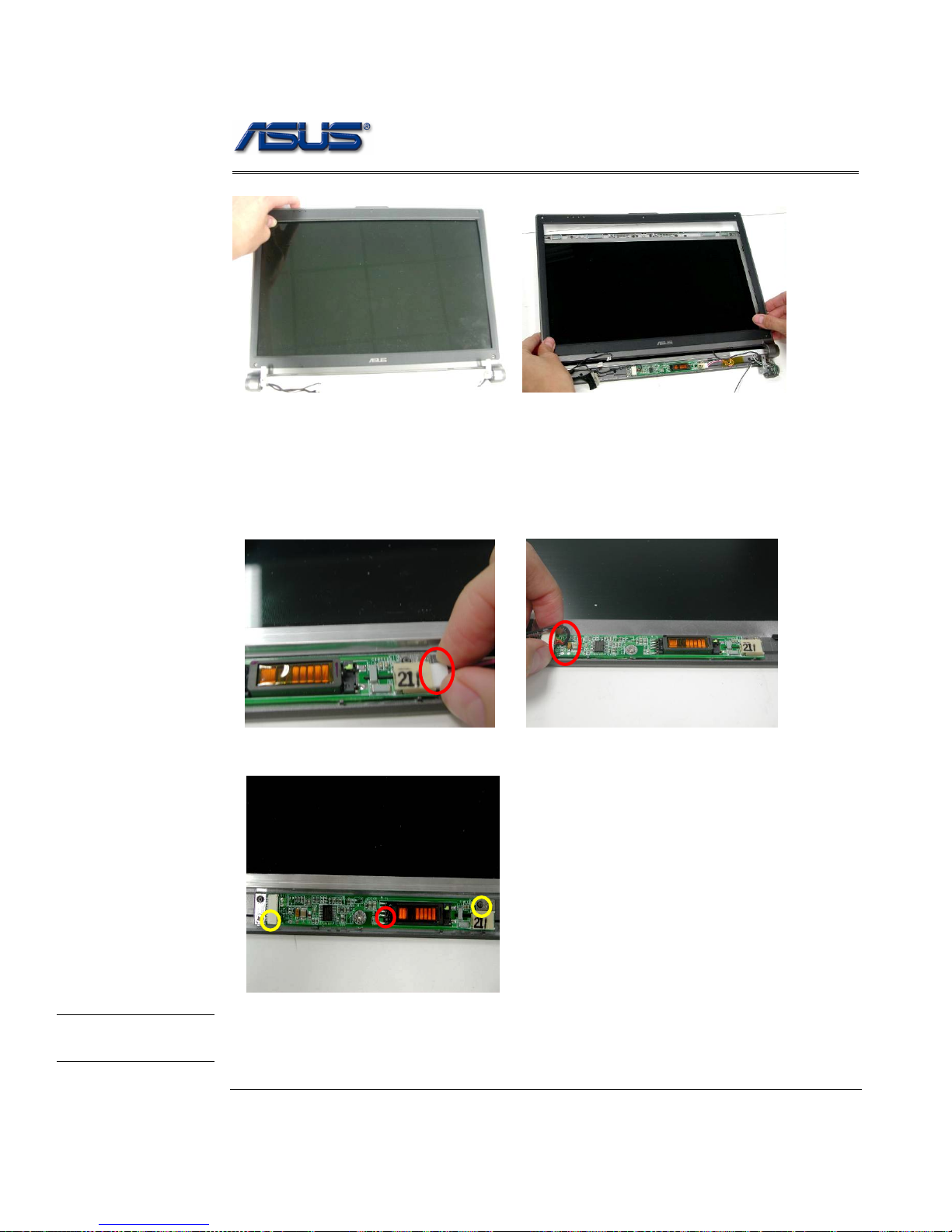

LCD front bezel away.
3. Disconnect both inverter cable.
4. Remove 1 screws (M2*4L(K)) and 2 screws (M2*3L(K)) take Inverter board off.
5. Remove 8 screws(M2*4L(K)) and take the LCD panel off .
LCD
DISASSEMBLY
