DISASSEMBLY PROCEDURE Chapter
3
Disassembly Procedure
Please follow the information provided in this section to perform the complete
disassembly procedure of the notebook. Be sure to use proper tools
described before.
A
SUS M6000 Series Notebook consists of various modules. This chapter describes the
procedures for the complete notebook disassembly. In addition, in between procedures,
the detailed disassembly procedure of individual modules will be provided for your
service needs.
The disassembly procedure consists of the following steps:
• Battery Module
• Optical Drive Module
• HDD Module
• Second Memory Module
• CPU Module
• Keyboard Module
• First Memory Module
• Mini PCI Module
• LCD Module
• Top Case Module
• Motherboard Module
• Bottom Case Module
3 - 1
DISASSEMBLY PROCEDURE
Battery Module
BATTERY
The illustration below shows how to remove the battery module.
1. Press latch to open the battery module, then lift battery module away from the system.
HDD Module
The illustrations below show how to remove the HDD module from the notebook.
Removing HDD Module
Remove 2 screws(M2*6L(K)), then remove the HDD cover and pull the hard disk module toward
the direction of the arrow and lift it up and take it out.
Second Memory Module
The M6000 Series Notebook do not have onboard RAM. There are two SO-DIMM
sockets for installing SO-DIMM RAM. It can upgrade the total memory size up to 2GB
with a 1GB module on each socket.
Removing Memory module
1. Remove 2 screws(M2*3L(K) ) , then take the memory DIMM cover away.
HDD MODULE
HDD MODULE
REMOVAL
SECOND
MEMORY
MODULE
MEMORY
REMOVAL
M2*6L
3 - 2
DISASSEMBLY PROCEDURE
M2*3L
Optical Drive Module
OPTICAL
DRIVE
REMOVAL
Press latch here then pull it out.
Keyboard Module
The illustration of below shows how to remove the keyboard
Removing Keyboard Cover
1. Remove 2 screws (M2.5*6L(K)) on the bottom case.
KEYBOARD
DISASSEMBLY
K/B COVER
REMOVAL
M2.5*6L
3 - 3
DISASSEMBLY PROCEDURE
2. Unlock 3 keyboard latches then pull out the keyboard forward and lay the keyboard on the
front side .
3. Remove 2 screws on the keyboard cover , then use tweezers to disconnect the keyboard two
covers and lift it up.
M2*3L
4. Loosen the switch board cable and take the keyboard cover away , then remove the switch cable
5. Remove 7 screws and take the switch board away.
3 - 4
DISASSEMBLY PROCEDURE
M2*3L
CPU Module
CPU MODULE
REMOVAL The illustrations below show how to remove the CPU module from the notebook.
Removing CPU
CPU
REMOVAL 1. Take the Fan bracket away then remove 4 screws (M2*6L(K)).
M2*6L
2. Remove Thermal module and open the CPU Socket’s latch to loosen the CPU.(The use the
CPU vacuum hand pump to “suck up” the CPU and lift the CPU away.)
3 - 5
DISASSEMBLY PROCEDURE
First Memory Module
FIRST
MEMORY
MODULE
REMOVAL
The first memory module is under keyboard. Open the two latches to pop up memory module at
45 degrees angle then pull it out .
Mini PCI Module
WIRELESS
LAN MODULE
This slot usually has Wireless LAN module when leaving the factory, this slot is for
optional system upgrade.
Removing Wireless LAN Module
WIRELESS
LAN
REMOVAL
1. Remove 1 screw(M2*3L(K)), then take the mini-PCI cover off.
M2*3L
2. Disconnect 2 antenna cables, then open two latches to pop up wireless LAN module at 45
degrees angle and pull it out.
3 - 6
DISASSEMBLY PROCEDURE
LCD Module
LCD
MODULE The illustrations below show how to remove and disassemble the LCD module. The
module contains LCD panel, Inverter board, LCD Hinge bracket, Hinge cover, LCD
front cover, LCD back cover
Removing LCD Module
LCD REMOVAL
1. Disconnect LCD coaxial cable and Inverter cable , then detach the left hinge cover and the right
hinge cover.
2. Remove 2 screws (M2.5*6L(K)) at bottom case.
M2.5
*
6L
L
M2.5*6L
3. Remove 2 pads and 2 screws (M2*3L(K)) at rear side.
M2*3L M2*3L
3 - 7
DISASSEMBLY PROCEDURE

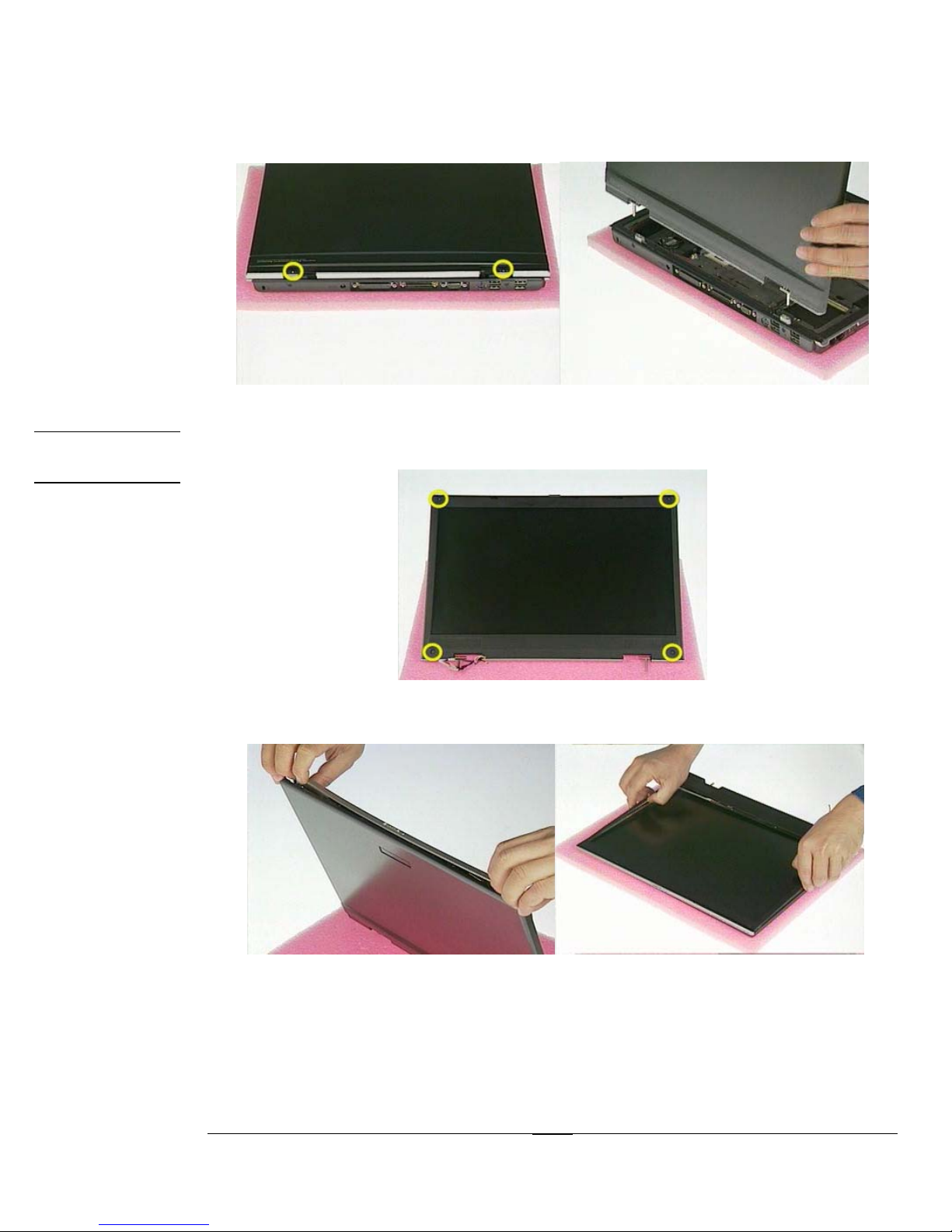

4. Remove 2 screws(M2.5*6L(K)) at top side, then lift the LCD module away from the system.
M2.5*6L
Disassembling LCD Module
LCD
DISASSEMBLY
1. Remove 4 rubber pads and 4 screws(M2.5*6L(K)) from LCD module.
M2.5*6L
2. Prying the inside edges of the top front bezel, then separate it from LCD back cover and
take LCD front bezel away.
3. Remove 1tape and the other tape here.
3 - 8
DISASSEMBLY PROCEDURE

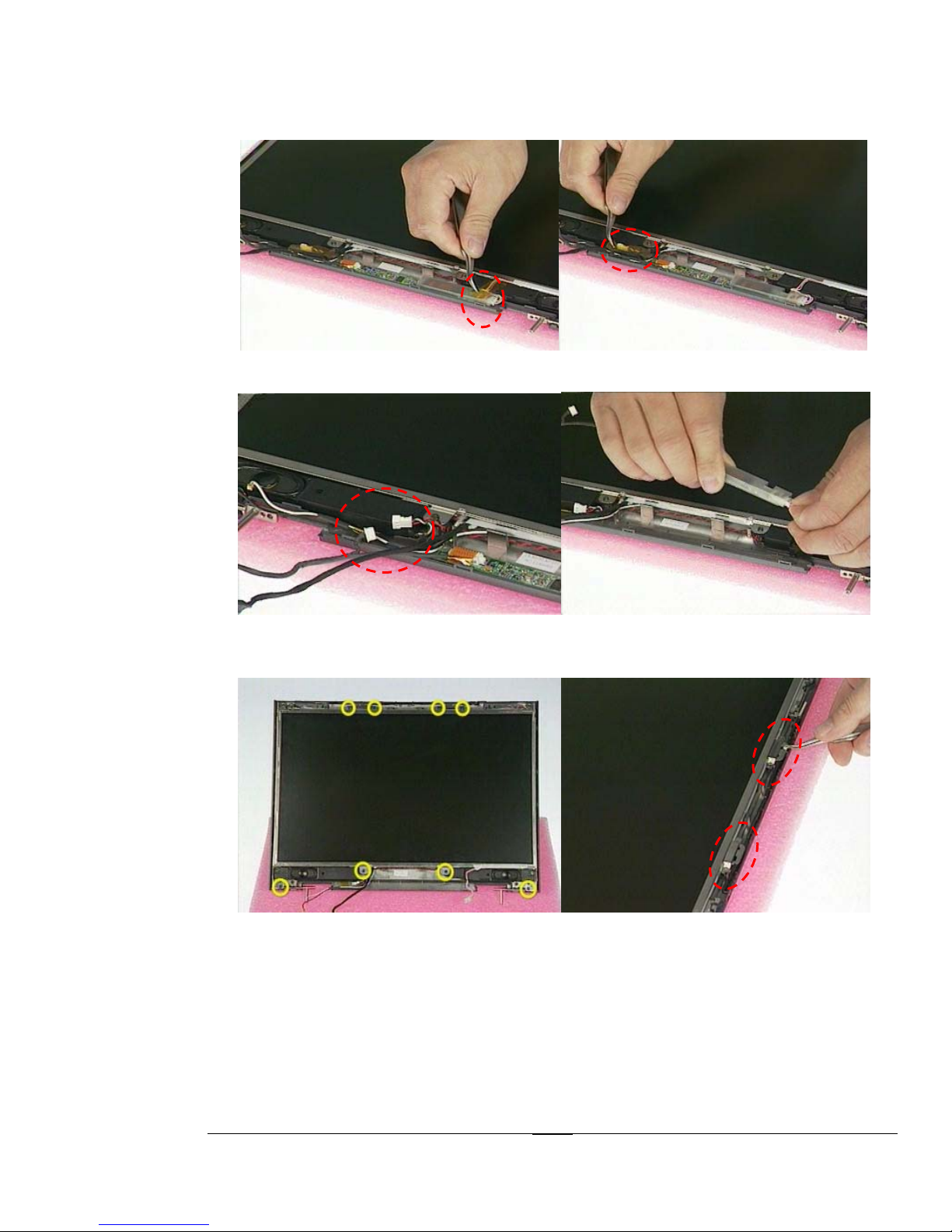

4. Disconnect the speaker cable and LCD cable then take Inverter board off.
5. Remove 8 screws (M2*3L(K) x 4 ,(M2*6L(K) x2 ,(M2.5*4L(K) x 2) and 2 fixed
slices off , then take the LCD Bracket away.
M2.5*4L
6. Remove 7 tapes、2 screws and 2 screws(M2*3L(K)) on the other side.
3 - 9
DISASSEMBLY PROCEDURE
M2*3L
7. Detach the right & left antenna and its cable.
8. Reomve the speaker cable, then remove 1screw(M2*3L(K)) and 1 screw on the other
side.Then take two speaker s away
TOP CASE
MODULE
M2*3L
s
p
eaker
9. Detach the LCD hooker and spring then take it away.
3 - 10
