Asus FX505DY Series Manuel utilisateur

Disassembly Procedure

V1.0

2 - 1

Rev.

Change History

Change Time

Originator

V1.0

First Release

2019/1/17

Susan_Tsai

V2.0

Add MB ABSORBER/FX505DY RX560 GPU ABSORBER

2019/1/18

Susan_Tsai

V2.1

P11: Add SSD ABSORBER/SSD AL FOIL.

P15: Add MB TOP CU FOIL.

P22: Add MB TOP ABSORBER/MB TOP SSD ABSORBER.

P23: Add MB Thermal KAPTON/MB GPU KAPTON.

P26: Add KB TOP CU WASHER.

2019/1/17

Stephanie

V2.2

P12: Add FX505DY WLAN INDICATOR

2019/4/16

Stephanie

Disassembly Procedure

Please follow the information provided in this section to perform the complete disassembly procedure of the

Notebook. Be sure to use proper tools described before.

SUS FX505DY series notebook consists of various modules. This chapter describes the procedure for the

complete notebook disassembly and assembly (Assemble document please look up from the last page).

In addition, in between procedures, the detailed disassembly procedure of individual modules will be

provided for your service needs.

The disassembly procedure consists of the following steps:

Service overview

Appropriate Tools

Bottom case Module

Battery Module

HDD

SSD

WLAN Module

Memory Module

Thermal and Fan Module

Main Board

LED Board

Topcase Module

LCD Module

Gap Step

Disassembly Procedure

V1.0

2 - 2

Service Overview

Please pay special attention to the cautions below to prevent any damages to the notebook and also please be

sure to select the appropriate tools described in this section to perform any services desired.

Precautions

Before you perform any service and or repair on the notebook, please follow the steps below first.

1. Be sure that the notebook is powered down.

2. Disconnect the AC plug from the notebook.

3. Remove all rings, watches and any other metal objects from your hands.

4. Always wear a ground strap on your hand to protect the notebook from static discharge.

5. Please refer to “ANSI ESD S20.20”about ESD protection measure.

6. Put disassemble the parts in the functional PE BAG for avoid any damages of the A/B/C/D part.

7. Environment temperature is 20-30 ℃and humidity is 40% - 70%.

8. Avoid scratching the surface of the machine, please use anti-static and soft materials to put on desk in

repair environment as below photo.

9. Screw Appearance Criteria.

Disassembly Procedure

V1.0

2 - 3

If the screws have the following damaged appearance, please do not use.

a. Shape deformed

b. Paint scratched off

c. Rusty

d. Damaged head –unable to drive in

e. Damaged unable to securely tighten

BACK

Disassembly Procedure

V1.0

2 - 4

Appropriate Tools

The illustrations below show the appropriate tools that should be used for the notebook’s service and repair.

Cross Screwdriver

Please according to different screw specification and choose different screwdriver and head.

Below photos are for reference only.

Use a cross screwdriver to fasten/remove screws.

Plastic Blade (PN: 20LT0-0005O000)

Tweezers

Use a pair of tweezers to remove/insert flexible cables.

Disassembly Procedure

V1.0

2 - 5

Thickness gauge (PN: 20LT0-0002J000)

Thickness compass specification 0.05mm-1.5mm

Use it to measure the gap.

Hand rollers (PN: 20LT0-00082000,order or local buy)

Use the roller to press touch pad mylar.

BACK

Disassembly Procedure

V1.0

2 - 6

Bottom case Module

The illustration below shows how to remove the bottom case module.

1. Remove 11 pcs screws on the bottom case.

Assembly Notice: Follow the reverse numbers to lock screws.

Screw tightening torque (Kg F-cm): 3kgf-cm

13050-B2813000 *6

13GMBKXD061Z-1 *5

13050-B2813000 :

SCREW M2.5＊13L

(4.5,0.8) (K) B-ZN NY #1

13GMBKXD061Z-1:

SCREW M2.5＊6L

(4.6,0.85) (K) B-ZN NY

Disassembly Procedure

V1.0

2 - 7

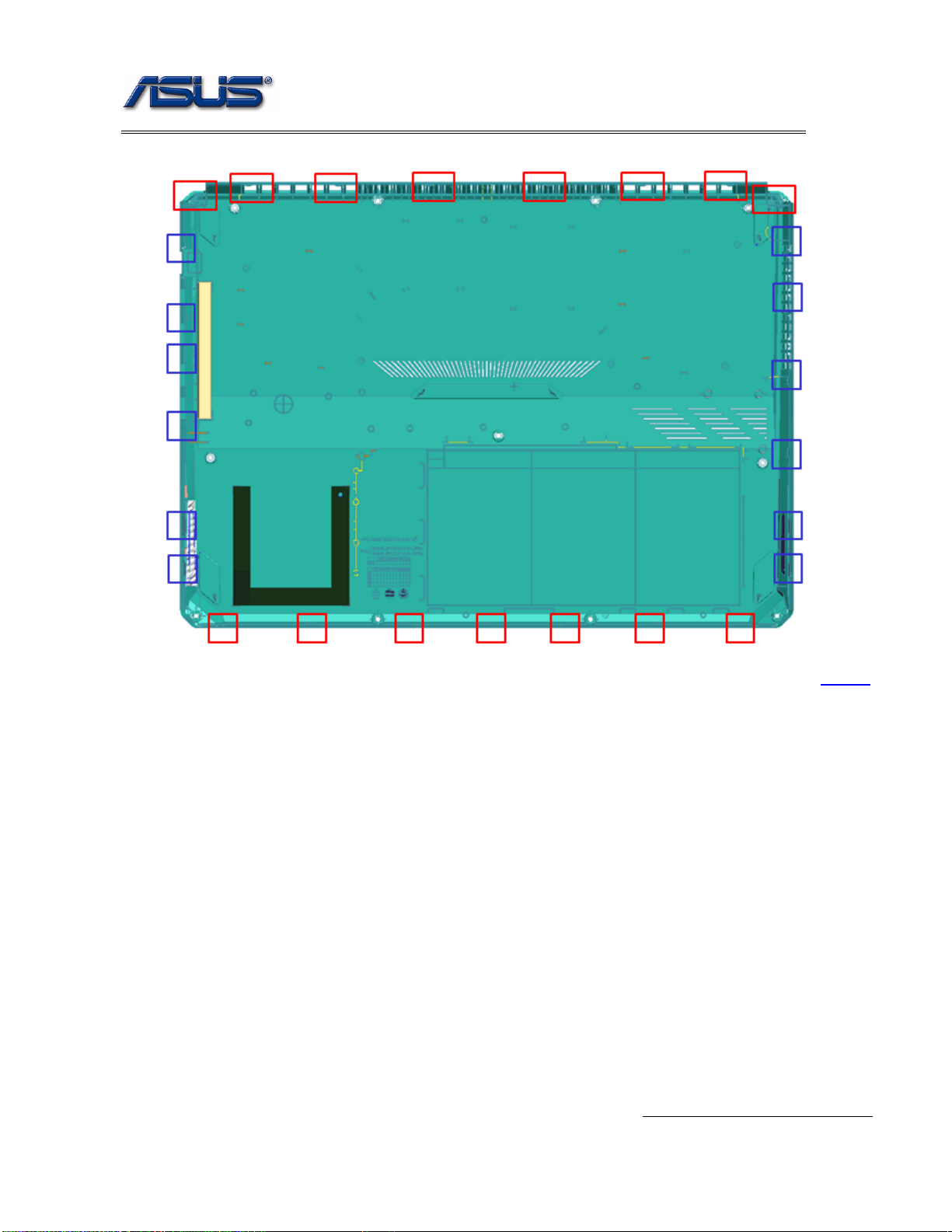

*Hooks inward (red frame position); hooks outward (blue frame position).

BACK

Disassembly Procedure

V1.0

2 - 8

Battery Module

The illustration below shows how to remove the battery module.

1. Disconnect the connector at PCB end.

2. Remove 1 screws on battery module.

Assembly Notice: Follow the reverse numbers to lock screws.

Screw tightening torque (Kg F-cm): 3kgf-cm

Disconnect the battery cable.

Notice: Before disassembly, please be sure to pull out adapter and disconnect the battery more than ten

seconds in order to avoid IC damage. BACK

13GMBKXD061Z-1:

SCREW M2.5＊6L

(4.6,0.85) (K) B-ZN NY

Disassembly Procedure

V1.0

2 - 9

HDD

The illustration shows how to remove the HDD.

1. Remove 2 screws on HDD.

Assembly Notice: Follow the reverse numbers to lock screws.

Screw tightening torque (Kg F-cm): 3kgf-cm

2. Disconnect HDD.

3. Remove 3 screws on HDD Bracket.

Assembly Notice: Follow the reverse numbers to lock screws.

Screw tightening torque (Kg F-cm): 3kgf-cm

BACK

13GMBKXD061Z-1:

SCREW M2.5＊6L

(4.6,0.85) (K) B-ZN NY #1

13GMAKXF030B-1:

SCREW M3＊3L

(5.25,0.8) (K) B-NI

Disassembly Procedure

V1.0

2 - 10

SSD

The illustrations below show how to remove the SSD.

1. Remove a screw from SSD.

Assembly Notice: Follow the reverse numbers to lock screws.

Screw tightening torque (Kg F-cm): 2.0kgf-cm

13GMBK3C036Z-1:

SCREW M2＊3L (4.6,0.8)

(K) B-ZN NY #1
