Asus T3-P5G965 - T Series - 0 MB RAM Manuel utilisateur

English

T3-P5G965

ASUS PC (Desktop Barebone)

Quick Installation Guide

English

System package contents

Check your T3-P5G965 system package for the following items. Contact

your retailer immediately if any of the items is damaged or missing.

Features

Front panel (external)

Item description

1. ASUS T3-P5G965 barebone system with

•

ASUS motherboard

•

6 x USB 2.0 ports

•

250 W PFC power supply unit

•

2 x IEEE 1394a ports

•

Gigabit LAN port

•

S/PDIF IN&OUT port

•

CPU fan and heatsink assembly

•

7-in-1 storage card reader

•

1 x 5.25” drive bays

•

2 x 3.5” hard disk drive bay

2. Cables

•

AC power cord

•

ATA cable

•

Serial ATA cable

•

Serial ATA power cable

3. Support CD

4. User guide

5. Optional items

•

Optical drive

(CD-ROM/CD-RW/DVD-ROM/DVD-RW)

Drive door

Power button

HDD LED

iii

English

Front panel (internal)

USB 2.0 ports

Rear panel

REAR

S P K

LINE

FRONT

MIC IN

SIDE

S P K

C T R

BASS

eSATA

Chassis vent

Voltage selector

Power connector

Expansion card lock

Eject button

Microphone port

Headphone port

MemoryStick®/MemoryStick

Pro™ card slot

Secure Digital™/

MultimediaCard slot

CompactFlash®/

Microdrive™ card slot

S/PDIF In port

4-pin IEEE 1394a port

USB 2.0 ports

6-pin IEEE 1394a port

LAN (RJ-45) port

Expansion slot covers

Power switch

External SATA port

PS/2 keyboard port

COM port

PS/2 mouse port

Rear surround speakers

Side surround speakers

Microphone port

VGA port Line Out port

Line In port

Center & woofer speakers

Expansion slots

HDD LED

S/PDIF OUT

English

Installation

IMPORTANT! Refer to the system user guide for installation details and

other system information.

Removing the cover

1. Locate and remove three cover

screws.

2. Pull the cover toward the rear panel

(A), then lift (B).

Installing the CPU

IMPORTANT! Before installing the

CPU, remove the two rubbers (A and

B) attached to the bottom of the

cooler / fan.

Lifting the power supply unit

1. Locate and remove the two screws.

2. Lift the PSU in the direction of the

arrow to a 90º angle. 1

IMPORTANT! When removing the

PSU, make sure to hold or support

it rmly. The unit might accidentally

drop and damage the other system

components.

Load lever

Retention tab

To prevent damage to the socket pins, do not remove the PnP cap

unless you are installing a CPU.

To install a CPU:

1. Locate the CPU socket on the

motherboard.

2. Press the load lever with your thumb

(A), then move it to the left (B) until

it is released from the retention tab.

English

3. Lift the load lever in the direction of the

arrow to a 135º angle.

4. Lift the load plate with your thumb and

forenger to a 100º angle (4A), then

push the PnP cap from the load plate

window to remove (4B).

6. Close the load plate (A), then push the

load lever (B) until it snaps into the

retention tab.

5. Position the CPU over the socket, making

sure that the gold triangle is on the

bottom-left corner of the socket. Fit the

socket alignment key into the CPU notch.

Load plate

PnP cap

Gold

triangle

mark

Alignment key

Installing the CPU fan and heatsink assembly

1. Position the CPU fan and the heatsink

assembly on top of the installed CPU.

2. Drive in four screws into the CPU fan

screw holes.

3. Connect the CPU fan cable to the

connector on the motherboard.

Make sure to turn off your

computer and unplug the cable

from the power source before

installing the CPU fan and the

heatsink assembly.

English

Installing memory module(s)

1. Press the

retaining clips of

the DIMM socket

outward.

2. Align a DIMM on

the socket.

3. Insert the DIMM

rmly to the

socket until the

retaining clips snap

back in place.

CAUTION! A DDR DIMM is keyed with a notch so that it ts in only one

direction. Do not force a DIMM into a socket to avoid damaging the DIMM!

Installing expansion cards

1. Locate and remove one metal bracket lock screw.

2. Remove the metal bracket lock.

3. Align the card connector with the slot, then press rmly.

4. Secure the card with one screw.

5. Replace the metal braket lock, then secure it with one screw.

vii

English

Installing a SATA hard disk drive

1. Connect the SATA power

cable to the plug of the power

supply unit.

2. Connect the SATA signal cable

and the power plugs to the

connectors at the back of the

drive.

3. Locate the HDD tray.

4. Insert a hard disk drive (with

the HDD PCB facing the top of

the chassis) to the tray, then

secure it with four screws.

5. Connect the SATA signal cable

to the SATA connector on the

motherboard, and tighten all the

cables with the plastic coils.

Installing an optical drive

1. Place the chassis upright.

2. Insert the optical drive to the

upper 5.25 in drive bay, then

carefully push the drive until

its screw holes align with the

holes on the bay.

viii

English

3 3

3. Secure the optical drive with

four screws on both sides of

the bay.

4. Connect the IDE and the power

plugs to the connectors at the

back of the drive.

Replacing the cover

1. Fit the cover tabs with the

chassis rail and the front panel

tabs (A), then lower the rear

edge of the cover as shown

(B).

2. Secure the cover with three

screws.

REAR

S P K

LINE

FRONT

MIC IN

SIDE

S P K

C T R

BASS

eSATA

Selecting the voltage

The PSU has a 115 V/230 V voltage selector

switch located beside the power connector. Use

this switch to select the appropriate system

input voltage according to the voltage supply in

your area.

NOTE. The voltage selector is set to

230 V by default.

If the voltage supply in your area is 100-127 V,

set the switch to 115 V. If the voltage supply in

your area is 200-240 V, set the switch to 230 V.

WARNING! Setting the switch to 115 V in a 230 V environment will

seriously damage the system!

Français

T3-P5G965

ASUS PC (Système barebone)

Guide d’installation rapide

Français

Contenu du carton

Vériez que les éléments suivants accompagnent bien votre T3-P5G965.

Contactez votre revendeur immédiatement si l’un d’entre eux était

manquant ou endommagé.

Caractéristiques

Façade (externe)

Description des éléments

1. Système barebone ASUS T3-P5G965 avec

•

Carte mère ASUS

•

6 x ports USB 2.0

•

Alimentation 250 W PFC

•

2 x ports IEEE 1394a

•

Port Gigabit LAN

•

Port S/PDIF IN&OUT

•

Assemblage dissipateur/ventilateur pour CPU

•

Lecteur de cartes 7-en-1

•

1 x baie 5.25”

•

2 x baies pour disque dur 3.5”

2. Câbles

•

Câble d’alimentation

•

Câble ATA

•

Câble Serial ATA

•

Câble d’alimentation Serial ATA

3. CD de support

4. Manuel

5. Eléments optionnels

•

Lecteur optique

(CD-ROM/CD-RW/DVD-ROM/DVD-RW)

Trappe du lecteur

Bouton d’alimentation

LED du disque dur

Autres manuels pour T3-P5G965 - T Series - 0 MB RAM

Table des matières

Langues :

Autres manuels Asus Ordinateur de bureau

Asus

Asus AAEON BOXER-6638U-H1 Manuel utilisateur

Asus

Asus Essentio CM6340 Manuel utilisateur

Asus

Asus D300TA Manuel utilisateur

Asus

Asus EB1036 Manuel utilisateur

Asus

Asus P3-PH4C Manuel utilisateur

Asus

Asus G35DX Manuel utilisateur

Asus

Asus Vintage PE2 Manuel utilisateur

Asus

Asus Essentio CM1530 Manuel utilisateur

Asus

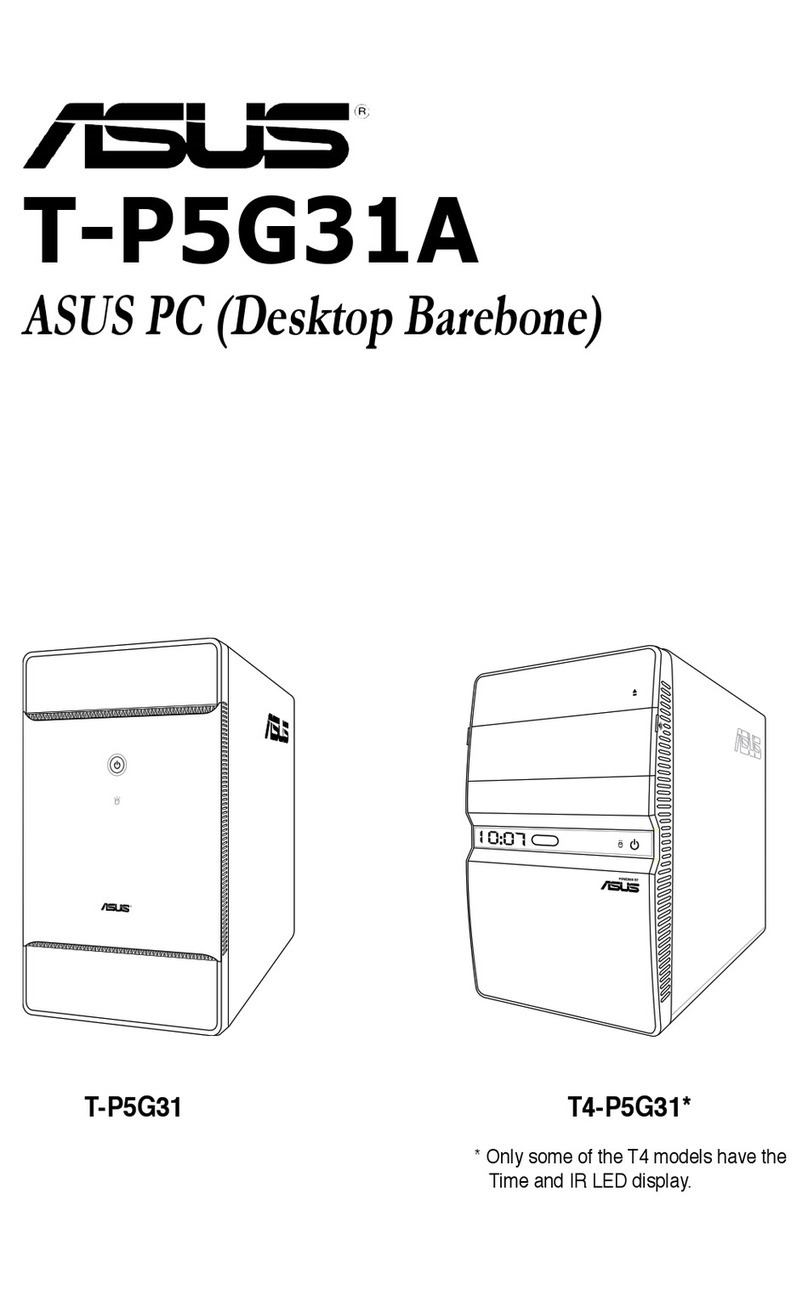

Asus T3-P5G31A Manuel utilisateur
