Asus PCI/E-P54NP4 Manuel utilisateur

V-Series P5G965

ASUS PC (Desktop Barebone)

Installation manual

E2796

2Installation manual

Rear panel features

Front panel features

REAR

S P K

LINE

FRONT

MIC IN

SIDE

S P K

C T R

BASS

5.25-inch drive

bay cover

IEEE 1394 port

Power button

Reset button

HDD LED

USB 2.0 ports

Microphone port

3.5-inch drive bay

cover

Headphone port

PS/2 mouse port

Cover screw

PS/2 keyboard port

Parallel port

Voltage selector

Metal bracket lock

Power connector

E-SATA port

VGA port

USB 2.0 ports

8-channel

audio ports

Expansion slot

metal brackets

Power supply fan

Chassis fan vents

LAN (RJ-45) port

Cover screw

IEEE 1394 port

Installation manual

Selecting the voltage

The system’s power supply unit has a 115

V/230 V voltage selector switch located

beside the power connector. Use this

switch to select the appropriate system

input voltage according to the voltage

supply in your area.

If the voltage supply in your area is

100-127 V, set the switch to 115 V.

If the voltage supply in your area is

200-240 V, set the switch to 230 V.

CR2032 3V

Lithium Cell

CMOS Power

Super

I/O

TX12V

AAFP

DDR DIMM_A1 (64 bit,240-pin module)

SB_PWR

USB78

USB56

CLRTC

PCI1

Intel®

GMCH

945G

Intel®

ICH7

DDR DIMM_A2 (64 bit,240-pin module)

DDR DIMM_B1 (64 bit,240-pin module)

DDR DIMM_B2 (64 bit,240-pin module)

CHA_FAN

CPU_FAN

EATXPWR

PCI2

SPDIF_OUT

Intel

82573L

PS/2KBMS

T: Mouse

B: Keyboard

PCIEX1_1

PCIEX16

COM1

PARALLEL PORT

VGA

PANEL

SATA1 SATA2

SATA4SATA3

FLOPPY

PRI_IDE

COM2

ALC882

TSB43AB22A

ADH

LGA775

LAN_USB34

AUDIO

USB1

USB2

Bottom:

1394

Top:

IE1394_2 USB910

CHASSIS

Internal components

1. Front panel cover

2. 5.25-inch optical drive bays

3. Hard disk drive bay

4. Floppy disk drive bay

5. Power supply unit

6. CPU socket

7. DIMM sockets

8. ASUS motherboard

9. PCI Express x16 slot

10. PCI slots

11. PCI Express x1 slot

12. Metal bracket lock

12 10

4Installation manual

Removing the side cover and

front panel assembly

1. Remove the cover screws on the rear panel.

2. Pull the side cover toward the rear panel until its hooks disengage from the

chassis tab holes. Set the side cover aside.

3. Locate the front panel assembly hooks, then lift them until they disengage

from the chassis.

4. Swing the front panel assembly to the right, until the hinge-like tabs on the

right side of the assembly are exposed.

5. Remove the front panel assembly, then set aside.

Air ductduct 1

Chassis tab holes

Installing a CPU

To prevent damage to the socket

pins, do not remove the PnP cap

unless you are installing a CPU.

To install a CPU:

1. Locate the CPU socket on the motherboard.

2. Press the load lever with your thumb

(A), then move it to the left (B) until it

is released from the retention tab. A

Load lever

Retention tab

Installation manual

3. Lift the load lever in the direction of the

arrow to a 135º angle.

4. Lift the load plate with your thumb and

forenger to a 100º angle (4A), then push

the PnP cap from the load plate window to

remove (4B).

6. Close the load plate (A), then push

the load lever (B) until it snaps into the

retention tab.

5. Position the CPU over the socket, making

sure that the gold triangle is on the

bottom-left corner of the socket. Fit the

socket alignment key into the CPU notch.

Installing the CPU fan and heatsink assembly

The Intel®Pentium®4 LGA775 processor requires a specially designed heatsink

and fan assembly to ensure optimum thermal condition and performance.

To install the CPU heatsink and fan:

1. Place the heatsink on top of the installed

CPU, making sure that the four fasteners

match the holes on the motherboard.

2. Push down two fasteners at a time in a

diagonal sequence to secure the heatsink

and fan assembly in place.

3. When the fan and heatsink assembly is in

place, connect the CPU fan cable to the

connector on the motherboard.

Load plate

PnP cap

Gold

triangle

mark

Alignment key

6Installation manual

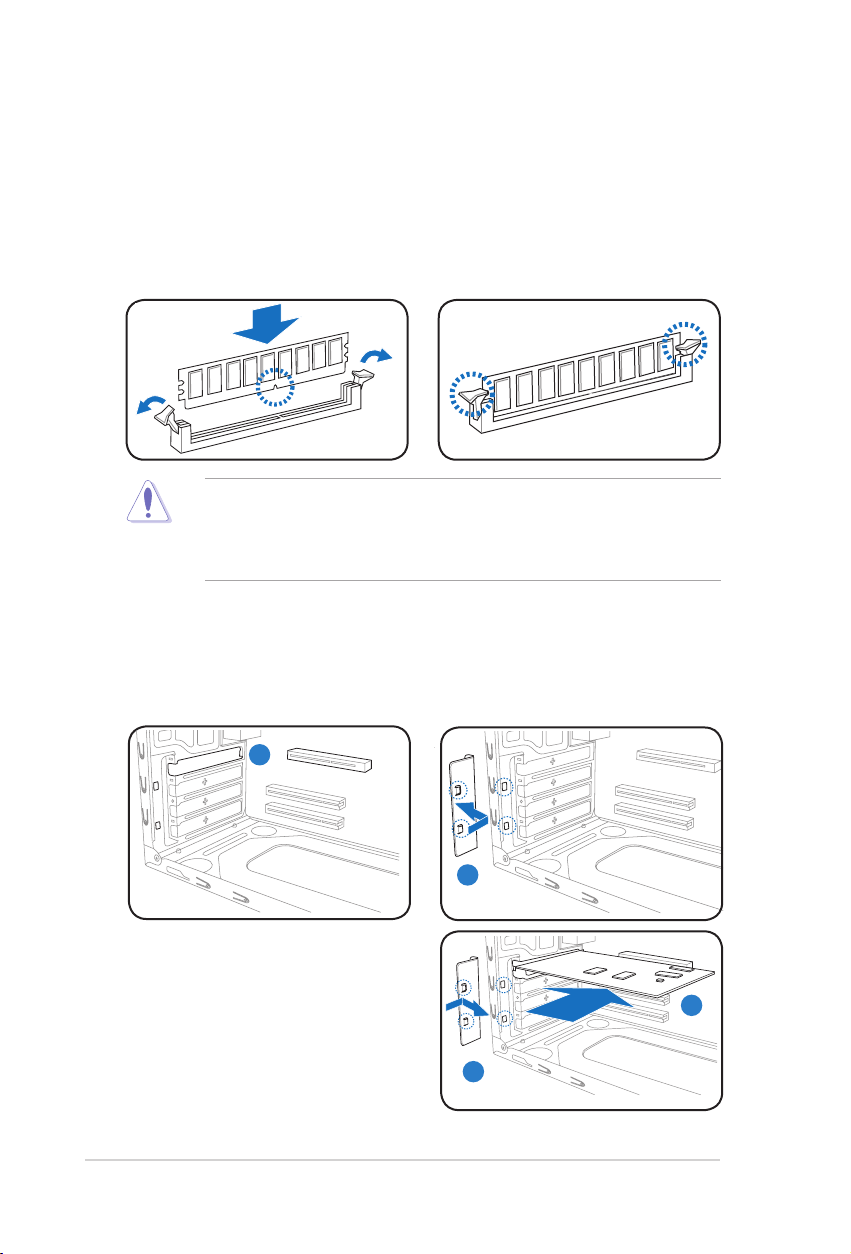

Installing an expansion card

Installing a DIMM

1. Locate the DIMM sockets in the motherboard.

2. Unlock a DIMM socket by pressing the retaining clips outward.

3. Align a DIMM on the socket such that the notch on the DIMM matches the

break on the socket.

4. Push the DIMM to the socket until the retaining clips snap inward.

• Unplug the power supply before adding or removing DIMMs. Failure to do

so may cause damage to the motherboard and/or components.

• A DDR DIMM is keyed with a notch so that it ts in only one direction. Do not

force a DIMM into a socket to avoid damaging the DIMM.

2. Remove the metal bracket lock.1. Remove the metal cover opposite

the slot that you intend to use.

3. Insert the card connector to the

slot, then press the card rmly

until it ts in place.

4. Replace the metal bracket lock.

Installation manual

Installing storage drives

Optical drive

1. Place the chassis upright, then

remove the upper 5.25” drive bay

metal plate cover.

2. Insert the optical drive to the bay,

then carefully push the drive until its

screw holes align with the holes on

the bay.

3. Secure the optical drive with two

screws on both sides of the bay.

4. Connect the audio (A), IDE (B), and

power (C) plugs to connectors at

the back of the drive.

Floppy disk drive

1. Place the chassis upright, then

remove the lower 3.5” drive bay

metal plate cover.

2. Insert the oppy disk drive to the

bay, then carefully push the drive

until its screw holes align with the

holes on the bay.

3. Secure the oppy disk drive with

two screws on both sides of the

bay.

4. Connect the signal (A) and power

(B) plugs to connectors at the back

of the drive.

Hard disk drive

1. Place the chassis upright, then

remove the upper 3.5” drive bay

metal plate cover.

2. Insert the hard disk drive to the bay,

then carefully push the drive until its

screw holes align with the holes on

the bay.

3. Secure the hard disk drive with two

screws on both sides of the bay.

8Installation manual

4. For SATA HDD: Connect the SATA

signal and power plugs to the

connectors at the back of the drive.

For IDE HDD: Connect the IDE and

power plugs to the connectors at the

back of the drive.

Removing the bay covers and reinstalling the

front panel assembly and side cover

If you installed an optical and/or oppy disk drive, remove the bay cover(s) on the

front panel assembly before reinstalling it to the chassis. To do this:

1. Locate the bay cover locks.

2. Press the locks outward to release

the bay cover.

3. Push the bay cover inward, then set

it aside.

4. Follow the same instructions to

remove the 3.5” drive bay cover.

Air duct

To reinstall the front panel assembly and side cover:

1. Insert the front panel assembly hinge-like tabs to the holes on the right side

of the chassis.

2. Swing the front panel assembly to the left, then insert the hooks to the

chassis until the front panel assembly ts in place.

3. Insert the six side cover hooks into the chassis tab holes .

4. Push the side cover to the direction of the front panel until it ts in place.

5. Secure the cover with two screws you removed earlier.

Chassis tab holes
