Asus P1-P5945G Manuel utilisateur

English

P1-P5945G/P2-P5945G

ASUS PC (Desktop Barebone)

Installation Manual

Download the latest manual from the ASUS website: www.asus.com

2 Installation manual

English

Front panel features

Open

* The system’s power supply unit has a

115 V/230 V voltage selector switch located near the power connector. Use this switch

to select the correct system input voltage according to the voltage supply in your area.

Press to open the

front panel cover

Optical drive eject

button

Optical drive bay

cover

HDD LED

Power button

Power LED

Rear panel features

PS/2 mouse port

PS/2 keyboard port

Voltage selector*

Power connector

VGA port

Serial port

Line In

Line Out

Rear MIC

PCI slot metal brackets

Rear Surround L/R

Side Surround L/R

LAN (RJ-45) port

DVI-D port

USB 2.0 ports

SPDIF Out port

Center/Sub out

Reset button

CompactFlash® card

slot

SD/MMC card slot

MS/MS Pro card slot

4-pin IEEE 1394 port

Headphone port

USB 2.0 ports

Microphone port

3Installation manual

English

Internal components

1. 5.25-inch optical drive and

3.5 inch hard disk drive cage

2. Front panel cover

3. Power supply unit

4. PCI card riser bracket

(connected to the

motherboard PCI slot)

5. ASUS motherboard

6. DIMM sockets

7. LGA775 socket

(under the CPU

fan and heatsink assembly)

8. CPU fan and heatsink assembly

Removing the cover

1. Remove the cover screws. Keep the screws for later use.

2. Pull the cover slightly toward the rear panel.

3. Lift the cover, then set aside.

4 Installation manual

English

Removing the CPU fan and heatsink

Removing the front panel cover

1. Lift the front panel cover

hooks outward.

2. Carefully remove the front

panel cover, then set it aside.

1. Lay the system on its side,

then locate and remove three

storage drive assembly screws.

1 2

Removing the storage drive assembly

2. Lift the storage drive assembly,

then set aside.

3. Lift the CPU fan and heatsink

assembly, then set aside.

1. Disconnect the CPU fan cable.

2. Loosen the CPU fan and

heatsink assembly screws.

5Installation manual

English

1. Unlock the load lever, then lift

to a 90º-100º angle. 2. Lift the load plate, then

remove the PnP cap.

Installing the CPU

Load leverRetention tab

3. Install the CPU. The CPU ts in

only one orientation. 4. Close the load plate, then lock

the load lever.

5. Reinstall the CPU fan and heatsink assembly, then reconnect the CPU

fan cable to the CPU fan connector on the motherboard. Refer to the

instructions in the previous section for details.

Installing a DIMM

1. Locate the DIMM sockets in the

motherboard.

2. Unlock a DIMM socket by

pressing the retaining clips

outward.

3. Align a DIMM on the socket

such that the notch on the

DIMM matches the break on the

socket.

Unlocked

retaining clip

DDR DIMM notch

6 Installation manual

English

3. Insert the card connector to

the slot, then press the card

rmly until it ts in place.

Secure the card with a screw.

4. Reinstall the PCI riser card

assembly. Make sure that the

riser card connector sits properly

on the motherboard PCI slot.

Installing optical and storage drives

1. Turn the storage drive assembly upside down with the 3.5-inch bay on

top of the 5.25-inch bay.

2. Insert the optical drive upside down to the 5.25-inch bay, then secure

it with two screws on both sides.

3. Turn the storage drive assembly, insert the hard disk drive upside down to

the 3.5-inch bay, then secure it with two screws on both sides.

1. Lift the PCI riser card assembly

to remove. 2. Remove the metal cover

opposite the slot that you

intend to use.

Installing an expansion card

7Installation manual

English

Reinstalling the storage drive assembly

Before reinstalling the storage drive assembly, connect the IDE/SATA and

power plugs to the IDE/SATA and power connectors at the back of the

drives.

1. Connect the black plug of the IDE cable to the optical drive, then the

gray plug to the hard disk drive. If you have the SATA HDD, connect

the SATA cable to the SATA HD.

2. Connect the 4-pin power plugs to the power connectors at the back

of the drives.

3. Install the storage drive assembly to the chassis.

4. Secure the storage drive assembly with three screws.

1. Match the foot stand hooks to

the holes on the chassis.

Installing the foot stand

2. Pull the foot stand to the

direction of the arrow until the

lock clicks in place.

To remove the foot stand, lift the lock, then slightly push the foot stand to

the direction of the rear panel until it disengages from the chassis.

8 Installation manual

English

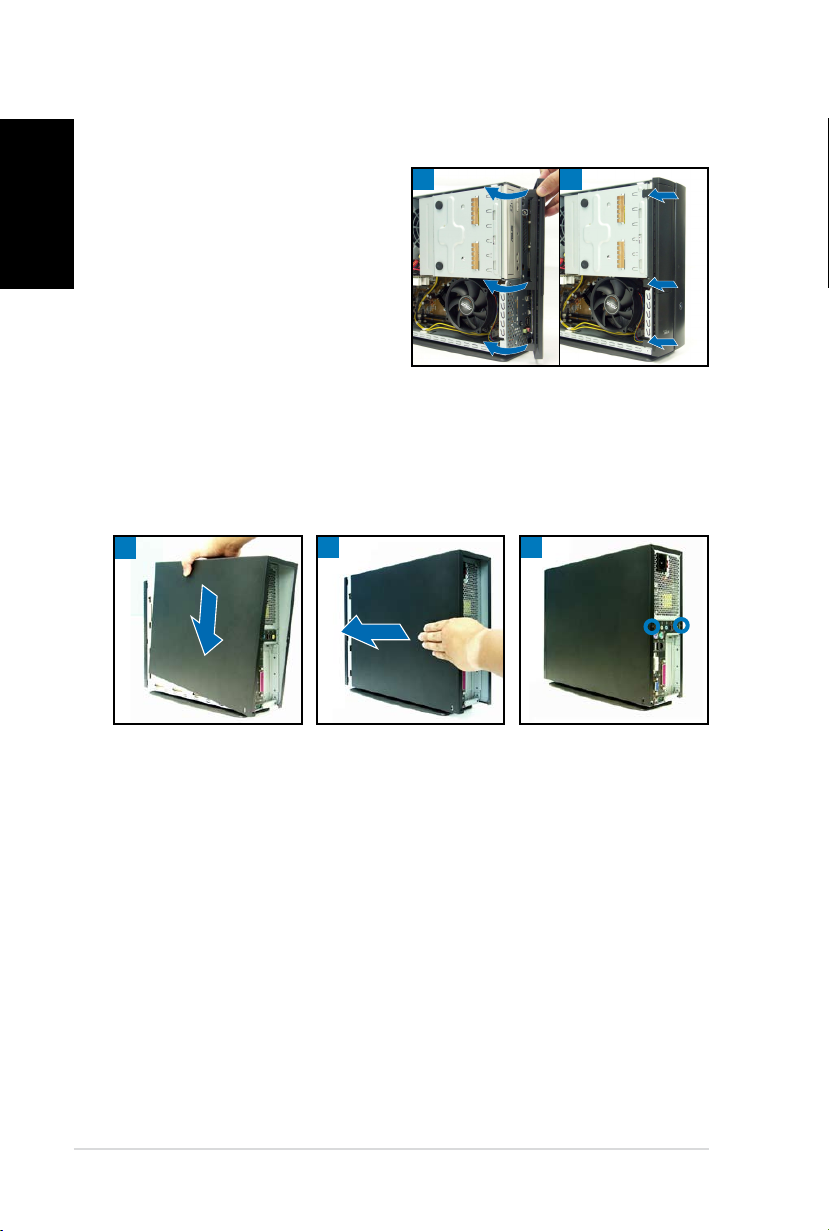

Reinstalling the front panel cover

1. Insert the front panel cover

tabs to the holes at the right

side of the chassis, then close.

2. Insert the front panel cover

hooks to the chassis tabs until

the front panel cover ts in

place.

1 2

Reinstalling the cover

1. Install the cover to the chassis. Make sure the cover tabs t the chassis rails.

2. Push the cover toward the front panel until it ts in place.

3. Secure the cover with two screws.

123

Français

P1-P5945G/P2-P5945G

ASUS PC (Système barebone)

Manuel d’installation

Téléchargez les derniers manuels depuis le site web d’ASUS: www.asus.com.

2Manuel d’installation

Français

Caractéristiques de

l’arrière

Caractéristiques de la façade

Port souris PS/2

Port clavier PS/2

Sélecteur de tension*

Connecteur

d’alimentation

Port VGA

Port Série

Brackets métalliques des ports PCI

Port LAN (RJ-45)

Port DVI-D

*L’alimentation du système est équipée d’un sélecteur de tension 115 V/230 V situé près du

connecteur d’alimentation. Utilisez cet interrupteur pour choisir la bonne tension d’entrée en

fonction des standards utilisés dans votre région.

Fermé

Ouvert

Appuyez pour

ouvrir le capot

de la façade

Bouton d’ejection

du lecteur optique

Capot de la baie

du lecteur optique

LED HDD

Bouton

d’alimentation

LED

d’alimentation

Port IEEE 1394

4 broches

Port Casque

Ports USB 2.0

Port SPDIF Out

Port Microphone

Bouton Reset

Caractéristiques de

la façade

Slot pour cartes

MS/MS Pro

Slot pour cartes

CompactFlash®

Slot pour cartes

SD/MMC

Rear Surround L/R

Side Surround L/R

Center/Sub out

Port Line In

Port Line Out

MIC arrière

Ports USB 2.0
