Asus NOVA P20 Manuel utilisateur

ASUS NOVA P20/P22 1

English

Welcome

Congratulations on your purchase of the ASUS NOVA P20/P22.

The following sections provides information on how to use your

new ASUS NOVA P20/P22.For more details, refer to the user

manual in the support DVD.

Package contents

ABC

GHI

PQRS

CLEAR ENTER

TUV WXYZ

JKL MNO

DEF

1 2 3

4 5 6

7 8 9

0 #

P20/P22 Remote control

DVI-D-Sub adapter mini jack-S/PDIF

adapter AC adapter

Stand Power cord Support DVD

Quick Guide

Recovery DVD Quick guide Warranty card

*For more information on how to use your ASUS NOVA, refer

to the detail user manual in the support DVD.

2Quick Start Guide

English

Preparing your ASUS NOVA

These are quick instructions for using your ASUS NOVA.

1. Connect the USB keyboard and mouse*

CENTER/BASS FRONT

DVI

SURROUND

S/PDIF

OUT

S/PDIF

DCIN

2. Connect the Ethernet cable

FRONT

CENTER/BASS

DVI

SURROUND

S/PDIF

OUT

S/PDIF

DCIN

* The package contents does not include USB keyboard and

mouse.Purchase USB peripherals based on your needs.

ASUS NOVA P20/P22 3

English

4. Connect the AC adapter

FRONT

CENTER/BASS

DVI

SURROUND

S/PDIF

OUT

S/PDIF

DCIN

3. Connect the monitor.

FRONT

CENTER/BASS

DVI

SURROUND

S/PDIF

OUT

S/PDIF

DCIN

5. Start up your ASUS NOVA

4Quick Start Guide

English

Knowing Component parts

Front view

1 3 42

1. Slot-in optical drive

2. Optical Drive Electronic Eject (touch-sensitive)

3. Power switch (touch-sensitive)

4. Infrared port

CENTER/BASS FRONT

DVI

SURROUND

S/PDIF

OUT

S/PDIF

DCIN

11 10

Rear view

5. Power (DC) Input

6. USB Port (2.0/1.1)

7. Display (Monitor) Output

8. LAN Port

9. Line in port (S/PDIF in port)

10. Headphone Output Jack

11. Microphone Jack

5 6 7 8

Bottom view

12. Docking

Connector*

*The optional

docking allows

future capabilities

expansion to ASUS

NOVA.

ASUS NOVA P20/P22 5

English

Conguring wireless connection

Wireless Network connection

To connect to a wireless network, follow the instructions below.

1. Move the cursor to the

network icon on the taskbar

and you will see Not

Connected.

2. Right-click on the network

icon and select Connect to a

network.

3. Select the wireless network

you want to connect to

from the list.

Select Show Wireless if you have many networks in your area.

6Quick Start Guide

English

4. When connecting,you may

have to enter a password.

5. After connection has been

established, Connected will

be shown.

This screen will no appear

if no password needed.

Bluetooth wireless connection

Follow the instructions below to build Bluetooth wireless

connection.

1. Double-click the Bluetooth

icon on the Windows

taskbar to start the

connection wizard.

ASUS NOVA P20/P22 7

English

2. Select the Bluetooth device

you want to connect to from

the list and click Next to

continue.

4. After the setup completes,

click Next to continue.

3. You may need to enter

the password if the device

requires authentication.

5. The device you connect to

will be shown.

8Quick Start Guide

English

Name Speaker system

2 (stereo) Left speaker, right speaker.

4 Two front speakers, two rear speakers.

5.1 Two front speakers, two rear speakers, a center

speaker, and a subwoofer.

Port Headset

2-speaker 6-speaker S/PDIF

Light Blue Line In Surround S/PDIF in

Lime Line Out Front S/PDIF out

Pink Mic In Center/Bass Mic

Connecting to analog speakers

Refer to the table below for the audio connectors on the rear

panel and their functions.

For stereo speakers

P20/P22 Description

FRONT

S/PDIF

OUT

Front connects to stereo speakers.

P20/P22 Description

FRONT

S/PDIF

OUT

FRONT connects to the FRONT port on the sub-

woofer.

SURROUND

S/PDIF

SURROUND connects to the REAR port on the

subwoofer.

CENTER/BASS

CENT/BASS connects to the SUB/CENTER port on

the subwoofer.

For a multi-channel audio speaker system

Conguring audio output

Speaker conﬁgurations

You may set up the system with the following speaker

conﬁgurations:

ASUS NOVA P20/P22 9

English

Connecting to digital speakers

• Digital output: Plug an audio cable with a mini jack-s/PDIF

adapter from the S/PDIF Out port on the system rear panel to

your ampliﬁer.

Connect the mini jack-S/PDIF adapter before

connecting digital speakers.

Conﬁguring audio output settings

After connecting a speaker system to your NOVA P20/P22, follow

the steps below to conﬁgure audio output:

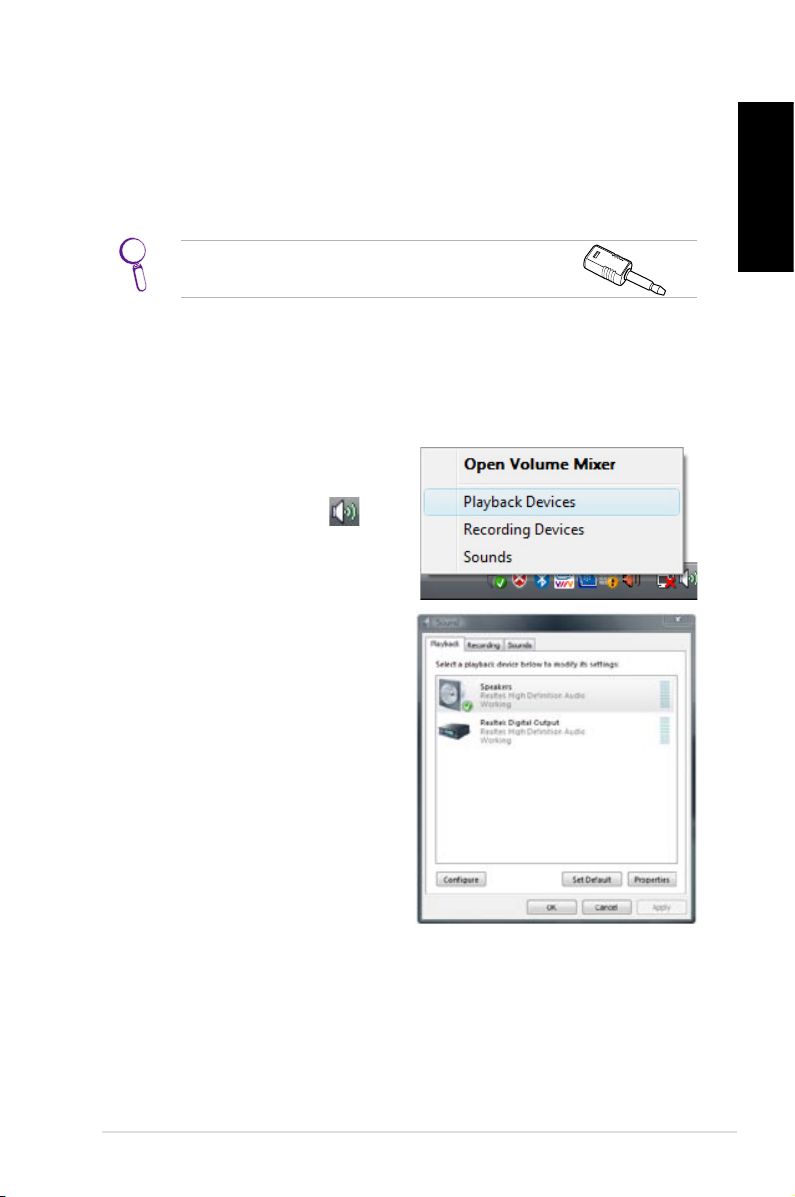

1. From the Windows® Vista™

taskbar, right-click on the

volume control icon

and then select Playback

Devices.

2. Under the Playback

window, select Speakers

and click Set Default if you

are using analog speakers.

Select Realtek Digital

Output if you are using

digital speakers.

3. Click Conﬁgure after selecting Speakers and follow the on-

screen instructions to conﬁgure the settings.Click

Properties to conﬁgure your digital output preferences if

you select Realtek Digital Output.

10 Quick Start Guide

English

Using Windows Media Center

Starting Windows Media Center

You can take full control of the Windows Media Center using your

wireless keyboard and either of your remote controls.

To start Windows Media Center, do one of the following:

• Press the Media Center button on your Media Center

remote.

• From the Windows® desktop, click Start > All Programs >

Windows Media Center.

Watching DVDs

Insert a DVD into the Super Multi Drive and the DVD will be

played automatically.You can also press the DVD button on

the remote to play it.

Music

Music provides you with a complete music experience.You can

listen to CDs or other music ﬁles, create your own playlists,view

album information,and listen to music by albums,genres,artists,

etc.Refer to the user manual in the support DVD for detailed

instructions.

Pictures + Videos

Enjoy and manage your digital photos/videos or downloaded

pictures/videoclips using Pictures + Videos.You can browse the

pictures individually or playing them as a slide show with music

background. Refer to the user manual in the support DVD for

detailed instructions.

Refer to the user manual in the support DVD for the functions

and button deﬁnitions of the remote control.
