User Manual

WL-167G V3 1

User Manual

WL-167G V3 1-LF-ASU

IEEE 802.11n USB2.0 Adapter

v 01.draft

User Manual

WL-167G V3

WL-167G V3 2

Table of Contents

Chapter 1Introduction________________________________________________________4

1. Introduction ________________________________________________________4

1.1 Product Features____________________________________________________4

1.2 Applications _______________________________________________________4

Chapter 2 Hardware_______________________________________________________5

2.1 General Overview __________________________________________________5

2.2 Hardware Architecture _______________________________________________5

2.3 Main Chipset Information ____________________________________________5

Chapter 3 Software _______________________________________________________5

3.1 Operating System Supported __________________________________________6

3.2 Wireless Mode Supported ____________________________________________6

3.3 Security___________________________________________________________6

3.4 Configuration ______________________________________________________6

Chapter 4 Appearance _____________________________________________________7

Chapter 5 Specifications ___________________________________________________8

Table 1: Modulation Scheme and Nominal Transmit Power _________________________10

User Manual

WL-167G V3 3

Revision History

Edition # Reason for revision Issue date Written by

V 01 Initial Document Feb 12 2010 Troy Chen



User Manual

WL-167G V3 4

Chapter 1 Introduction

1. Introduction

WL-167G V3 is an industrial wireless 802.11n USB Adapter which enables wireless networking

systems to attain data communication speeds up to 150 megabits-per-second (Mbps), while

remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It

supports operation to the IEEE 802.11b and IEEE 802.11g ,and draft IEEE 802.11n standards.

WL-167G V3 will enable a next generation of high-data-rate platforms for operation in the 2.4

GHz band that deliver a five-fold speed increase. The cost and performance advantages will

make it an ideal solution for high bandwidth enterprise applications, such as wireless video

conferencing and large file transfers. It is compatible with 802.11g standard's mandatory

modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and

Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n.

Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while

OFDM provides the speed required for today's high-bandwidth applications.

1.1 Product Features

High speed for wireless LAN connection, RX up at 150 Mbps data rate.

Backward compatible to the existing IEEE 802.11b/g WLAN infrastructure.

An user-friendly utility to configure SSID, security setup and site survey.

Wireless data encryption with 64, 128 encryption for security.

Internal antenna

Support USB v2.0

Key type housing

WPS support (Pin code)

1.2 Applications

Home networking for device sharing.

Wireless multimedia.

Wireless office for extension Ethernet range.

Mobile networking for notebook PC, Desktop PC, Monitor, PDA with USB port ready

device.

User Manual

WL-167G V3 5

Chapter 2 Hardware

2.1 General Overview

USB 2.0 Interface and 802.11n chipset-on-board design.

Antenna: 2 Internal Antenna (MIFA antenna on USB connector ).

1 LED

2.2 Hardware Architecture

Realtek 8188SU

2.3 Main Chipset Information

RTL8188SU: a highly integrated Wireless LAN (WLAN) USB 2.0 network interface controller

compatible with the IEEE802.11n Draft specification 2.0. It combines a MAC, 1T1R capable baseband

and RF in a single chip.

2.4 PCB dimension

19mm x 44mm (TBD)

2.5 Antenna

MIFA antenna design on USB connector

User Manual

WL-167G V3 6

Chapter 3 Software

3.1 Operating System Supported

Windows 2000 , Windows XP, Windows Vista, Win7, Linux, Mac

3.2 Wireless Mode Supported

AP (Infrastructure) Client mode

Ad-hoc mode

3.3 Security

AP (Infrastructure) mode supports

Static WEP that support both 64 and 128 bit keys.

WPA (TKIP) with PSK

Ad-hoc mode supports

None (plaintext)

Static WEP that supports both 64 and 128 bit keys.

3.4 Configuration

User should be able to select

Mode of operations: AP or ad-hoc mode

Different security modes: none (plaintext), static WEP, WPA/WPA2(TKIP)/PSK as

supported by the respective operating mode.

Channel to operate on

User should be able to perform key management on WPA/PSK and static WEP as

supported by the respective operating mode

A Utility to set SSID, WEP key, site survey, profile manager and dynamically view

configuration and receiving signal quality.

Support for transmitting power configurable.

Support for extended range.

WPS support(Pin code)

User Manual

WL-167G V3 7

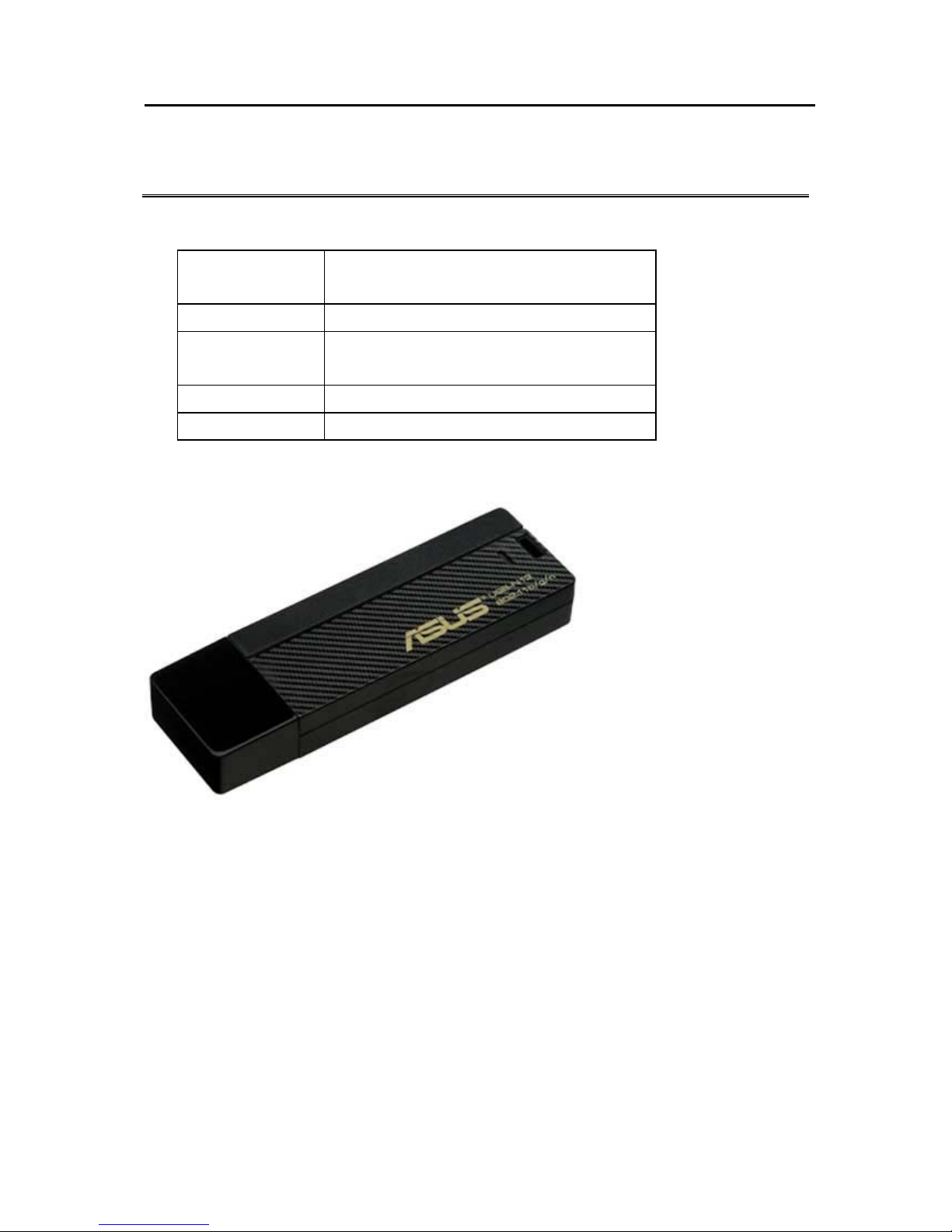

Chapter 4 Appearance

LED One Power/Link/WPS

(Green)

OFF All others states

ON Radio On and Associated

WPS Associating when WPS button pressed

Blink Radio On and Scanning

Flash Radio On and Associated and TX/RX Data

User Manual

WL-167G V3 8

Chapter 5 Specifications

Frequency Band:

Draft 802.11n Radio: 2.4 GHz

802.11g Radio: 2.4 GHz

802.11b Radio: 2.4 GHz

USA – FCC 2412~2462MHz (Ch1~Ch11)

Canada – IC 2412~2462MHz (Ch1~Ch11)

Europe – ETSI 2412~2472MHz (Ch1~Ch13)

Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14)

Operating Channels:

IEEE 802.11b/g/n compliant:

11 channels (US, Canada)

13 channels (ETSI)

14 channels (Japan)

Transmit Power and Sensitivity:

TX Output Power:(Typical)

11b 17 +/- 1 dBm

11g 15 +/- 1 dBm@54Mbps

11n 13 +/- 1 dBm

Rx Sensitivity:(Typical)

-84 dBm @11 Mbps

-70 dBm @54 Mbps

-67 dBm @64-QAM, 20MHz channel spacing

-64 dBm @64-QAM, 40MHz channel spacing

Modulation

DBPSK @1Mbps

DQPSK@2Mbp

[email protected]/11Mbps

BPSK@6/9 Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mpb and above, RX up to 300Mbps

User Manual

WL-167G V3 9

Current consumption(5V DC):

TX: 227mA Max (TBD)

RX: 185mA Max (TBD)

Operating Temperature: 0 ~ 40 oC ambient

Storage Temperature: -10 ~ 70 oC ambient

Humidity: 5 ~ 90% and must be non-condensing

Regulation and certification compliance available:

WHQL

ETSI/CE

ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge.

User Manual

WL-167G V3 10

References

Ralink Reference Design Functional Specification

IEEE 802.11b Standard Specification

IEEE 802.11g Standard Specification

IEEE 802.11n draft Standard Specification
