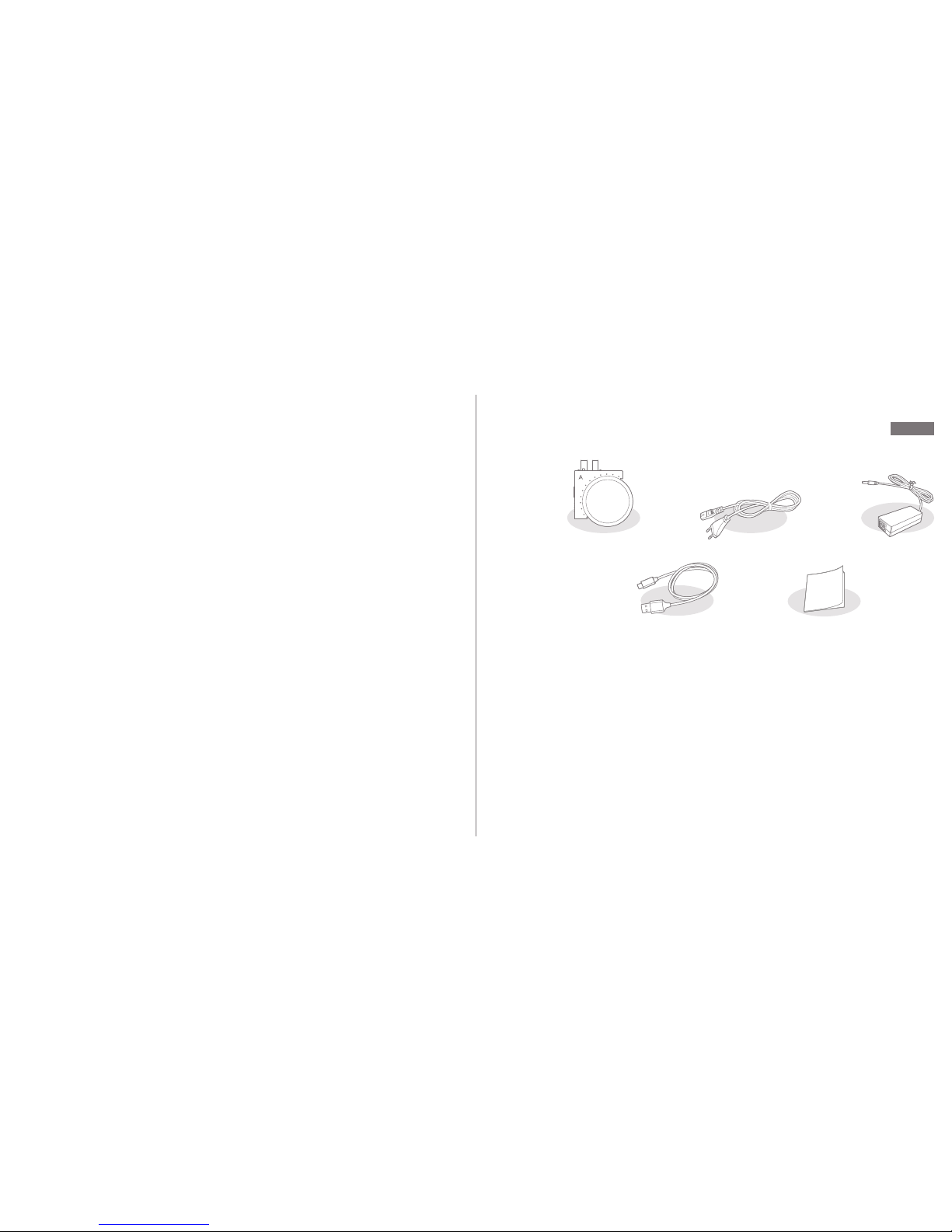

Package

Contents

Components may be changed without prior notice to improve the performance

or quality of the product.

L1000

Power Cord &Adapter: Connect to the product and wall outlet to supply power.

Micro-USB Cable: Use to connect to a computer or compatible music source.

User Guide: Overview of product functionality.

Warranty: Please keep the product warranty in case warranty service is needed.

AdapterPower Cord

Micro-USB Cable User Guide

& Warranty

ENGLISH

Power

Cable

Manage-

ment

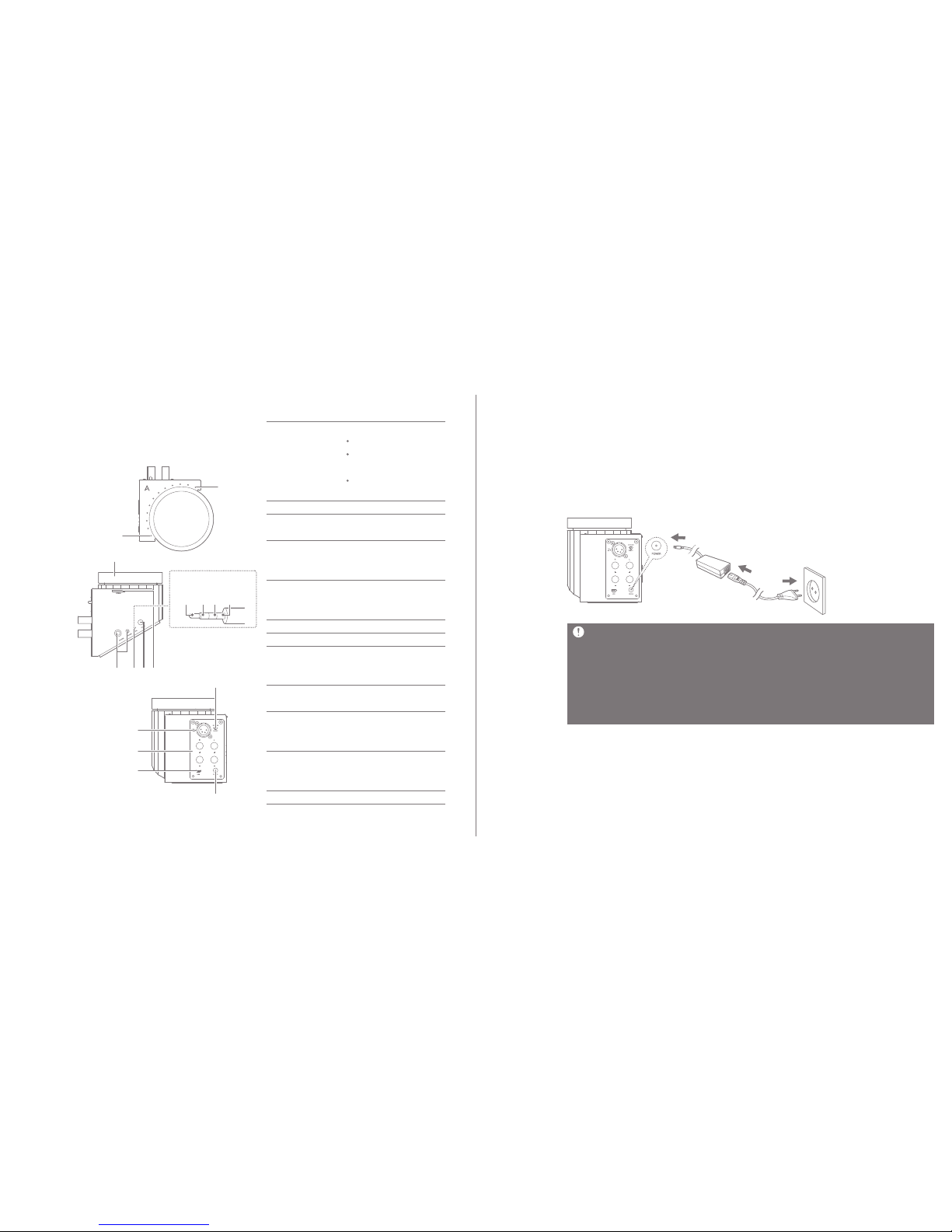

1. Connect the adapter to power cord.

2. Connect the adapter cable to [Power] on the back of the product.

3. Connect to power plug and press [Power].

4. When volume and filter LED lights are on, the product is booted.

5. Long-press (4 seconds) the [Power] button to turn the device OFF when it is turned on.

Be sure to only use an officially-certified 12V 5A adapter.

Using an adapter with specifications lower than 12V 5A may damage the product.

After connecting the adapter and power cord to the product, insert the power plug into an

available outlet.

To avoid malfunction or damage to the device, only use the power cord and the adapter supplied

with the product.

Unplug the power supply from the outlet when the device is not in use for an extended period.

Be sure to check nearby outlets and use the proper power plug.

Power ON/OFF

Descrip-

tion of

Each

Part

The appearance of the product as well as the

printed and engraved information may vary

depending on the model.

Filter LED

Volume LED

Volume Wheel

Headphone and

Earphone Port

Balanced Audio

Port

Filter button

Power button

XLR Balanced

Port

Speaker Port

Micro USB Port

Speaker switch

Power Port

Indicates the selected filter.

Blue LED-Neutral Filter

Green LED - Bass Sound

Filter

Red LED - Boosted Gain

Filter

Volume level indicator.

Turn the wheel to adjust

sound volume.

Connect earphones and

headphones with 3.5mm/6.3

mm terminal for audio output.

Connect earphones or

headphones with 2.5mm

balanced jack for audio output.

Press to select filters.

Turns power ON/OFF.

Connect earphones or

headphones with 4-pin XLR

balanced jack for audio output.

Output sound by connecting

the product to speakers.

Transmit data by connecting

the product to a computer or

music source device.

Turn ON/OFF the output

function of a connected

speaker.

Connect power adapter.

Balanced

Audio Pin Map

R- R+ L+ L-

4 5 6 7

Connecting Speakers

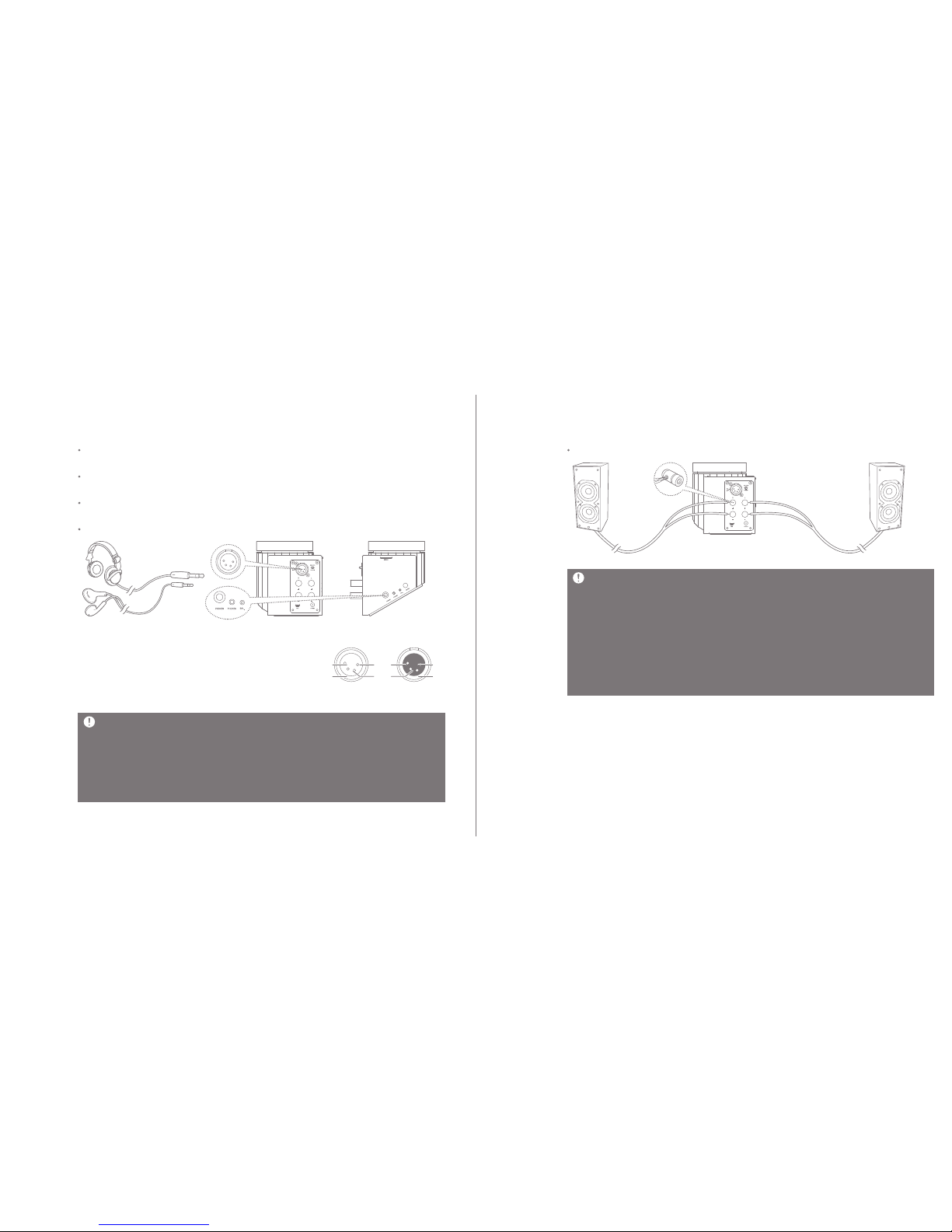

Connect the speaker cables to L/R(+/-) Port on the back of the product.

Only connect to the speaker when the product is turned off.

We recommend the use of an audio connector cable of good quality. Use of an ordinary cable or

unauthorized cable may cause the speaker to malfunction. Standard thickness audio-only cables

are recommended.

Maintain low to moderate volume levels when connecting to speakers. High volume levels distort

sound and may damage the speaker.

Avoid excessive force when connecting a speaker cable to a terminal. Doing so may cause damage

to the device.

Be sure that the speaker cable is securely connected to the terminal.

When connecting speakers, set the [Speaker] switch on the rear of the device to ON.

Earphones/Headphones

Connect earphones or headphones to [BAL], [PHONES], [BAL,-XLR] Port on the side or back

of the product.

Connect earphones or headphones that have 2.5mm balanced port to [BAL] Port on the side

of the product.

Connect headphones that have 4-pin XLR balanced jack to [BAL.-XLR] Port on the back of

the product.

You can use a variety of earphones/headphones that suit 2.5Φ, 3.5Φ, 6.5Φ, 4-pin XLR Balanced.

Maintain low to moderate volume levels when connecting earphones or headphones.

Exposure to high volume levels for extended periods may damage your hearing.

When connecting earphones/headphones, set the [Speaker] switch on the rear of the device to OFF.

When connecting more than two earphones/headphones, the sound is output to the earphones/

headphones of the last connected terminal.

When connecting to the XLR balanced terminal, all earphone/headphone jacks on the side of the

product should not be connected.

Connec-

ting

Output

XLR Balanced Cable Pin Map

Balanced cable used for professional audio interface

has a better capability for dealing with noise and

transmits sound a long distance.

Male

Female

4L+

L-

R-R-

R+

For instructions on OTG cable, please refer to the cable manufacturer’s manual.

OTG cable is not included in the product package. Please purchase it separately.

Connections may be unstable, depending on which OTG cable is used.

For instruction on how to use USB audio, refer to the manual of the AK player you are trying to

connect.

When connecting an AK portable player to USB audio output, the volume should be fixed at the

MAX and you can adjust the volume with the volume wheel on L1000. Please see Line Out feature

on AK player.

Connecting an AK Portable Player

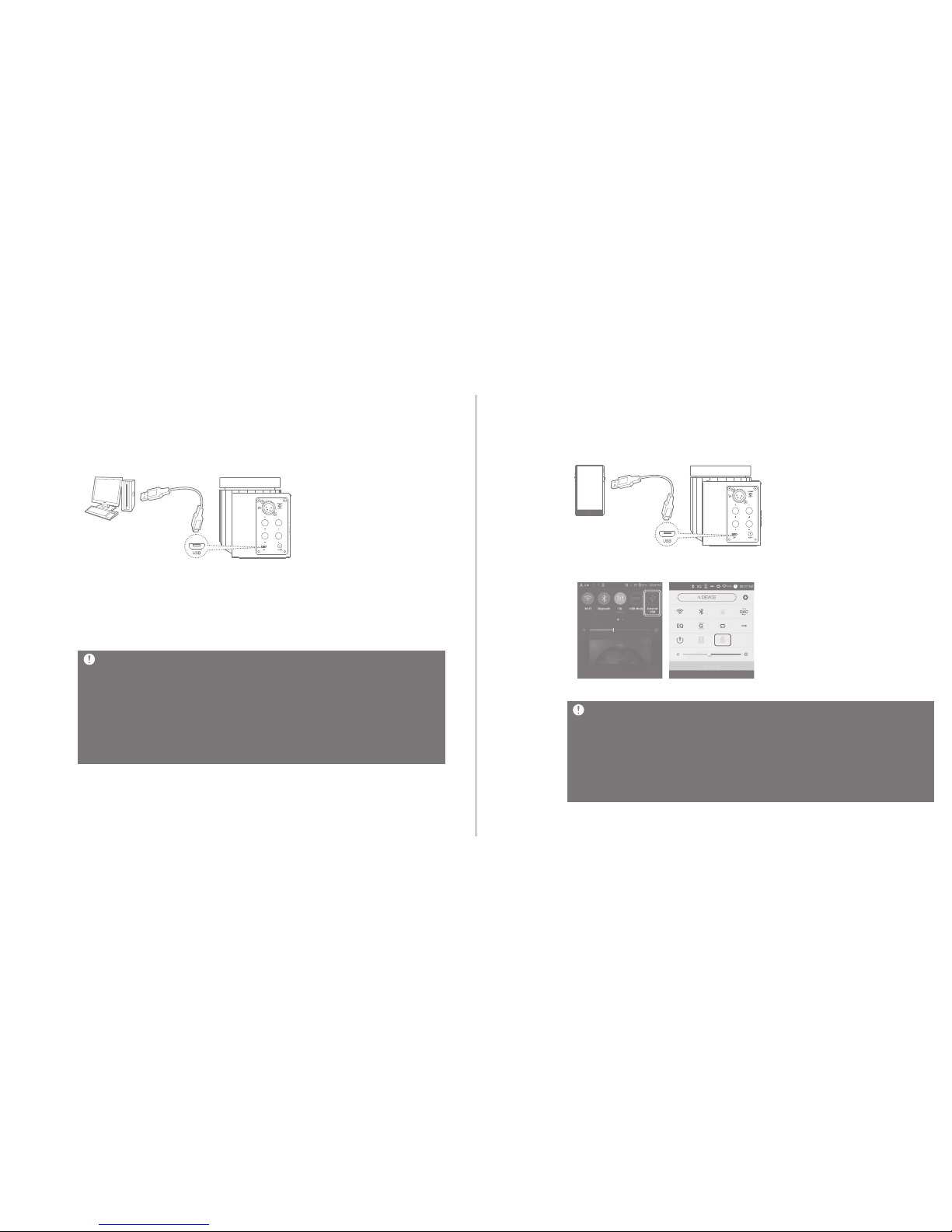

1. Connect [USB] Port on the back of the product and AK Portable Player with OTG cable.

2. Connect by clicking External USB icon on AK Portable Player.

Connecting to a Computer

1. Connect [USB] Port on the back of the product to a computer with the supplied Micro USB

cable.

Disconnecting from a Computer

1. Disconnect the Micro USB cable only after the transfer between the product and PC has

completed.

Only use the USB cable supplied with the product for data transmission. Using an unauthorized

cable may cause malfunction.

Stop all functions before connecting the computer and USB cable for data transmission.

Please connect the product to the high-power USB 2.0 port. Connecting to a keyboard or USB hub

without its own power supply may not be a satisfactory connection with the computer.

Disconnecting the USB cable for data transmission from the computer during an operation may

corrupt data stored on the product.

When the product is disconnected from the input source device (PC or AK Portable Player), the

power automatically turns off after about 10 minutes.

Connec-

ting

Input

USB DAC Installation

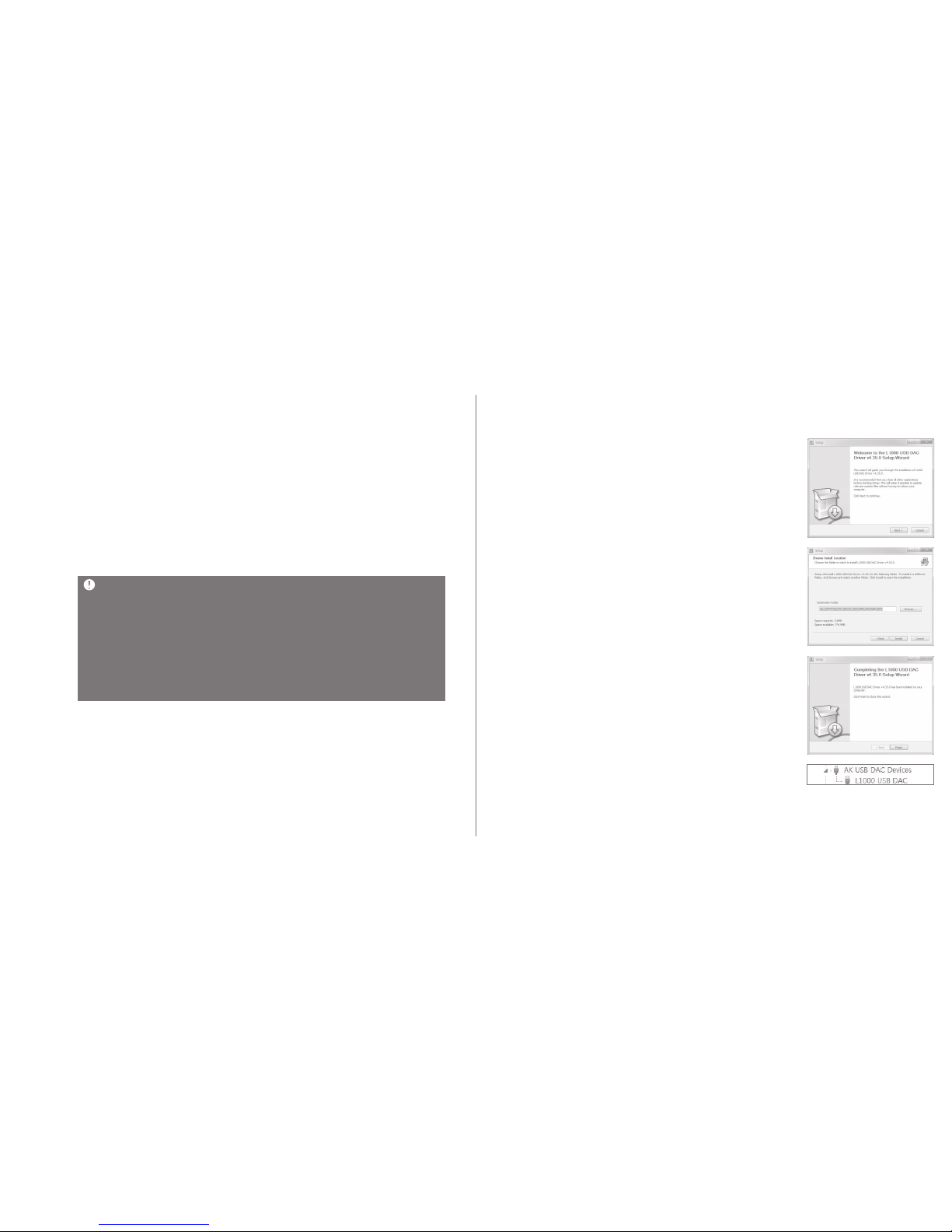

1. Run 'Setup.exe' from Drivers.

3. When the following screen is displayed, click [Finish]

to complete the installation.

2. Click [Browse] to select the driver destination folder

and click [Install].

< After driver installation >

USB

DAC

Installa-

tion

The USB DAC functionality allows L1000 to be recognized as the computer’s sound card.

Music from the computer is played through the product’s earphone/headphone/speaker

port for an enhanced listening experience.

USB DAC Specifications

- USB DAC Supported OS

+ Windows 7 (32/64-bit) / Windows 8 (32/64-bit) / Windows 10 (32/64-bit) /

Mac OS 10 7 (Lion) or higher OS version

- USB DAC Support Specifications

+ Supported formats: PCM [8 ~ 384kHz (8/16/24/32bit)] / DSD [2.8/5.6/11.2MHz]

- Adjust the sound volume output by using the L1000’s volume wheel.

Sound will not play back for files that exceed the supported formats.

Playback may stutter when computer performance is slow or the USB connection is experiencing

heavy usage.

There may be issues with audio-to-video synchronization during video playback depending on the

sound quality and operating environment.

Volume cannot be adjusted via the Windows volume control during native DSD playback. The

volume wheel on the product must be used to adjust the volume.

Install a dedicated driver to use the L1000 as a USB DAC.

The driver file can be downloaded from the Astell&Kern website: [http://www.astellnkern.com >

Support > Download].

Trouble-

shooting

Check for solutions to common problems.

1. The product won't turn on.

Check whether the power adapter is properly connected.

Please use 12V 5A adapter.

You are recommended to use the supplied adapter and power cord.

2. There is no sound, or there is static/interference.

Check whether the volume is set at [0].

Check whether the earphones/headphones/speakers are plugged in properly, and make

sure the port connection is not obstructed by dust or debris.

Check the volume of the product to which it is connected.

Verify that the music file is not corrupted.

Please check whether there is any device causing frequency interference nearby.

Check the speaker ON/OFF switch direction.

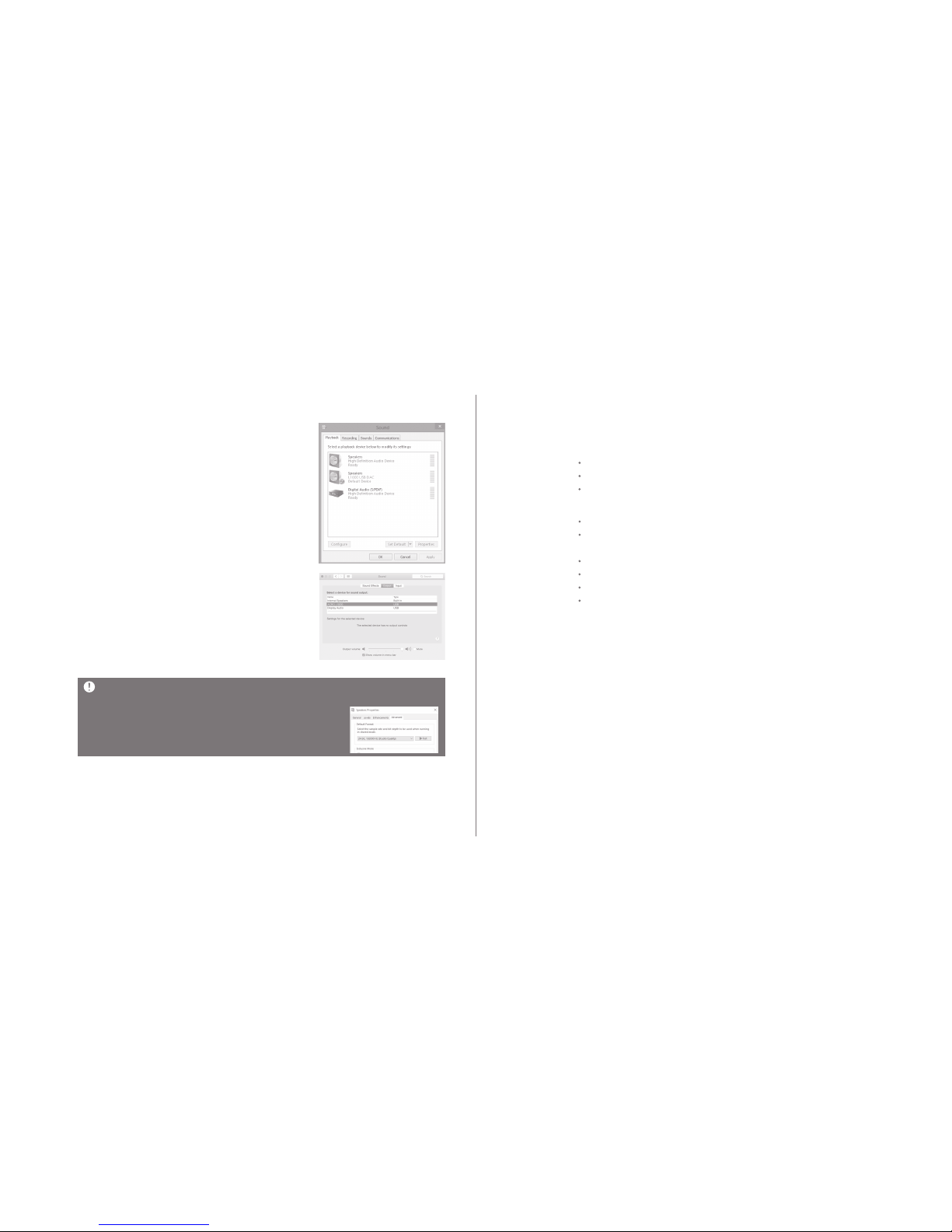

4. Change the default ‘Sound Output' product according

to the operating system as seen in the images below.

- XP: Control Panel > Sound and Audio Devices >

Audio tab > Change the default audio device under

'Sound playback' to [L1000 USB DAC].

- 7/8/10: Select [L1000 USB DAC] under Control Panel>

Sound > Playback tab and select [Set as default device].

- MAC OS X: System Preferences > Sound > Output tab >

Select [L1000 USB DAC].

This step is necessary only when using L1000 with USB DAC for the first time. No follow-up

measure needs to be taken to select L1000 for sound output.

For high-quality audio playback on Windows 7/8/10, it is

recommended to click [Properties] in [L1000 USB DAC] under

Control Panel > Sound tab and change the basic mode to [24bit,

192kHz (studio quality)] under Advanced tab.

When inserting a cable into any audio connection port, do not apply excessive force or

impact to the plug.

- This may damage the audio ports.

When connecting the USB cable, use a USB port on the back of the PC. Connecting to a

poorly assembled or defective USB port may damage the product.

Never use chemicals or cleaning products on the product since they can damage the

paint and surface coating.

Do not stand on the product.

Do not place heavy objects on the product.

Never attempt to insert an unauthorized cable into a connector.

Maintain low to moderate volume levels when connecting earphones or headphones.

- Exposure to high volume levels for extended periods may damage your hearing.

CAUTION

Safety

cautions

To ensure safe product usage, check the [Safety Precautions] before using the product.

WARNING indicates a serious risk. CAUTION indicates a potential hazard.

Do not attempt to disassemble, repair, or modify the product.

- iriver does not assume any responsibility for problems that arise due to unauthorized

product disassembly, repair, or modifications.

Do not insert any metal objects (coins, hairpins, etc.) or flammable material into the product.

Avoid touching the power cord during lightning strikes or thunderstorms.

- This may cause a fire or electric shock.

Discontinue use of this product immediately if it does not operate normally or a failure

occurs.

If water or other liquids enter the product, immediately disconnect the power cord from

the outlet, wipe with a dry cloth, and then refer to the nearest Service Center for customer

support. If water-damage occurs please consult with the Service Center to determine if

the product is deemed repairable. Regardless of current warranty status, repair will be

considered as an out of warranty service.

Explanations for symbols: The safety precautions are divided into "Warning" and "Caution"

as follows:

WARNING

indicates “prohibited” or “matters that should not be done.”

indicates “necessary steps” or “perform as instructed.”

Safety symbols

Use

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

Avoid exposing the product to water, and do not place objects filled with liquids, such as

vases, on top of the product.

Do not place the product in the following locations:

(Doing so may cause a fire or electric shock.)

locations where water can splash or humid locations such as bathroom /

locations where rain or fog can permeate / outdoor locations in the rainy season /

locations with high temperature such as near fireplace or heaters /

locations with direct sunlight / locations with dust, oil or lots of smoke (e.g,: kitchen) /

locations with too high or too low temperatures (-5℃~ 40℃) or locations experiencing

abrupt changes in temperatures /

locations with strong vibrations unstable conditions, such as a shaky table or sloped surface /

locations with magnetic objects, such as magnets, TV, monitors, and/or speakers /

locations with corrosive gas (e.g.: sulfite, hydrogen sulfide, chlorine, ammonia)

Installation

If you notice any color changes on a TV in the vicinity of this product or audio interference from the

TV, relocate the product farther away from the TV.

WARNING

Do not use any power cords other than the one supplied with the product.

Do not use the supplied power cord with any other products.

- Doing so may cause a fire or electric shock.

Plug the power cord into a grounded power outlet.

Hold the power plug firmly when disconnecting it from the outlet.

Disconnect the power cord from the outlet when the product is not being used for an

extended period.

- Doing so may cause a fire or electric shock.

Power Cable and Plug

Do not connect/disconnect the power plug with wet hands.

Plug the power plug into a 110V ~ 220V (50Hz ~ 60Hz) AC outlet.

Unplug the power plug from the outlet before attempting to clean the power plug pins or

mounting surface.

Observe the following when handling the power cord:

Do not damage or modify it. (e.g.: extension) /

Do not subject the cord to excessive heat or heavy weight. /

Do not pull the cord. / Do not attempt to jam the cord into a tight space. /

Do not forcibly bend the cord. /

Do not twist the cord. / Do not tie multiple power cords together.

- Doing so may cause a fire or electric shock.

WARNING

CAUTION

Disclai-

mer

The manufacturer, importer, and distributor shall not be liable for any damage including

accidental and/or personal injury due to the improper use or operation of this product.

The information in this user manual was written based on current product specifications. The

manufacturer, iriver Limited, is adding new complementary features and will continue to

apply new technologies in the future.

All specifications are subject to change without prior notice.

There is no warranty against data loss due to the use of this product.

Regis-

tered

Trade-

marks

Windows 2000, Windows XP, Windows 7, Windows 8, Windows 10, and Windows Media Player

are trademarks of Microsoft Corp.

Copy-

right

iriver Limited retains the rights to patents, trademarks, copyrights, and other intellectual

property rights related to this manual. This manual may not be copied or duplicated in any

form or by any means without the prior written consent of iriver Limited.

Using or reproducing, in whole or part, the contents of this document is subject to penalties.

Software, audio, video, and any other copyrighted contents are protected in accordance with

relevant copyright laws. The user accepts all legal responsibility for the unauthorized

reproduction or distribution of the copyrighted contents from this product.

Companies, organizations, products, people, and events used in the examples are not based

on actual data.

iriver has no intention to be associated with any company, institution, product, person, or

incident through this instruction manual, and no such inference should be made. It is the

responsibility of the user to comply with applicable copyright laws.

L1000 was designed and audio-tuned under the advice of MSD.

Certifi-

cations

KCC / FCC / CE / CCC

Class B Device (Communication equipment for residential use): This is a Class B Device and

is registered for EMC requirements for residential use. This product can be used in

residential and all other areas.

FCCID : QDMDAM11

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Table des matières

Autres manuels Astell & Kern Amplificateur

Astell & Kern

Astell & Kern PEE51 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
