Assum DZ SERIES Manuel utilisateur
USER MANUAL
INDEX
I. Product description and usage
II. Techincal parameters
III. Machine Overview
IV. Working Princple
V. Circuit Diagram
VI. Operation
VII. Programming
VIII. Cautions
IX. Assembly diagrams
X. Trouble-shooting
XI. Maintenance
XII. List of accessories
I. Product description and usage
DZ series vacuum packing machine is used for removing air
from the package and sealing the mouth of bag. Vacuum packing
reduces atmospheric oxygen, limiting the growth of aerobic
bacteria or fungi, and preventing the evaporation of volatile
components.
The 2 chambers work in turn: when one chamber is pumping and
sealing , workers can place product to packing on the other chamber,
so that it is more efficient than single chamber.
DZ series double chamber vacuum packing machine combine a
sleekly built and functional design with optimal ease of use and a
long service life. The clever design ensures compliance with the
hygiene standards at all times.

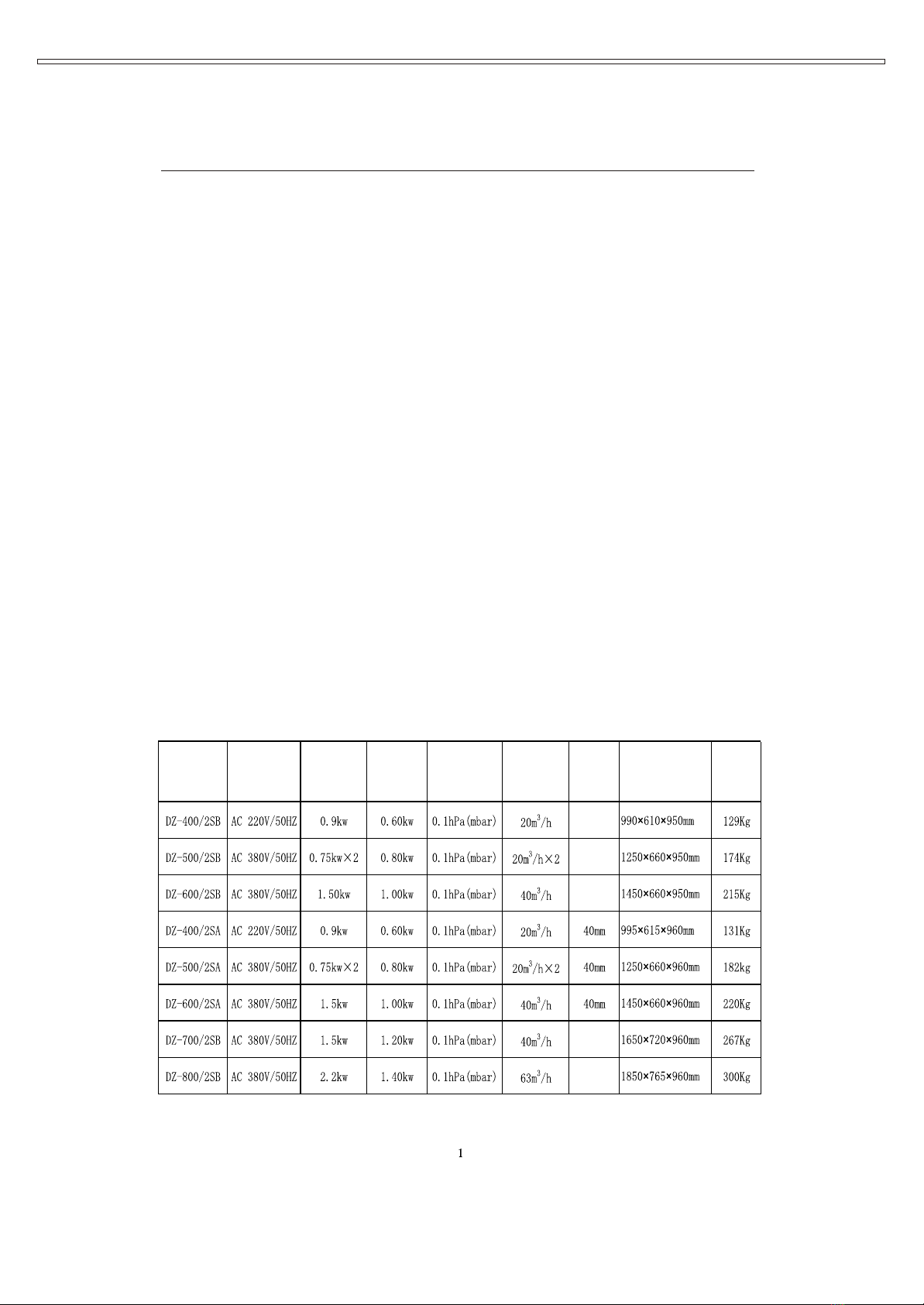

II.Technical parameters
Model Voltage
Power
of
motor
Power
of
heater
Barometric
pressure
Speed of
pump
Depth
of
chamber
flat
Dimension N.W
flat
flat
flat
flat
III. Machine Overview
Fig. 1
1.Lid 2. parallel arms 3. sealing bar 4. vacuum chamber
5. interrupter 6. controlling panel 7. Housing

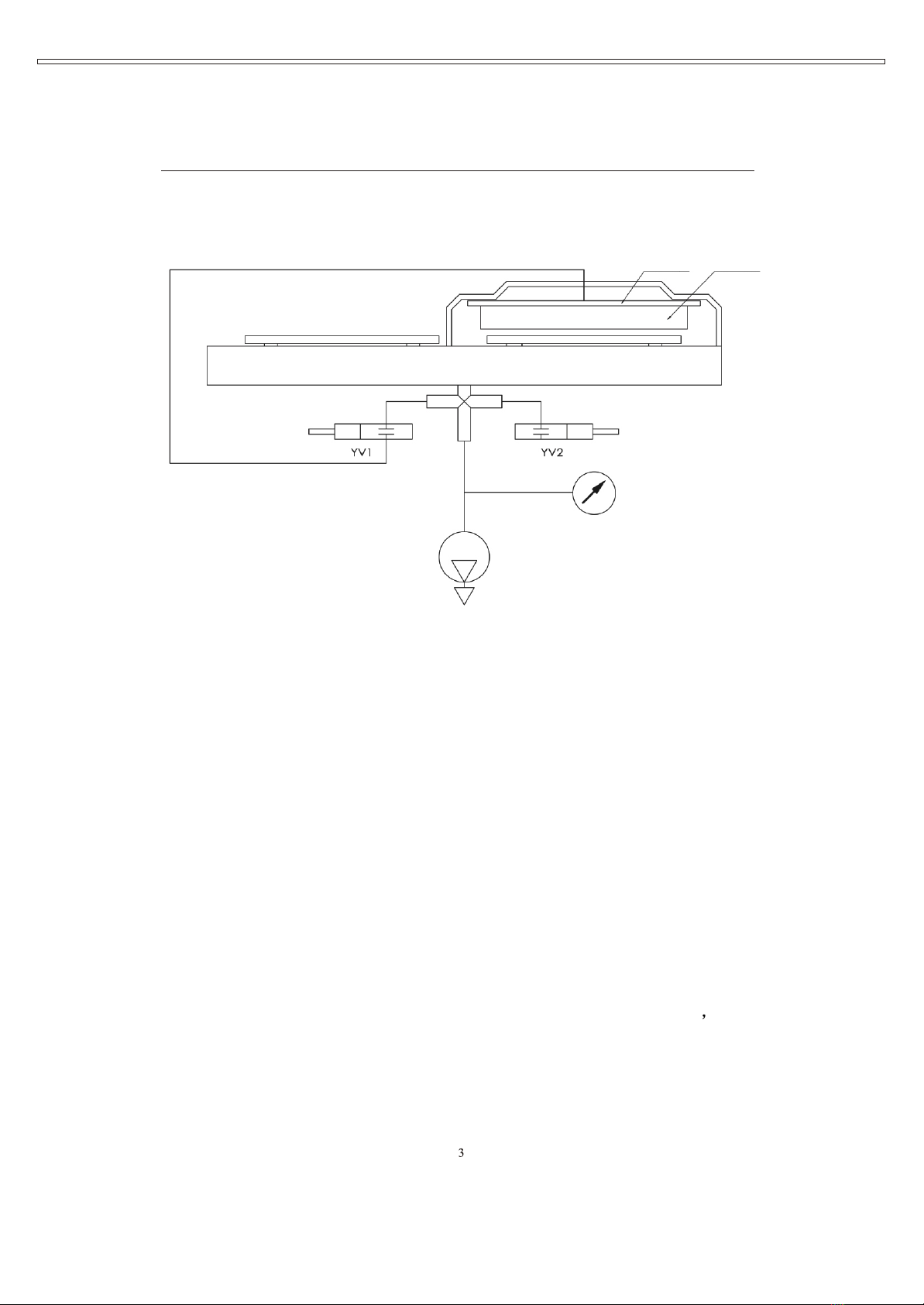

Fig. 2
solenoid valve for sealing Solenoid valve for pumping
Air bag Sealing bar
Vacuum meter
Vacuum pump
Step 1 vacuum. There is an air bag between sealing bar and lid. When
the pump is working, the air in the air bags and vacuum chamber is
vacuumed simultaneously, so that the sealing bars and silicon bars not
close up.
Step 2 thermal seal. When the vacuuming finished, to inflate the air
bags the solenoid YV1 switches on , and the vacuum chamber keep
vacuum.
Step 3 devacuum. To let air enter the chamber, the solenoid YV2
switches on, the chamber open, the entire process is finished.
V. Circuit Diagram
Normal input power: 1-phase 220V/50HZ or 3-phase 380V/50HZ other
voltages are also customizable.
IV. Working Principle
4
Fig.3 Single pump 1-phase power supply
Solenoid
Valve
Limit switch
Contactor
Controlling circuit board
Sealing wire
(Resistance)
Solenoid
Valve
5
Fig.4 simple pump 3-phase power supply
QF: Interruptor breaker
SA: Isolating switch
ESP: Emergency button
KM: Contactor
KT: Timing relay
T1: Transformer for controlling
T2: Transformer for thermal sealing
6

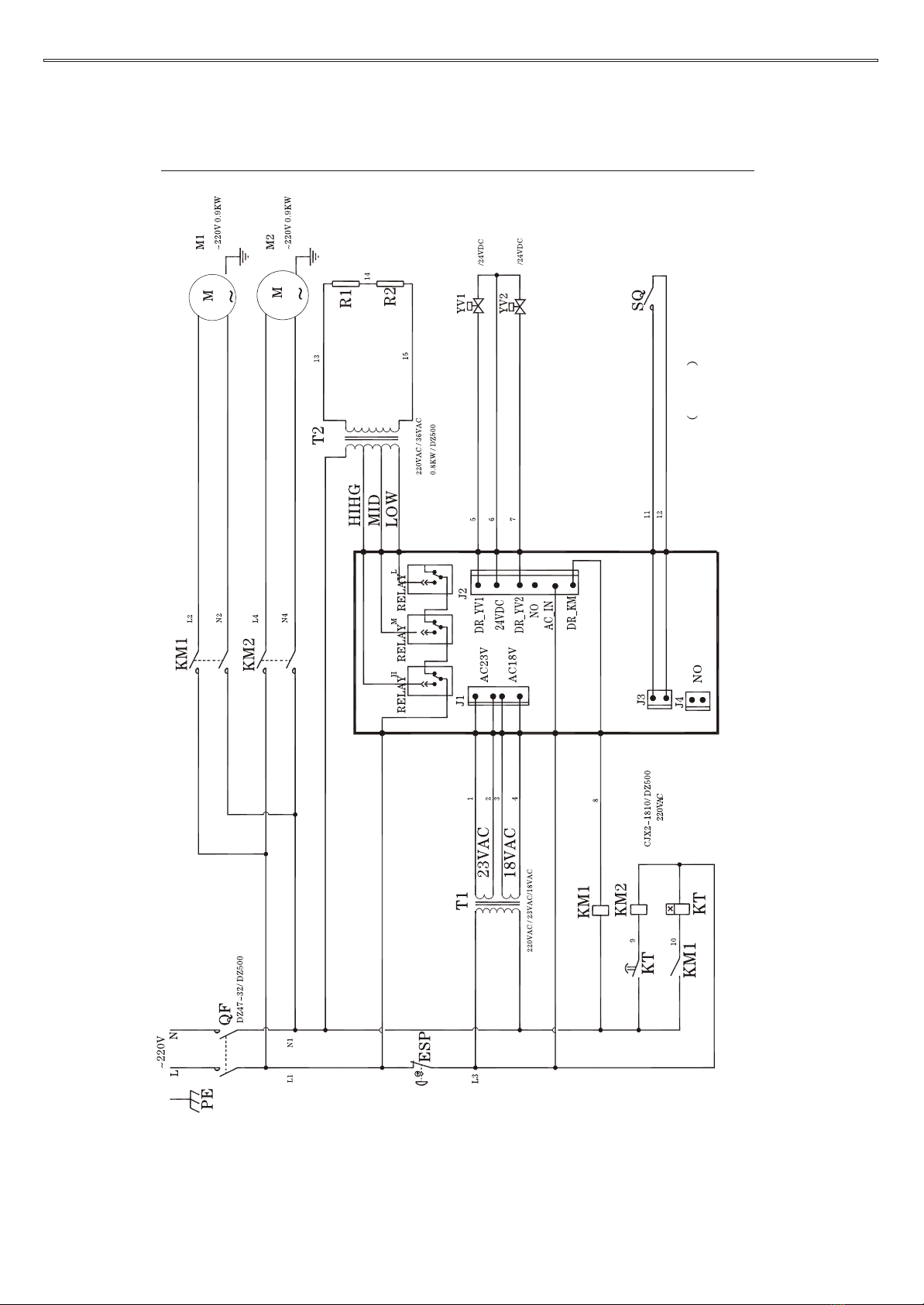

Fig.5 double pump 1-phase power supply
QF: Interruptor breaker
SA: Isolating switch
ESP: Emergency button
KM: Contactor
KT: Timing relay
T1: Transformer for controlling
T2: Transformer for thermal sealing

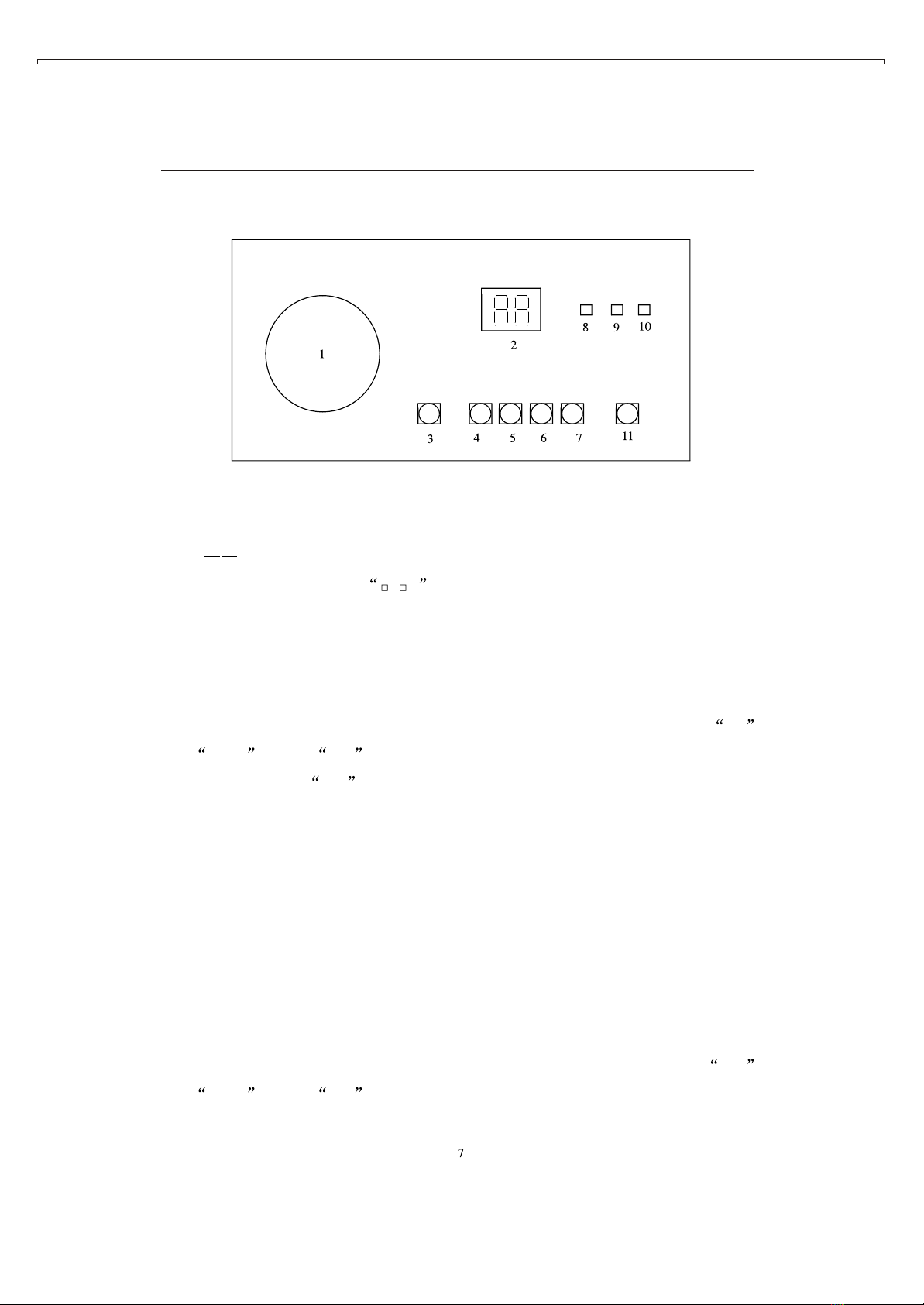

VI. Operation
1. Vacuum meter
2. Time and status indicator.
" " indicates the machine is in start-up mode, in which power is connected and
machine is not working yet. indicates devacuum, and number indicates the
current value of the active function during the program cycle or the set value of the
selected function when the machine is inactive.
3. STOP Press this button to cancel any process and back to start-up mode.
4. SETTINGS button Press this button on the start-up mode to select VACUUM,
SEALING, COOLING and GASSING. Adjust each of them by pressing the up
and down . Press OK to confirm.
5. OK button Press OK to confirm your settings.
6. UP button This button is only active in vacuum time setting mode and sealing
setting mode.
7. DOWN button This button is only active in vacuum time setting mode and sealing
setting mode.
8. low heat indicator
9. medium heat indicator
10. high heat indicator
11. SEALING TEMP. button Press button to select the level of sealing temperature.
12. SETTINGS button Press this button on the start-up mode to select VACUUM,
SEALING, COOLING and GASSING. Adjust each of them by pressing the up
and down . Press OK to confirm.
VII. Programming
1. Vacuum time range: 0 to 99 s.. (Normally 20 s., and for liquid, 25 s is
recommended.)
2. Sealing time range: 0 to 3.5 s.. (normally 1.5 s., and for thick film or
with aluminum layer, 3 s..)
3. Level of sealing temperature: low, medium, high.(for thick film or with
aluminum layer, select 'high')
4. Cooling time (holding time): 2 s. by default. To prevent aluminum from
wrinkle, 15 s. is recommended.
Instruction
Power on the machine, the indicator shows , that is the right state
ready to work.
1. Vacuuming time setting
Press SETTINGS the corresponding indicator blinks then press UP and
DOWN to adjust the time finally press OK to confirm.
2. Sealing time setting
Press SETTINGS the corresponding indicator blinks then press UP and
DOWN to adjust the time finally press OK to confirm.
3. Temperature setting
Press SETING TEMP. to select the level of sealing temperature : low,
medium, high and off in turn.
4. Stop button
If unusual situation occurs please press this button, to stop the work. This
button can not power off the machine, but return to start-up mode.
5. Working operation
a. Power on the machine, according to precaution, then the machine enter
start-up mode. Place plastic bag in the chamber, lift the metal stick to hold the
mouth of the bag, close the lid of the chamber, the machine start the following
programs:
