Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and

maintaining your new RTR. Please take a moment to read through this manual to help familiarize yourself with these steps.

We are continually changing and improving our designs; therefore, actual parts may appear slightly different than in the

illustrations. New parts will be noted on supplementary sheets.

Tools included:

• Allen wrenches 1.5mm, 2.0mm

Associated Electrics, Inc.

21062 Bake Parkway.

Lake Forest, CA 92630

http://www.RC10.com · http://twitter.com/Team_Associated · http://www.instagram.com/teamassociatedrc/ · http://www.facebok.com/TeamAssociated/

Customer Service

Tel: 949.544.7500

Fax: 949.544.7501

:: Other Helpful Items:: Other Helpful Items

• 2.4GHz 2-channel radio with new DVC (Dynamic Vehicle Control) receiver featuring built-in adjustable gyro

• High-torque, metal-gear Reedy Servo with spring style servo saver

• Powerful Reedy 3300kV brushless motor

• Water-resistant high-power Reedy brushless speed control with T-plug connector and LiPo low voltage cutoff

• Water-resistant enclosed receiver box

• Factory-finished Street Stock body with integrated rear spoiler

• Lightweight street stock inspired wheels

• High grip tires with street stock inspired tread pattern

• Durable and lightweight aluminum top shaft

• Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate both

NiMH and 2/3s LiPo battery packs

• Metric hardware throughout

• 22 precision rubber-sealed ball bearings

• Impact absorbing front and rear bumpers

• Adjustable body mounts

• Rear CVA drive shafts for more reliability

• Aluminum 12mm big bore coil-over shock absorbers

• 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable slipper clutch

• Rugged steel turnbuckles for adjustable camber and front toe-in

• Adjustable suspension geometry

• Vertical ball ends for roll center adjustments, front and rear

• Many Factory Team options already available!

Your new RTR comes factory assembled including radio gear, motor, and

ESC. However, there are some items you will need to complete your kit

(refer to catalog section for suggestions):

• AA-size batteries for transmitter (#302)

• Peak Detection Charger or LiPo Compatible Charger

• 6 cell NiMH battery pack or 2/3S LiPo battery pack w/High Current T Plug.

• Green Slime shock lube (AE # 1105) • Cyanoacrylate glue (AE # 1597)

• Thread Locking Compound (AE # 1596) • Silicone Shock Fluid (Refer to catalog for complete listings)

• Silicone Diff Fluid (Refer to catalog for complete listings) • Body Scissors (AE # 1737)

• 8 Piece Hex Driver Set • FT Hex Wrenches (AE # 1650)

• Hobby Knife • Wire Cutters • Soldering Iron

• Calipers or a Precision Ruler • Reamer / Hole Punch • Ride Height Gauge

• FT Nut Drivers (AE #1663 - 1668) • Turnbuckle Wrench (AE #1114) • Needle Nose Pliers

AssociatedElectrics.com

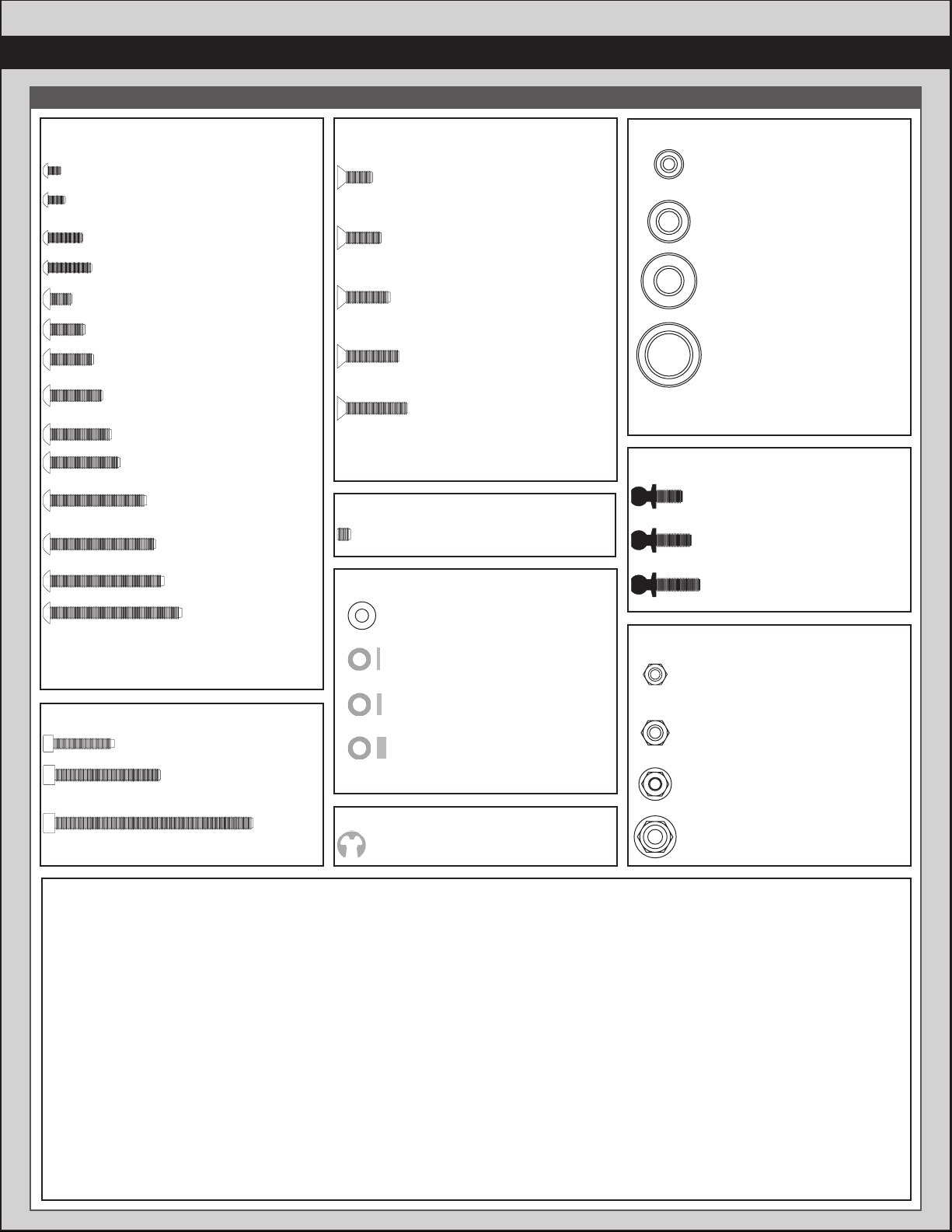

:: Hardware - 1:1 Scale View:: Hardware - 1:1 Scale View

3x8mm (25201)

3x10mm (25202)

Aluminum (8555)

3x12mm (25203)

3x14mm (89208)

3x16mm (25204)

Titanium (91596)

Flat Head (fhcs)

2x3mm (31509)

2x4mm (31510)

Aluminum (8545)

2.5x8mm (31521)

2.5x10mm (31522)

3x5mm (31530)

3x8mm (31532)

3x10mm (25211)

3x12mm (89202)

Titanium (91583)

3x14mm (25187)

3x16mm (89203)

3x22mm (25189)

Titanium (91588)

3x24mm (89204)

Titanium (91589)

3x26mm (89205)

3x30mm (91478)

Button Head (bhcs) Ball Bearings

3x7x3mm (91475)

5x10x4mm (25237)

6x13x5 (91562)

10x15x4 (91563)

3x3mm (25225)

Set Screws

Notes:

E-clip 1/8 (6299)

Clips

Ballstuds

HD 6mm (91047)

Titanium HD 6mm (91751)

HD 8mm (91048)

Titanium HD 8mm (91752)

HD 10mm (91049)

Titanium HD 10mm (91753)

M2.5 Locknut, Shock Piston

(89215)

M3 Nut (91477)

M3 Alum. Locknut, Blue (31550)

M3 Locknut, Black (25215

M3 Locknut w/Flange (25612)

FT 3mm Locknuts, Blue(25392)

M4 Serrated w/Flange (91738)

FT M4 Locknuts w/Flange,

Blue (31551)

Nuts (lock/plain)

Servo Mount Washer (7337)

(.250 x .125 x .815)

FT Ballstud Washer, Aluminum

(0.5mm) (31381)

FT Ballstud Washer, Aluminum

(1mm) (31382)

FT Ballstud Washer, Aluminum

(2mm) (31383)

Shims and Washers

Cap Head (shcs)

2.5x14mm (71032)

3x24mm (89225)

3x45mm (89279)

:: Table of Contents:: Table of Contents

:: Notes:: Notes

1................... Cover

2................... Introduction

3...................1:1 Hardware “Fold Out”

4................... Table of Contents

5 - 7..............Quick Start Guide

8....................Front Top Plate and

Steering Build

9 - 10...........Front Suspension Build

10 - 11.........Rear Suspension Build

11 - 12........Gear Differential Build

12 - 13........Gearbox Build

13.................Slipper Build

13 - 14........Gearbox Install

14 - 15........Rear Hub and CVA Build

15 - 16........Turnbuckles Build

16 - 17.........Shocks Build

18 - 20........Electronics Build

20 - 21........Bumpers and Chassis

Braces Build

21 - 23........Tires and Body Build

23 - 24.......Tuning Tips

25 - 33........Catalog

34................Back Cover

Associated Electrics, Inc.

21062 Bake Parkway.

Lake Forest, CA 92630

Customer Service

Tel: 949.544.7500

Fax: 949.544.7501

There is a 1:1 hardware foldout page in the

front of the manual. To check the size of a part,

line up your hardare with the correct drawing

until you find the exact size. Each part in the

foldout has a number assigned to it for ordering

replacement parts.

This symbol indicates a special

note or instruction in the manual.

This symbol indicates a Racers Tip.

http://www.RC10.com · http://twitter.com/Team_Associated · http://www.instagram.com/teamassociatedrc/ · http://www.facebok.com/TeamAssociated/

11/20

:::: Quick Start GuideQuick Start Guide

:::: Quick Start GuideQuick Start Guide - (cont.)- (cont.)

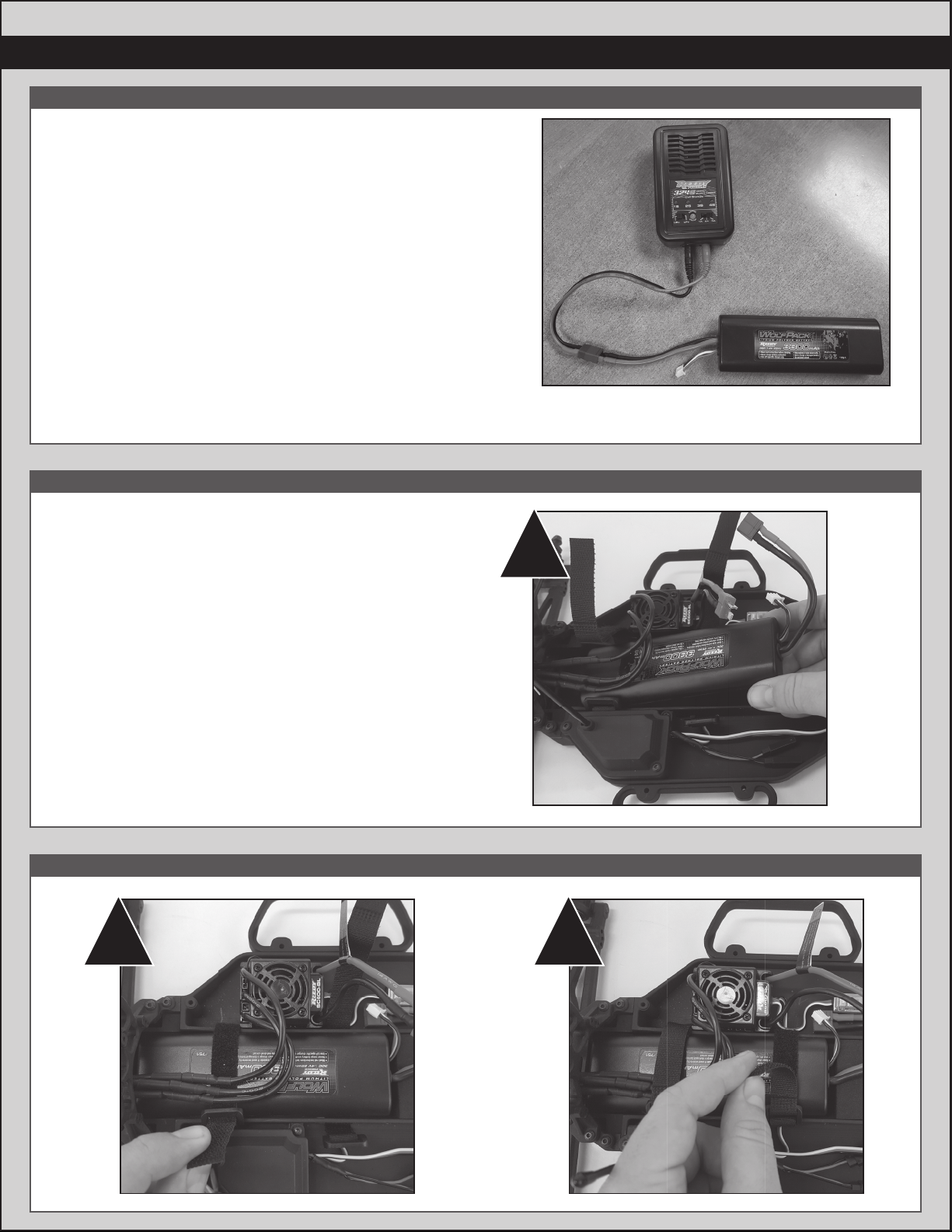

Battery Charging Steps and Safety:

Remove the battery from the vehicle before charging.

Place battery on a fire resistant surface.

Avoid any contact with water or other liquids.

Be sure to select the correct charging mode for the type

of battery you are charging.

ALWAYS use a compatible charger for charging your batteries.

Caution: Never leave the battery unattended while charging.

Always disconnect the charger from the power source when

finished charging.

Caution: Always disconnect the battery when you are

finished driving the vehicle.

Battery Installation:

1. Install the battery with the battery wires directed

towards the front of the vehicle.

2. Secure the hook and loop strap near the rear shock

tower. Pull the strap over the motor wires for added

security.

3. Secure the hook and loop strap near the front shock

tower.

You may move the foam pad to either the front or the

rear of the battery compartment to adjust the weight

balance of the vehicle.

Peak Detection

Quick Charger

2 3

:::: Quick Start GuideQuick Start Guide - (cont.)- (cont.)

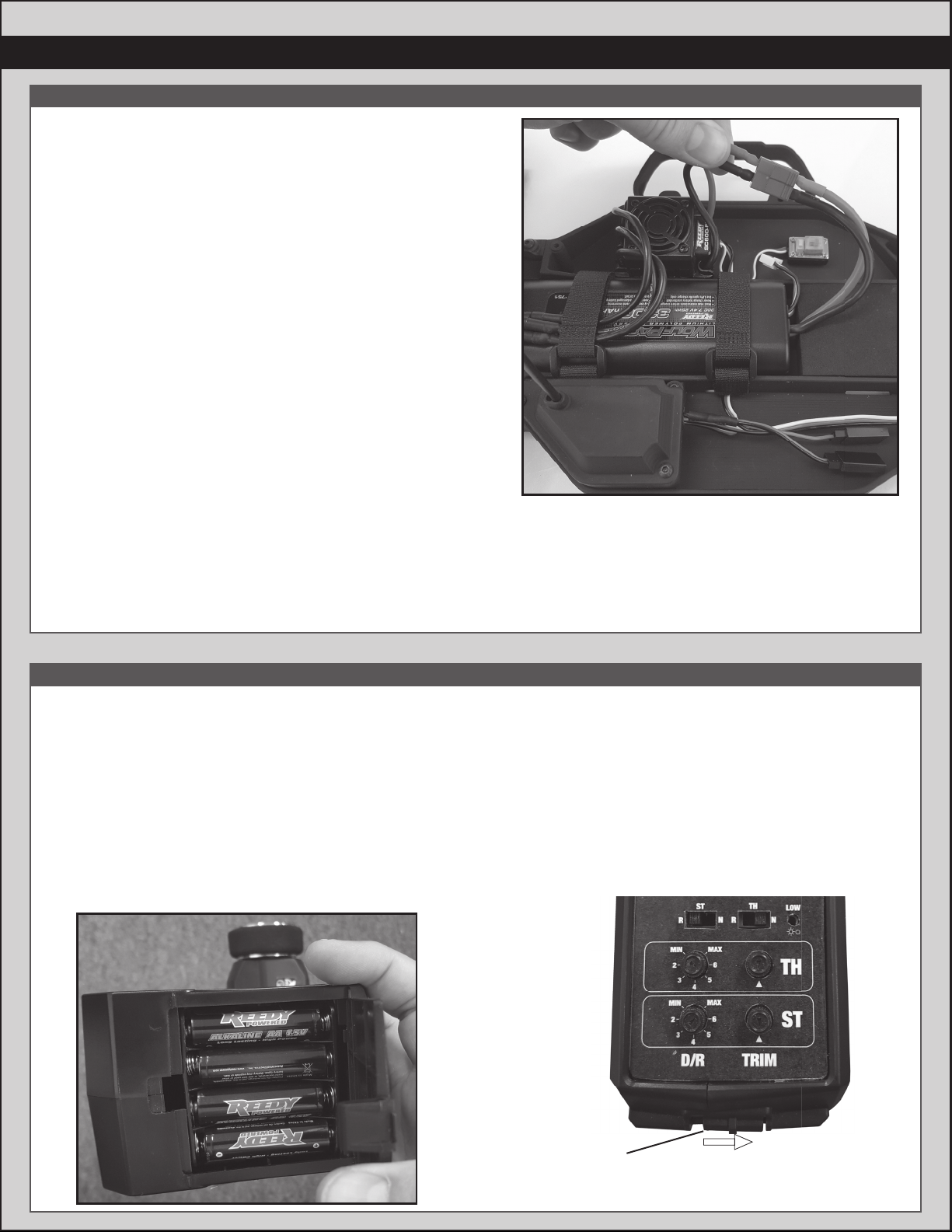

Battery Notes and Tip:

Connect the battery as shown.

Disconnect the battery when not in use!

LiPo: LiPo batteries (lithium polymer) are high current

rechargeable batteries. LiPo batteries offer extended run time

and peak performance over NiMH batteries. They require a

peak detection charger designed specifically for LiPo batteries.

These batteries require special care and handling.

LiPo batteries are recommended for advanced users only!

ALWAYS charge a LiPo battery in LiPo mode.

If using a 3S LiPo battery, use a smaller pinion gear as a starting

point (use part #1335 17T Pinion). This provides the correct

gear ratio required for the more powerful 3S LiPo battery.

Gearing will depend on the surface you are running on, and the

size of the track/area that you are driving in.

Radio System Tuning and Controls:

RULE: Transmitter on First/Vehicle on Second,

Vehicle off First/ Transmitter off Last!

1) Slide the battery cover to remove cover.

2) Install alkaline or rechargeable AA size

batteries into the battery holder.

3) Slide the battery cover back into place making

sure it is completely closed and secure.

4) Turn the power ON. If the power indicator LED

fails to light, check the batteries for insufficient

contact or incorrect polarity.

On/Off Switch

:::: Quick Start GuideQuick Start Guide - (cont.)- (cont.)

Radio System Tuning and Controls:

DO NOT hold the trigger when turning on the radio.

If using optional battery for transmitter, be sure to plug

it in correctly. Plugging in a battery backwards can

cause damage.

Refer to Radio owners manual for more in-depth

instructions on radio operation and functions.

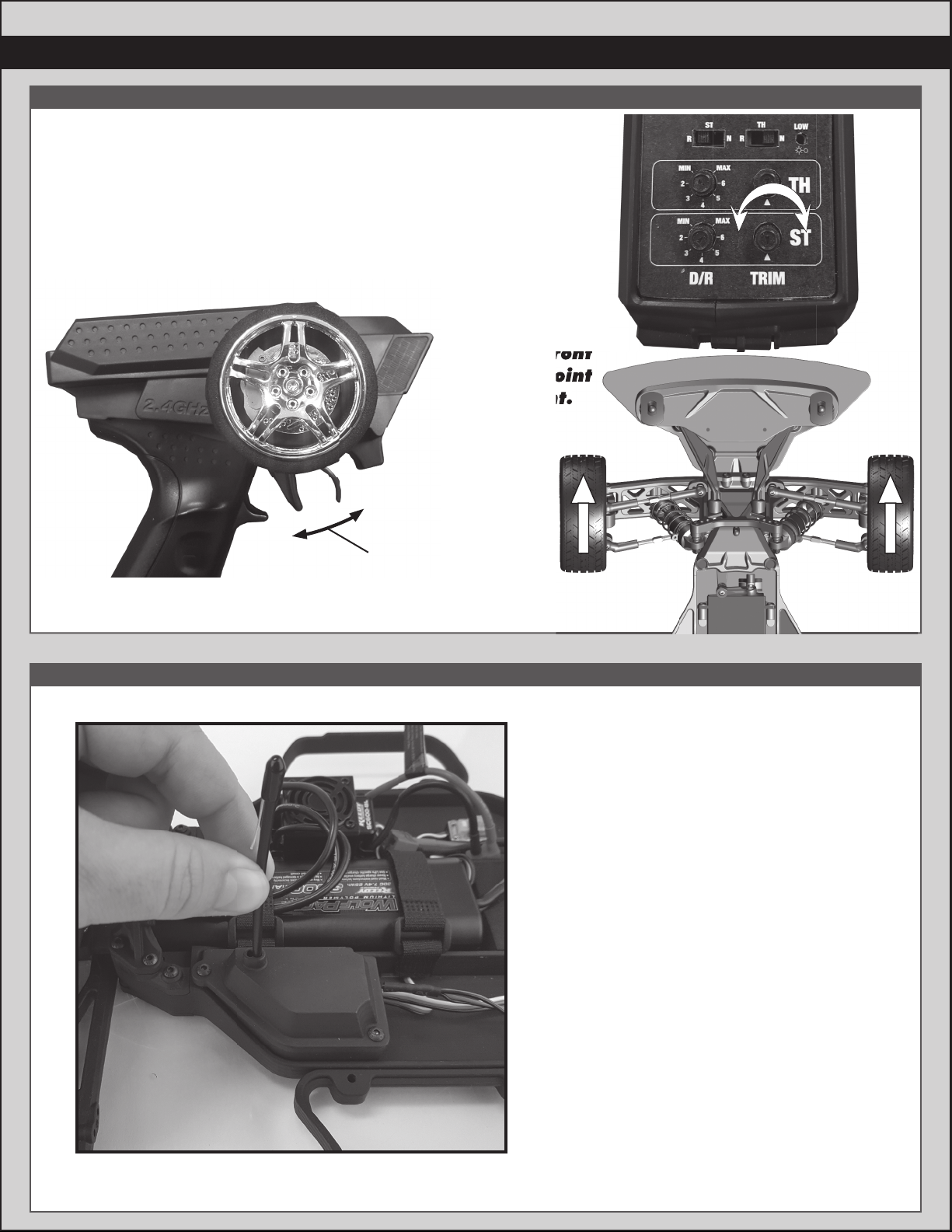

:: Quick Start Guide - (cont.):: Quick Start Guide - (cont.)

Adjust steering

trim so front

wheels point

straight.

Neutral

Push trigger

for Brake

Pull trigger

for Throttle

Install body and body clips.

Ready to go!

Install antenna wire

through antenna tube,

then install antenna

tube as shown.

trim so front

wheels point

straight.

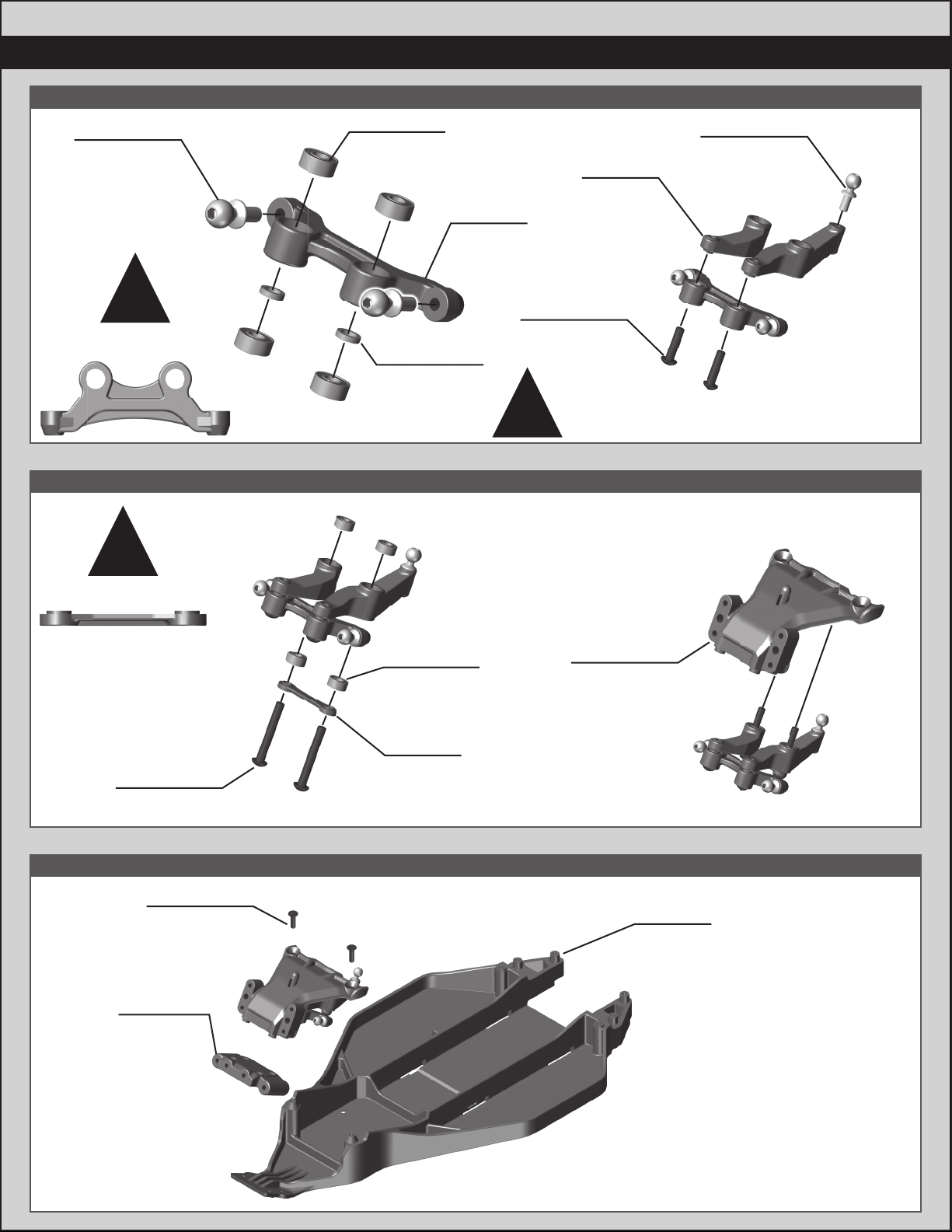

:::: Front Top Plate and Steering Build - StepFront Top Plate and Steering Build - Step 22

:::: Front Top Plate and Steering Build - Step 3Front Top Plate and Steering Build - Step 3

:: Front Top Plate and Steering Build - Step 1:: Front Top Plate and Steering Build - Step 1

Do not overtighten steering bolts. Make sure

there is free movement in the steering rack.

Note orientation

of steering rack.

Note orientation

of the brace.

91475

3 x 7 x 3

Ball Bearing

91391

Steering

Rack

x4x4

x2x2

91047

Heavy-duty

Ballstud,

6mm

91391

Steering

Rack Crush

Tube

91391

Steering

Bellcrank

Brace

x2x2

89202

M3 x 12mm

BHCS

91047

Heavy-duty

Ballstud,

6mm

91391

Steering

Bellcrank

Brace

91475

3 x 7 x 3

Ball Bearing

x4x4

x2x2

25189

M3 x 22mm

BHCS

91358

Chassis

Brace Set

(Top Plate)

x2x2

25202

M3 x 10mm

FHCS

91359

Bulkhead

71092

Chassis

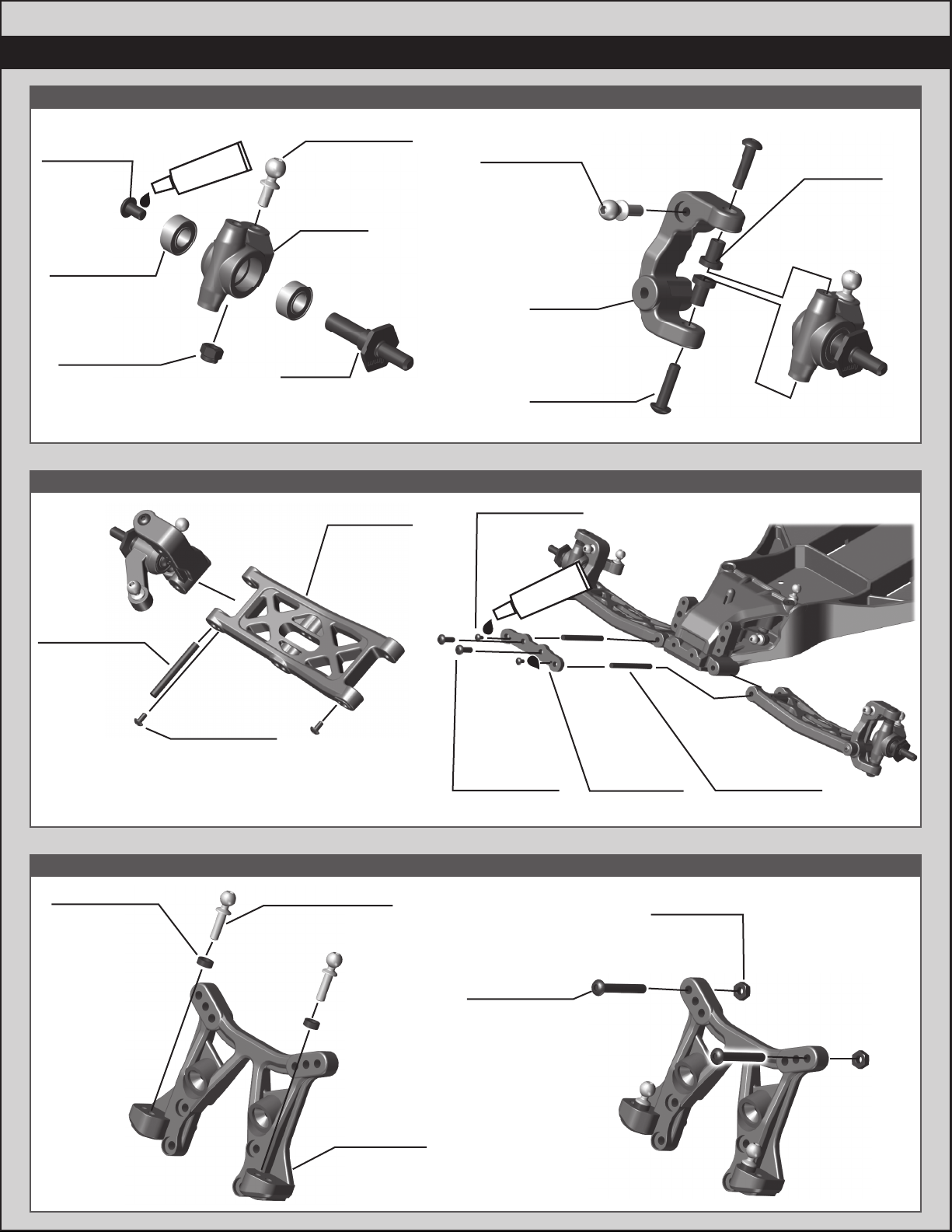

:::: Front Suspension BuildFront Suspension Build - Step 1- Step 1

:::: Front Suspension BuildFront Suspension Build -- Step 3Step 3

:::: Front Suspension BuildFront Suspension Build -- Step 2Step 2

Build 2 (1 left, 1 right)

91048

Heavy-duty

Ballstud,

8mm

91417

Caster

Block

x2x2

31530

M3 x 5mm

BHCS

25215

M3 Locknut,

black

25237

5 x 10 x 4

Bearing

71127

Front

Axles

91417

Steering

Block

#1596

thread lock

91047

Heavy-duty

Ballstud,

6mm

x2x2

89202

M3 x 12mm

BHCS

91402

Caster

Block

Bushing

x2x2

31510

M2 x 4mm

BHCS

31509

M2 x 3mm

BHCS

91394

Hinge Pin

(front, outer)

71068

Front Arms

91394

Hinge Pin

(front, Inner)

71049

Front Hinge

Pin Brace

25211

M3 x 10mm

BHCS

x2x2

#1596

thread lock

71093

SR10 Front

Shock

Tower

91049

Heavy-duty

Ballstud, 10mm

x2x2

31383

FT Ballstud

Washer,

Aluminum

(2mm)

91477

M3 Nut

(Black)

x2x2

89205

M3 x 26mm

BHCS

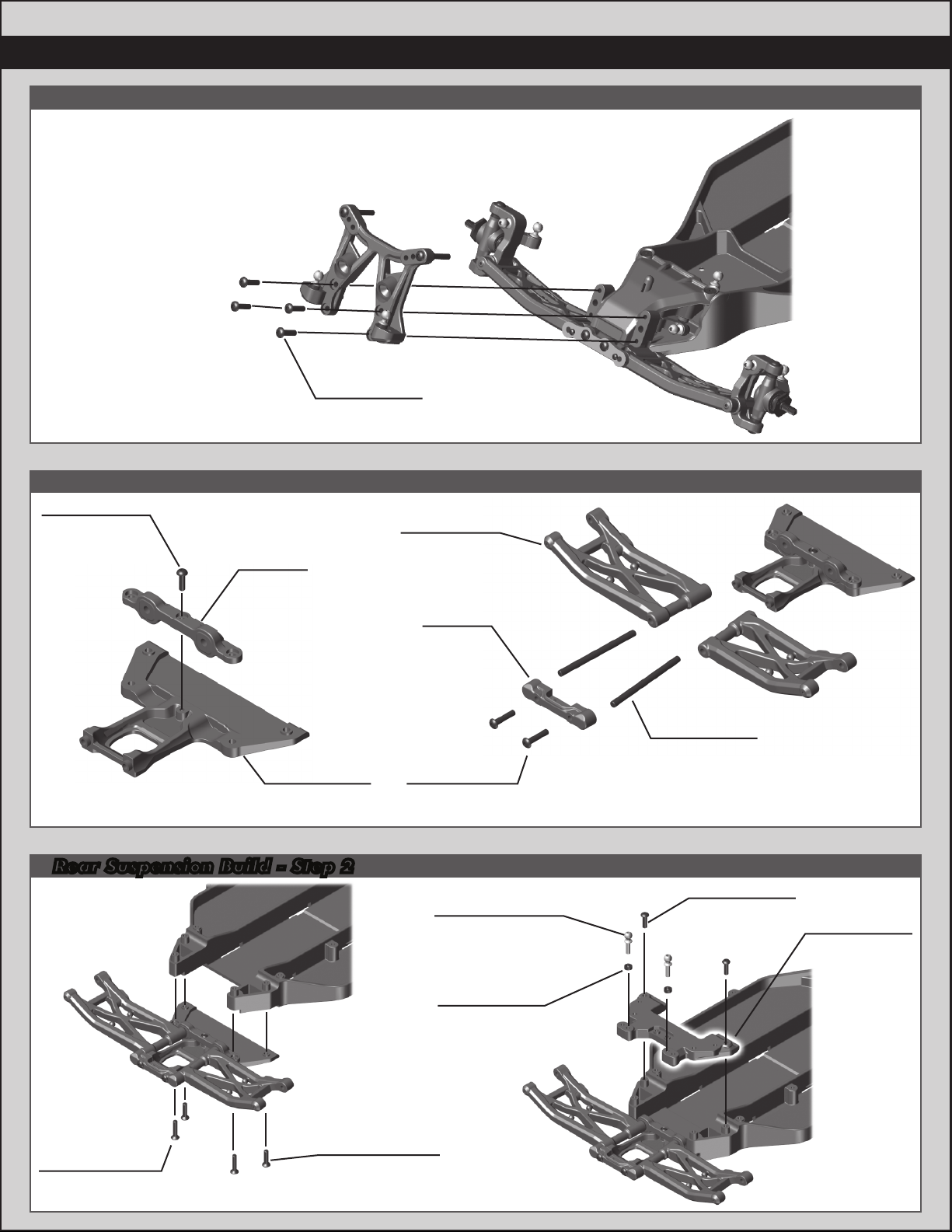

:::: Front Suspension BuildFront Suspension Build -- Step 4Step 4

:::: Rear Suspension Build - Step 2

:::: Rear SuspensionRear Suspension BuildBuild - Step 1- Step 1

91359

C Mount

91359

Rear Chassis

Plate

31521

M2.5 x 8mm

BHCS

71068

Rear Arms

x2x2

91394

Hinge Pin

(rear, Inner)

25187

M3 x 14mm

BHCS

91359

D Mount

x2x2

89208

M3 x 14mm

FHCS

25203

M3 x 12mm

FHCS

x2x2

25211

M3 x 10mm

BHCS 91358

Rear Chassis

Brace

x2x2

31383

FT Ballstud

Washer,

Aluminum

(2mm)

91049

Heavy-duty

Ballstud, 10mm

x2x2

89202

M3 x 12mm

BHCS

x4x4

Table des matières

Autres manuels Associated Electrics Voiture jouet motorisée

Associated Electrics

Associated Electrics T4.1 Manuel utilisateur

Associated Electrics

Associated Electrics WORLD'S CAR 6037 Manuel utilisateur

Associated Electrics

Associated Electrics TEAM ASSOCIATED RC10B4 Manuel utilisateur

Associated Electrics

Associated Electrics TEAM ASSOCIATED RC10B4 Manuel utilisateur

Associated Electrics

Associated Electrics RC10 SC5m Manuel utilisateur

Associated Electrics

Associated Electrics RC10B3 Manuel utilisateur

Associated Electrics

Associated Electrics PRO4 SC10 Manuel utilisateur

Associated Electrics

Associated Electrics RC12l4 Kit Manuel utilisateur

Associated Electrics

Associated Electrics Qualifier Series Manuel utilisateur

Associated Electrics

Associated Electrics RC10T6.1 Team Kit Manuel utilisateur

Associated Electrics

Associated Electrics TEAM ASSOCIATED RC10B4 B4 Manuel utilisateur

Associated Electrics

Associated Electrics Qualifier Series Manuel utilisateur

Associated Electrics

Associated Electrics RC8B3.2e Manuel utilisateur

Associated Electrics

Associated Electrics MGT 4.60 SE Manuel utilisateur

Associated Electrics

Associated Electrics Ready-To-Run RIVAL MT8 Manuel utilisateur

Associated Electrics

Associated Electrics RC10GT Manuel utilisateur

Associated Electrics

Associated Electrics SC10 Manuel utilisateur

Associated Electrics

Associated Electrics REEDY POWER RC10 T6.4 TEAM KIT Manuel utilisateur

Associated Electrics

Associated Electrics RC10F6 Manuel utilisateur

Associated Electrics

Associated Electrics Nomad-DB8 Manuel utilisateur

Associated Electrics

Associated Electrics ae RC8T3.1 Manuel utilisateur

Associated Electrics

Associated Electrics REFLEX 14R HOONICORN 20178 Manuel utilisateur

Associated Electrics

Associated Electrics RC12LS Graphite Manuel utilisateur

Associated Electrics

Associated Electrics RC10TC6.1-FT Manuel utilisateur

Manuels Voiture jouet motorisée populaires d'autres marques

Eduard

Eduard Humber Scout Car Mk.I exterior Manuel utilisateur

Traxxas

Traxxas 4995X Manuel utilisateur

Jamara

Jamara VW T1 Bus Manuel utilisateur

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Manuel utilisateur

Schumacher

Schumacher Pro Cat Manuel utilisateur

Tamiya

Tamiya TT-01 TYPE E Manuel utilisateur

Eduard

Eduard Krupp Protze 6x4 1/48 Manuel utilisateur

New Bright

New Bright 61072UEP Manuel utilisateur

Team Durango

Team Durango DEX410v5 Manuel utilisateur

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Manuel utilisateur

PLAYMOBIL

PLAYMOBIL 9536 Manuel utilisateur

Atomic

Atomic BZ3 Manuel utilisateur

Aiyaplay

Aiyaplay 370-290V00 Manuel utilisateur

Power Wheels

Power Wheels GRJ53 Manuel utilisateur

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Manuel utilisateur

INJUSA

INJUSA 412 Manuel utilisateur

Maverick

Maverick MSC-30BR-WP Manuel utilisateur

Land of B.

Land of B. Rollin' Riders Manuel utilisateur
