V2M1200/1290 SERIES SINGLE DRILL TEMPLATE

Securitron

Phoenix, AZ 85044

Tel: 1-800-624-5625

Mon-Fri: 6:00am - 4:00pm PDT

Fax: 1-800-232-7329

www.securitron.com

501-10005

MOUNTING INSTRUCTIONS

STEP 1

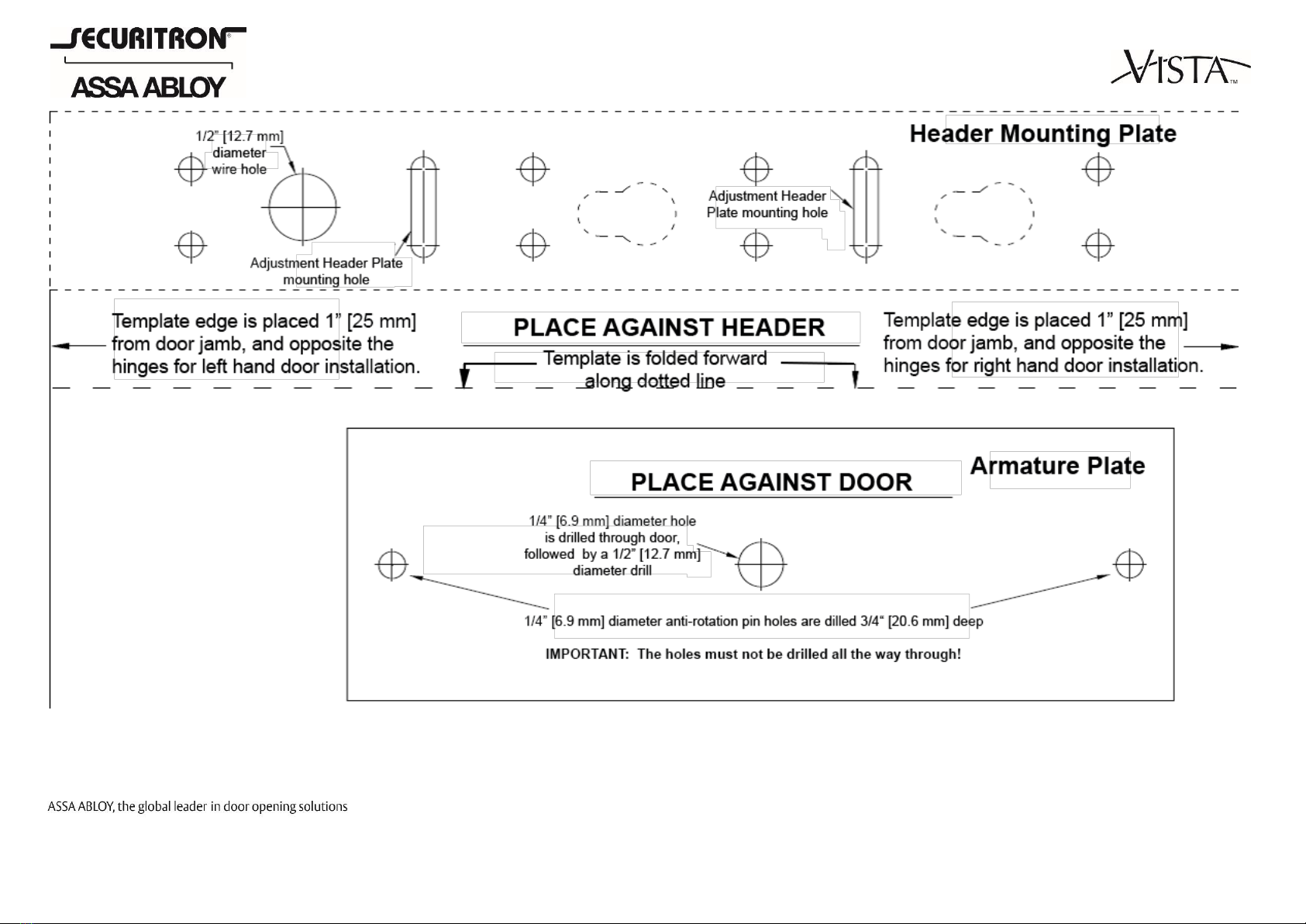

LOCATING MOUNTING HOLES

A. FOLD template at dotted line.

B. PLACE bottom portion of template

against the door.

C. LOCATE and MARK the three (3)

holes on the armature plate.

D. LOCATE and MARK the two (2)

adjustment header plate holes and

wire hole on the header mounting

plate.

STEP 2

INSTALLING ARMATURE PLATE

A. DRILL a level 1/4” diameter hole

through the door. FOLLOW with a

1/2” diameter drill.

NOTE: The following is for a solid door

only!

B. DRILL two (2) 1/4” holes for the anti-

rotation pins ¾” deep.

C. MOUNT the armature plate to the

door with the sex bolt.

D. PLACE a metal washer, a rubber

washer, and a metal washer on the

bolt between the door and the

armature.

E. ENSURE armature rocks on the door.

STEP 3

HEADER MOUNTING PLATE

A. MOUNT header plate to jamb

using the two (2) adjustment

holes.

B. RUN the control cable through the

wire hole.

C. SLIDE maglock on the header

mounting plate.

D. ADJUST the position of the

maglock to contact the armature.

E. REMOVE the maglock and

SECURE header mounting plate

with the eight (8) remaining

screws.

STEP 4

INSTALLING MAGNET

A. SLIDE maglock on the header

plate.

B. FASTEN maglock to header plate

with the Allen head cap screws

located at each end of the lock.

C. After checking for proper

operation and alignment, APPLY

THE screw locking agent to the

header mounting plate screws,

armature, andAllen head cap

screws.
