Auxiliary control with Concealed Vertical Rod Exit Devices
P106, P113, WD-P106 & WD-P113
39 5/8”
PE8400, 12-MD-PE8400,
MD-PE8600 & 12-MD-PE8600
EXIT DEVICE X P100 SERIES
AUXILIARY CONTROL
WD-PE8600 & 12-WD-PE8600
EXIT DEVICE X WD-P100 SERIES
AUXILIARY CONTROL
2
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
P106, P113, WD-P106 & WD-P113
Installation Instructions
Auxiliary Control with Concealed Vertical Rod Exit Devices
A8309-1 5/23
ab

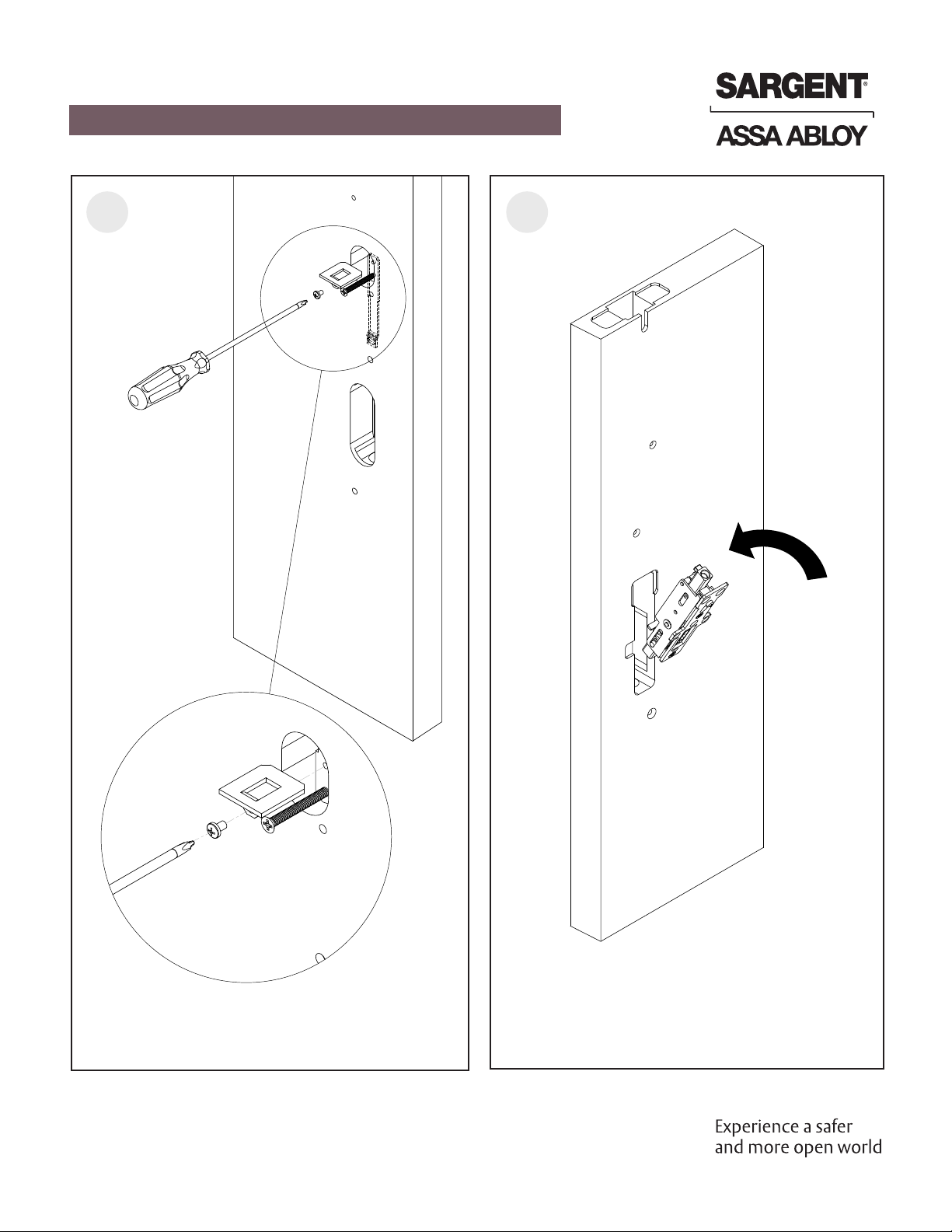

Screw the #10-32 X 2” fastener to the auxiliary control
link that was placed in the door from step a.
Auxiliary
control link
Using the exit device instructions, prepare the door for the exit device.
1
Prepare the door for auxiliary control as illustrated on page 1.
2
For wood doors, follow steps to install the auxiliary control bracket.
3
Feed the auxiliary control link up and through the
exit device side of the door.
3
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8309-1 5/23
P106, P113, WD-P106 & WD-P113
Installation Instructions
Auxiliary Control with Concealed Vertical Rod Exit Devices
c d
Holding the #10-32 fastener, take the platform and
the smaller screw and attach it to the upper hole on
the link in the door. Remove the #10-32 X 2”
fastener.
Take the inner chassis and place it into the opening.
4
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
P106, P113, WD-P106 & WD-P113
Installation Instructions
Auxiliary Control with Concealed Vertical Rod Exit Devices
A8309-1 5/23
f
Mark the inner chassis mounting holes.
e
Hook the inner chassis into the link.
5
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8309-1 5/23
P106, P113, WD-P106 & WD-P113
Installation Instructions
Auxiliary Control with Concealed Vertical Rod Exit Devices
g
Remove the inner chassis.
h
Pre-drill the holes in the door with a 1/8” drill bit.
6
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
P106, P113, WD-P106 & WD-P113
Installation Instructions
Auxiliary Control with Concealed Vertical Rod Exit Devices
A8309-1 5/23
j
Secure the inner chassis with two screws.
i
Rehook the inner chassis into the link and then
insert the inner chassis back into the door.
7
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without
the express written permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent
www.assaabloydss.com/patents.
A8309-1 5/23
P106, P113, WD-P106 & WD-P113
Installation Instructions
Auxiliary Control with Concealed Vertical Rod Exit Devices
k
Confirm installation is as shown.
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written
permission ofSARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents. A8309-1 5/23
Using exit device instructions, mount exit device to the door.
4
Mount auxiliary control to door.
5
BREAK OFF POINTS (IF NEEDED)
1. USED FOR SARGENT P-106 AND WD-P106 FUNCTION.
2. USED ON 51-P106 FUNCTION, 82-P106 AND 83-P106
PREFIX (OLD STYLE REMOVEABLE CORE).
3. USED ON SARGENT P-113 AND WD-113 FUNCTION, ALL
CYLINDERS.
4. USE AS IS FOR 70-P106, 70-WD-P106, 72-P106, 72-
WD-P106, 73-P106, AND 73-WD-P106 BEST CYLINDER
FUNCTIONS. SCHLAGE CYLINDER SIZE #41.
