ASR DP-1530HMI Manuel utilisateur
1. Product Introduction
Vehicle alarm and status display terminal can be connected to the mobile DVR. It’s usually
installed closely to the user so that the user can press the alarm button in time in case of
emergency. There are 3 status lights to show the power status, recording status and error status
of MDVR
2. Connecting Wire

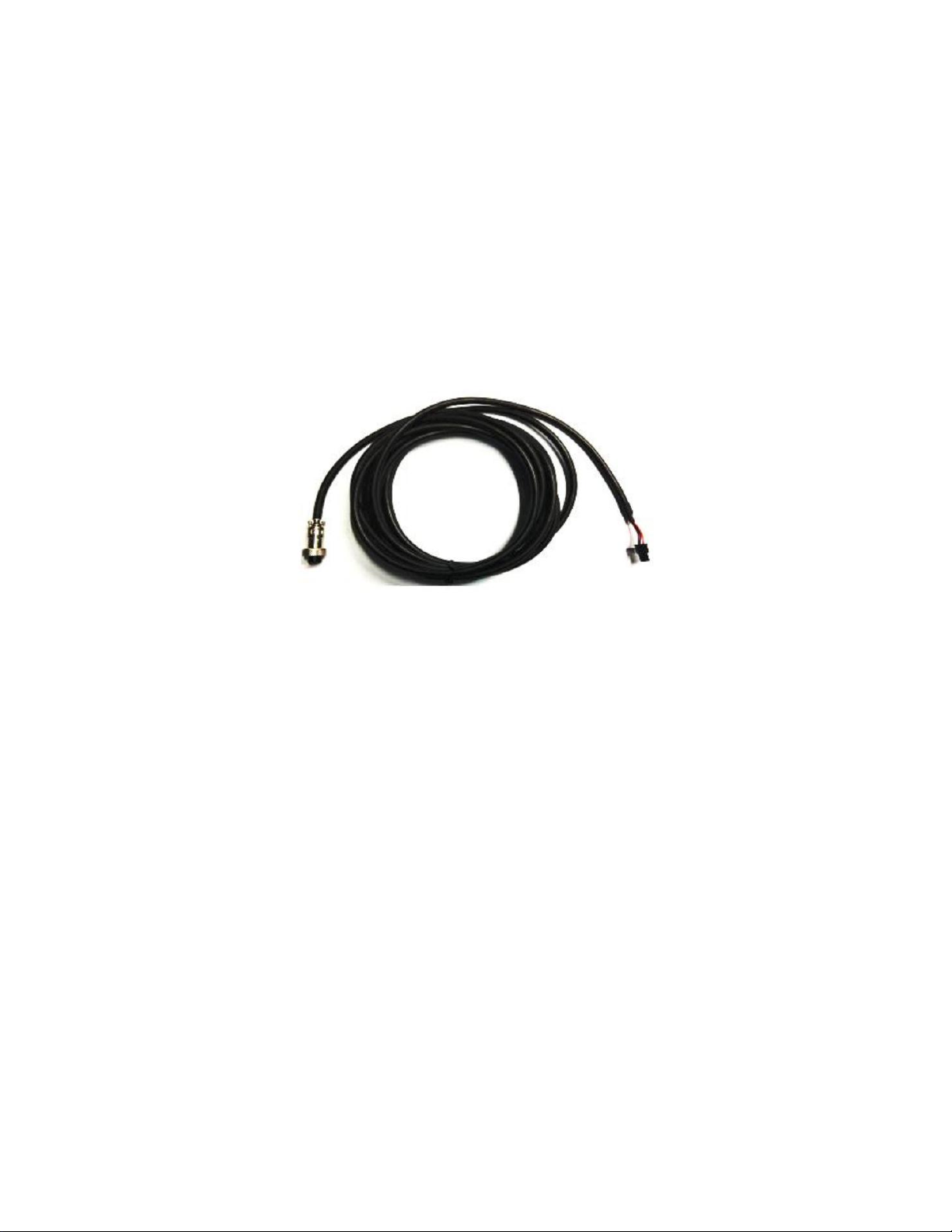

The terminal is connected to the MDVR with RS232 cable shown as below.
3. Settings
3.1 Serial Settings
Enter the Serial Port Settings interface to configure the parameters, as shown below.
Menu>Basic Settings>SerialPort
3.2 Alarm Terminal Settings
Enter the Alarm Terminal Settings interface and enable the function. You can configure the
channels to trigger recording, arm schedule and handle method.
4. Function Introduction
4.1 Indicator Light
The indicator will show the working status of MDVR when the terminal and MDVR are
connected.
There are three indicator lights and all the status are listed below.
POWER light (green single color light)
Green light on: power on
Green light off: power off
Green light flash twice: power on and press the alarm button
RECORD light (yellow and green bi-colored light)
Green light on: all channels recording
Yellow light on: part of channels recording
Green light off: none channel recording
ERROR light (red single color light)
Red light on: connection lost with MDVR
Flash with 0.5s interval: video loss of MDVR or HDD exception
Note: the error types are set by factory and user cannot modify.
4.2 Alarm Button
User can press or release the alarm button when the emergency happens, then the terminal will
send the alarm to the MDVR. The following action will be triggered:
The alarm of preset channel will be uploaded to CMS
Trigger alarm recording for preset channels
Stop emergency alarm when the button is released, the alarm recording won’t stop until
it reaches to the post recording period.
The log will contain all the info about the action of pressing and releasing the button.
4.3 Acceleration Sensor
The acceleration sensor is equipped on the terminal. The interval of signal acquisition is 100ms.
Make sure the terminal are placed in the horizontal plane so that the heading direction is X axis
and upward for Z axis.
Note: please calibrate the terminal before usage.
Press the alarm button for 3 seconds in the period of power lights starting within 10s, then it
succeeds when the power light flash twice continuous.
4.4 Remote Control Signal Acquisition
The terminal can receive the signal of the remote control instead of the remote control itself to
make the operation more convenient.
5. Specification
Model
DP-1530HMI
Power supply
5V/30mA or 12V/15mA
Indictor light
Three lights: Power, Record and Error
Dimension(W * D * H)
30 * 19 * 80 mm
Working temperature
-10 ºC ~+55 ºC
Humidity
10%~95%
