SERVICEMANUAL
DISHWASHERS
DW20.1, DW20.2, DW20.3,
DW20.4, DW20.5, DW20.C
2
3
Contents
1. Introduction .............................................................................................................. 5
2. Technical data ........................................................................................................... 8
2.1 Technical information ....................................................................................... 8
2.2 Components and measured values ................................................................... 9
2.3 Connection diagram....................................................................................... 11
2.4 Functional description of components ............................................................. 12
3. Installation.............................................................................................................. 15
4. Settings................................................................................................................... 19
4.1 Programme .................................................................................................... 19
4.2 Time display................................................................................................... 20
4.3 Options.......................................................................................................... 20
4.4 Water level DW20 .......................................................................................... 31
5. Service menu.......................................................................................................... 32
5.1 Activation of service menu ............................................................................. 32
5.2 Programme flow description .......................................................................... 36
6. Troubleshooting ...................................................................................................... 40
6.1 Most common faults ....................................................................................... 40
6.2 Fault indication .............................................................................................. 42
6.3 Fault codes..................................................................................................... 43
7. Tools....................................................................................................................... 44
7.1 Tools .............................................................................................................. 44
7.2 Special tools................................................................................................... 44
Register ...................................................................................................................... 45
5
1. Introduction
In your hand you are holding ASKO’s Service Manual for the new generation of dishwashers.
The dishwashers in the DW20 range are available in four different basic models with the type designations
DW20.1, DW20.2, DW20.3, DW20.4, DW20.5 and DW20.C. Presented on the following page are the
different panels available for each type, which lets you readily identify the machine type. The different
variants have different designations from market to market. The type designation is most important when
you need to identify a particular type of machine.

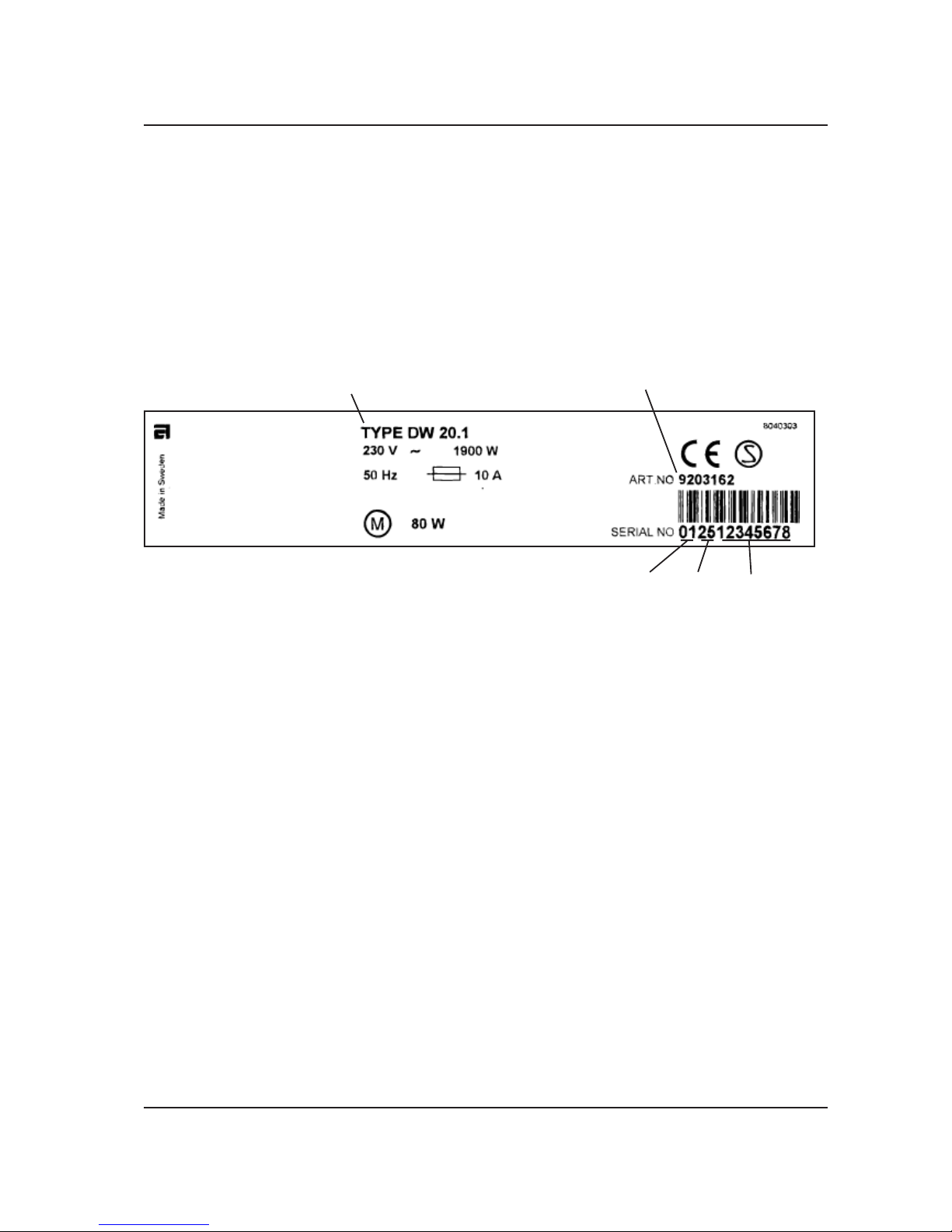

You can find this on the machine rating plate positioned on the right-hand side of the inner part of the door.
It must be easy to carry out servicing on dishwashers. It is important for you, as a service technician, to
benefit from the conditions necessary to enable you to work in an effective and satisfactory fashion. We
hope that this Service Manual will be a useful tool in your daily work.
Asko Cylinda AB/After Sales
Box 344
SE-532 24 Skara
Sweden
INTRODUCTIONINTRODUCTION
INTRODUCTIONINTRODUCTION
INTRODUCTION
Type designation Item number
Serial number
Year Week
6

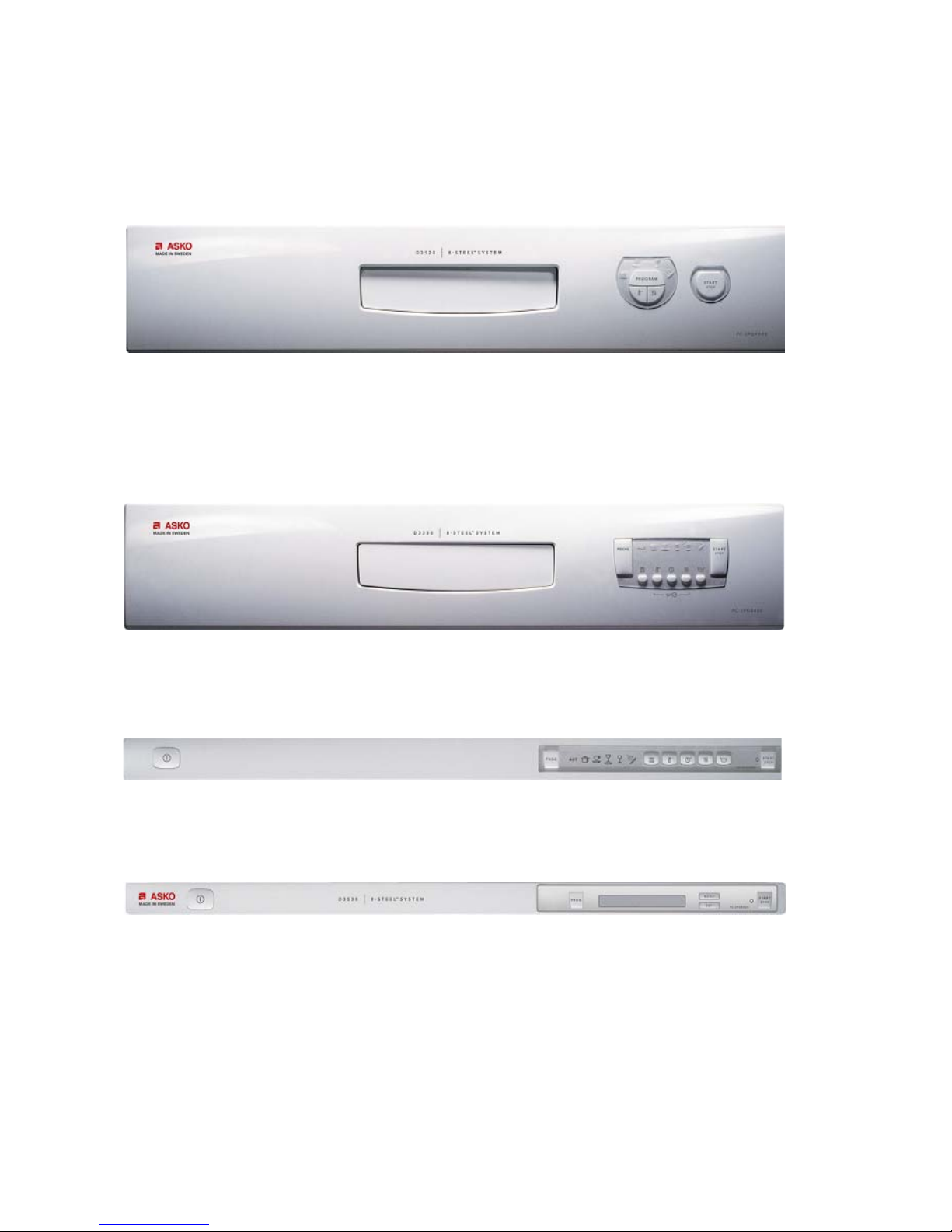

DW20.3
The buttons are on the top side of the control unit in the DW20.3. The unit has six set programmes and is
available in two models - with three or five options.
DW20.2
DW20.2 is a control unit with a large display on the front of the panel. It has six set programmes and none
or three or five options.
DW20.4
DW20.4 is a control unit with ten set programmes, a number of different options and with a single display
(LCD) on the top side of the panel.
DW20.1
DW20.1 is available in three variants, either with none, one or with two options.All have four set
programmes and operating controls on the front of the panel.
INTRODUCTIONINTRODUCTION
INTRODUCTIONINTRODUCTION
INTRODUCTION
The DW20.3 and DW20.4 control units are used both for fully integrated and standard models. The other
control units are used only on standard models.
7
DW20.5
DW20.5is acontrol modulewith displayonthe frontof thepanel. Ithas fivefixedprogramsand
betweenthree andfive options.
STARTSTART
STOPSTOP
PROGPROG
DW20.C
DW20.C is a control unit with a large display on the front of the panel. It has six set programmes and
none or three or five options.
INTRODUCTIONINTRODUCTION
INTRODUCTIONINTRODUCTION
INTRODUCTION
8
2.1 Technical information
Height: 820 - 870 mm = for 820 mm machines,
(860 - 870 mm) = for 860 mm machines
Width: 596mm
Depth: 570mm
Weight: 42 kg/45 kg with water softener
Capacity*: 12 place settings
Water pressure: 0.03–1.0 MPa (0.3–10 kp/cm2)
Connection: 1-phase, 230 V, 50 Hz 10 A**
Max connection power: 1 900 W**
*According to standard EN 50242
**See rating plate
2. Technical data
TECHNICAL DATECHNICAL DA
TECHNICAL DATECHNICAL DA
TECHNICAL DATT
TT
TAA
AA
A
9
TECHNICAL DATECHNICAL DA
TECHNICAL DATECHNICAL DA
TECHNICAL DATT
TT
TAA
AA
A
2.2 Components and measured values
Indicated resistance values apply at room temperature (ca. 20°C/68°F)
Values within ±10% are regarded as normal
Item No. Component Measured value Position
8073779 Radio interference suppression filter 680 kohm
8073780,81 Radio interference suppression filter 1 Mohm
8073784 Heating element 1800 W 230 V 30 ohm
8073785 Heating element 1200 W 120 V 12 ohm
8073788 Thermistor 25 kohm
8073801,02 Combined dispenser 230 V 1.3 kohm
8073803,04 Combined dispenser 120 V 0.3 kohm
8073811 Circulation pump 200-240 V 50 HZ 90 ohm
8073812 Circulation pump 200-220 V 60 HZ 56 ohm
8073813 Circulation pump 120 V 60 HZ 22 ohm
8073816 Drain pump 200-240 V 50 HZ, 16 l/m 150 ohm
8073817 Drain pump 200-220 V 60 HZ, 16 l/m 85 ohm
8073818 Drain pump 120V 60 HZ, 16 l/m 25 ohm
8073821 Spray arm divider 200-240 V 50/60 HZ 8,5 kohm 2-3
8073822 Spray arm divider 120 V 60 HZ 2.6 kohm 2-3
8073824 Inlet valve single incl. flow sensor 200-240 V, 4 l/m 3.8 kohm coil
8073825 Inlet valve single incl. flow sensor 120 V, 4 l/m 0.95 kohm ”
8073826 Inlet valve safety incl. flow sensor 200-240 V, 4 l/m 2 kohm ”
8073827 Inlet valve safety incl. flow sensor 120 V, 4 l/m 0.5 kohm ”
8074337 Inlet valve water soft incl. flow sensor 200-240 V, 4 l/m 3.8 kohm ”
8074338 Inlet valve water softener incl. flow sensor 120 V, 4 l/m 0.95 kohm ”
8073830 Halogen lamp 5 W/12 V <10 kohm
8052778 Wax motor 1.1 kohm
8073847 Fan motor 230 V 0.75 kohm
8073848 Fan motor 120 V 0.18 kohm
8081321 Heavy soil sensor
10
Item No. Component Item No.
8801260 Control unit Compl., DW20.1 EU
8801285 Control unit Compl., DW20.1 AU
8801286 Control unit Compl., DW20.1 USA
8801261 Control unit Compl., DW20.2 EU
8801279 Control unit Compl., DW20.2 AU
8801280 Control unit Compl., DW20.2 USA
8801272 Control unit Compl., DW20.3 EU
8801281 Control unit Compl., DW20.3 AU
8801282 Control unit Compl., DW20.3 USA
8801273 Control unit Compl., DW20.4 EU
8801283 Control unit Compl., DW20.4 AU
8801284 Control unit Compl., DW20.4 USA
8801320 Control unit Compl., DW20.5 EU
8801340 Control unit Compl., DW20.5 USA
8801341 Control unit Compl., DW20.5 AU
8801249 Control unit Compl., DW20.C EU/AU/USA
TECHNICAL DATECHNICAL DA
TECHNICAL DATECHNICAL DA
TECHNICAL DATT
TT
TAA
AA
A
