U S E R M A N U A L
4x4 HDMI Matrix
Model No: HDMX0404
INTRODUCTION
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Our series of HDM switchers, extenders, matrixes and splitters are designed to make your
A/V device use more convenient, more comfortable, more productive and more cost-
efficient.
The 4x4 HDM Matrix can use four HDM sources to four HDM sinks. The matrix allows four
HDM devices to be switched or split easily to four HDM compatible monitors or projectors.
The Matrix can also be placed at the end of a long HDM cable to regenerate the HDM
signal.
Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
FEATURES
Four HDM input signals switched or split to four HDM sink devices
Support CEC
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG26 HDM standard cable length, output up to
25metres AWG26 cable length
nputs can be switched with the R remote control ，also can be controlled by four
buttons.
Serial RS-232 remote port
t can smartly jump over those input sources which are not connected.
No loss of quality
nstalls in minutes
Need DC5V/4A power supply
The accessories with the machines lists as picture：
1、5V Power Adaptor
2、Remote
3、one pc of Manual
Power Adaptor
Remote
Physical Connection Showing Picture：
Figure 1.0 Front Panel Showing Picture
nput 1- nput 4: HDM input led status light
R: R receiver
LCD: Digital Tube Showing
Switch A: HDM A output switch button
Switch B: HDM B output switch button
Switch C: HDM C output switch button
Switch D: HDM D output switch button

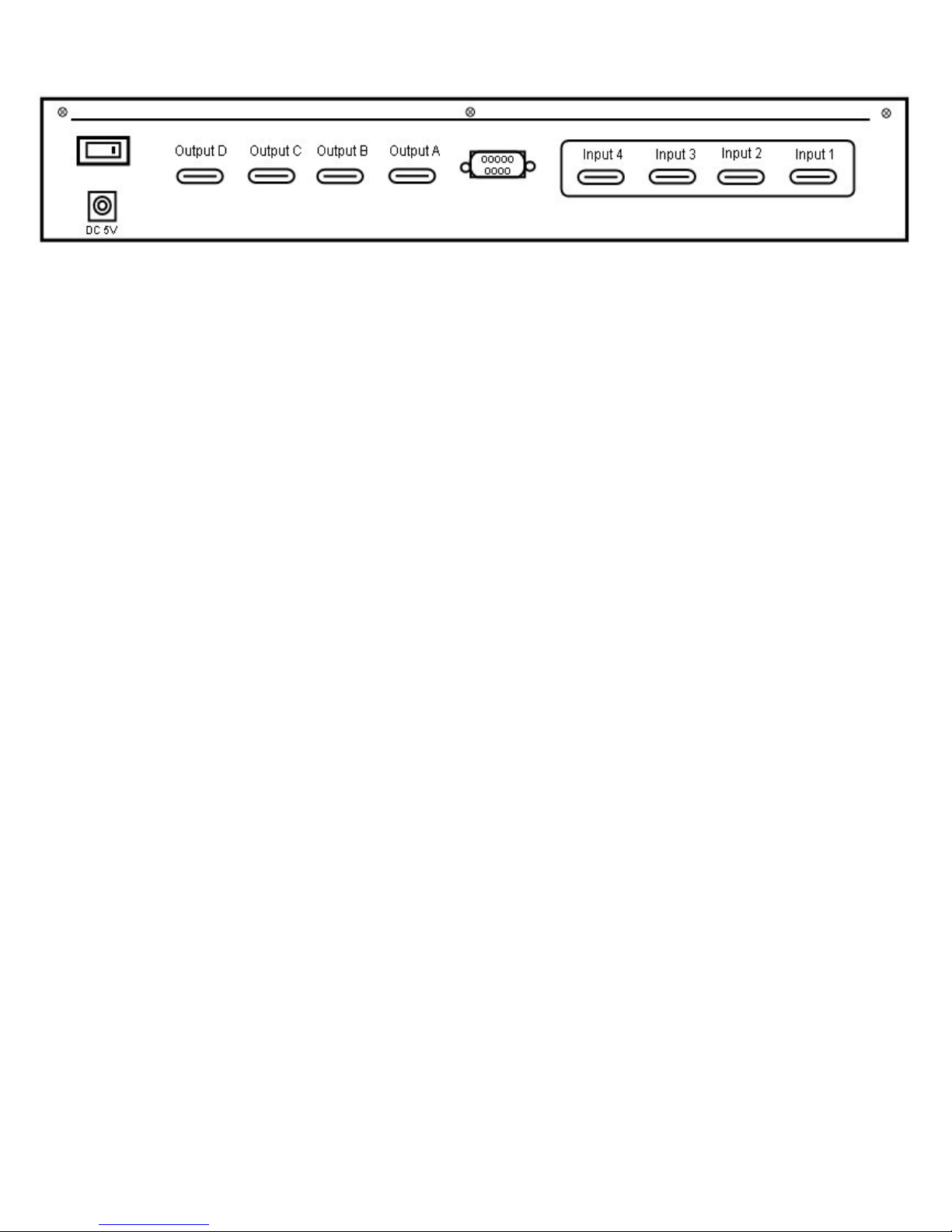

Figure 1.1 rear panel showing picture
DC 5V: 5V DC-DC Power nterface
Switch：Power Adaptor led status light
Output D：HDM D output interface
Output C：HDM C output interface
Output B：HDM B output interface
Output A：HDM A output interface
R232: RS232 communication port
nput 1- nput 4：HDM input interface
Operating and Connecting：
1. Connect one cable from each HDM source devices into HDM Matrix inputs.
2. Connect one cable from each display (monitor or projector) into the HDM Matrix
outputs.
3. Connect 5V power supply to the HDM 4x4 Matrix.
4. Alternatively, use an RS-232 control system to switch between sources.
SPECIFICATIONS: HDMX0404
HDM resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit/deep color 30bit,36bit
Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………….225MHz
Max baud rate…………………….………………….…………………………………..6.75Gbps
nput/Output TMDS signal ………….…………………………..………...0.5~1.5Volts p-p(TTL)
nput/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
nput cable distance..…... ………………………. ….…..≤15m AWG26 HDM standard cable
Output cable distance……………………………….…...≤25m AWG26 HDM standard cable
Max working current…………………………………………………………………………...2.6A
Power adapter format……………….. nput:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/4A
Operating Temperature range……..…………….………………………………… (-15 to +55 )℃
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) …………………………….…………………………380x140x60 (mm)
Weight…..………………………………………………………..…….………………………1900g

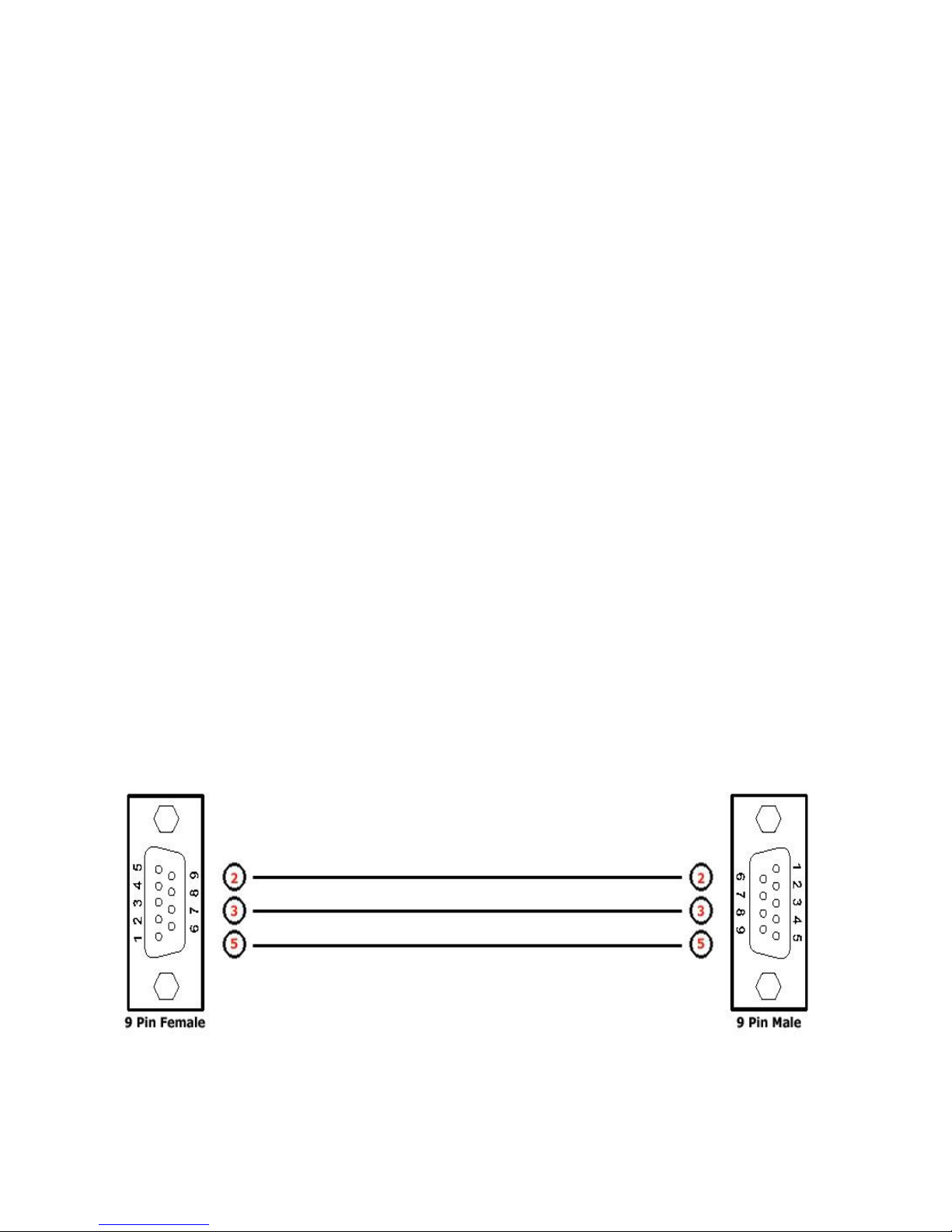

RS-232 INTERFACE
Receive
Transmit
GND
The Hexadecimal Serial Communication Protocol：
To control the input/output by sending the XXXX@X! ASC Code( before the mark “
@”the XXXX means the output port, while the X after “ @” means input port,the mark “!”
means the finish. One X means one hexadecimal number, there are 1,2,3,4 X before @,
and there is only one hexadecimal number after @. The part before the mark “@” is made
up by four hexadecimal Serial Communication Protocol, while the part after the mark “@” is
one Hexadecimal number.
For example: A B C D @ 3 ！（Note: A B C D four output port all send out the input 3
signal）
For example: D @ 1!(Note: D output port send out the input 1 signal)
Send the com or XXXX@X ASC code to get the related input port of the A B C D output
port.(note: the first number means the signal from Output A port, the second number means
the signal from Output Cport, the third number means the signal from Output C port, and the
fourth number means the signal from Output D port.
For example: 03 04 02 01
The first number “03” means output A port is outputting input 3 signal.
The second number “04” means B port is outputting input 4 signal.
The third number “02” means C port is outputting input 2 signal.
The fourth number “01” means D port is outputting input 1 signal.
For example：03 03 02 02
The first number “03” means output A is outputting input 3 signal.
The second number “03” means output B is outputting input 3 signal.
The third number “02” means Output C is outputting input 2 signal.
The fourth number “02” means output D is outputting input 2 singal.
For example: 01 02 03 04
The first number “01” means output A is outputting input 1 singal.
The second number “02” means the output B is outputting input 2 signal.
The third number “03‘ means the output C is outputting input 3 signal.
The fourth number “04” means the output D is outputting input 4 signal.
RS-232 Setting:
Bits per second .........................................................................................................9600
Data bits ........................................................................................................................ 8
Stop bits ..........................................................................................................................1
CRC bits………………………………………………………………………………………None
Flow Control .............................................................................................................. None
The Control Software Manual For the Matrix：
1．To open the control software and choose the serial port that connected with the Matrix and
then click the Open,it will show as picture below.(the figure 2 is matched code of figure 1)
2．The letter “OPEN” means open the serial communication port function, the “Close” means
close the serial communication port function. For example, the figure 3 means:
Output A, Output B, Output C, Output D all outputs input 1 signal.
3. The A B C D four output port will all output input 1 signal when click the “1”.(the 2,3,4 is
same principle as the “1”)
4. The A output port will output input 4 signal when click the A4( the letter from A1 to D4 is all
same principle with A4).
Figure 1 Figure 2
A B C D
1 A1 B1 C1 D1
2 A2 B2 C2 D2
3 A3 B3 C3 D3
4 A4 B4 C4 D4
Figure 3
IR Remote Operating Instruction
1．Firstly remove the plastic film in the rear board of the remote board.
2．The A, B, C, D signifies the A, B, C, D output.
3．f you want to select the Signal source to output A, press the A key directly. Repeat
pressing the A key can switch the signal to the output. For Example,if you like to switch the
input 2 hd source to output A,only press the "A” key repeatedly until you see the LED tube
showing "2".
4．The plastic film is strongly advised to remove it when the remote is not used for long
time.
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature,
Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the
socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
Before power on, pls check the connection line carefully. And make sure that all interfaces
are normally connected. The common trouble shooting way shows below:
Serial NO
Trouble
Description
Cause and Ways to deal with
1
Non-Power-
Connected
1.Check if the power adaptor head is truly and
correctly inserted the power socket.
2.Check the power switch if it is in on status.
2 No Picture
1.Pls to make sure that the TV is on and has been
connected with the machine.
2.To check if the signal source is on and well
connected.
3.Check the system connection quality.
4.Check if the line is all good quality.
5.Check the cable quality
3 Obscure Picture
1.To try again to connect the cable to be free from the
unsuccessful connection.
2.HDM Cable Quality
4 Remote
1.Pls check if the film that stops the current has been
taken out.
2.To check if the remote battery is working full.
