INSTRUCTIONS

DOUBLE TREADLE KIT

ASHFORD TRADITIONAL SINGLE OR DOUBLE DRIVE

Tools Required: Hammer, slot screwdriver, candlewax, Ashford Spinning Wheel Oil.

Finishing the Wood: We recommend the wood surfaces be sealed before assembly. This protects the kiln dried wood from

climatic changes and enhances its beauty. Use either the Ashford Wax Finish or the same ﬁnish as

the rest of your wheel.

Assembly Sequence: Please read these instructions right through before commencing.

1. Depending on the age of your wheel, remove from the con rod end of the crank either:

a) the split pin with a pair of pliers

b) the O-ring with a pin or needle

c) the E-clip with a small screwdriver

Take off old con rod from the crank or

d) snap con rod off crank

2. Remove the hub pin. - Use the nail provided and a hammer. Note: on earlier models the hub pin is in the middle of the hub.

Avoid damaging the spokes. Place a ﬂat steel object such as pliers or a spanner over the nail and hammer it.

3. Remove the crank from the wheel.

On old spinning wheels use a slot screwdriver to prise the bent 1/8” diameter hub pin out.

4. Remove the wheel from the frame. Clean the bearings and wheel. Remove any ﬁbres that may have collected around the

crank.

5. Replace the wheel into position. Note: the hub pin is on the same side as the con rods.

6. Push the double treadle crank (with the inner con rod attached) through the wheel supports and hub. There are two holes in

the crank. One will ﬁt your wheel.

7. Place the nail down the hub pin slot and into the hole in the crank. Remove the nail and replace it with the hub pin.

Ashford Guarantee

Thank you for purchasing this Ashford product. In the unlikely event there is

any fault in manufacture we will replace the item. To validate our guarantee

please visit our website or write to us.

Ashford Handicrafts Limited

Factory and Showroom: 415 West Street

PO Box 474, Ashburton 7700 New Zealand

Telephone 64 3 308 9087 Facsimile 64 3 308 8664

Email: sal[email protected]o.nz Internet: www.ashford.co.nz

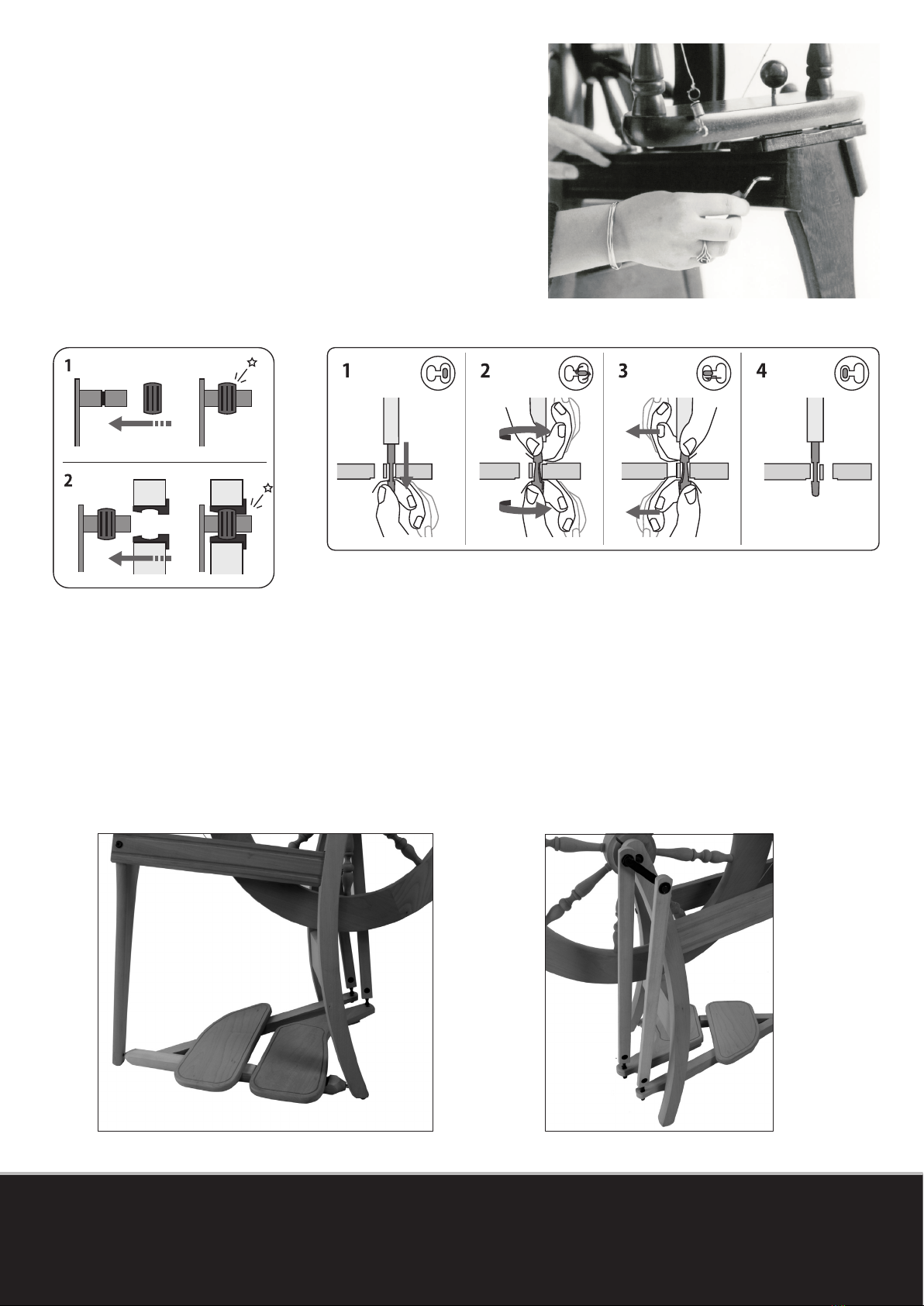

8. Loosen the bolts or screws holding the single leg to the frame.

Use either the allen key provided or a slot screwdriver. Remove

the old treadle rail.

9. Rub candle wax onto the steel pins projecting from the new

treadle rail.

10. Place the Double Treadle Assembly into position between the

two legs.

11. Push the single leg against the treadle rail. Retighten the bolts or

screws.

12. Slide the inner shell of the conrod

universal joint onto the crank until it

clicks into the groove. Then click the

rear conrod onto the universal joint on

the crank.

DTKTD14032014V3

13. Insert the front conrod into the large slot in right hand treadle board. Hold

the conrod joint with one hand on either side of the treadle board. With both

hands, turn the conrod joint a ¼ turn. Stretch and slide it into the small slot

and turn it back a ¼ turn until it clicks into place.Repeat the sequence for the

rear conrod and the left treadle board.

14. Lubricate all moving parts with Ashford Spinning Wheel Oil. Now you can enjoy spinning on your new Ashford Double

Treadle Kit.

Front Rear
