WINE CONTROLLER
78 x 35 mm
Model KR1E
Quick Guide •ISTR_Q_KR1E_E_05_--
viale Indipendenza 56, 27029 - Vigevano (PV) - ITALY
Tel.: +39 0381 698 71, Fax: +39 0381 698 730
internet site: www.ascontecnologic.com
ube
DECLARATION OF CONFORMITY AND
MANUAL RETRIEVAL
KR1E is a panel mounting, Class II instrument designed to comply
with European directives. All information about the controller use
can be found in the Engineering Manual:
ISTR_M_KUBEM-R1E_E_0x_-- (“x” is the revision).
The Declaration of Conformity and the manual of the controller
can be downloaded (free of charge) from the web-site:
www.ascontecnologic.com
Once connected to the web-site, search: KR1E
then click on KR1E.
In the lower part of the product page (in any language) is present
the download area with links to the documents available for the
controller (in the available languages).
Warning!
- Whenever a failure or a malfunction of the device may cause
dangerous situations for persons, things or animals, please
remember that the plant must be equipped with additional
devices which will guarantee safety.
-
We warrant that the products will be free from defects in material and
workmanship for 18 months from the date of delivery. Products
and components that are subject to wear due to conditions of
use, service life and misuse are not covered by this warranty.
Disposal
The appliance (or the product) must be disposed
of separately in compliance with the local
standards in force on waste disposal.
DISPLAY AND KEYS
KR1E
Access to:
- Operator Commands
- Parameters
- Configuration
Access to:
- Setpoint adjustment
- Operator additional info
Increase the displayed value
or selects the next parameter
in the list
Decrease the displayed value
or selects the previous
parameter in the list
Exits from Operator mode/
Parameter setting/
Configuration mode
Programmable key: runs the
programmed function (Autotune,
Auto/Man, Timer, etc.)
Access to:
- Setpoint adjustment
Operator Mode Control Mode
Confirm and go to
Next parameter
These 2 keys, pressed in sequence, allow to toggle
between MANual and AUTO modes.
+
Mesure
(Unités Phys.)
Set Point(auto mode)
Output Value(manual mode)
Param. value or
State/Function (Editing mode)
Output LEDs
Manual mode
Alarm active
Unit (°C/°F)
Autotune in progress
(flashing)
MODEL CODE
The Hardware resources are identified by the following Model Code.
KR1E A B C D E F G H
Supply voltage: 100... 240 Vac/
18... 28 Vac/
20... 30 Vdc
RS485
DI1
OP3 OP2
NO NOCC
ONF
Pt100
Pt1000/NTC/PTC
OP4
(note)
DI2
(note)
Ananogue Input
12 Vdc
(note)
12 Vdc
(note)
PV
PV
4... 20 A
3 wire transmitter
2 wire
transmitter
OP1
TERMINALS
Note: Terminal 4 can be programmed as:
- Digital Input (DI2) connecting a free of voltage contact between terminals 4 and 11;
- 0... 12 V SSR Drive Output (OP4) connecting the load between terminals 4 and 11;
- 12 Vdc (20 mA) transmitter power supply connecting the 2 wire transmitter between terminals 4 and 1;
for 3 wire transmitter connect terminal 4 to transmitter power supply input and terminal 1 and 2 to transmitter signal output.
mA
L
Pin:
q
1.4 mm (0.055 in.) max.
Stripped wire: L 5.5 mm (0.21 in.)
Neutral Line
Power supply
MOUNTING
Overall dimensions (L x H x D): 78 x 35 x 69.5 mm
(3.07 x 1.37 x 2.73 in.)
Panel Cut-out (L x H): 71+0.6 x 29+0.6 mm
(2.79+0.023 x 1.14+0.023 in.)
Attention
The controller can be installed using 2 different types of brackets.
Follow the sequence 1, 2a, 3a for the screw bracket (collar
bracket for IP65), the sequence 1, 2b, 3b for the “butterfly”
brackets (2 pieces).
2a
2a
3b
3b
1
3a
3a
1
2b
2b
KR1E KR1EKR1E
Press for 2 seconds
the key

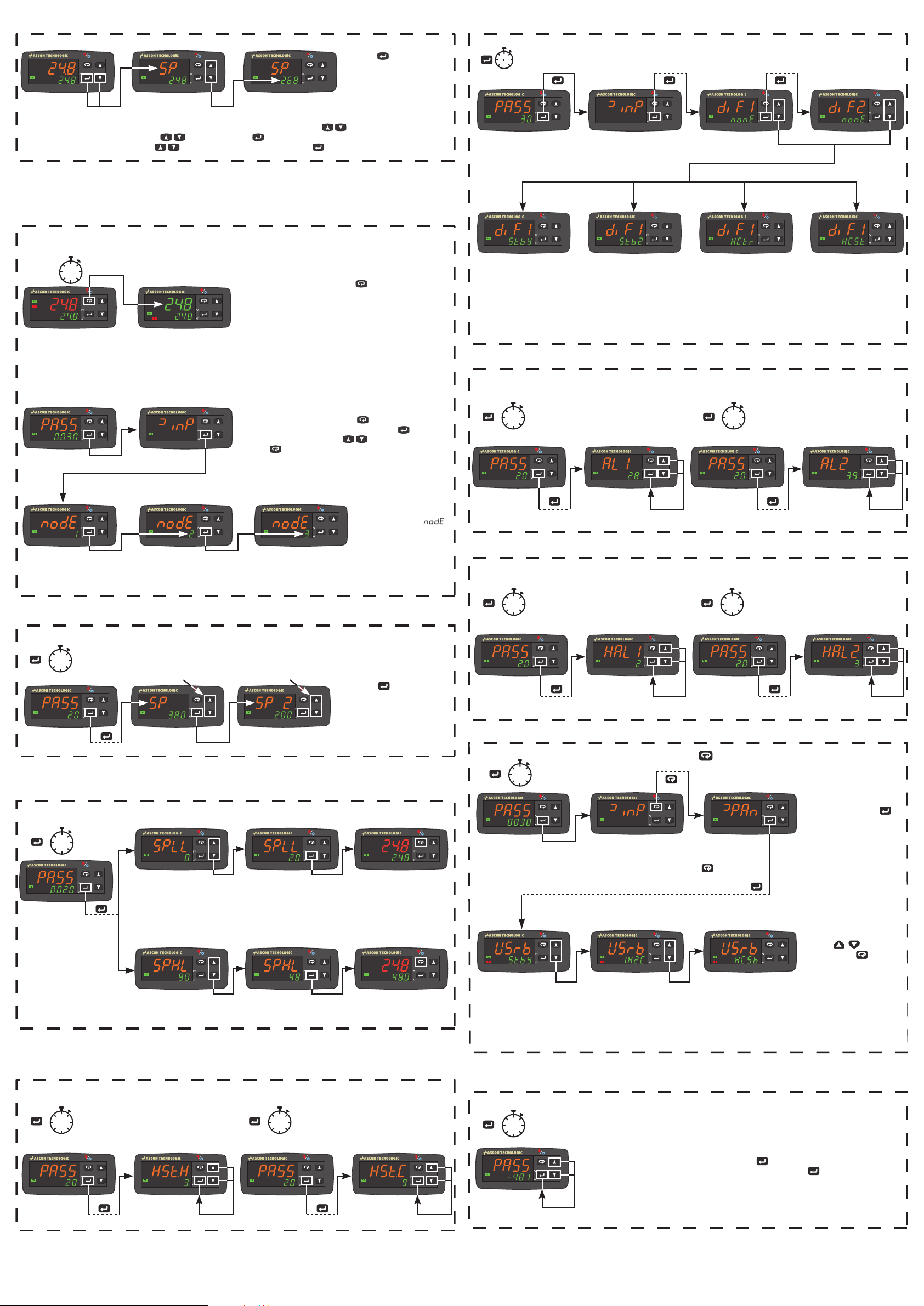

CONTROLLER DISPLAY
Increases the displayed value
Confirm value and pass to the next parameter
Decreases the displayed value
Parameter setting
To exit the parameters configuration procedure, press
for 3 seconds or wait for the end of the delay
(about 10 seconds)
The KR1E-xDRRRDxx controller is pre-configured (default
configuration) for wine applications where there is the
need to cool or reheat in thermostatic mode (on/off with
hysteresis) a tank with a PT100 probe in mono relay
output (Heat and Cool on OP1).
Heat mode
The controller action type can be identified by the color of the upper display (measurement):
Red: Heat mode only
Green: Cool mode only
Orange:The controller responds to temperature changes and selects the appropriate control mode
by operating the appropriate control output and displaying the setpoint to be reached.
The numbered red LEDs indicate, when lighted, the active (on) state of the corresponding relay output.
Cool mode Automatic Heat/Cool
selection
2 s
KR1E
KR1E
KR1E
KR1E
Line KR1E
Power Supply A
24Vac (-25... +12%) or 24Vdc (-15... +25%) L
100... 240 Vac (-15... +10%) H
Input + Ditigal input1 B
PT100, PT1000, mA + Digital Input 1 D
PTC, NTC, mA + Digital Input 1 P
Output OP1 (control output) C
Relay (1 SPST NO, 4 A/250 Vac) R
Output OP2 (control output) D
None -
Relay SPST NO 2 A/250 Vac (resistive load) R
Output OP3 (alarm output) E
None -
Relay SPST NO 2 A/250 Vac (resistive load) selectable if Output 1 is present
R
Output OP4 (configurable) F
Digital I/O (see the Electrical Connections paragraph for details) D
Serial Communications G
TTL Modbus -
RS485 Modbus S
Terminal Type H
Standard (screw type non removable terminal blocks) -
With plug-in screw type terminal blocks E
With plug-in clamp type terminal blocks M
With plug-in terminal blocks (fixed part only) N
Model Code example: KR1E-LDRRRD-E
KR1E controller for Wine applications
- Power supply: 24Vac/dc,
- Inputs: PT1000 or 4... 20 mA;
- Digital Input 1,
- 3 Relay Outputs (OP1: Alarm, OP2: Cold, OP3 Alarm),
- Confiigurable OP4: Digital Input 2 or Transmitter power supply,
- TTL Port,
- Removable screw type terminals.
Parameters List (PASS: 30)
Group Param. Description
Value range or selection list
Default User
selection Note
inp
node Control mode selection 1 Heat or Cool on OP1 only,
2 Heat (OP1) or Cool (OP2),
3 Heat (OP1) and Cool (OP2), 1
When only 1 output is
present, the controller
does not display the
node parameter.
It is fixed on “Mode 1”
sEns Measurement input type Pt1 Pt100
Pt10 Pt1000
4.20 4… 20 mA Pt1
dp Decimal point position 0... 2 0
diF1 Digital input 1 function Stby Mode Standby (transition)
Stby2 Mode Standby (status)
HC.tr Chaud <-> Froid (transition)
HC.St Chaud <-> Froid (status)
nonE
diF2 Digital input 2 function nonE
di.a Digital Inputs Action 0... 3 0 See the manual for
details
Pan usrb Key function
Stby Standby Mode
1H2C Heat <-> Cool toggle
HC.Sb Heat <-> Cool and
Auto <-> Standby
Auto
If HC.Sb: a 1 s pressure
toggles between
Heat <-> Cool mode.
A 5 s pressure puts the
controller in standby
ser
Add Modbus address of the controller 1... 254 1 Modbus RTU slave
Protocol
bAud Modbus transmission speed 1200, 2400, 9600 baud,
19.2, 38.4 kbaud 9600
Several successive pressures on the key allow the various groups of parameters to be scrolled.
A long pressure on the key allows to exit the Configuration mode and return to the Operator mode
Parameters List (PASS: 20)
Param. Description
Value range or selection list
Default User
selection Note
OPEr Operative mode selection reg Auto,
stdy Standby reg stdy: Control action stopped
reg: Control action running
SP Set point 1 -1999... +9999 (Engineering Unit) 0
SP2 Set point 2 -1999... +9999 (Engineering Unit) 0
HstH Heat Hysteresis 0... 9999 (Engineering Unit) 1
HstC Cool Hysteresis 0... 9999 (Engineering Unit) 1
AL1 Alarm 1 threshold (Low) AL1L... AL1H 0
AL2 Alarm 2 threshold (High) AL2L... AL2H 80
dP Decimal point position 0... 2 0
SPLL Setpoint Low Limit From 0 to the SPHL value 0
SPHL Setpoint High Limit From the value of SPLL to 1999 90
FiL Digital filter on the measured value 0 oFF
0.1... 20.0 s 1.0
HAL1 Alarm 1 Hysteresis 0...9999 (Engineering Unit) 1
HAL2 Alarm 2 Hysteresis 0...9999 (Engineering Unit) 1
Al.o Adjust Low Offset -300…+300 (Engineering Unit) 0
Note: Several successive pressures on the key allow to scroll the available Control parameters.
m Pressing no keys for 5 s, the controller automatically exits PASS20 menu and returns to the standard display and the current measurement.
