Aruba A200 Manuel utilisateur

June 2008 Edition

1725-36080-001

Revision J

VIEW Certified Configuration Guide

Aruba

Mobility Controllers

A200, A800, A2400, A6000

Configuration Guide

PN: 1725-36080-001_J.doc

Trademark Information

Polycom® and the logo designs

SpectraLink®

LinkPlus

Link

NetLink

SVP

Are trademarks and registered trademarks of

Polycom, Inc. in the United States of America

and various countries. All other trademarks

used herein are the property of their respective

owners.

Patent Information

The accompanying product is protected by one

or more US and foreign patents and/or pending

patent applications held by Polycom, Inc.

pan-American copyright Conventions.

No part of this manual, or the software

described herein, may be reproduced or

transmitted in any form or by any means, or

translated into another language or format, in

whole or in part, without the express written

permission of Polycom, Inc.

Do not remove (or allow any third party to

remove) any product identification, copyright or

other notices.

Every effort has been made to ensure that the

information in this document is accurate.

Polycom, Inc. is not responsible for printing or

clerical errors. Information in this document is

subject to change without notice and does not

represent a commitment on the part of Polycom,

Inc.

Notice

Polycom, Inc. has prepared this document for

use by Polycom personnel and customers. The

drawings and specifications contained herein

are the property of Polycom and shall be neither

reproduced in whole or in part without the prior

written approval of Polycom, nor be implied to

grant any license to make, use, or sell equipment

manufactured in accordance herewith.

Polycom reserves the right to make changes in

specifications and other information contained

in this document without prior notice, and the

reader should in all cases consult Polycom to

determine whether any such changes have been

made.

No representation or other affirmation of fact

contained in this document including but not

limited to statements regarding capacity,

response-time performance, suitability for use,

or performance of products described herein

shall be deemed to be a warranty by Polycom

for any purpose, or give rise to any liability of

Polycom whatsoever.

Contact Information

Please contact your Polycom Authorized

Reseller for assistance.

Polycom, Inc.

4750 Willow Road,

Pleasanton, CA 94588

http://www.polycom.com

Aruba Mobility Controllers: A200, A800, A2400, A6000

PN: 1725-36080-001_J.doc 3

Introduction

Polycom’s Voice Interoperability for Enterprise Wireless (VIEW)

Certification Program is designed to ensure interoperability and high

performance between SpectraLink Wireless Telephones and WLAN

infrastructure products. The products listed below have been

thoroughly tested in Polycom’s lab and have passed VIEW

Certification. This document details how to configure the Aruba

mobility controller with SpectraLink Wireless Telephones.

Certified Product Summary

Manufacturer: Aruba Networks http://www.arubanetworks.com

Approved products: Controllers Access Points

A200

A800

A2400

A6000 †

AP41

AP60

AP61

AP65

AP70 †

RF technology: 802.11b/g/a

Radio: 2.4 GHz (802.11 b/g), 5 GHz (802.11a)

Security: WPA2-PSK

AP firmware version certified: 2.5.4.0

SpectraLink handset models certified: ** e340/h340/i640 8020/8030

SpectraLink handset software certified: 89.134 122.010 or greater

SpectraLink radio mode: 802.11b 802.11b 802.11g 802.11a

Maximum telephone calls tested per AP: 12 12 *

Network topology: Switched Ethernet (recommended)

†Denotes products directly used in VIEW Certification testing.

* Maximum calls tested during VIEW Certification and the recommended setting in the SpectraLink 8000 SVP

Server. The certified product may actually support a higher number of calls for 802.11a and 802.11g radio modes.

** SpectraLink handset models 8020/8030, e340/h340/i640 and their OEM derivates are VIEW Certified with the

WLAN hardware and software identified in the table. Throughout the remainder of this document they will be

referred to collectively as “SpectraLink Wireless Telephones”.

Customer Service

If you encounter difficulties or have questions regarding the

configuration process, please contact Aruba Networks technical

support at 1-800-943-4526, visit www.arubanetworks.com/support or

e-mail [email protected].

Configuration Guide

PN: 1725-36080-001_J.doc

Network Topology

It is important to note that this configuration is not necessarily

applicable to all customer environments.

The following topology was tested during VIEW Certification testing.

Known Limitations

No limitations were discovered during VIEW Certification testing.

VIEW Certification testing verifies that the wireless telephone and the

AP interoperate at the packet level; therefore, no add-on vendor

features were tested in the scope of VIEW.

Aruba Mobility Controllers: A200, A800, A2400, A6000

PN: 1725-36080-001_J.doc 5

Deployment Description

It is a SpectraLink requirement that voice users be placed on a

separate VLAN (e.g., VLAN 10) and data users on a separate VLAN

(e.g., VLAN 25). The voice and data VLANs reside on the Aruba

mobility controller and not on the access points (APs). The user traffic

is tunneled back to the Aruba controller for processing. The edge

network thus does not have to be modified to accommodate the WiFi

clients and the VoWiFi network. Map each VLAN to a unique subnet.

The mobility controller (switch) IP address needs to be set via the

loopback interface setting. The Controller’s loopback address must be

a routable address so that the APs can reach this address.

Interface setting

Identify the mobility controller port that serves as the uplink port for

the data VLAN. The physical port used in this example is Fast

Ethernet 1/0. This port is configured as a trunk port with both the

voice and data VLAN.

Default route

The L3 switch connected to the Aruba controller serves as the default

gateway for all the WiFi clients. Configure the default route to the

next-hop gateway connected to the mobility controller.

Physical interface

All interfaces that connect to the core networks, routers, servers and

gateways need to be set as trusted ports.

Connecting the APs

The APs need an IP address for communication with the mobility

controller. The APs can connect to the controller over a L2 or L3

network. Ensure that DHCP is enabled on the subnets the APs are

connected to and the APs can ping the Aruba mobility controller’s

“switch IP address” from their current subnet.

Configuration Guide

PN: 1725-36080-001_J.doc

Connecting to the Mobility Controller

Command, comment, and screen text key

In the sections below you will find commands, comments, prompts,

system responses, or other screen-displayed information involved in

the configuration process. This key explains the text styles and

symbols used to denote them.

Text Style Denotes:

xxxxxxxx Typed command

<xxxxxxxx> Encryption key, domain name or other information

specific to your system that needs to be entered

(xxxxxxxx) Comment about a command or set of commands

xxxxxxxx Prompt, system response or other displayed information

Via console

1. Using a standard RS-232 cable, connect the Aruba mobility

controller to the serial port of a terminal or PC.

2. Run a terminal emulation program (such as HyperTerminal™) or

use a VT-100 terminal with the following configuration:

Bits per second: 9600

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

3. Press Enter to display the Aruba mobility controller login screen.

4. Enter the default login: admin and the default password: admin.

These are case sensitive.

5. Enter enable and the default password: admin to get into the

command mode.

Aruba Mobility Controllers: A200, A800, A2400, A6000

PN: 1725-36080-001_J.doc

Via the CLI

By default, only SSH (Secure Shell) access to the switch (mobility

controller) is permitted.

1. From a management system that has network connectivity to the

switch, connect to the switch using SSH:

ssh admin@<switch IP address>

2. Enter the admin password at the password prompt.

3. Type enable at the >prompt to enter the enable mode.

4. Type the enable password when prompted for a password.

Via the Web interface

Once the connectivity to the switch is verified, open a Web browser

and enter the switch’s IP address in the navigator bar.

The switch can be accessed using http at http://<switch IP Address>

or https at https://<switch IP Address>:4343.

The user is prompted with the username and password configured (in

the example above, the username/password configured is

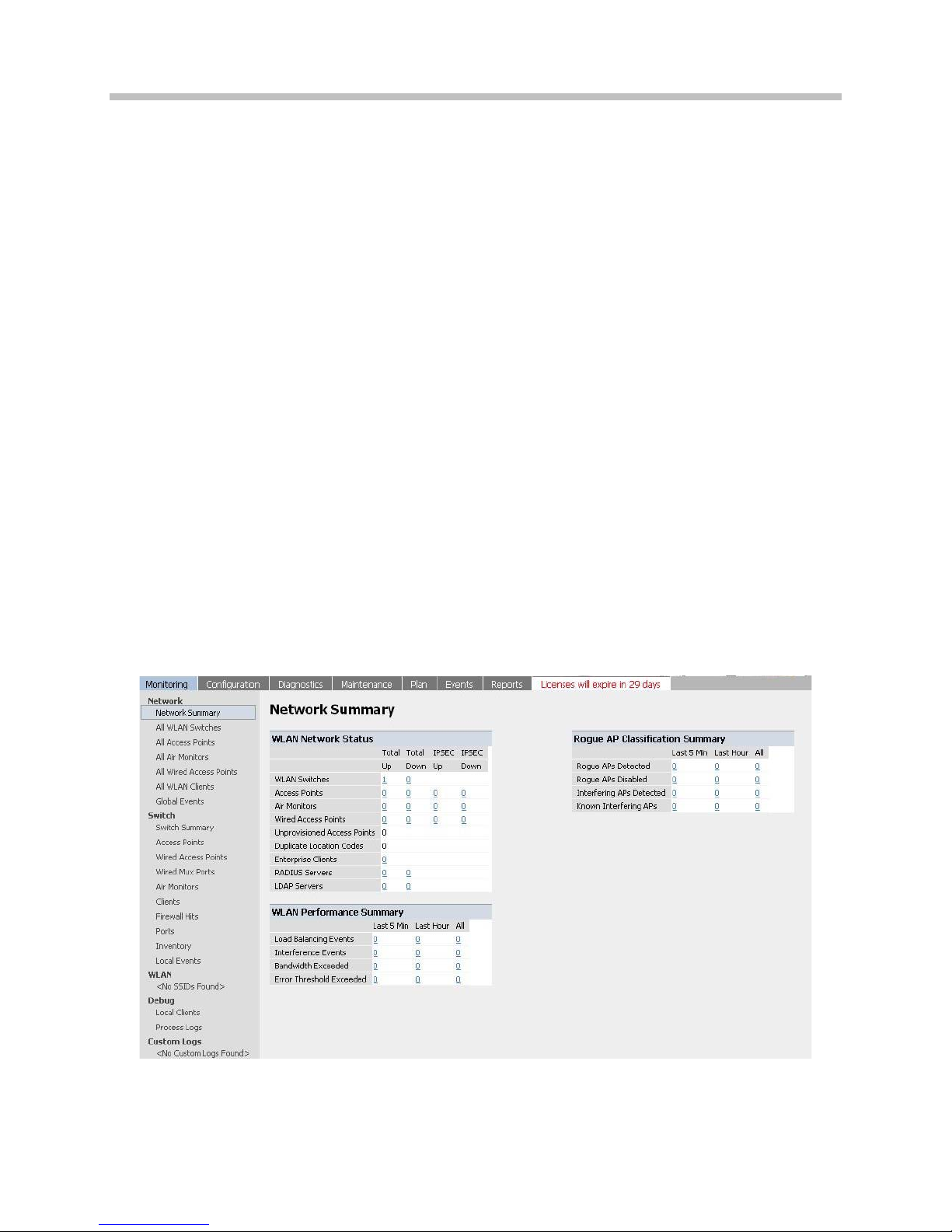

admin/admin). On successful login the following Network Summary

screen is displayed:

Configuration Guide

PN: 1725-36080-001_J.doc

Initial Setup

Before starting, please ensure that the Policy Enforcement Firewall

module license is enabled on the Aruba mobility controller. Please

contact Aruba Networks for licenses and installation information.

On power-up, the user is presented with the startup wizard:

Enter System name [Aruba800]: Aruba

Enter VLAN 1 interface IP address [172.16.0.254]:

Enter VLAN 1 interface subnet mask [255.255.255.0]:

Enter IP Default gateway [none]:

Enter Switch Role, (master|local) [master]: master

Enter Country code (ISO-3166), <ctrl-I> for supported

list: US

You have chosen Country code US for United States

(yes|no)?: yes

Enter Password for admin login (up to 32 chars): admin

Re-type Password for admin login: admin

Enter Password for enable mode (up to 15 chars): enable

Re-type Password for enable mode: enable

Do you wish to shutdown all the ports (yes|no)? [no]: no

Current choices are:

System name: Aruba

VLAN 1 interface IP address: 172.16.0.254

VLAN 1 interface subnet mask: 255.255.255.0

IP Default gateway: none

Switch Role: master

Country code: US

Ports shutdown: no

If you accept the changes the switch will restart!

Type <ctrl-P> to go back and change answer for any

question

Do you wish to accept the changes (yes|no)yes

Aruba Mobility Controllers: A200, A800, A2400, A6000

PN: 1725-36080-001_J.doc 9

. . . . .

<<<<< Welcome to Aruba Wireless Networks - Aruba 800 >>>>>

. . . .

(Aruba)

User:

Configuration Guide

PN: 1725-36080-001_J.doc

Assigning an IP to the Mobility Controller

1. Connect to the switch via the CLI.

2. Login with the configured username and password, admin/admin

in this example.

3. Type enable at the >prompt.

4. Type the enable password, enable in this example.

5. Type configure terminal at the #prompt.

6. Create the VLAN for the voice (vlan 25) using the VLAN

command:

(Aruba) (config) #vlan 25

7. Create the VLAN interface.

(Aruba) (config) #interface vlan 25

8. Assign the IP address to the interface.

(Aruba) (config-subif)#ip address 10.168.10.2

255.255.255.0

9. Create the loopback interface and assign an IP address to the

loopback. For more information about the loopback interface refer

to the user guide.

(Aruba) (config) #interface loopback

(Aruba) (config-loop)#ip address 10.168.10.1

Switch IP Address is Modified. Switch should be

rebooted now

(Aruba) (config-loop)#!

(Aruba) (config) #ip default-gateway 10.168.10.10

10. Assign a physical interface to the VLAN. In this example, the

interface connecting to the network is a trunk interface. Configure

the mode on the interface to a trunk mode.

(Aruba) (config) #interface fastethernet 1/0

(Aruba) (config-if)#trusted

(Aruba) (config-if)#no shutdown

(Aruba) (config-if)#switchport mode trunk

(Aruba) (config-if)#switchport trunk allowed vlan add

10,25

(Aruba) (config-if)#!

(Aruba) (config)#

11. Ping the default gateway from the switch’s console.

12. Ping the switch’s IP address from the management station.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Aruba Point d'accès sans fil

Aruba

Aruba 210 Series Manuel utilisateur

Aruba

Aruba IAP-274 Manuel utilisateur

Aruba

Aruba AP-130 Series Manuel utilisateur

Aruba

Aruba AP-504 RW Manuel utilisateur

Aruba

Aruba IAP-367 Manuel utilisateur

Aruba

Aruba 203H Manuel utilisateur

Aruba

Aruba AP200 Manuel utilisateur

Aruba

Aruba AP-65-MNT Guide de démarrage rapide

Aruba

Aruba AP-203R Manuel utilisateur

Aruba

Aruba 650 SERIES Manuel utilisateur

Aruba

Aruba RAP-2WG Manuel utilisateur

Aruba

Aruba 200 Series Manuel utilisateur

Aruba

Aruba 203R Series Manuel utilisateur

Aruba

Aruba AP-60 Instructions d'utilisation et d'entretien

Aruba

Aruba AP-207 Manuel utilisateur

Aruba

Aruba RAP-5WN Manuel utilisateur

Aruba

Aruba AP-505H Manuel utilisateur

Aruba

Aruba AP-100 Series Manuel utilisateur

Aruba

Aruba 630 Series Manuel utilisateur

Aruba

Aruba 65 Manuel utilisateur

Aruba

Aruba AP-60 Manuel utilisateur

Aruba

Aruba AP-105-MNT-C2 Manuel utilisateur

Aruba

Aruba 360 Series Manuel utilisateur

Aruba

Aruba IAP-228 Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur

Draytek

Draytek VIGORAP 902 Manuel utilisateur

EnGenius

EnGenius EAP350 Manuel utilisateur
