AH15D X2HDA
AH17D X2HDA
AH19D X2HDA
AH22D X216A
Retractable monitors for furniture integration
User manual
Table of contents
EC REGULATIONS & SECURITY 6
SAFETY INSTRUCTIONS 7
APPLICATIONS 8
FEATURES 8
BOX CONTENTS 9
CONNECTIONS 9
CONTROLS 10
OSD MENU 12
INPUT CONNECTORS 15
WARNING 16
AHnet PROTOCOL 17
INPUT SIGNALS 19
PRODUCT WARRANTY 21
Welcome
Thank you for purchasing an ARTHUR HOLM product.
Our product range has been designed to create the perfect meeting room,
where the screens are a part of the interior design as well as essential
communication tools.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions that would
help us improve our products.
Henrik Holm
General Manager
6
EC Regulations and Security
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated voltages
inside some of the components, of sufficient magnitude to expose people
to risk of electronic shock.
This symbol draws attention to important use and maintenance instructions
in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
7
Safety instructions
PLUGS
– Do not dismantle any part of the monitor power connector
– Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indefinite period of time
POWER AND EXTENSIONS CORDS
– Use the appropriate power cord with the correct plug type
– Do not overload wall outlets or power cords
– Make sure the total ampere passed through a extension cord does not
exceed the maximum allowed by the cable used
– Do not place anything on the power cord
– Do not locate this product where a person may walk or trip over the cord
Wiring connected to hazardous voltage requires installation by qualified
personnel or the use of ready-made flexible cables.
For your security, your equipment must be connected to an electrical
outlet with grounding connection protection.
The operating electrical outlet must be in an easily accessed place.
ENVIRONMENT
– Install the equipment on an elevated, flat surface
– Install the equipment in a ventilated area
– Avoid exposing the equipment to:
Rain or water
Excessive heat, cold or humidity
Areas exposed to direct sunlight
Dirty areas
Equipment generating strong magnetic fields
– Avoid placing open containers of liquid, near the equipment
– Keep a minimum distance of 30mm in order to have good ventilation
– Never place any sources of flames, such as lighted candles, etc. above the device
– If you are using the device in extreme weather conditions and/or tropical
climates, the equipment should be installed in a room which ensures a
reasonable level of temperature and humidity
- To prevent damage the equipment must be firmly anchored to the surface,
as shown in the installation instructions
8
System Description
APPLICATIONS
The DynamicX2 system is a professional TFT display with an elegant housing
and an electrical lift system for installation into a horizontal furniture surface.
On the starting position (retracted), the screen is placed inside the table leaving
the desk free of any obtrusive elements. When in this position, the power will
automatically be disconnected in order to save energy and preserve panel life.
By pressing the rear button located on the table cover plate, the TFT panel
raises up into the working position (raised and tilted). The TFT power is then
restored.
This TFT-LCD product range is specially designed for desk integration at:
Conference rooms Meeting rooms Board rooms
Auditoriums Information desks Training rooms
FEATURES
– TFT Active Matrix display
AH15D X2HDA FULL HD 15.6’’
AH17D X2HDA FULL HD 17.3’’
AH19D X2HDA FULL HD 18.5’’
AH22D X216A FULL HD 21.5’’
– Retractable monitor with electrical engine for furniture integration and tilting
screen 20° (factory adjusted)
- Up/Down function operated by two buttons on the cover plate
– Up/Down external contact close (GPI) or RS-422 control
– Low power consumption
– Low radiation
– Quick response time
– Data inputs DVI-I & DVI-D. HDCP compliant
– Upper cover plate in brushed stainless steel. Monitor housing made of solid
mechanized aluminium in anodised finish
– Electrical powered lift system with variable speed
– Addressable RS422 monitor control by AHnet protocol, RJ45 connector CAT5
9
Communications protocol
System Description
BOX CONTENTS
Before the installation of your retractable monitor, please check the
contents of the shipping box, it must contain the following items:
- Monitor
- Power cord
- Power supply 100-240Vac, 50-60Hz. Output 12V
- Remote control (1 per 5 monitors)
- User Manual
CONNECTIONS
Before connecting the power
1. Open the hatch and remove the two foam protection pieces before
connecting the monitor
2. Install the unit on a table or desk, in vertical position
Power connection
1. Plug the power cable from the power supply into an AC socket of
100-240 Vac, 50-60Hz.
2. Plug the 12Vdc cable into the socket on the unit
Power connection
1. Use the DVI-I input to connect a DVI-D signal or an analog RGB signal
2. Plug the DVI-D connector to a DVI-D signal
Caution! Never use this monitor in horizontal position.
10
Controls

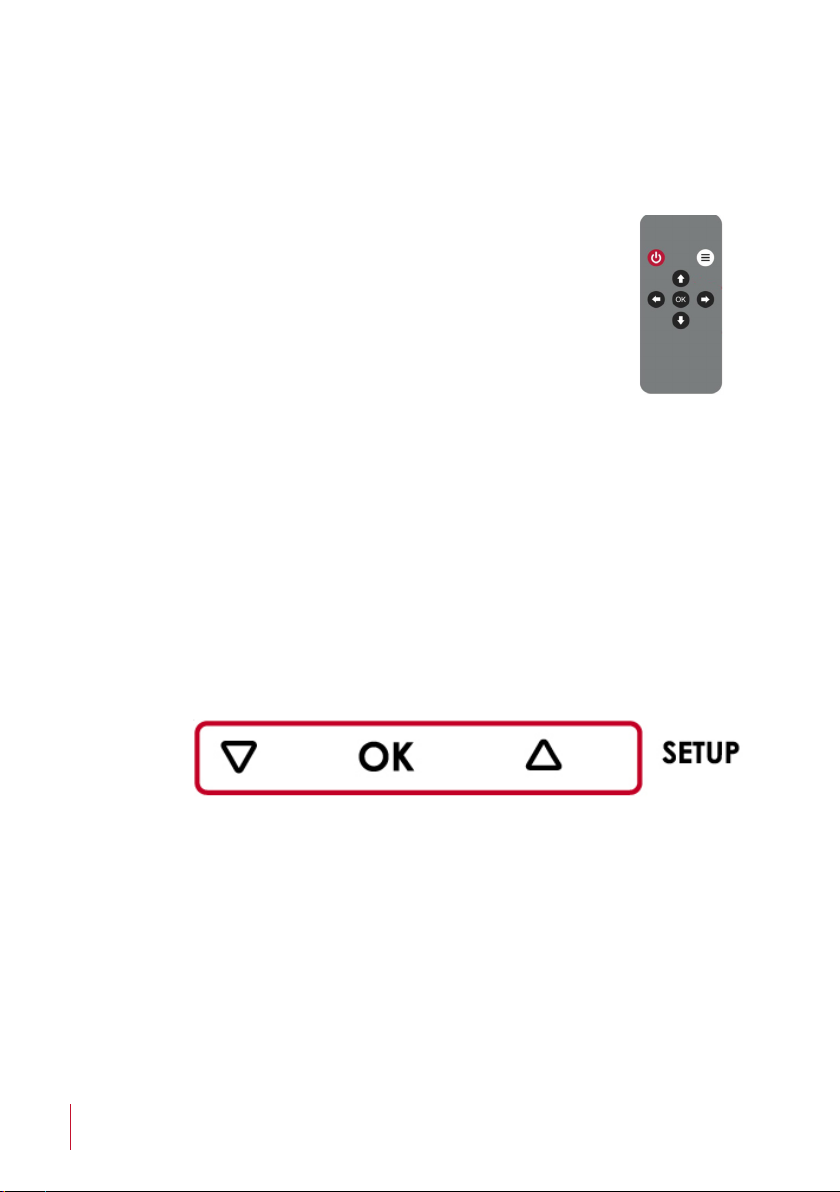

REMOTE CONTROL
POWER Switch ON/OFF the monitor
MENU Activates the OSD menu on screen
UP Cursor control up on the OSD menu
DOWN Cursor control down on the OSD menu
LEFT Cursor control left on the OSD menu
RIGHT Cursor control right on the OSD menu
OK Selects the function on the OSD menu. When the OSD
menu is not active on screen, selects the input source
MONITOR ADDRESS
Below the monitor, there is a screen to configure the monitor. Press the UP
or DOWN buttons to change the function. Press the OK button to select the
function. Change the parameter using the UP or DOWN buttons and press
OK again to save the changes.
AHnet ID Selects the number AHnet ID to RS422 to externally control
the monitor
Input select Selects the input source signal (DVIA, DVI1 or DVI2)
Brightness Configuration of the monitor brightness level
Contrast Configuration of the monitor contrast level
Backlight Configuration of the monitor backlight level
Status information List of the monitor status to service
