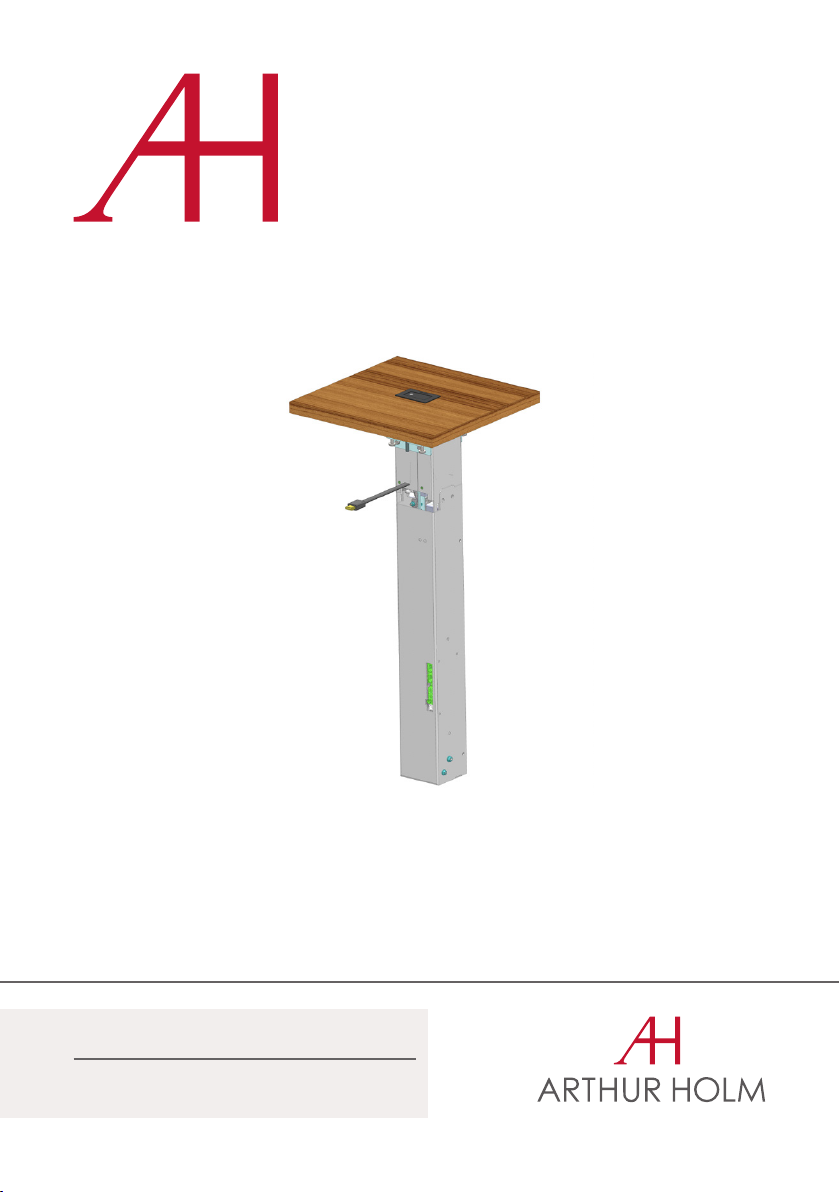

ARTHUR HOLM DynamicCableRetract Manuel utilisateur
User Guide
Danish craftmanship
Mediterranean soul
Technology Serving Design
DynamicCableRetract
HDMI and USB-C motorised cable retraction system
TABLE OF CONTENTS
REGULATIONS AND SECURITY 5
SAFETY INSTRUCTIONS 5
SYSTEM DESCRIPTION 7
INSTALLATION INSTRUCTIONS 9
POWER AND CONTROL 12
CONTROLS 13
AHnet PROTOCOL 14
AHlink 17
INFORMATION ON DISPOSAL 20
WARRANTY TERMS AND CONDITIONS 21
WELCOME
Thank you for purchasing an ARTHUR HOLM product.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions.
Henrik Holm
General Manager
ABOUT US
The Company
Arthur Holm has its origins in the Danish furniture designer Jorgen Alex
Jensen, who was active during the sixties and the seventies. His design
inspiration and his concept of ergonomics have been continued by his
family, the design force behind Arthur Holm product range. The result of
combining Scandinavian design tradition with Mediterranean creativity,
exibility and emotion is a wide product range built on more than 25 years
of craftsmanship.
Arthur Holm offers a professional product range where tomorrow’s
technology is shaped into valued materials with design exibility and
customisation, specially created to enhance communication and
collaboration in reception, conference and meeting areas.
The art of customisation
Arthur Holm offers a range of ingenious products whose designs are based
on quality materials and the latest technology. Products which endow
meeting and conference rooms with silent, ergonomic, innovative and
aesthetic solutions that integrate into the furniture, hang from the walls as
works of art or are used as interactive points of information.
The world of Arthur Holm
Arthur Holm offers a selection of unique, elegant, versatile, exible and
ergonomic products that are being used in meeting and conference
rooms, reception areas, auditoriums and public zones of leading
companies throughout the world.
The numbers speak for themselves! We currently own 33 product
patents,have presence in over 45 countries with products and solutions
inmore than 25,000 installations.
It will be our pleasure to work with you, designing your unique and
personalised environment. Our broadcast electronic engineers will
provide the latest technology while our design team will offer you the most
exclusive appearance.
Our team puts its heart, passion and pride in all our designs.
5
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the device power connector.
• Disconnect the power plug from the AC outlet when the device is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through an extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
This symbol indicates D.C. current.
6
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an
electrical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
∙Rain or water
∙Excessive heat, cold or humidity
∙Area exposed to direct sunlight
∙Dirty areas
∙Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30 mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/or
tropical climates, the equipment should be installed in a room which
ensures a reasonable level of temperature and humidity.
• To prevent damage the equipment must be rmly anchored to the
surface, as shown on the installation instructions.
SAFETY INSTRUCTIONS
7
SYSTEM DESCRIPTION
General
The Arthur Holm DynamicCableRetract is a compact robust motorised
retractable cable solution that eject and retract HDMI and USB-C
cables by a touch of a button. The system has been designed to blend
discreetly with the furniture and to give the user a professional AV
solution with a long-life span. The Dynamic retractable cable can be
locally or remotely controlled through RS-422 or through the AHlink app
that provides wireless access to the setup menu, basic control, serial
number and factory settings, making the installation and service of the
DynamicCableRetract easy and straight forward.
Highlights
• Motorised cable retraction solution
• HDMI and USB-C cables
• Minimalistic design
• Designed to be discreet
• Capacitive sensor to deploy and retract the cable
Box Contents
Before the installation of your retractable monitor, please check the
contents of the shipping box, it must contain the following items:
• DynamicCableRetract
• Mounting tools
• Power supply 100-240Vac, 50-60Hz. Output 12V
• User Manual
CAUTION: Never use this equipment on horizontal position
8
SYSTEM DESCRIPTION
Available Models
MODEL DESCRIPTION
AHDCRHDMI
Motorised cable dispenser including a
600 mm HDMI cable. The cable ejects
or retracts by a push of a button; the
controlled movement and tension provide
a long cable lifespan. A vertical dispenser
head raises up from the table surface and
delivers the cable. The dispenser head has a
stainless steel sand blasted top plate with a
capacitive touch sensor.
AHDCRUSB
Motorised cable dispenser including a
600 mm USB-C cable. The cable ejects
or retracts by a push of a button; the
controlled movement and tension provide
a long cable lifespan. A vertical dispenser
head raises up from the table surface and
delivers the cable. The dispenser head has a
stainless steel sand blasted top plate with a
capacitive touch sensor.
9
INSTALLATION INSTRUCTIONS
Pattern Hole
Pattern hole dimensions for milling are specied in the general dimensions
for each reference.
The milling of the furniture has to be done from below.
Attention
Manipulation of the product should be avoided, no stress should
be applied to the product except from the instructions given in
this document. Cutting, drilling, soldering, adding of electrical and
mechanical components can cause danger and should be avoided
by all mean. Not complying with these direction will result in a lost
of the Arthur Holm warranty. Albiral Display Solution S.L. shall not be
held liable for any loss or injury incurred as a result of modications
made to goods by anyone other than the supplier or the supplier's
authorised representative without the supplier's written permission. Such
modications shall be deemed to terminate any further guarantee
obligations.
10
INSTALLATION INSTRUCTIONS

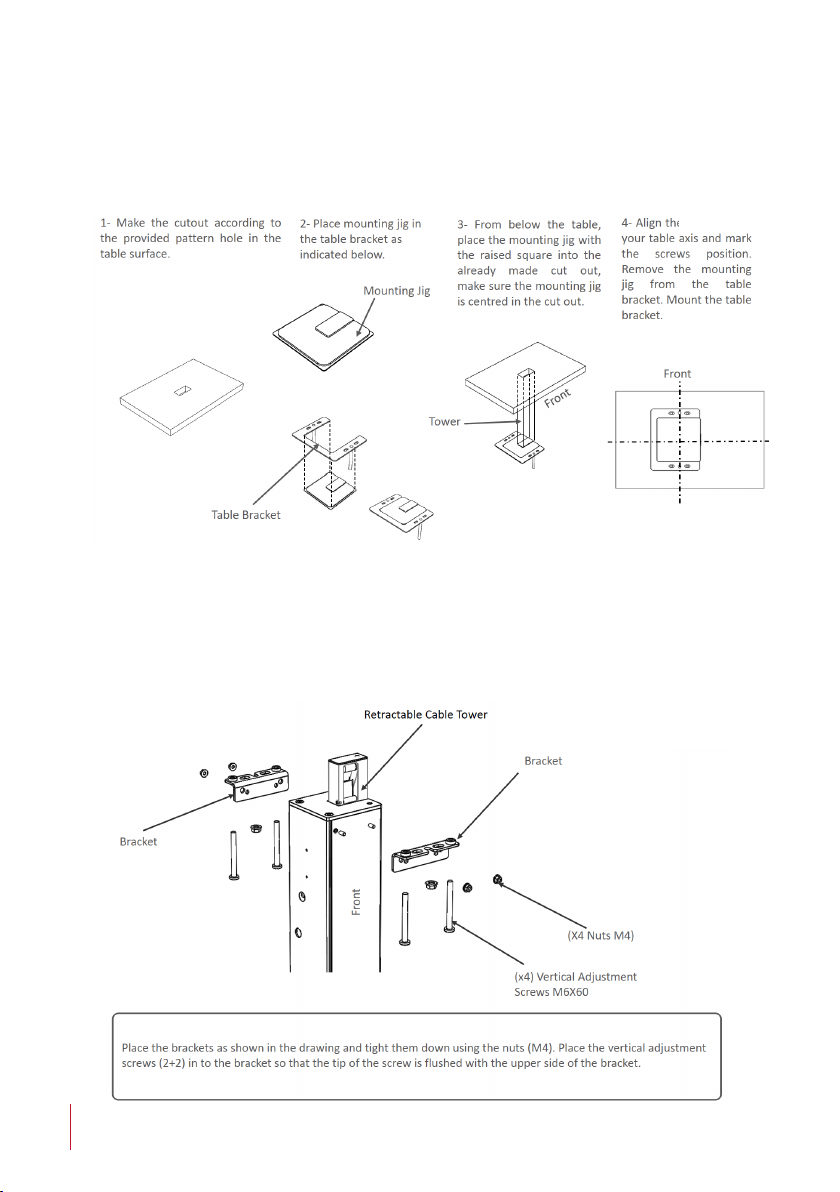

Mounting table bracket using mounting jig
Mounting the brackets
