Three-Way Architectural Speaker

Owners Manual

www. artcoustic.com

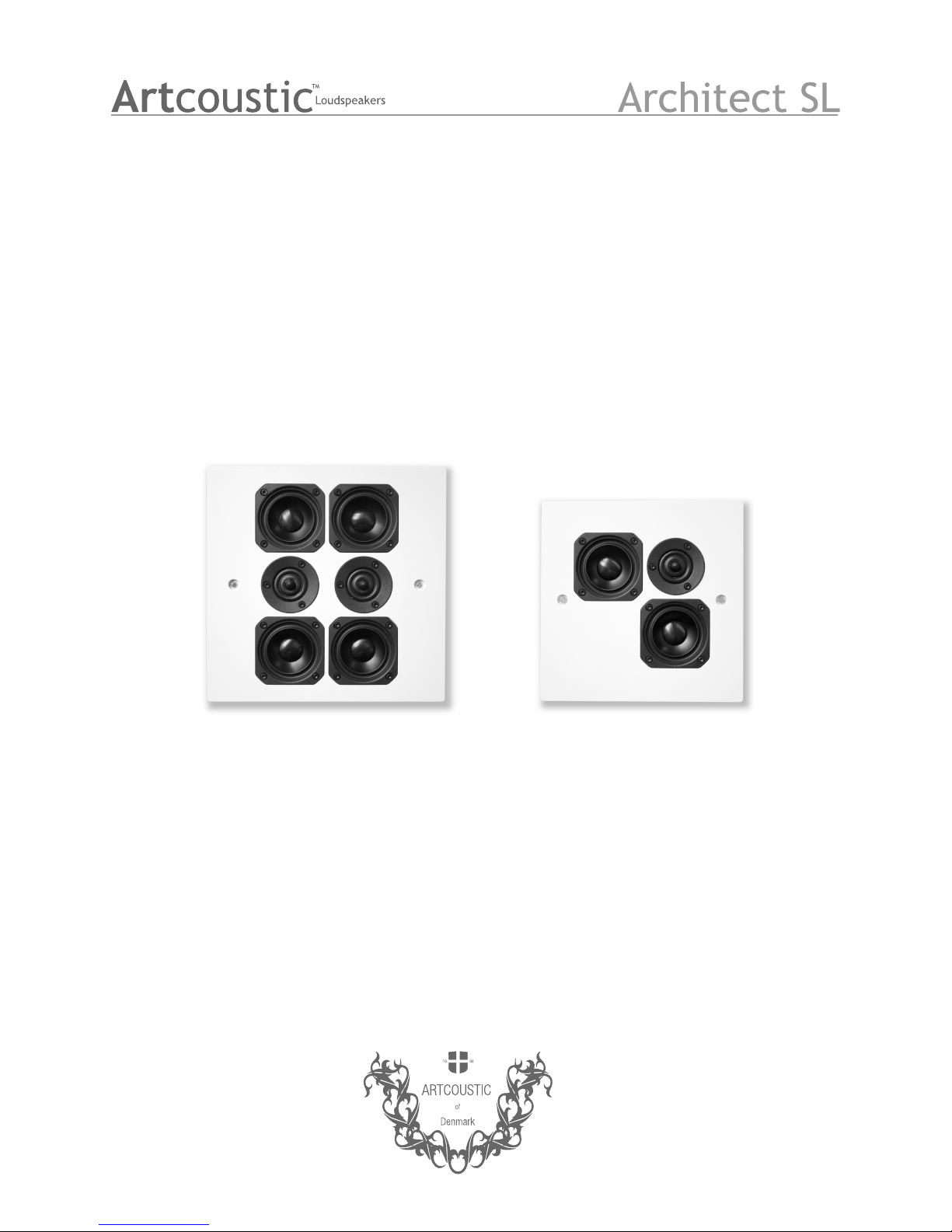

Architect SL

Features:

- X2 bass system, extended low frequency

-Extremely small and compact design

-low distortion

-low power consumption

- Wide frequency response 55Hz to 40kHz

-Fast, easy and simple installation

- Suitable for a wide range of application, from 

HiFi Systems, Multi Room Systems and smaller 

Home Cinemas

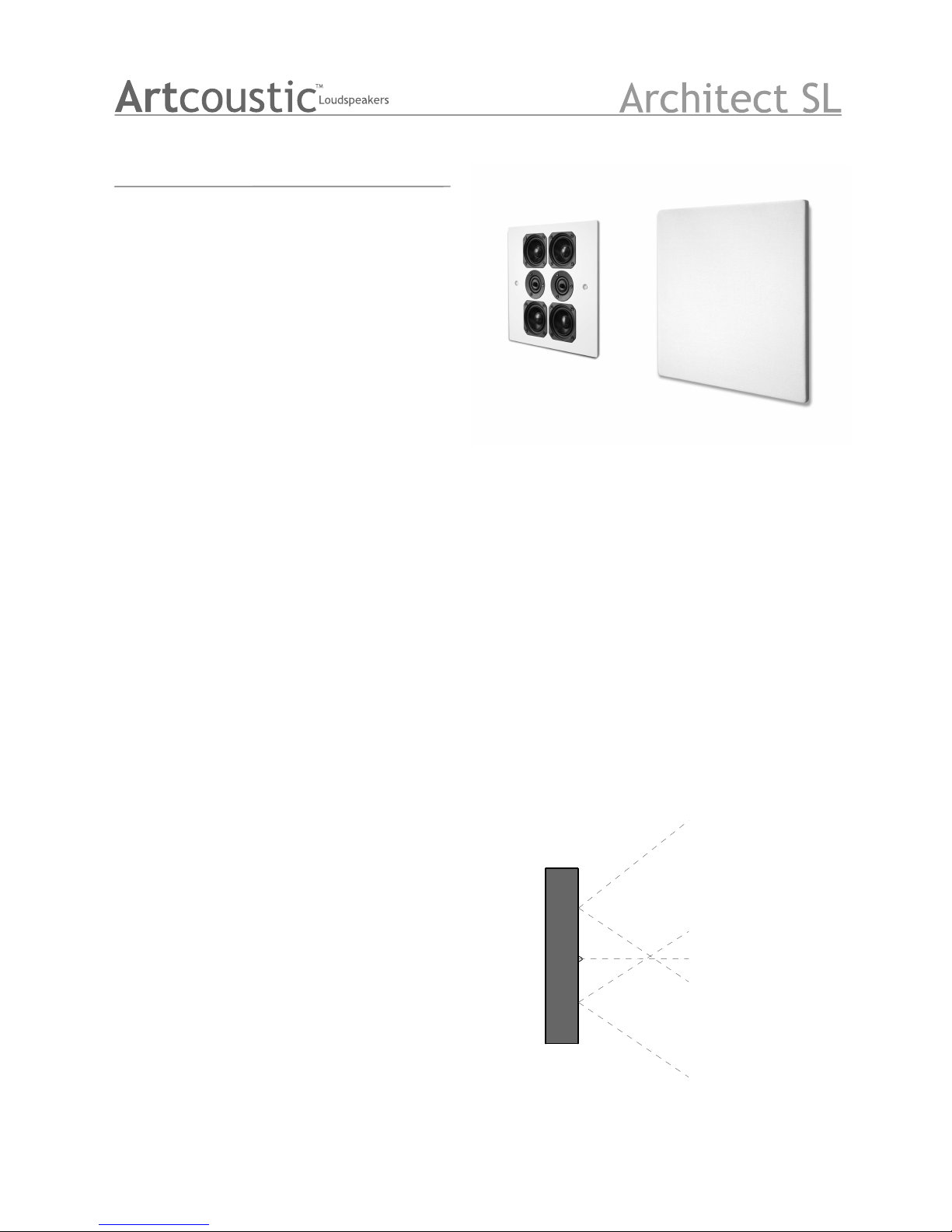

Architect SL Overview:

Architect SL Series - Created to provide impressive

sound from ultra thin and aesthetic pleasing

loudspeakers, the entire Architect line of in-wall/in-

ceiling loudspeakers will surprise you. Whether you

are looking for true Hifi music reproduction, or louder

applications, such as home cinema installations,

commercial installations, bars, restaurants and public

address solutions, The Artcoustic Architect Series

offers the ultimate solution.

The Architect Series has been designed and

Engineered with same high specifications as all the

other Artcoustic models, leaving no space for

compromise on sound quality and built. The Architect

series consist of two models, Architect 2-1 SL

single source 3-way full range speaker to the larger

Architect 4-2 SL single or dual source 3-way full

range speaker.

Partner it with an Artcoustic Subwoofer for a truly

full range, dynamic performance.

Components Overview:

High Frequency driver:

Dual Ring Radiator diaphragm with highly linear suspension

and low loss surrounds for high clarity and clean transient

response. Copper caps for better HF extension and lower

distortion and wave-guide center plug, copper-clad

aluwire

Woofer:

Extra long excursion and Aluminum Short Circuiting Ring,

4-layer voice coil, anodized aluminum for improved heat

dissipation, combined with Distortion Reduced Motor

Crossover:

6 dB/octave low pass and 12 dB/octave high pass filter

Side View Vertical Phase aligned Dispersion :

Three-Way Architectural Speaker

Specification Architect 2-1 SL Architectural Speaker

Transducer:

LF-MF 2 x 3 inch cone

HF 1 x 1 inch Dual Ring Radiator

Crossover:

Low Pass Filter 6 dB/octave 1000 Hz High Pass

12 dB/octave 4000Hz

Connection:

Single amped Gold Plated Push Terminals

Performance:

- Operating Range 55 Hz (-3dB) to 40 kHz

- Nominal Beamwidth Horizontal 90° Vertical 90°

- Axial Sensitivity (whole space SPL) LF/MF-HF Sensitivity 88 dB

- Input Impedance Nominal Minimum 4 ohms

- Calculated Axial Output Limit (whole space SPL) Average Peak LF/MF-HF 104dB

- Maximum Power Handling 50 Watt

- Weight 2 kg

- Dimensions H: 230 W: 230 D: 70 mm

- Dimensions (grille) H: 260 W: 260 D: 9 mm

Finish:

Silk Paint, White and RAL colours

Grille options: Match System and Pantone

Three-Way Architectural Speaker

Specification Architct 4-2 SL Architectual Speaker

Transducer:

LF-MF 4 x 3 inch cone

HF 2 x 1 inch Dual Ring Radiator

Crossover:

Low Pass Filter 6 dB/octave 1000 Hz High Pass

12 dB/octave 4000Hz

Connection:

Single or bi- amped Gold Plated Push Terminals

Performance:

- Operating Range 55 Hz (-3dB) to 40 kHz

- Nominal Beamwidth Horizontal 90° Vertical 90°

- Axial Sensitivity (whole space SPL) LF/MF-HF Sensitivity (stereo) 88 dB (mono) 94dB

- Input Impedance Nominal Minimum 4 ohms

- Calculated Axial Output Limit (whole space SPL) Average Peak LF/MF-HF (stereo) 104dB (mono) 110dB

- Maximum Power Handling 50 Watt

- Weight 4 kg

- Dimensions H: 290 W: 290 D: 70 mm

- Dimensions (grille) H: 320 W: 320 D: 9 mm

Finish:

Silk Paint, White and RAL colours

Grille options: Match System and Pantone

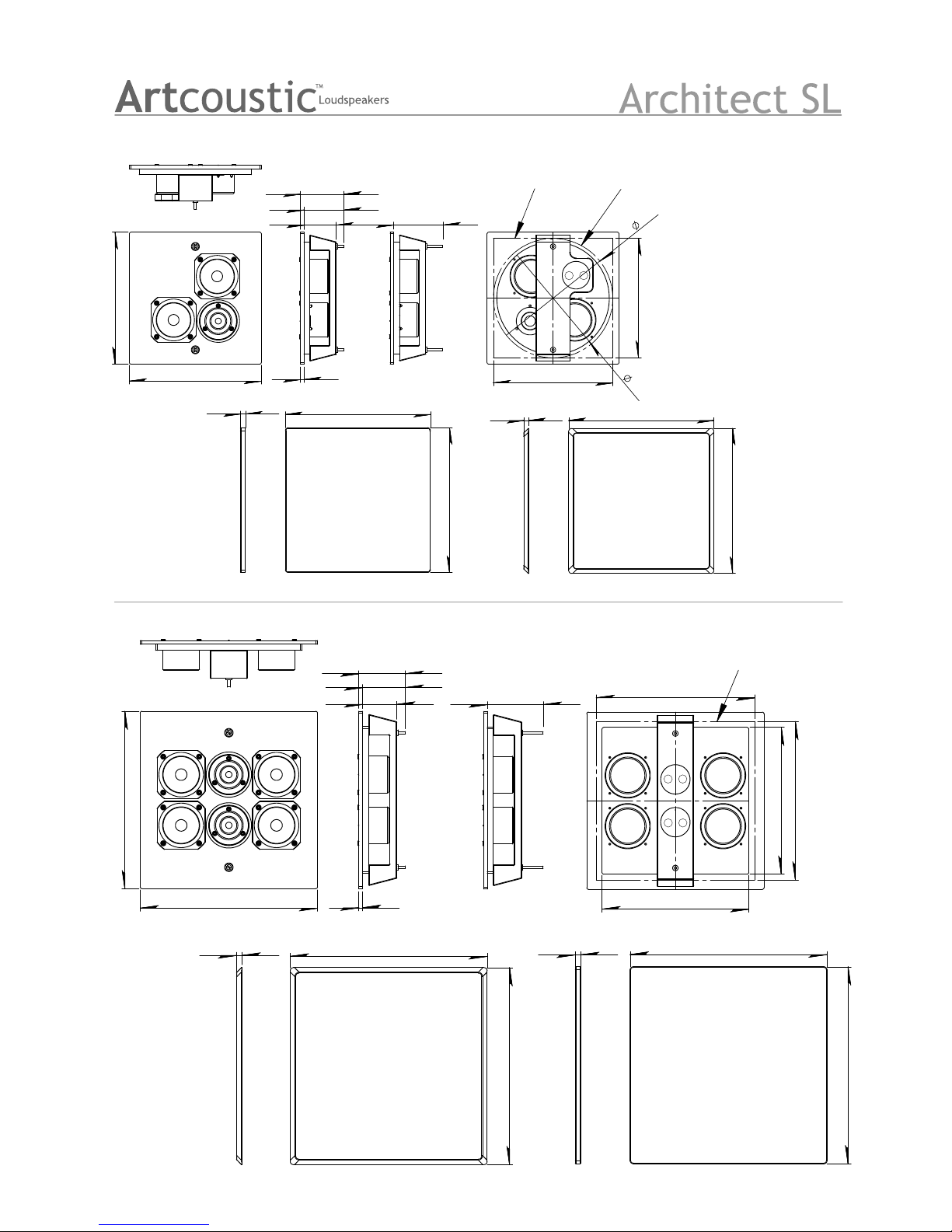

Architect 2-1 SL Three-Way

Architectural Speaker

Architect 4-2 SL Three-Way

Architectural Speaker

208

230

Round cut

Square cut

260

259

290

76 Square cut

240

90 degree angled grille Facet grille

9320

320

90 degree angled grille

Facet grille

Longer

screws

Longer

screws

www. artcoustic.com

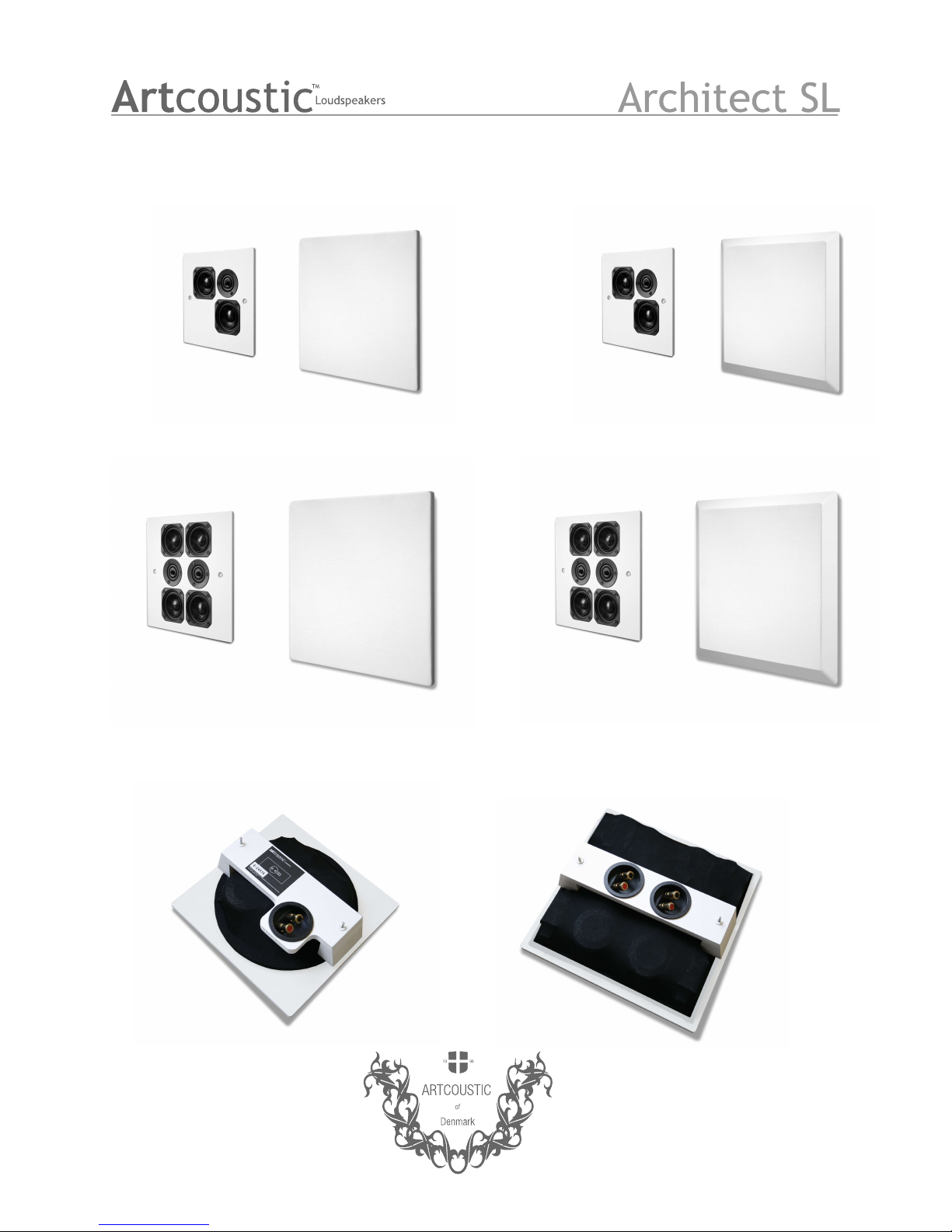

Architect 2-1 SL with

90 degree angled grille Architect 2-1 SL with

facet grille

Architect 4-2 SL with

90 degree angled grille Architect 4-2 SL with

facet grille

www. artcoustic.com

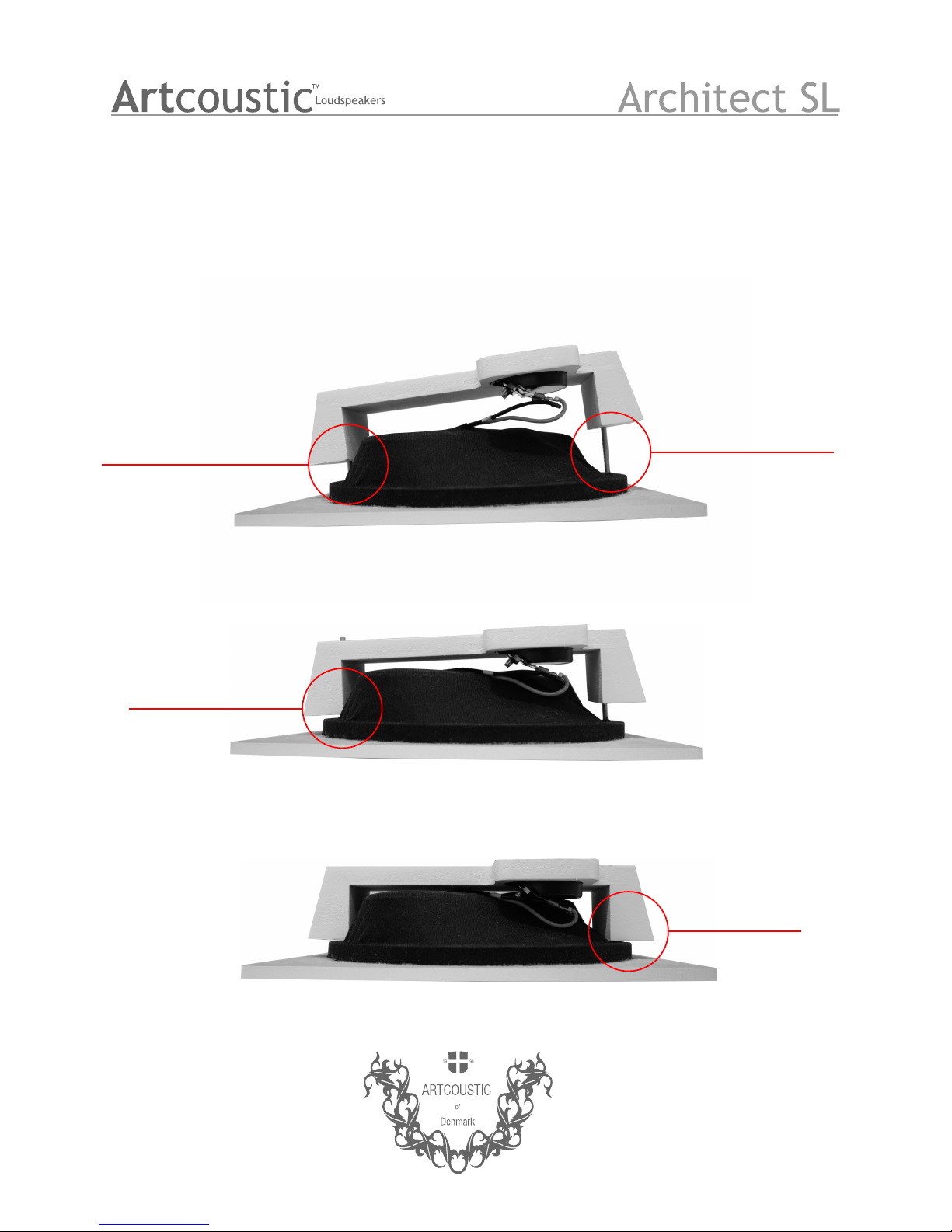

Unscrew screw 1 untill max.

Leave screw inside insert

Unscrew screw 2 until it

slip off the insert and

angle mounting bracket

as shown in step 1

Step 1

Step 2

Tighten screw 1

Tighten screw 2

Step 3

Artcoustic Architect mounting method, ceiling thickness max. 18mm. for ceiling plate thickness

up to 36mm. use supplied set of longer screws
