ARRI - ORBITER

Short Manual

WARNING-

FULLY READ AND

UNDERSTAND

THESE

INSTRUCTIONS

BEFORE

OPERATING THE

ARRI ORBITER.

IMPROPER

HANDLING CAN

RESULT IN

SERIOUS HARM

OR DAMAGE. IF

YOU HAVE ANY

QUESTION

PLEASE CALL

416.869.3330.

ARRI - ORBITER

Short Manual

ARRI ORBITER FULL MANUAL: WWW.ARRI.COM

WARNING:

Lamphead and systems may only be operated and used by qualified persons.

Safety Concerning

Fire/Burns/Radiation (UV, VIS, IR):

Always Observe the minimum distances stated

on the type plate to allow light and heat radiation

to disperse safely. This will prevent danger to

persons and objects.

Lampheads must be placed at sufficient distance

from flammable materials or objects. The

minimum distance to lit objects written on the

lamphead describes a max. temp. of 90 Degrees

Celsius in spot-focus on the lit object.

DO NOT COVER ANY

VENTILATION SLOTS ON THE

LAMPHEAD!!!

______________________

Do not move lamphead past tilt angle

stated on the type plate as this might

cause the lamphead to overheat.

Do not operate the lamphead with

closed barndoors or an excessive

number of scrims, as this might also

cause overheating

Do no open the housing of the

Orbiter. For safe operation, the housing

must be completely closed at all times.

Take appropriate precautions when

lighting glass, windows and

decorative surfaces. These materials

can burst when they become hot.

A faultless function of the power supply

and protection system must be ensured

before connecting lamphead.

TYPE PLATE

ARRI - ORBITER

Short Manual

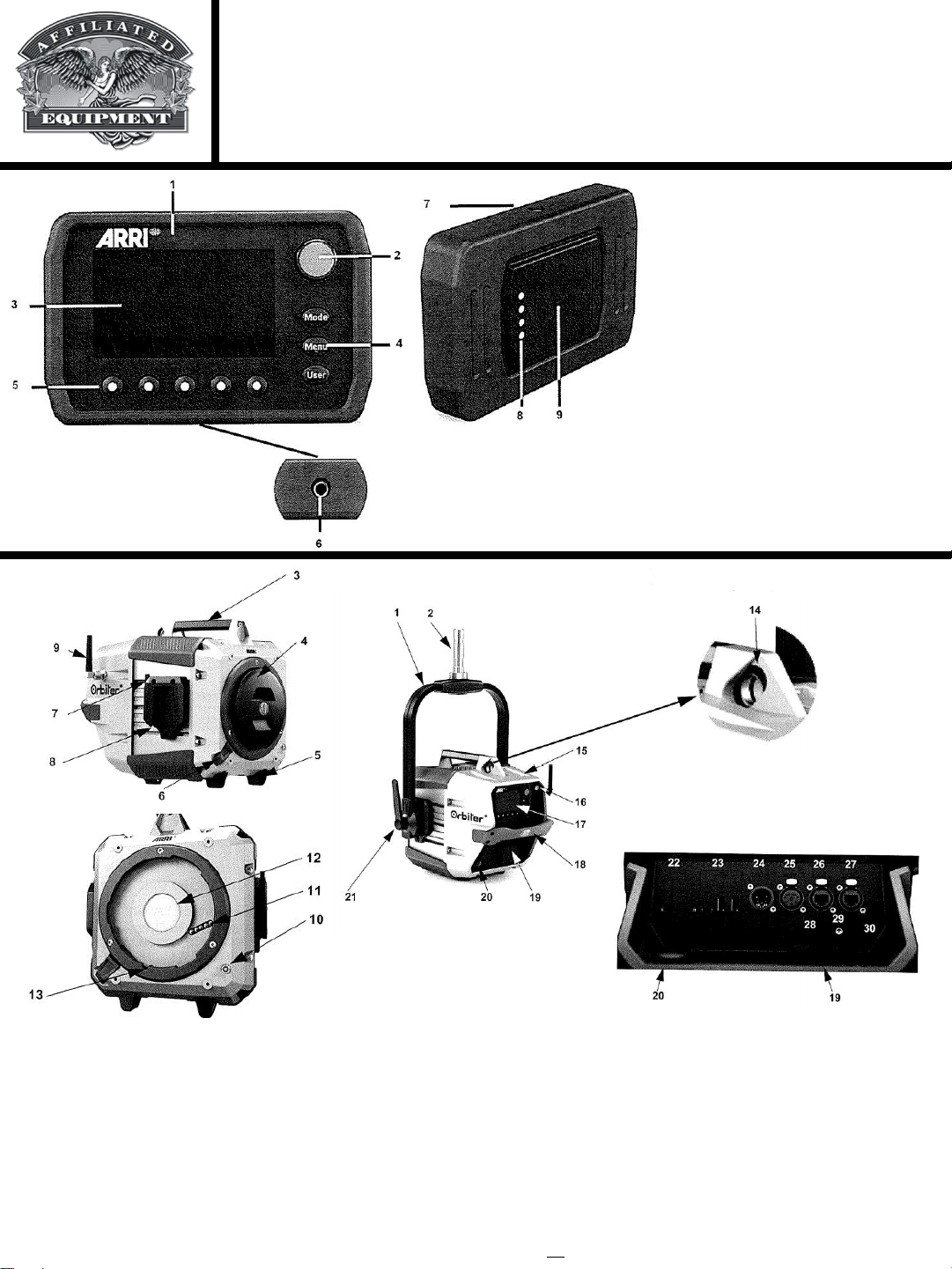

1 –Sensor for Display

Illumination

2 –Encoder

3 –Display

4 –Menu Buttons

5 –Quick Buttons

6 –Thread for D-Ring

7 –4 Pin Lemo Connector

8 –Connectors to Luminaire

9 –Neodymium Magnet

1 –Yoke

2 –Spigot (28mm Junior Pin)

3 –Upper Handle

4 –Protective Cap

5 –Rubber Feet

6 –Locking Slider

7 –Quick Release Lever

8 –Yoke Bracket

9 –Antenna (Wireless DMX)

10 –Comm. Interface (Lemo 5-pin)

11 –Optic Interface

12 –Light Aperture with Glass Cover

13 –Guide for Locking Pin

14 –Safety Loop Attachment

15 –Ambient Light Sensor

16 –Connector for Control Panel Ext. Cable

17 –Control Panel

18 –Focus Handle

19 –Mains in and out

20 –Battery Input 48V –52V ---

21 –Tilt Lock

22 –SD Card Slot

23 –USB Ports

24 –DMX in

25 –DMX out

26 –Ethernet Connector (RJ45)

27 –Ethernet Connector (RJ45)

28 –Status LED

29 –SYNC Connector (SMA)

30 –Reset Button

ARRI - ORBITER

Short Manual

ARRI ORBITER FULL MANUAL: WWW.ARRI.COM

1 –Top Latch

2 –Safety Loop Attachment

3 –Accessory Holder

4 –Second Barndoor Catch

5 –Reflector

6 –Quickmount Guides

7 –Digital Optics Interface (5-pin)

8 –Locking Pin

9 –Locking Slider (OPTIC RELEASE)

10 –Guide for Locking Pin

***ALWAYS: Secure Open Face Optic with Safety

Chain to Main Unit in Case Primary Catch Fails***

!- Digital Optic Interface WillAutomatically Recognize Type of Lens WhenAttached - !

Mounting Instructions:

1 –Align yoke adapters from bellow

2 –Lift upwards –latches engage

automatically (RED MARKINGS

SHOULD NOT BE VISIBLE)

Removal Instructions →

1 –Flip out one release lever and press

stirrup slightly downward until yoke

adapter slides out of yoke bracket

2 –Repeat for other side

!!! YOKE MUST BE MOUNTED

HANGING OR STANDING

VERTICALLY. LATERAL LOAD CAN

BREAK THE SPIGOT !!!

Lamphead must not be exposed to

vibrations

ARRI - ORBITER

Short Manual

MOUNTING LAMPHEAD:

*Always use a safety chain when mounting

above persons

**Always secure safety chain between

Optic attachment and Lamphead

***Orbiter MUST be mounted on its’ yoke in

perpendicular standing position, or hanging

position. NEVER APPLY A LATERAL LOAD

ON THE STIRRUP!!!

Lamphead must not be exposed to vibrations

MOUNTING OPTICS:

*Lamphead will not function without an

Optic attached**

1 –Turn off Orbiter

2 –Release Optic by pressing locking slider

inwards and turn counter clockwise

3 –Mount new Optic by lining up Bayonet

Catch, turn clockwise until lockingtab

engages. Check that it is secure.

ALWAYS REPLACE PROTECTIVE CAP

WHEN NOT IN USE!!!

ORBITER CONTROL

By applying power to the mains power, the Orbiter will start lightingafter a short start-up time with

the previous settings programmed.

Orbiter can either be controlled by: DMX (Input/Throughput), Ethernet (Daisy Chain), or the

Removable Control Panel

MODES: WHITE LIGHT –Optimized Colour Rendition or High Output (Green/Magenta)

COLOURED LIGHT –Colour Tone and Saturation can be adjusted continuously

**At very low light setting, colour will revert to white**

Full Spectrum Operating Modes: WWW.ARRI.COM

ORBITER CONTROL PANEL

The Control Panel can be used directly at the Orbiter, or via a connecting cable remote from the

Orbiter. **If two Controllers are connected, the cable-connected Controller has priority**

Connecting Directly to the Orbiter: place Control Panel diagonally to the left into the recess.

Then push in the right side into the recess, then push unit to the right until it locks in place.

Control Panel will connect automatically and start up when power is on.

Control Panel uses: LiOS (Lighting Operating System)

Control Panel User Manual: WWW.ARRI.COM

IF YOU HAVE ANY QUESTIONS OR

CONCERNS, PLEASE CONTACT

AFFILIATED EQUIPMENT

416.869.3330
