FP2000 RAM EXPANSION KIT : INSTALLATION INSTRUCTIONS Revision 0
22/01/98 Document No: 980122/416/M Page 1 of 2
INSTALLATION INSTRUCTIONS
FP2000 RAM EXPANSION KIT
RE2004 /RE2004/EU /RE2004/A /RE2004/S
PRODUCT DESCRIPTION
The FP2000 RAM Expansion Kit enables the memory capacity of the FP2000 series fire panels to be
increased form 1Mb to 4 Mb
INSTALLATION
•Upload panel configuration from FP2000 to PC
•Disconnect all power (mains and batteries)
•Remove battery backup by setting J5 to “off” position
•Insert 512K*8 (4 Mb) RAM IC into position IC4 on Host CPU Board - CE-FP-319-X
•Insert EPROM with software upgrade into position IC1
•Set jumpers
•Restore battery backup by setting J5 to “on” position
•Restore power
•Download panel configuration from PC to FP2000

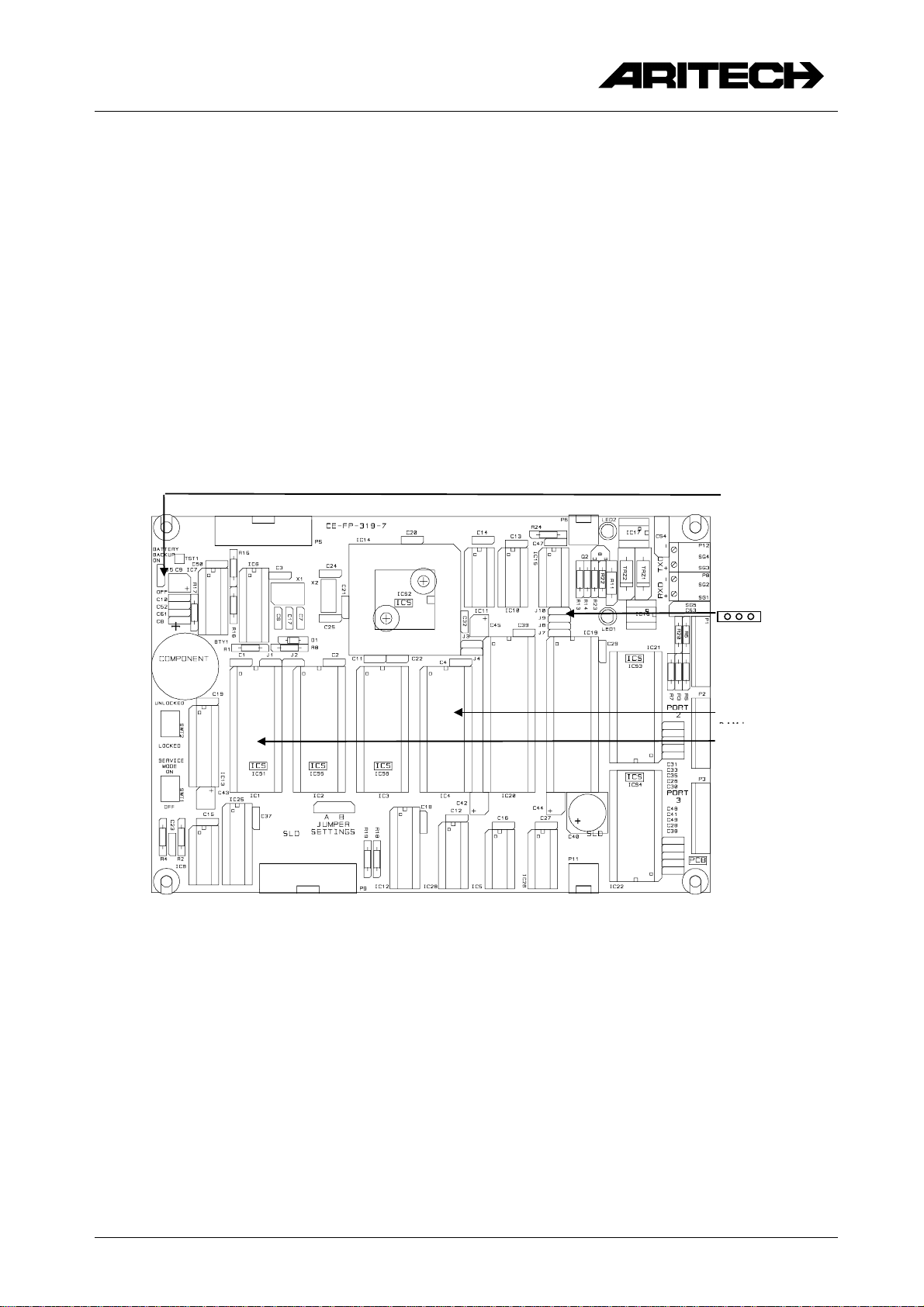

J5: Battery
backup
J7,8,9&10
A B
IC4:
Insert
IC1: Insert
EPROM here
