Instruction Sheet

Kit Number: 72407100, 72408100

SNOW CLEAN-OUT TOOL KIT

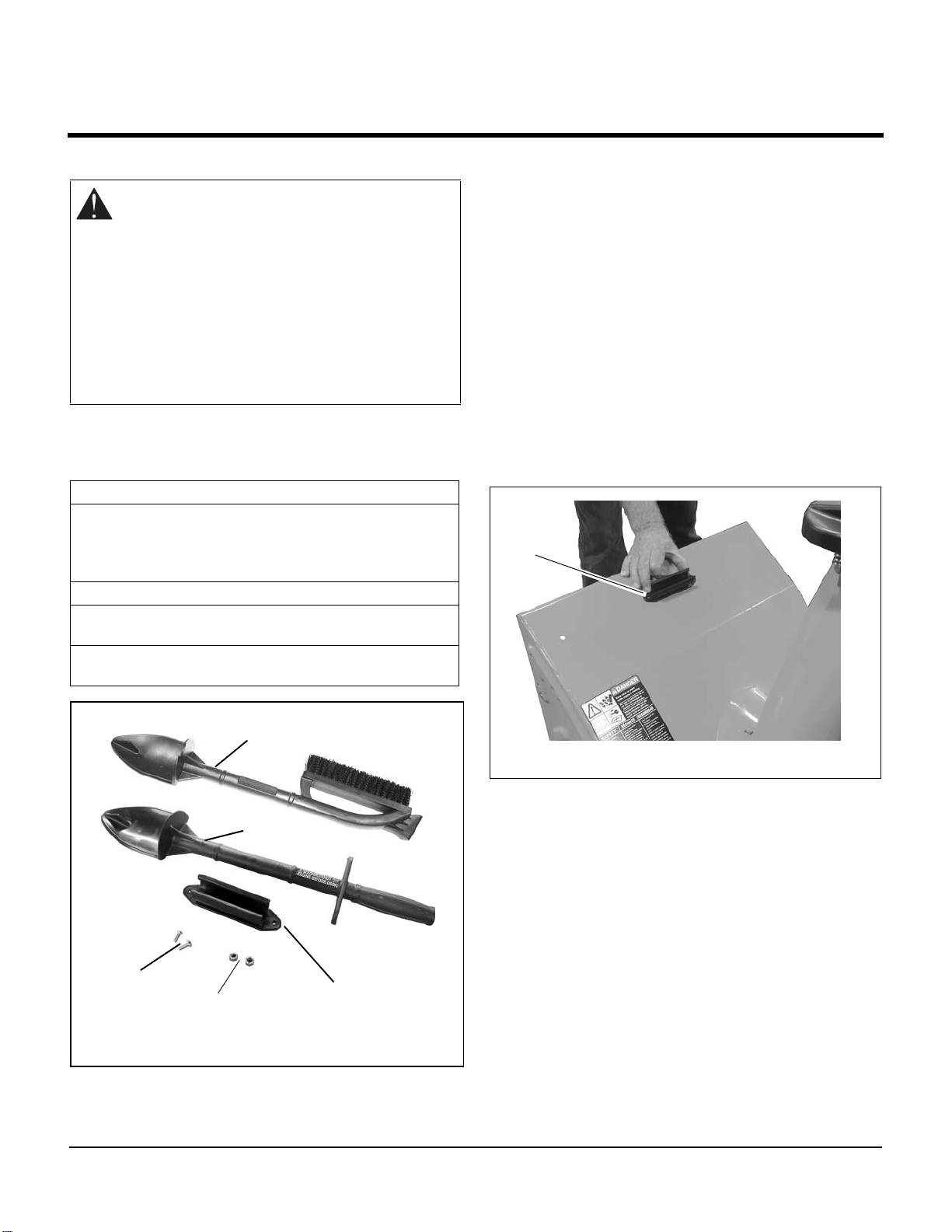

Package Contents

Check the contents of your kit for the parts listed below

(Figure 1):

TOOLS NEEDED

3/8" Wrench

Slotted Screwdriver

3/16" Drill Bit

INSTALLATION

1. Stop engine, wait for all moving parts to stop and

hot parts to cool. Disconnect spark plug wire from

spark plug.

2. Use the snow clean-out tool mount (item 2) as a

template to lay out two mounting holes on the top of

the auger housing. See Figure 2.

NOTE: Choose a location on the auger housing that will

not interfere with the operation of the unit and that will

prevent the snow clean-out tool (item 1) from hanging

over the sides or over the front of the auger housing.

3. Drill the two 3/16" mounting holes through the

auger housing.

WARNING: FAILURE TO FOLLOW

INSTRUCTIONS could result in personal injury

and/or damage to unit.

Read, understand, and follow all safety

practices in Owner/Operator Manual before

beginning.

ACCIDENTAL ENGINE START UP can cause

death or serious injury. ALWAYS stop engine,

remove key, wait for moving parts to stop, and

remove wire from spark plug before adjusting

or servicing.

Item Part No. Qty Description

1. 00170200

03901400

Snow Clean-Out Tool

(724071)

Snow Clean-Out Tool w/

Brush (724081)

2. 00170300 1 Snow Clean-Out Tool Mount

3. 06536000 2 10-24 Nylon Lock Nut with

Insert

4. 06117600 2 10-24 x 1/2 Round Head

Slotted Machine Screw

Figure 1

1 (724071)

1 (724081)

Figure 2

00361400A 8/09 Page 2 of 2

NOTE: Do not overtighten the hardware when installing

the snow clean-out tool mount (item 2). Overtightening

will crack the mount.

NOTE: Install the hardware so the nylon lock nut is on

the inside of the auger housing.

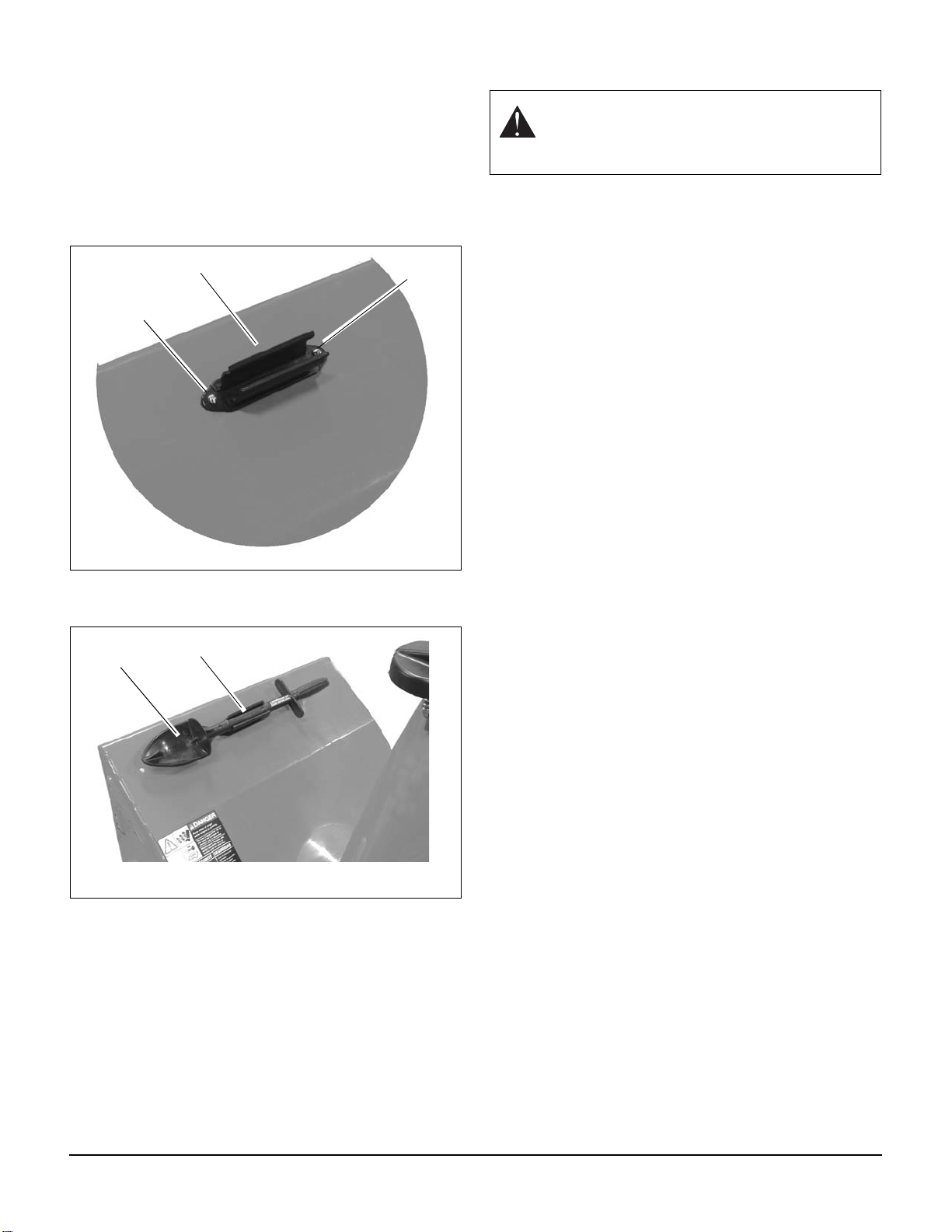

4. Install the snow clean-out tool mount (item 2) on the

auger housing with two 10-24 x 1/2 round head

slotted machine screws (item 4) and two 10-24

nylon lock nuts (item 3) as shown in Figure 3.

5. Snap the snow clean-out tool (item 1) into the snow

clean-out tool mount (item 2) for storage.

6. Reconnect spark plug wire to spark plug.

OPERATION

To clear the chute:

1. Shut off the engine.

2. Wait 10 seconds to be sure impeller blades have

stopped rotating.

3. Remove the snow clean-out tool (item 1) from the

snow clean-out tool mount (item 2) and use it to

remove the clog.

4. Replace the snow clean-out tool (item 1) on the

snow clean-out tool mount (item 2).

Figure 3

3, 4

Figure 4

WARNING: Hand contact with the rotating

impeller is the most common cause of injury

associated with snow throwers. Never use your

hand to clean out the discharge chute.
