Ariens 911150 - BRP21 Manuel utilisateur

Models

911150 - BRP21

911151 - BRP21 CARB

911152 - BRSP21

911153 - BRSP21 CARB

911154 - BRSPE21

Walk-Behind Lawn Mowers

Parts Manual

01282200B 5/08

Printed in USA

THE MANUAL

Before you operate your unit, carefully and completely

read manuals supplied with the unit. The contents will

provide you with an understanding of safety instructions

and controls during normal operation and maintenance.

For your safety and the safety of others always read,

understand, and follow all DANGER, WARNING, and

CAUTION messages found in manuals and on safety

decals.

Hardware descriptions are given in decimals.

SERVICE AND REPLACEMENT PARTS

When ordering replacement parts or making service

inquiries, know the Model and Serial numbers of your

unit and engine.

Numbers are located on the product registration card in

the unit literature package. They are printed on a serial

number label, located on the frame of your unit.

• Record Unit Model and Serial numbers here:

• Record Engine Model and Serial numbers here:

UNAUTHORIZED REPLACEMENT PARTS

Use only Ariens replacement parts. The replacement of

any part on this vehicle with anything other than an

Ariens authorized replacement part may adversely affect

the performance, durability, or safety of this unit and may

void the warranty. Ariens disclaims liability for any claims

or damages, whether warranty, property damage,

personal injury or death arising out of the use of

unauthorized replacement parts.

Decimals to Fractions

.063 1/16 .563 9/16

.125 1/8 .625 5/8

.188 3/16 .688 11/16

.250 1/4 .750 3/4

.313 5/16 .813 13/16

.375 3/8 .875 7/8

.438 7/16 .938 15/16

.500 1/2 1.00 1

PRODUCT REGISTRATION

The Ariens dealer must register the product at the time of

purchase. Registering the product will help the company

process warranty claims or contact you with the latest

service information. All claims meeting requirements

during the limited warranty period will be honored,

whether or not the product registration card is returned.

Keep a proof of purchase if you do not register your unit.

Customer Note: If the dealer does not register your

product, please fill out, sign, and return the product

registration card to Ariens.

YOUR SATISFACTION ISIMPORTANT

Questions? Please follow these helpful steps:

1. Refer to the manuals supplied with your unit.

They will guide you through safe and proper

operation and maintenance.

They contain specifications on your unit.

If your questions are not answered in these manuals,

go to step number two.

2. Contact Your Dealer.

Our dealers will be happy to supply any service or

advice required to keep your unit operating at peak

efficiency.

A factory trained staff is available to support your

equipment needs. They stock genuine Ariens parts

and lubricants manufactured with the same precision

and skill as the original.

If your questions are not resolved by the support

staff, ask for the manager or owner.

When contacting your Dealer supply your model and

serial numbers.

TO SPEED PARTS ORDERING:

1. Know the model and serial numbers of your unit.

2. Know the part number required.

3. Know the quantity required.

4. Know the part description.

MODELS

Model 911150 (BRP21)

Kohler XT-7

Recoil, Push

Serial No. 000101 and up

Model 911151 (BRP21) - CARB Engine

Kohler XT-7

Recoil, Push

Serial No. 000101 and up

Model 911152 (BRSP21)

Kohler XT-7

Recoil, Self-Propelled

Serial No. 000101 and up

Model 911153 (BRSP21) - CARB Engine

Kohler XT-7

Recoil, Self-Propelled

Serial No. 000101 and up

Model 911154 (BRSPE21)

5.5 hp Honda GCV 160

Electric Start, Self-Propelled

Serial No. 000101 and up

TABLE OFCONTENTS

DECALS

Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FRAME

Handlebar and Controls. . . . . . . . . . . . . . . . . . . . . . . 6

Mower Deck and Bagger . . . . . . . . . . . . . . . . . . . . . . 8

WHEELS, HEIGHT OF CUT, TRANSMISSION

Wheels and Height of Cut . . . . . . . . . . . . . . . . . . . . 10

Transmission & Height of Cut . . . . . . . . . . . . . . . . . 12

ENGINE

Engine, Blade and Belt . . . . . . . . . . . . . . . . . . . . . . 14

ELECTRICAL

Continuity & Electrical Diagram . . . . . . . . . . . . . . . . 15

Electrical Harness & Battery . . . . . . . . . . . . . . . . . . 16

DECALS

Model 911150, 151, 152, 153, 154

Item Part No. Qty. Description

1 05303100 1 Ariens, Jewel

2 01285500 1 Decal, Ariens Blade Runner

000000

NOTES

HANDLEBAR AND CONTROLS

Model 911150, 151, 152, 153, 154

PM0028

HANDLEBAR AND CONTROLS

Model 911150, 151, 152, 153, 154

Item Part No. Qty. Description

1 01263851 1 Bail, Drive

2 01263751 1 Bail, Operator Presence

3 01261351 1 Handlebar

4 07517000 2 Cap, Vinyl .25 I.D.

5 07517000 1 Cap, Vinyl .25 I.D.

6 06220100 2 Bolt, Round Head Square Neck .25-20 x 1.25

7 01250651 1 Anchor, Cable Thumb Adjustment

8 06543500 2 Nut, Locking-Top-Flange .25-20

9 04642100 1 Guide, Pullcord

10 06530400 2 Nut, Flange Spinlock .312-18

11 01281900 1 Cable, Operator Presence

12 05514500 2 Bushing, Flange .325 x .444 x.440 x.560

13 01266700 1 Cable, Traction Thumb Adjustment

14 06220800 2 Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5

15 07539300 2 Clip, Conduit

16 05947400 1 Bolt, Hex .25-20 x 1.25 Grade 5

17 06543500 1 Nut, Locking-Top-Flange .25-20

MOWER DECK AND BAGGER

Model 911150, 151, 152, 153, 154

17 15

16 8

MOWER DECK AND BAGGER

Model 911150, 151, 152, 153, 154

Item Part No. Qty. Description

1 01268051 1 Mulch Plug

2 01278551 1 Frame, Bagger (911152, 153, 154)

3 01253200 1 Rod, Hinge (911152, 153, 154)

4 07027600 2 Nut, Push .25 x .50 O.D. (911152, 153, 154)

5 01250700 1 WBLM, Ariens Bagger (911152, 153, 154)

6 01253400 1 Bagger Door (911152, 153, 154)

7 01251400 1 Rear Discharge Cover

8 01260900 2 Pin, Hinge

9 08300035 2 Spring, Torsion

10 01253059 1 21" Deck Weldment

11 01264100 1 Grill Insert

12 07400011 2 Screw, Tapping 12-12 x .75

13 06219900 1 Bolt, Round Head Square Neck .25-20 x .75

14 01260500 1 Mulch Cover

15 01262351 1 Cover, Transmission Access

16 07276000 1 Pushnut

17 07412100 2 Screw, Tapping 10-24 x .375 Hex Washer Head Thread Rolling (911150, 151, 152, 153)

18 07400012 2 Screw, Self Drill/Tap

19 07500011 1 Knob, Clamping, .250-20 Nyloc

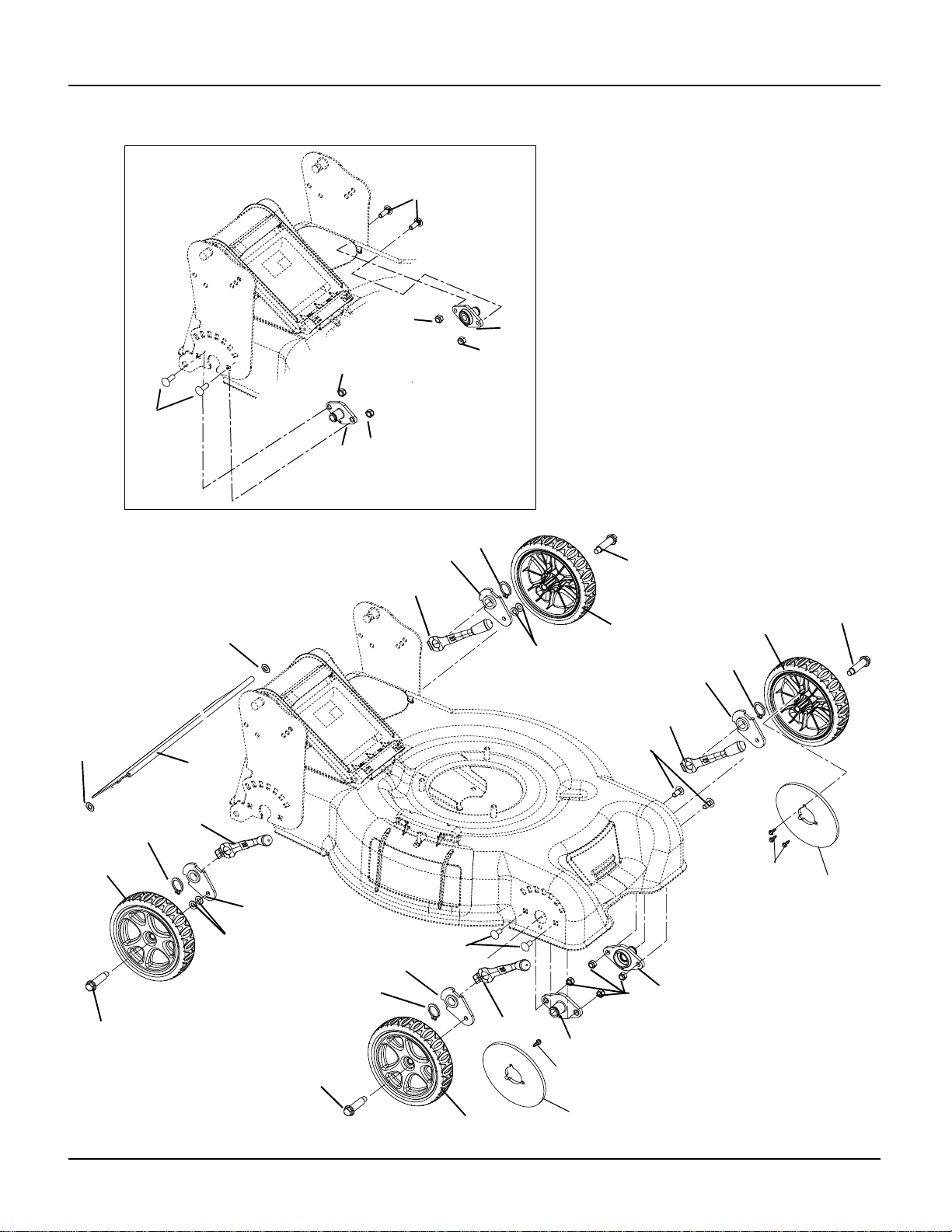

WHEELS AND HEIGHT OF CUT

Model 911150, 151, 152, 153, 154

991152, 153. 154

512

12 5
