Argos Linear 247/6216 Manuel utilisateur

MADE IN

BRITAIN

Dimensions

Linear - 5 Drawer Chest

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 1 - 10/06/14

Important - Please read these instructions fully before starting assembly

ALR3058

247/6216

266/8732

278/1671

Width - 79.5cm

Depth - 39cm

Height - 104cm

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs

approximately 35.5kgs.

Please lift with care.

• Check you have all the

components and tools listed on

pages 2 and 3.

• Remove all fittings from the

plastic bags and separate them

into their groups.

• Keep children and animals

away from the work area, small

parts could choke if swallowed.

• Parts of the assembly will be

easier with 2 people.

• Make sure you have enough

space to layout the parts before

starting.

• Do not stand or put weight on

the product, this could cause

damage.

• Assemble the item as close to

its final position (in the same

room) as possible.

• Assemble on a soft level

surface to avoid damaging the

unit or your floor (use opened

out unit carton).

Care and maintenance

• Only clean using a damp cloth

and mild detergent, do no use

bleach or abrasive cleaners.

• From time to time check that

there are no loose screws on

this unit.

• This product should not be

discarded with household

waste. Take to your local

authority waste disposal centre.

Note: If required the next page

can be cut out and used as

reference throughout the

assembly. Keep this page with

these instructions for future

reference.

• We do not

recommend the

use of power

drill/drivers for

inserting screws,

as this could damage the unit.

Only use hand screwdrivers.

• Safety note: It is

recommended that this unit is

secured to a wall using the

bracket supplied.

• Dispose of all packaging

carefully and responsibly.

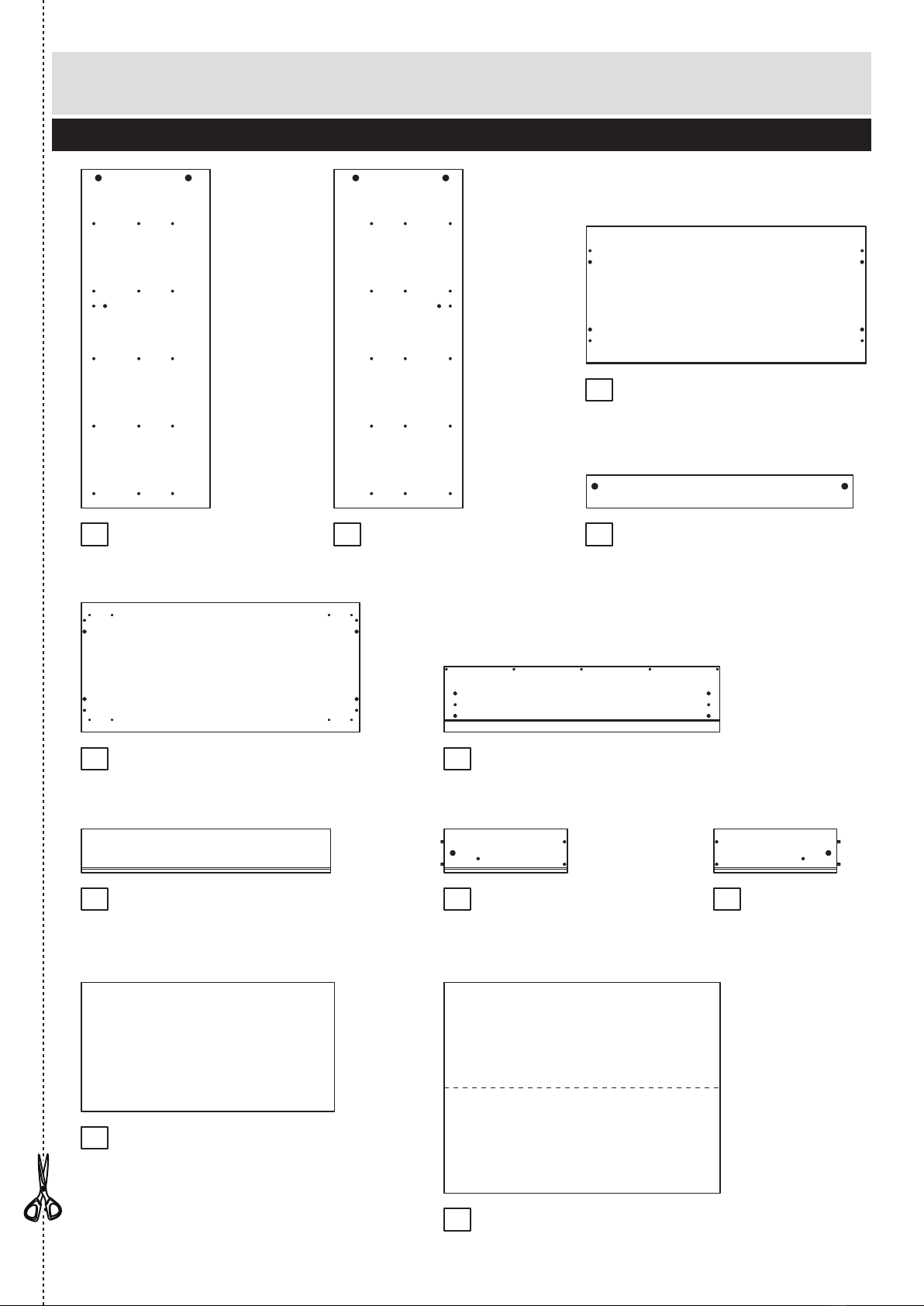

Components - Panels

Please check you have all the panels listed below

80%

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

5 6

7 8 9

Base (DF147)

(791 x 368mm)

Top (DF143)

(795 x 390mm)

Drawer Back (W708-124)

(708 x 124mm) x 5

Drawer Base (T719-347)

(719 x 347mm) x 5

Drawer Front (DF145)

(783 x 187mm) x 5

Left Drawer

Side (W350-124LH)

(350 x 124mm) x 5

Right Drawer

Side (W350-124RH)

(350 x 124mm) x 5

Back (X984-785)

(984 x 785mm)

Left Side (DF843)

(963 x 366mm)

Right Side (DF844)

(963 x 366mm)

Cross Rail (DF144)

(759 x 94mm)

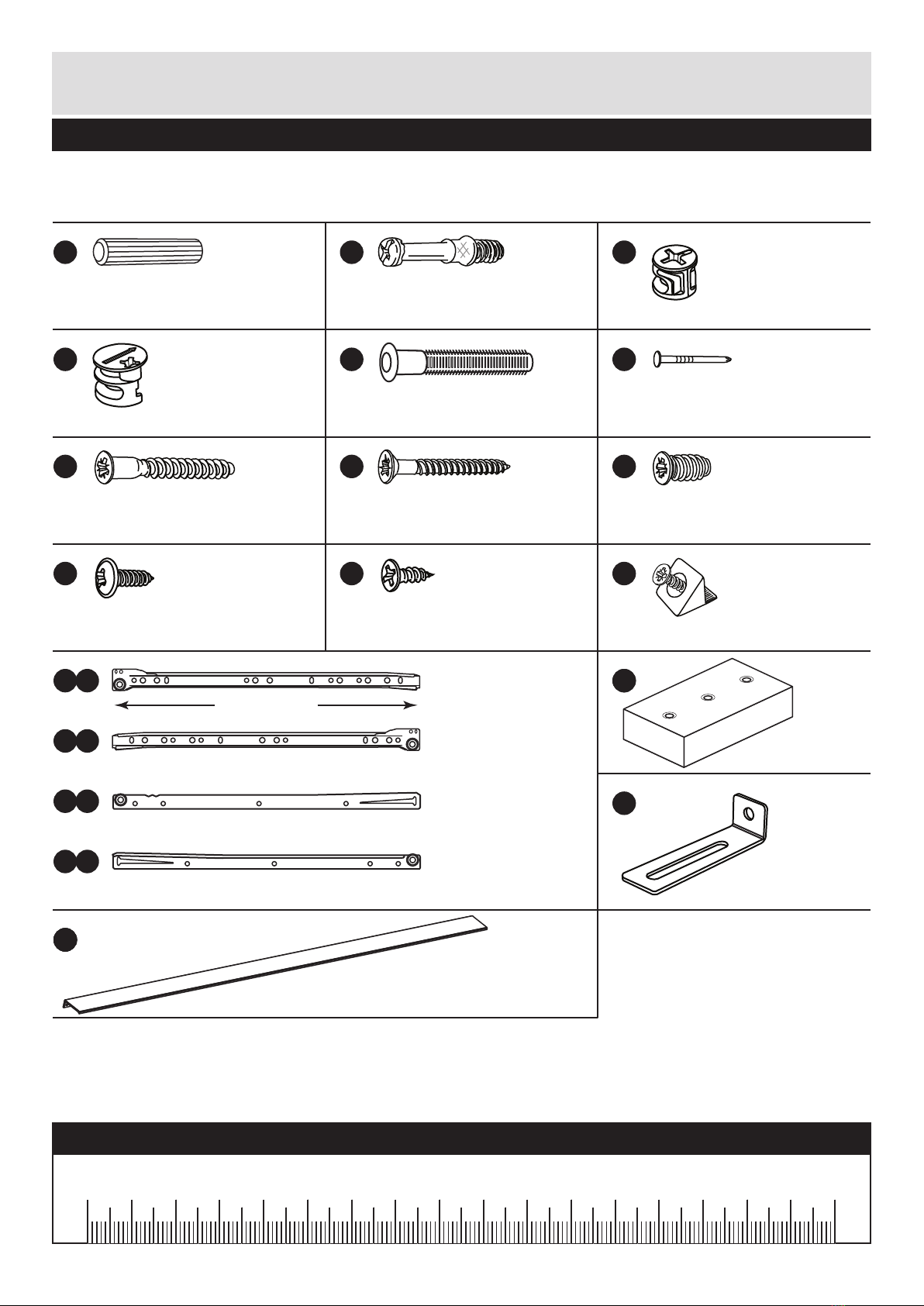

Please check you have all the fittings listed below

Components - Fittings If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases

more fittings may be supplied than are required.

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

B C

D E F

G H

Small locking

nut (F3) x 10

Nail (F51) x 24

Wooden dowel (F22) x 10 Metal dowel (F901) x 16

Large locking

nut (F900) x 6 Knock-in Peg (F171GY) x 20

MR Runner (F160) x 5

L Runner (F161) x 5

L Runner (F159) x 5

R Runner (F162) x 5

350mm long

40mm Screw (F910) x 4

13mm Screw (F52) x 30

13mm Screw (F79) x 26 13mm Screw (F63) x 30

Wedgefix (F639) x 20

Foot

(F233) x 4

38mm Screw (F81) x 8

Bracket (F327) x 1

Handle (F283) x 5

780mm long

Assembly Instructions

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

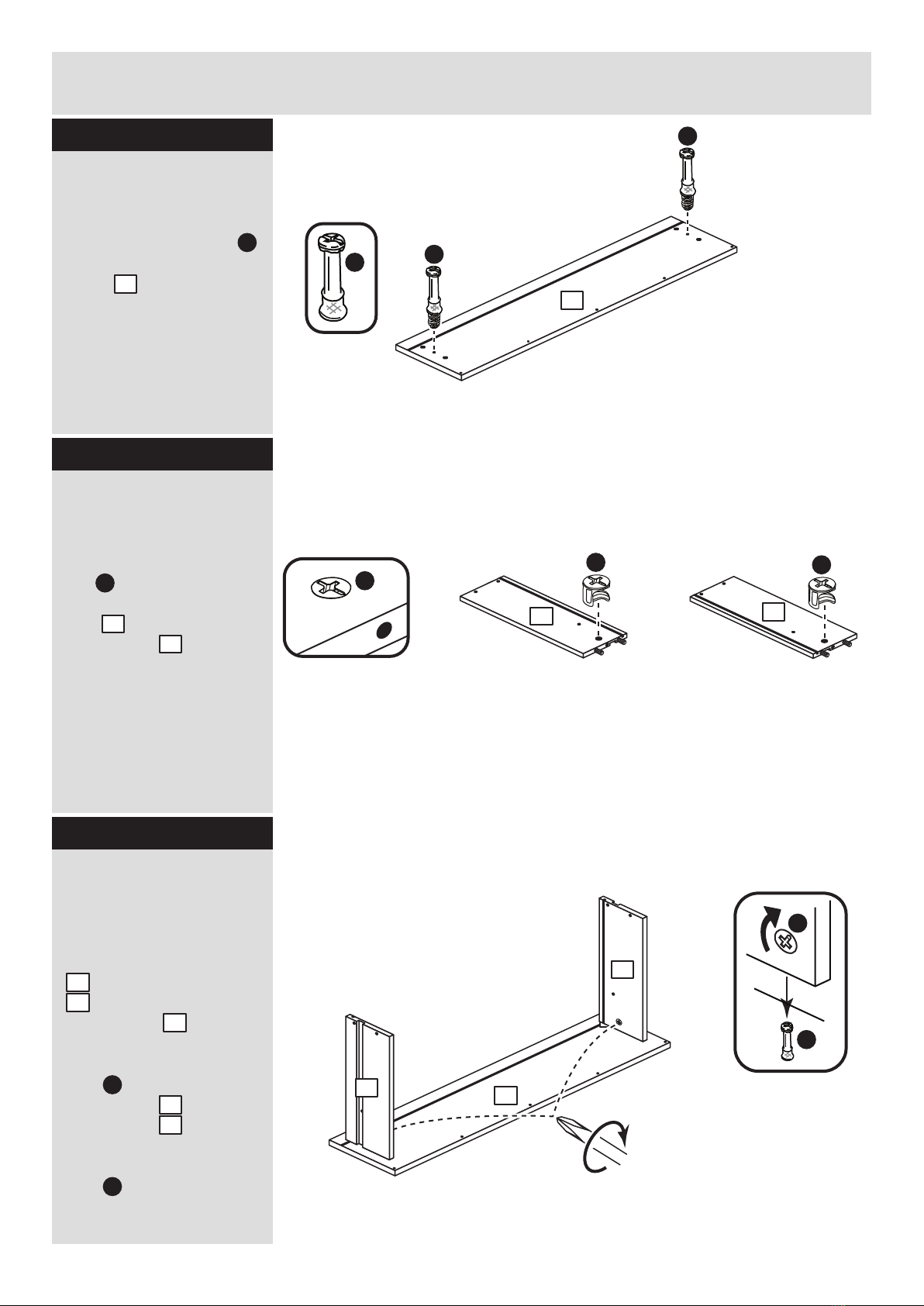

Step 1

Step 2

Prepare the 5 drawer

fronts

Screw 2 metal dowels

into each of the drawer

fronts .

Note: Tighten the metal

dowels up fully against

the panels.

Prepare the drawer

sides

Insert a small locking

nut into the hole

shown on the left drawer

side and the right

drawer side .

Note: The arrow on the

locking nut must point

towards the hole in the

edge of the panel.

Step 3

Attach the drawer

sides to the drawer

fronts

Push the left drawer sides

. and right drawer sides

. onto the back of the

drawer front .

Turn the small locking

nuts on the left

drawer side and right

drawer side .

Note: Turn the locking

nuts clockwise to

secure panels - more

than 1/2 a turn.

x 5

80%

Assembly Instructions

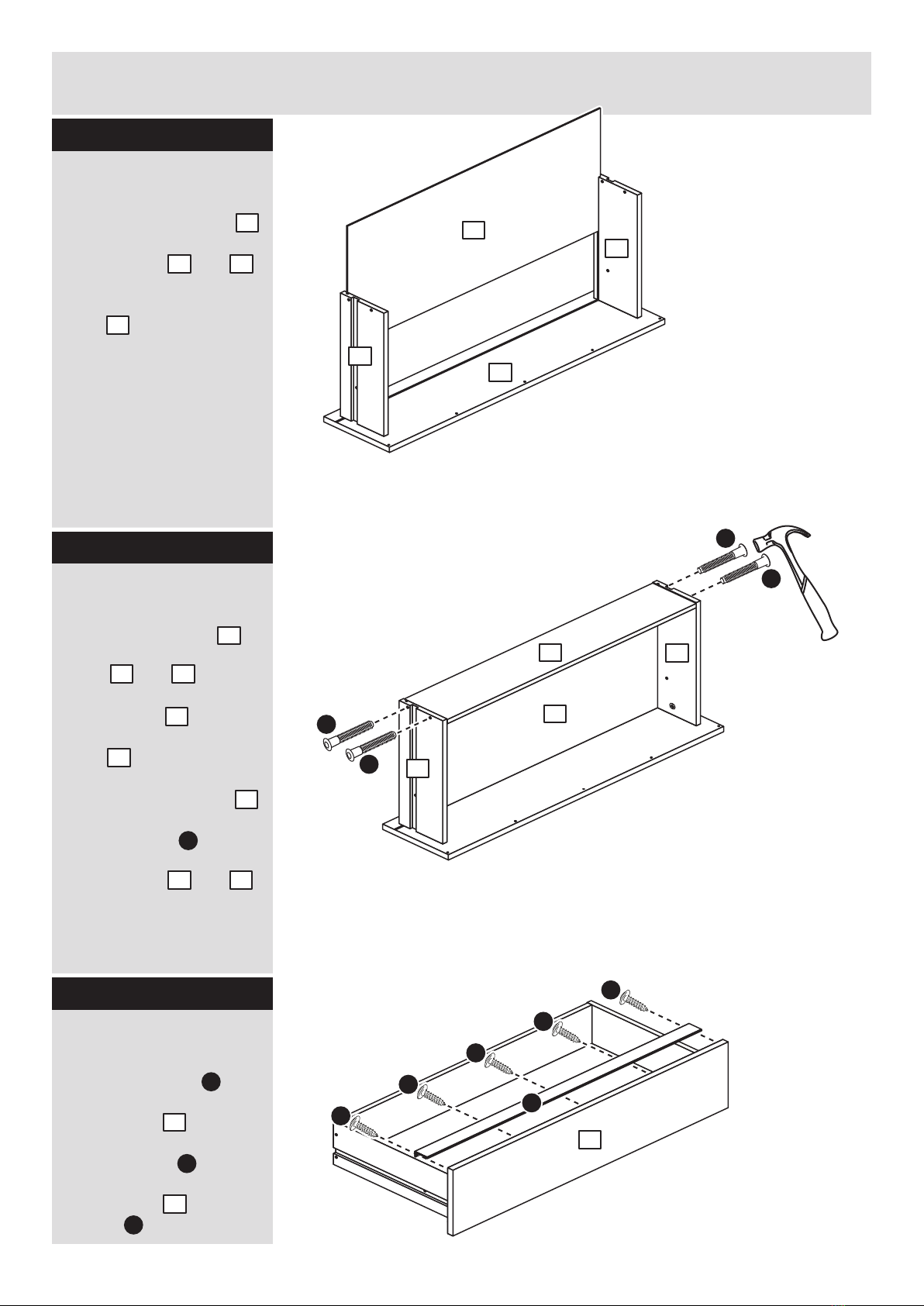

Step 4

Fit the drawer base

Slide the drawer base

down the grooves in the

drawer sides and

and down into the

groove in the drawer

front .

Step 5

Fit the drawer back

between the drawer

sides and .

Make sure that the

drawer base fits into

the groove in the drawer

back .

Hold the drawer back

in position and tap the

knock-in pegs

through the holes in the

drawer sides and .

Step 6

8 9

Fit the handle

Position a handle

onto the top edge of the

drawer front .

Fix the handle to the

back surface of the

drawer front using 5

screws .

x 5

Assembly Instructions

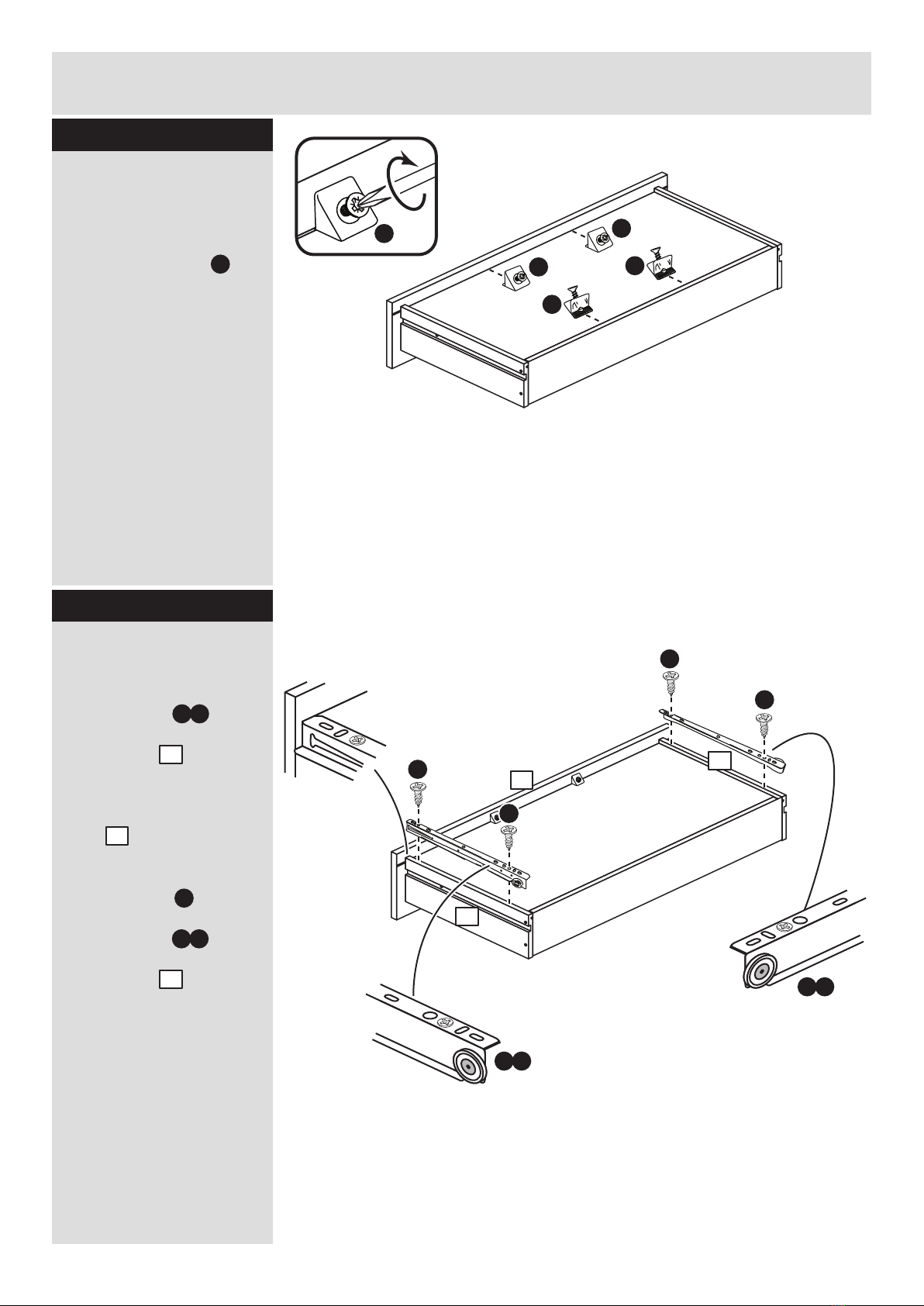

Step 7

Fit the wedgefixes

Turn the drawer

assemblies over and

slide 4 wedgefixes

into the front and back

grooves, as shown, and

tighten up the screws.

Fit runners to the

drawers

Fit the runner to the

bottom edge of the left

drawer side , as

shown, making sure that

it is pushed up against

the back of the drawer

front . Use a bradawl

to mark the fixing

positions, then secure

with 2 screws .

Fit the runner to the

bottom edge of the right

drawer side using the

same method.

M c

M d

Runners must be

pushed up against

the drawer front

Step 8

M c

x 5

Finished

front edge

Assembly Instructions

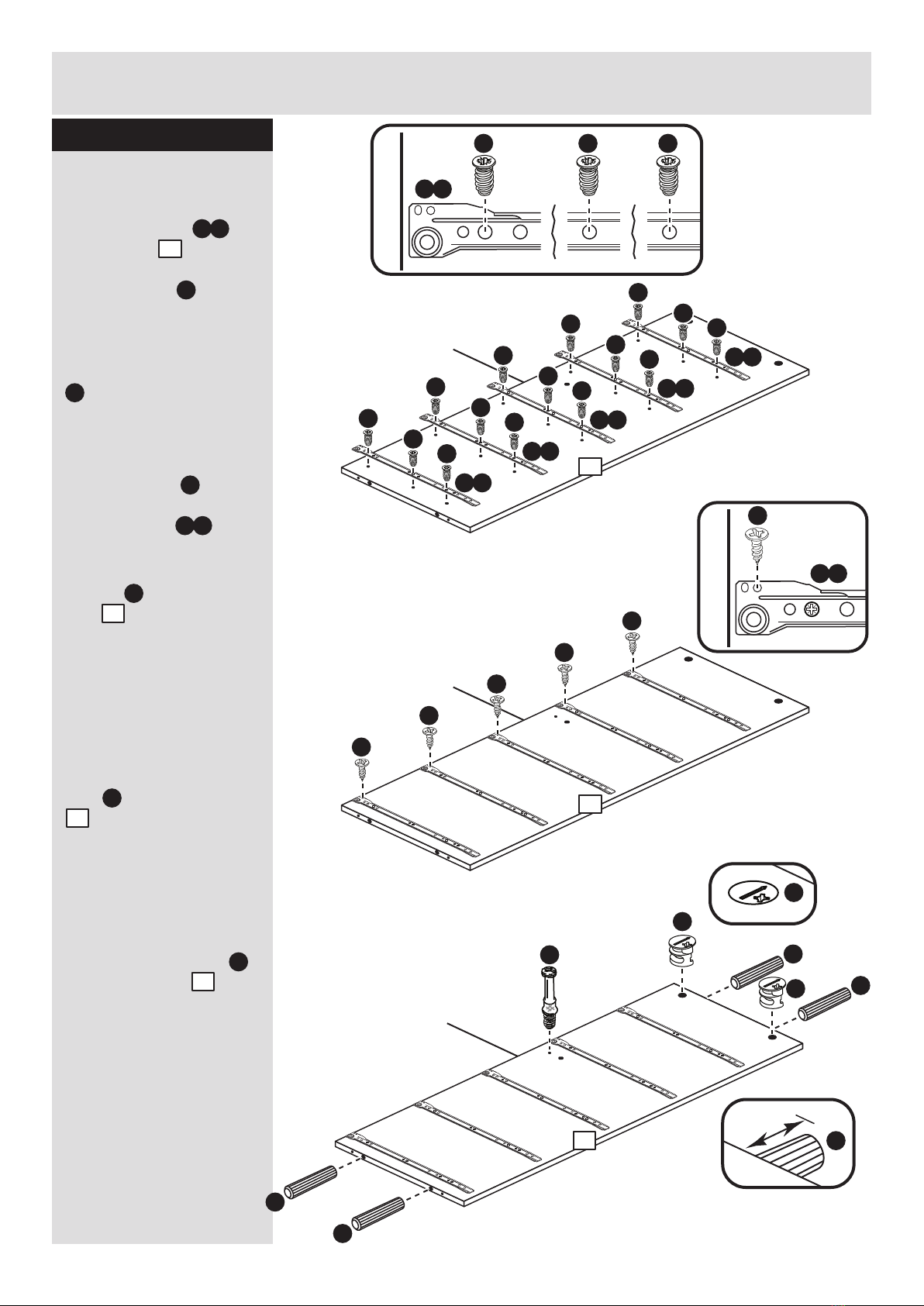

Step 9

M a

Finished front edge

1st

screw

2nd

screw

3rd

screw

M a

Finished front edge

Prepare the left side

a: Fit 5 runners to

the left side .

The 1st screw uses

the 2nd hole in from the

front of the runner.

The 2nd and 3rd screws

. use the holes that line

up with the other panel

holes.

b: Fit a screw into

the 2nd hole in at the top

of the runners .

c: Tap 4 wooden

dowels into the left

side .

Note: Wooden dowels

must not stick out from

the edge by more than

10mm or they may

damage other panels.

Insert 2 large locking

nuts into the left side

. .

Note: The arrow on the

locking nut must point

towards the hole in the

edge of the panel.

Screw a metal dowel

into the left side .

M a

Finished

front edge

Finished

front edge

10mm

Assembly Instructions

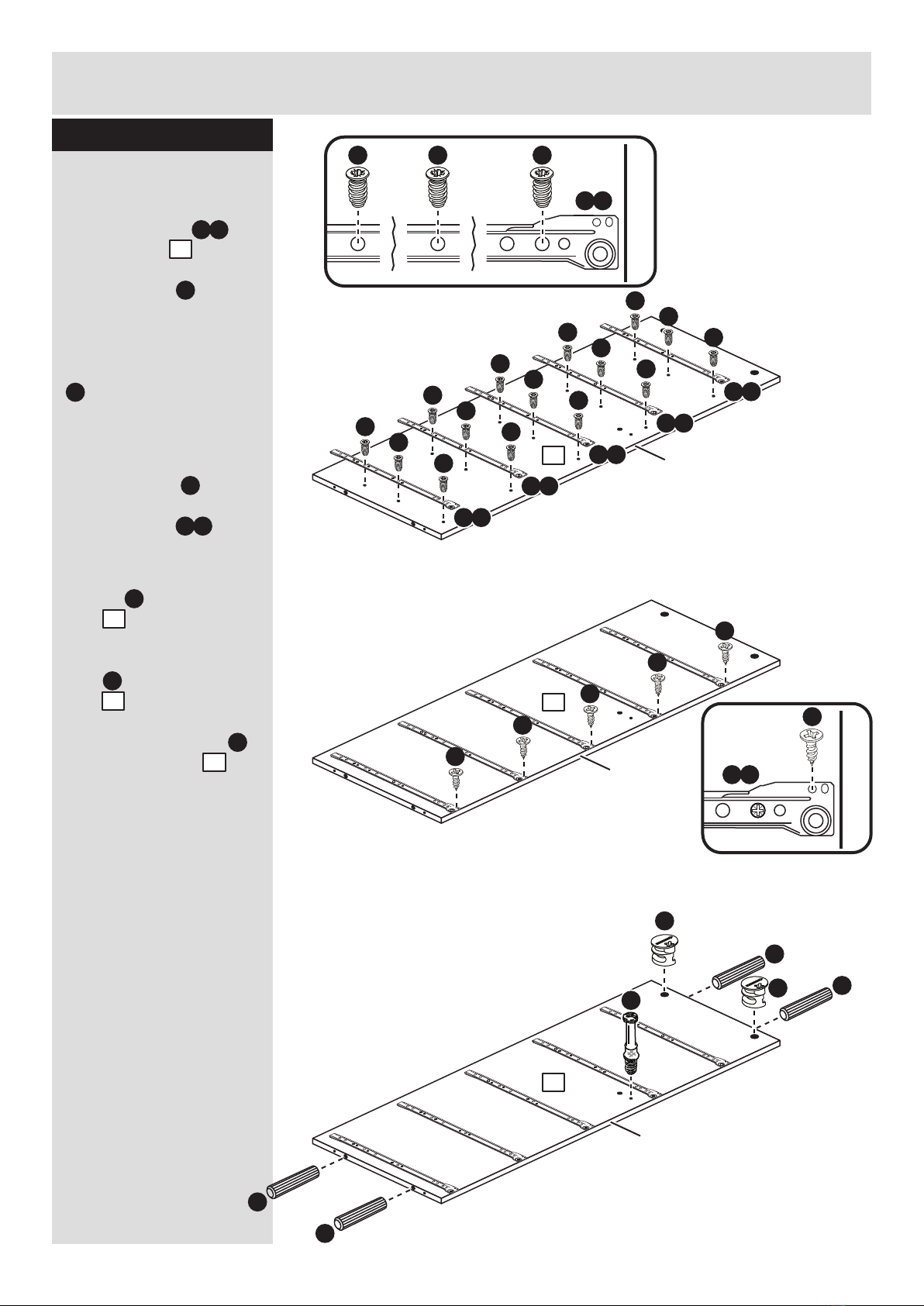

Step 10

Prepare the right side

a: Fit 5 runners to

the right side .

The 1st screw uses

the 2nd hole in from the

front of the runner.

The 2nd and 3rd screws

. use the holes that line

up with the other panel

holes.

b: Fit a screw into

the 2nd hole in at the top

of the runners .

c: Tap 4 wooden

dowels into the right

side .

Insert 2 large locking

nuts into the right

side . .

Screw a metal dowel

into the right side .

M b

Finished front edge

I1st

screw

2nd

screw

I3rd

screw

M b

Finished front edge

M b

Finished

front edge

Finished

front edge

Finished

front edge

Finished

front edge

Finished

front edge Finished

front edge

Assembly Instructions

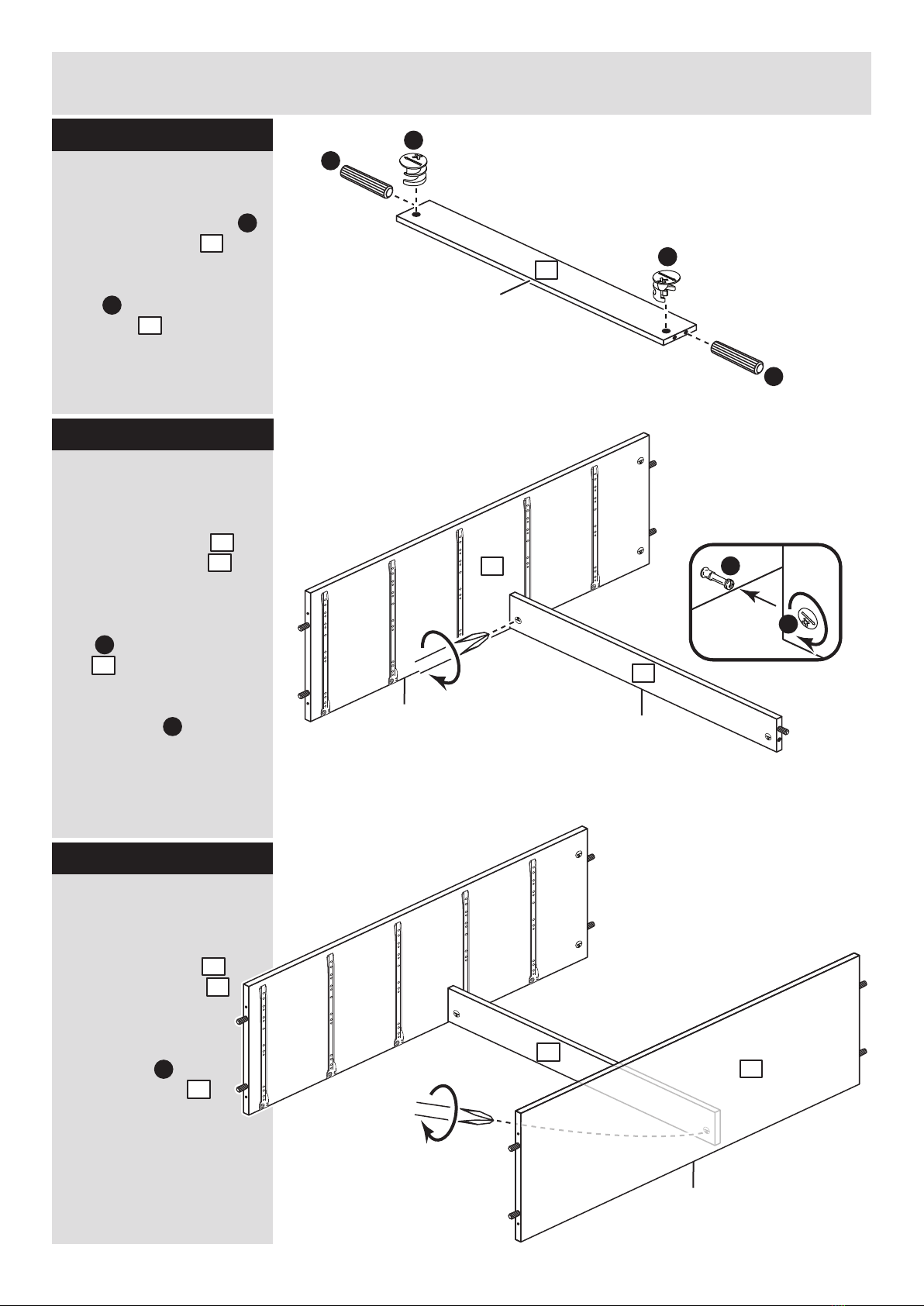

Step 11

Prepare the cross rail

Tap 2 wooden dowels

into the cross rail .

Insert 2 large locking

nuts into the

cross rail .

Fit the left side to the

cross rail

Push the left side

onto the cross rail .

Use a screwdriver to

tighten the large

locking nut fitted

to the cross rail .

Step 13

Fit the cross rail to

the right side

Push the cross rail

onto the right side .

Use a screwdriver to

tighten the large locking

nut fitted to the cross

rail .

Note: Turn the large

locking nuts as far as

they will go - more than

1/2 a turn.

Step 12

Finished

front edge
