Argos Half Width Tall Extra Deep Bookcase Manuel utilisateur
Half Width Tall Extra Deep Bookcase
Assembly Instructions -
Please keep for future reference 609/2201
609/2218
609/2153609/2225
609/2232
609/2249
Dimensions
Depth - 29.1cm
Width - 42cm
Height - 180.1cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version 2
Date: 20/11/12
609/3509
609/3547
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
rom the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
r.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
1
• Do not use this item if any
components are missing or
damaged.
2

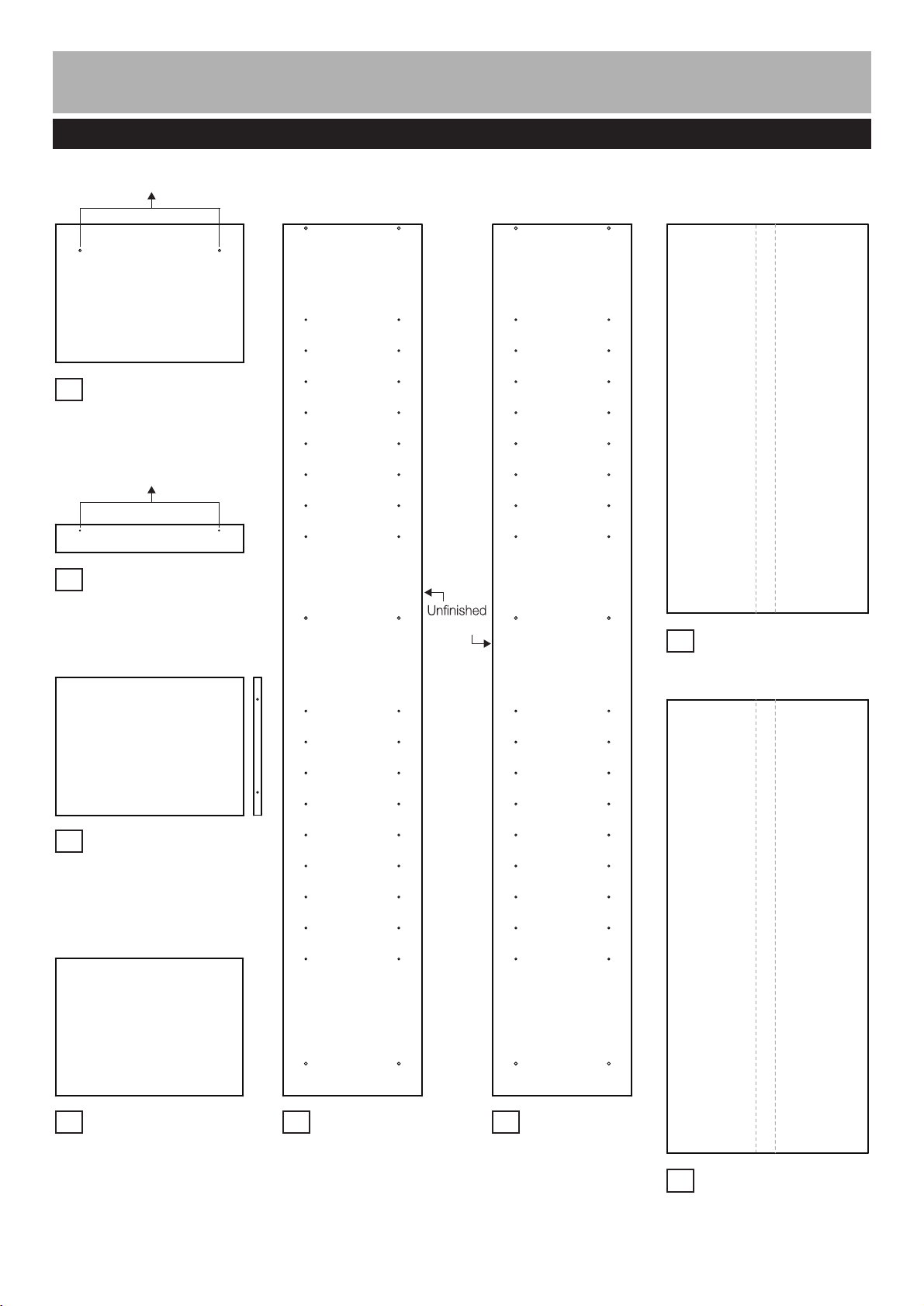

Components - Panels
Please check you have all the panels listed below
Left side panel
(28.6 x 180cm)
5 Right side panel
(28.6 x 180cm)
6
Bottom panel
(38.9 x 28.4cm)
1
Fixed panel x 2
(38.9 x 28.4cm)
3
Removable panel x 4
(38.9 x 28.4cm)
4
Front panel
(38.9 x 5.9cm)
2
Bottom back panel
(41.4 x 93.6cm)
8
Top back panel
(41.4 x 79.8cm)
7
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
back edge
Pilot holes for guidance only
Pilot holes for guidance only
50mm Screw x 12
3

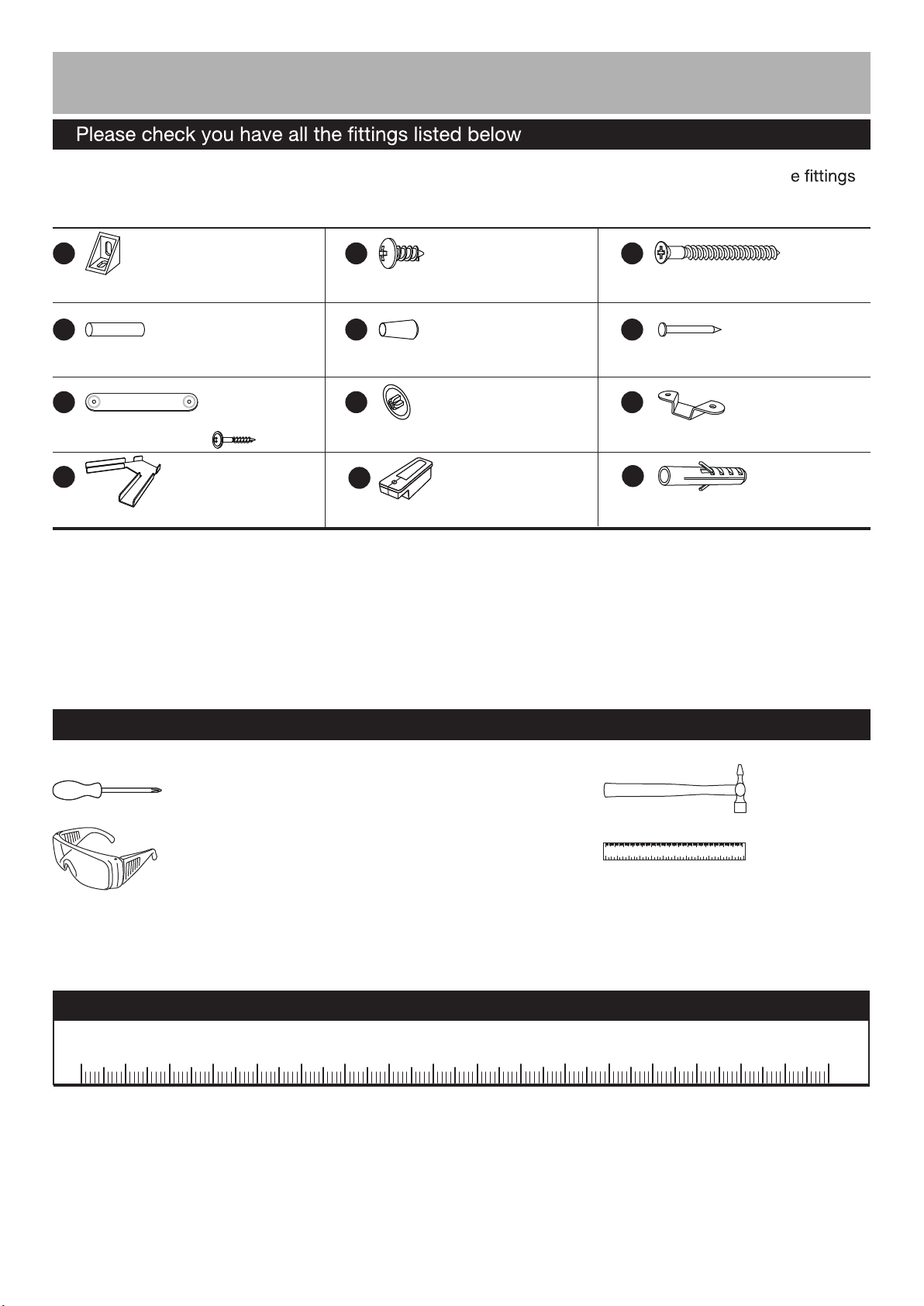

Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
sgnittiF-stnenopmoC
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
0 1 2 3 4 5 6
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler/tape
measure
Ruler - Use this ruler to help correctly identify the screws
ABC
DE
Wall strap x 1
GH
14mm Screw x 7
Support cover x 16Shelf support x 16
Plastic support x 2
Screw cover x 12
I
Upper corner support bracket x 1
Bottom corner support bracket x 1
J
F
Nail x 22
Nail guide x 1
KL
Wall plug x 1
(This screw is
included in the
bag of wall strap)
x 1
Eye protection
(when using a
hammer or glue)

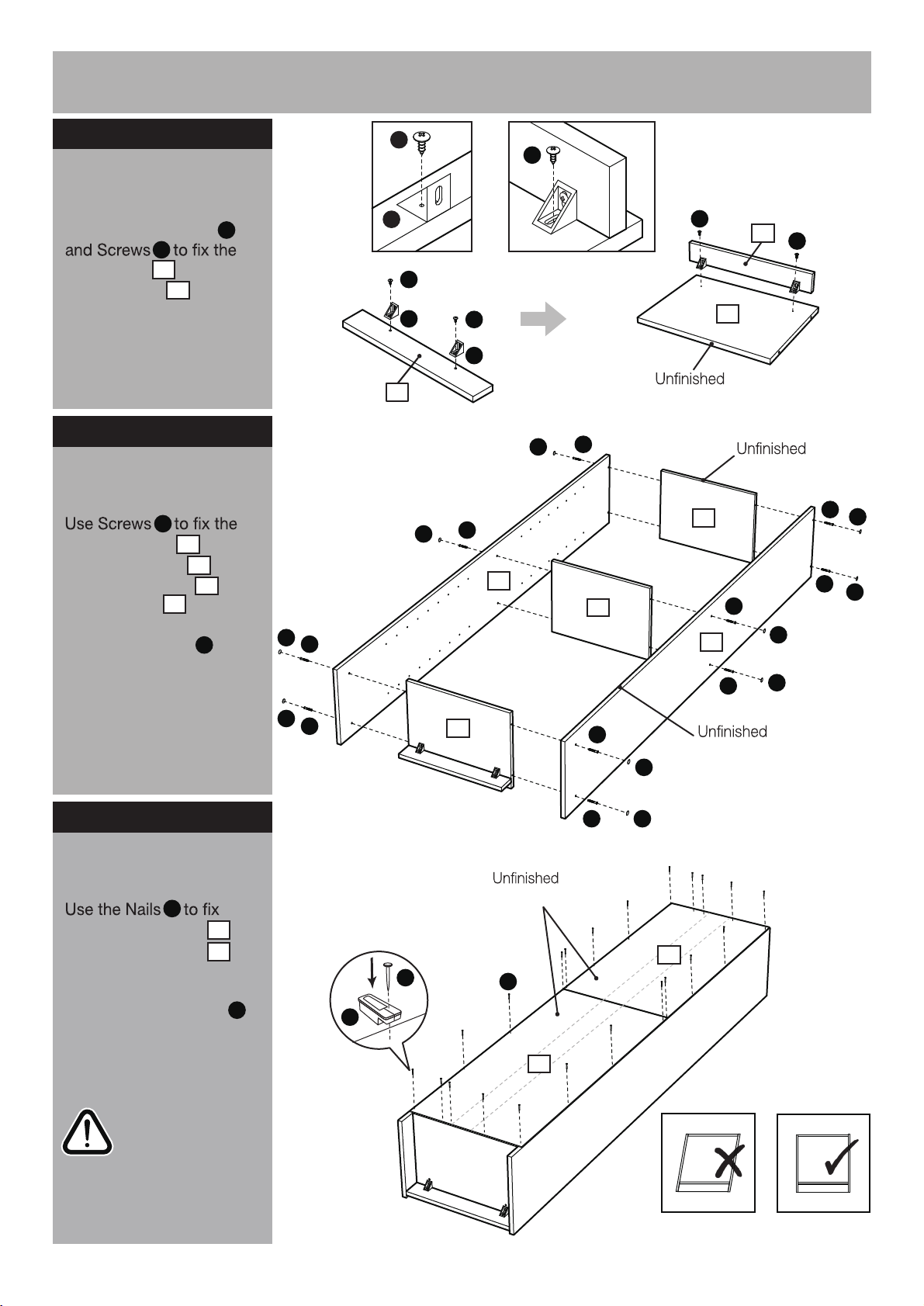

Step 3
Assembly Instructions
Step 1
4
the Back top panel and
Back bottom panel onto
the unit.
7
8
F
Fixing back panels
F
Attaching bottom panel
Use Plastic supports
Front panel onto the
Bottom panel .
A
2
1
B
Step 2
Attaching side panels
Left side panel and
Right side panel onto
the Bottom panel and
Fixed panels .
Use Screw covers to
cover the screw heads.
C
5
6
1
3
H
5
C
H
back edge
C
H
C
H
C
H
C
H
CH
CH
C
H
CH
CH
6
1
3
3
F
K
Use Nail guide
to keep a constant
distance from the edge to
Nails.
Note: K
B
B
1
back edge
A
2
2
7
8
back edge
Important:
The cabinet MUST
be ‘square’ when
the back is attached.
AB
B
A
B
back surface
B

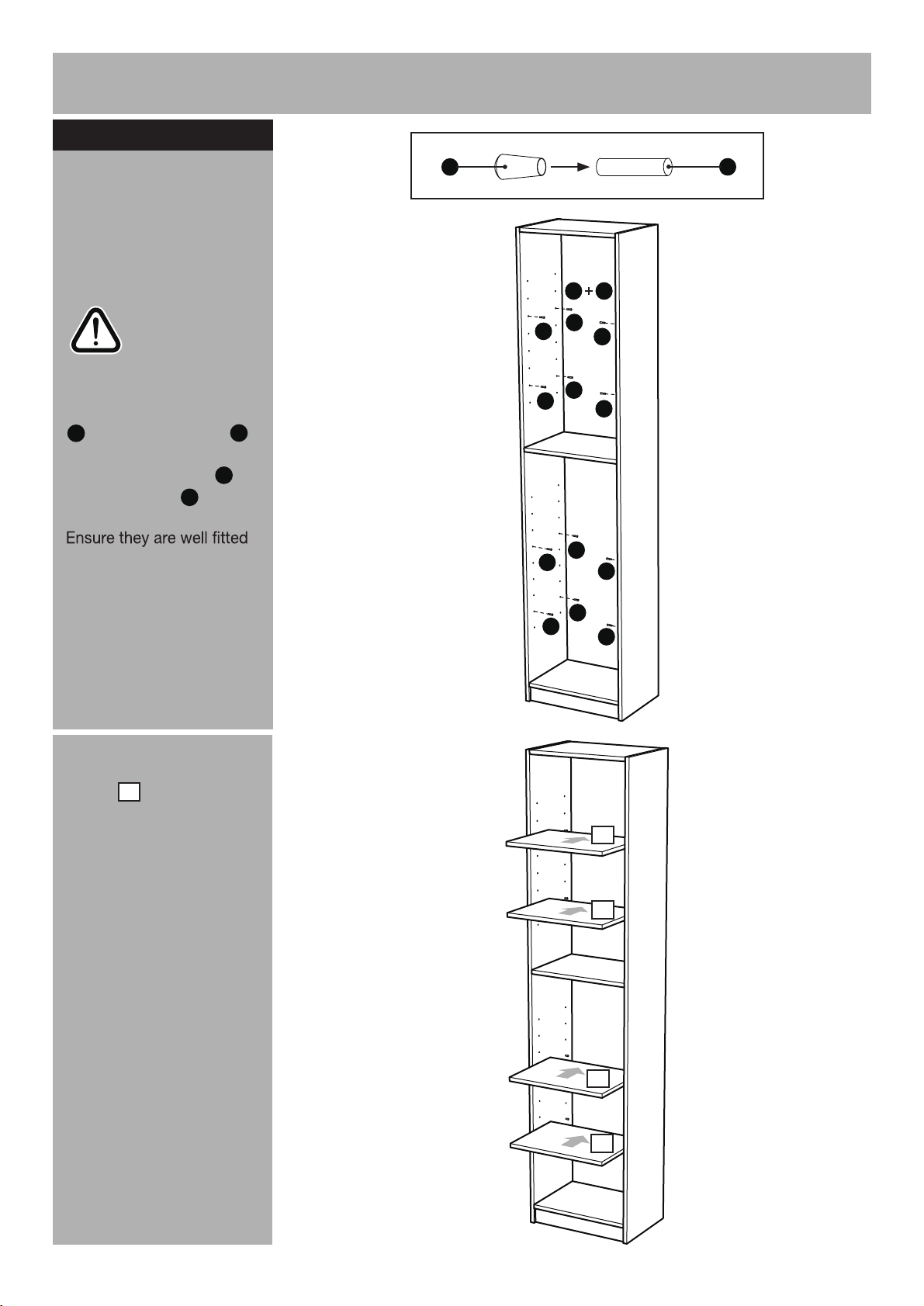

Step 4
Assembly Instructions
5
a:
Attaching removable
panels
D
b:
b:
Slide the Removable
panels into the unit.
4
ED
a:
SIide Support covers
onto Shelf supports .
ED
Note:
Set the shelf
supports to the desired
height.
4
4
D
DD
D
D
D
D
D
D
D
D
4
4
ED
With help, carefully stand
bookcase upright.
Warning:
The bookcase is
heavy.
Lift with care.
lnsert Shelf supports
(Support covers are
included) into the unit.
before inserting the
removable panels.
D
E
Step 5
Assembly Instructions
It is recommended that the
strap onto the back of the
Top panel.
With help, move bookcase
into position.
remove bookcase.

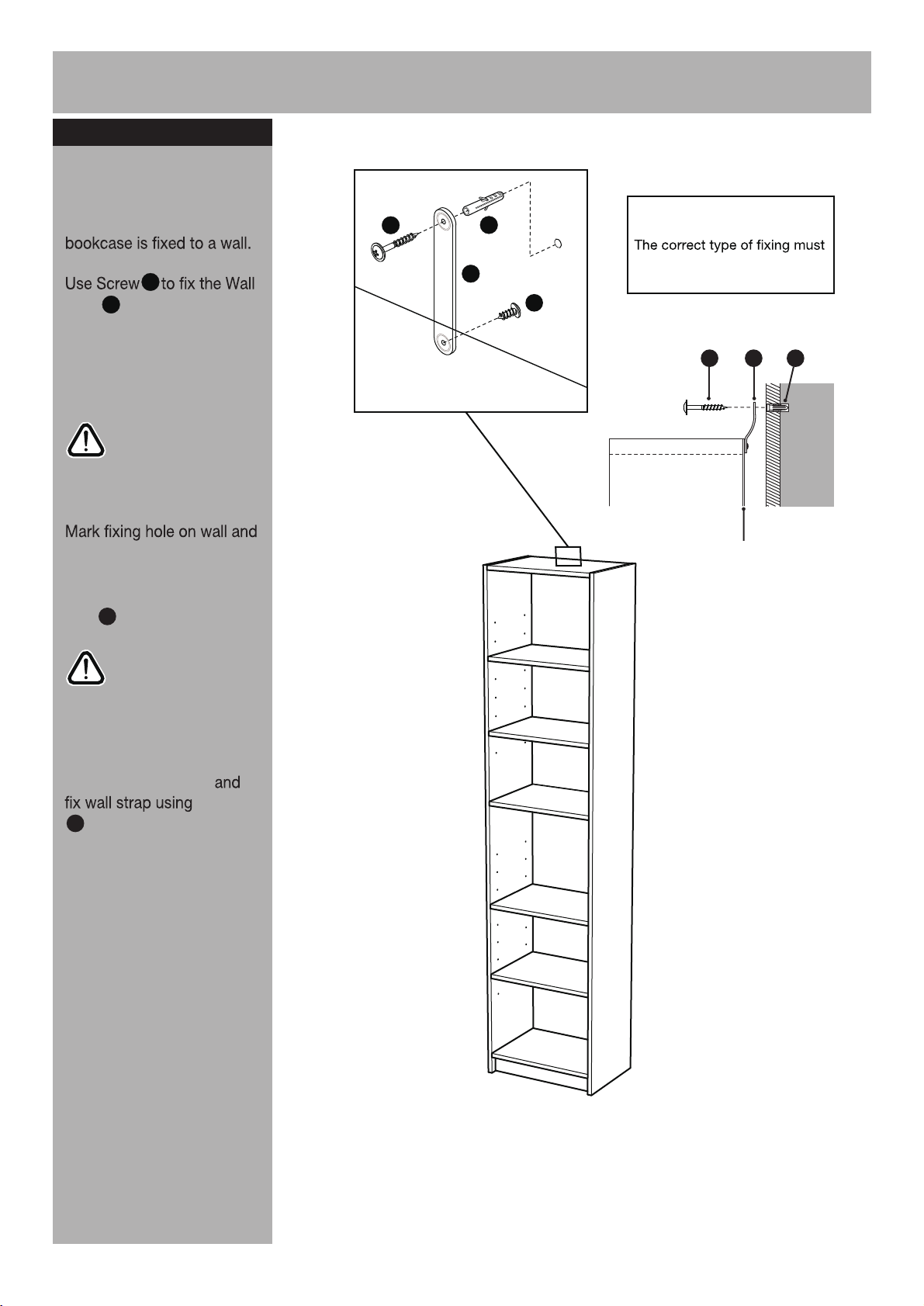

Drill a hole and insert Wall
plug .
Reposition bookcase
Screw
Fixing to wall
Warning:
The bookcase is
heavy.
Lift with care.
Warning:
Before drilling,
check wall for
hidden pipes and
and cables.
B
G
6
L
G
wall
B
G
Top panel
L
G
GGL
Note: Wall plugs supplied are
for solid wall only.
be used for your wall, seek
professional advice if in doubt
Back panel
.
Step 6
Assembly Instructions
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Assembly is complete.
Upper corner support
bracket onto the front top
edge of side panel.
Fix the front bottom edge of
side panel into the Bottom
corner support bracket .
Make sure the Front panel
is positioned in the gap
of Bottom corner support
bracket .
Construct a corner
B
I
7
J
B
I
B
J
J
2
J
Bottom Back View
Bottom View
2
2

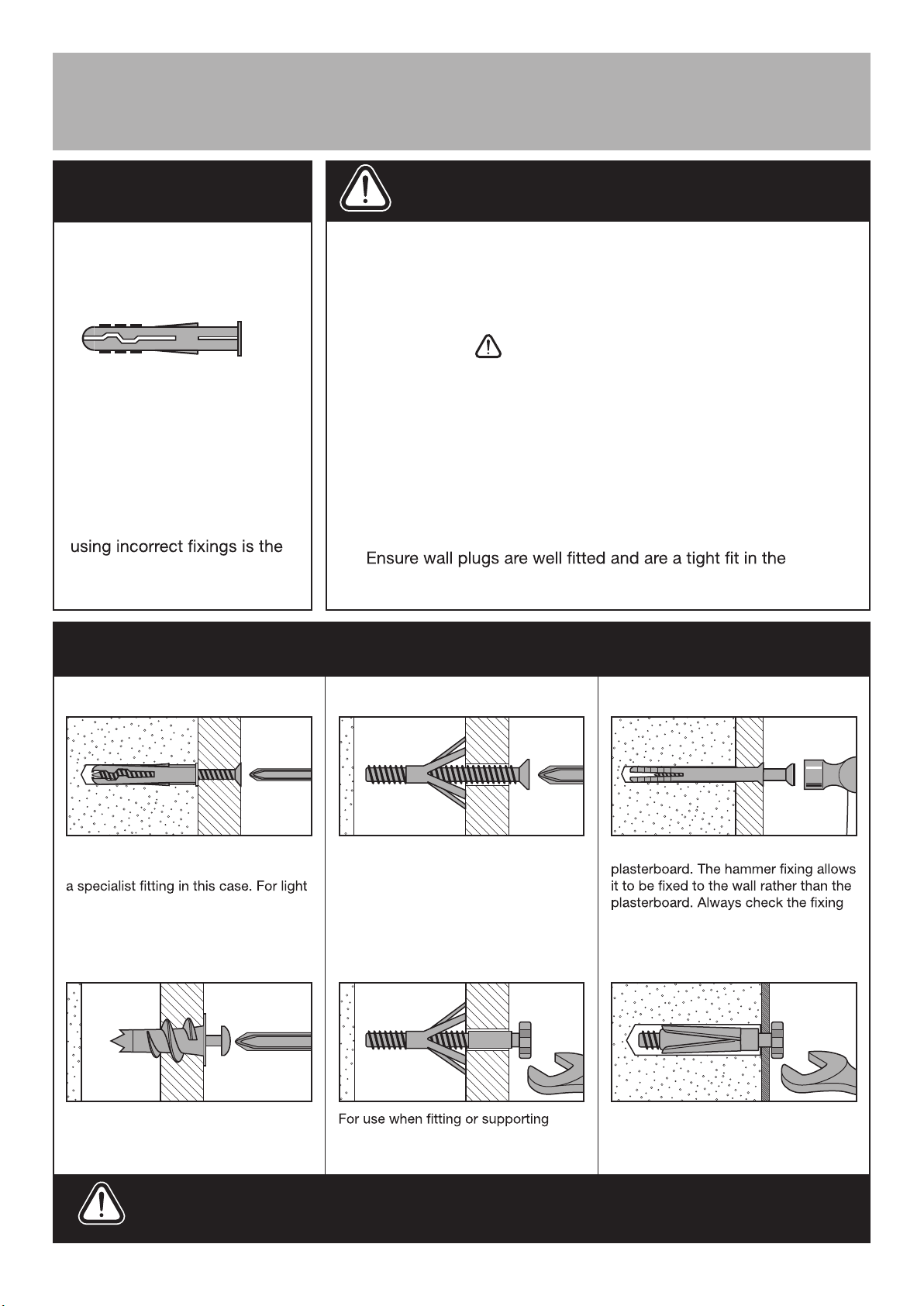

A Guide to -Wall Mounting & Fixings
Revision 2 - 7/10/09
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5:
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
responsibility of the installer.
