Argo KENNY EVO Manuel utilisateur
PORTABLE AIR CONDITIONER (LOCAL)
KENNY EVO
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these
instructions in a safe place for future reference.
EN
I. Remove the top cover assembly
1. remove the three screws behind the top cover assembly with a
screwdriver and remove the filter;
2. use the hand to buckle the back sides of the top cover, after the top
cover assembly is separated from the body, the front panel and the top
cover assembly edge are lightly arranged with the palm, so that the top
cover buckle is separated from the front panel.
3. remove the top cover assembly.

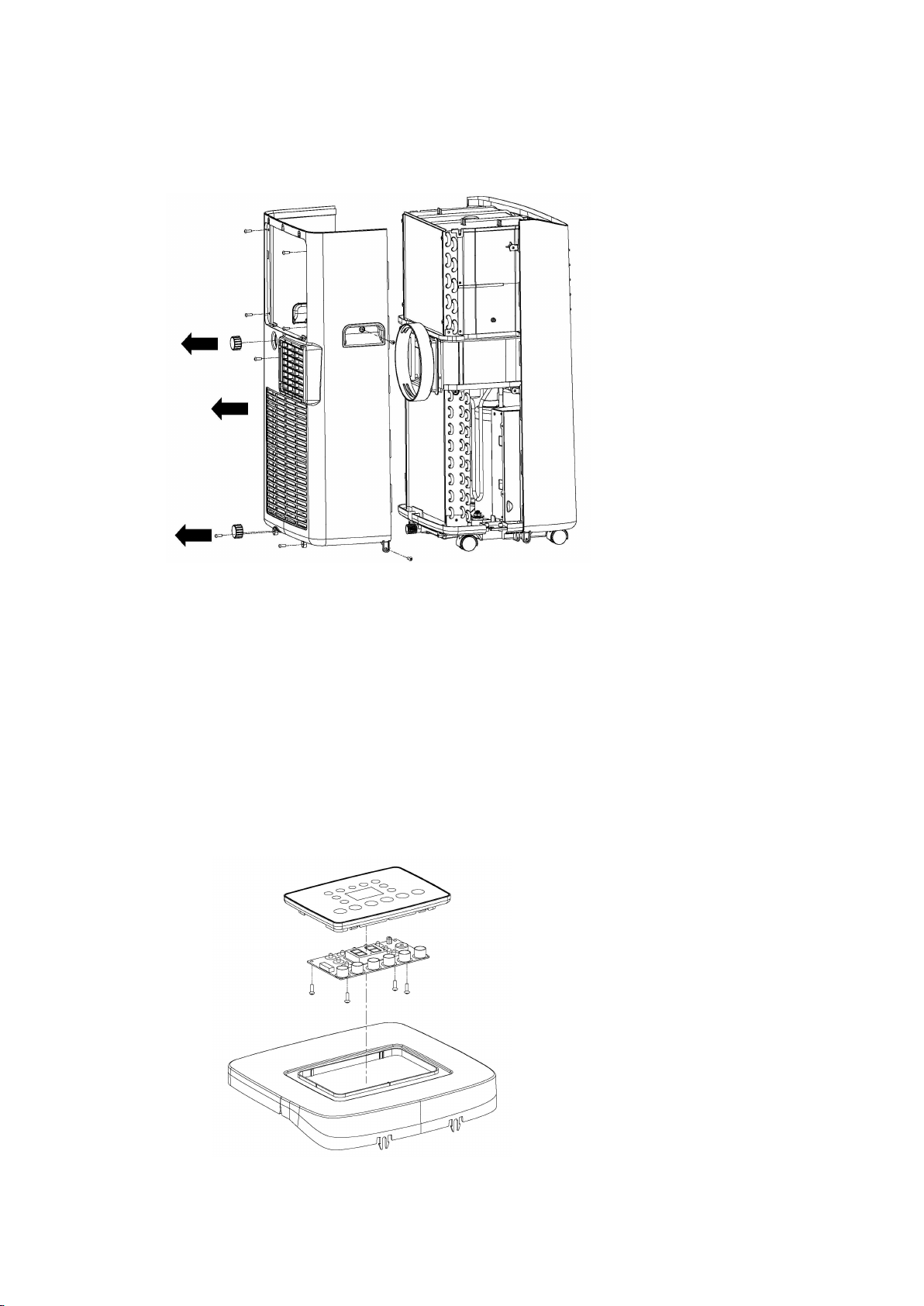

II. Remove front panel
First, press the counterclockwise button with the upper and lower two
stop buttons, then remove the two screws of the left and right handle
position and the four screws of the two end plate with a screwdriver;
then remove the four screws of the rear shell and the bottom plate fixed
with the side of the stop button; finally, remove the rear shell backward.
III. Split top cover, display PCB plate
1. push the four clasps of the middle small top cover buckle on the large
top cover to the middle, the small top cover can be removed from the
large top cover.
2. remove the four screws that show the PCB plate with the small top
cover fixed with a screwdriver.
IV. Dismantling of the front shell
1. remove the left and right six screws fixed to the front housing with
the internal assembly with one screw at the front bottom.

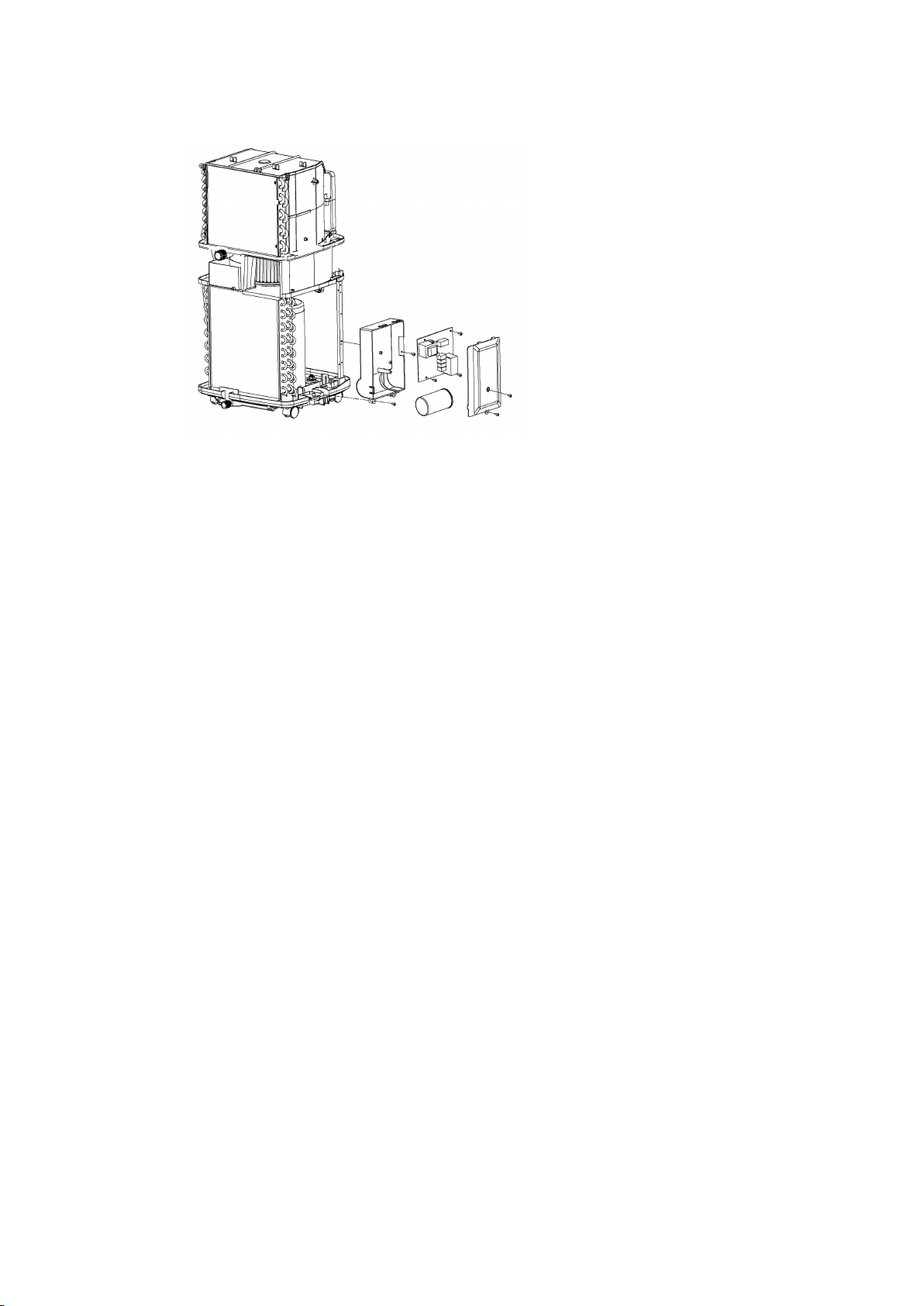

V. Dismantling the electronic control box
1. remove the two screws on the cover of the electronic control box
and pull out the electronic control box.
2. remove the four screws of the PCB main board and the electronic
control box with a screwdriver, and remove the fastened to the
electronic control box.
3. remove the two screws of the electronic control box with the chassis
and sheet metal support with a screwdriver.
VI. Dismantling the volute of the upper duct
1. remove the top cover and three screws fixed to the upper duct
volute with a screwdriver.
2. use tools to fix the upper wheel blade do not rotate the lock in the
motor of the reverse nut removed to remove the wind wheel.
3. remove the four screws on the left and right sides of the upper air
duct volute and the evaporator end plate, then remove the two screws
fixed on the upper air duct volute and the front of the lower air duct
volute, and remove the upper air duct volute, vertical pendulum blade
and outlet air protective net.
4. remove the left and right screws fixed under the volute of the upper
air duct and the end plate of both devices, and then remove the two
screws fixed under the upper air duct shell and the front of the lower air
duct volute Out, and then the lower duct under the volute.
VII. Dismantling the volute of the lower duct
1. remove the screws fixed on the lower duct volute and on the left and
right sides of the evaporator.
2. remove the left and right side screws under the lower duct volute
and under the condenser.
3. remove the screw under the lower duct volute and the two supports,
then remove the lower duct volute assembly.
4. down duct volute and down duct volute left and right two screws and
the front two screws removed. Take the lower duct under the volute.
5. remove the inside wind wheel with the motor fixed nut. Take out the
wind wheel.
6. the motor write down the four screws on the duct volute, remove
the motor.
VIII. Dismantling of the refrigeration system
1. remove the two screws of the main bracket fixed on the chassis and
remove the main bracket.
2. the three nuts of the fixed compressor foot are rotated separately,
the nut and gasket are taken out, and the refrigeration system composed
of compressor, condenser and evaporator is raised upward. (Note that
the line must not break) to remove it from the chassis assembly.

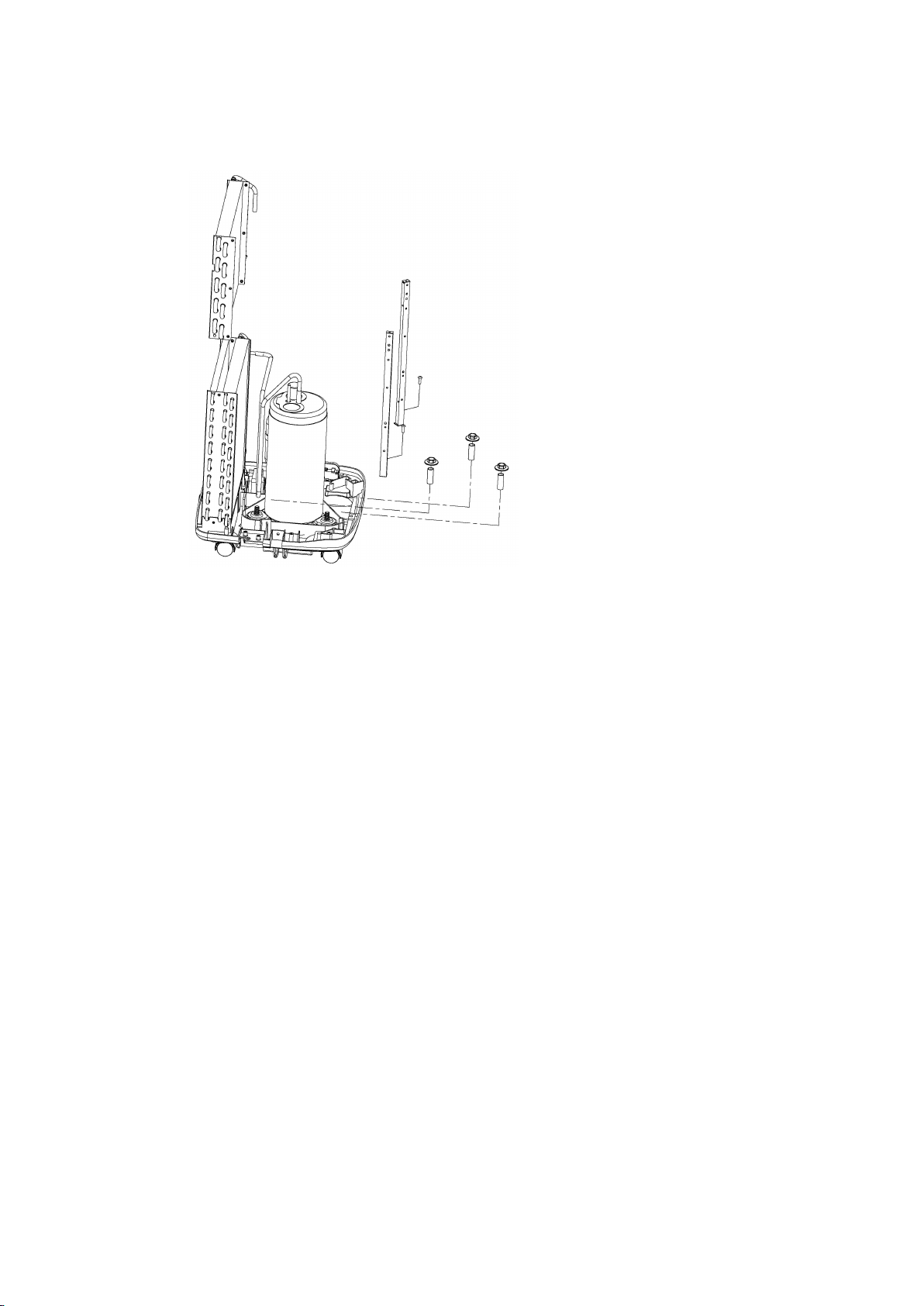

IX. Split Chassis Components
1. remove the two screws that hold the main frame on the chassis and
remove the main frame.
2. remove the two screws that hold the water heater on the chassis and
remove the water heater.
Remove a screw from the water level switch on the chassis and remove
the water level switch.
4. remove the eight screws of the four universal wheels fixed on the
disc and remove the four universal wheels.
REGULATION (EU) No. 517/2014 – F-GAS
The unit contains R410A, a fluorinated greenhouse gas with global warming potential
(GWP) = 2087.50. 0.260 kg = 0.543 CO2 equiv. tons. Do not release R410A into the
atmosphere.
www.argoclima.com
