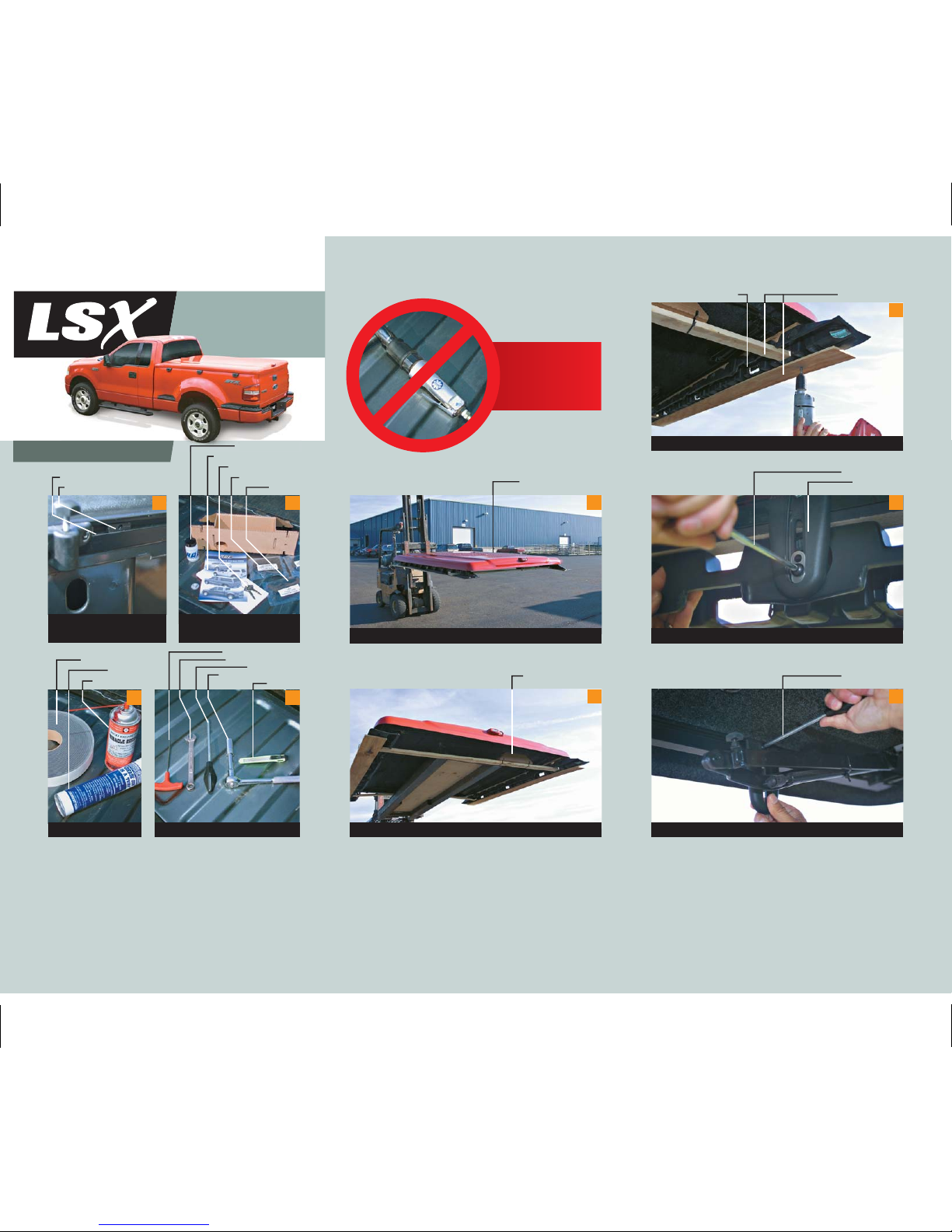

After latch rod length is determined, secure latch rods
by tightening set screws
34
Latch RodStriker Block
35
.75"
(20mm)
In the closed position the latch rod should engage the
bottom surface of the striker block by 3/4".
Set Screw
Set Screw
Adjust latch rod system as necessary.
33
Striker Block
Latch Rod
Alternate Position #1
Alternate Position #2
Common Rod Guide Position
.75"
(20mm)
Rubber-Headed Bumper Bolt Locations
Adjust rubber-headed bumper bolts up or down to obtain
uniform gap between truck bed and tonneau cover.
28
Ideal Gap is 1/4" to 3/8"
A. Loosen M6x1 machine screw.
B. Reposition as many notches, up or down, as necessary.
C. Retighten M6x1 machine screw.
Scissor Hinge Adjustment Bracket/Screw
4mm Hex Tool
30
Installer Inside Truck Bed
29
2 installers work together to obtain uniform gap.
Flashlight
Recommended
Rubber-Headed Bumper BoltBulkhead
31
After desired gap is obtained, adjust bulkhead
rubber-headed bumper bolts to maintain vertical position.
Remove four screws in shroud to access locking mechanism. Once
adjustments are made reposition shroud using the same 4 screws.
32
Latch Rod Adjuster
36
Lube both batch rod adjustors with white lithium grease.
