- 1 -

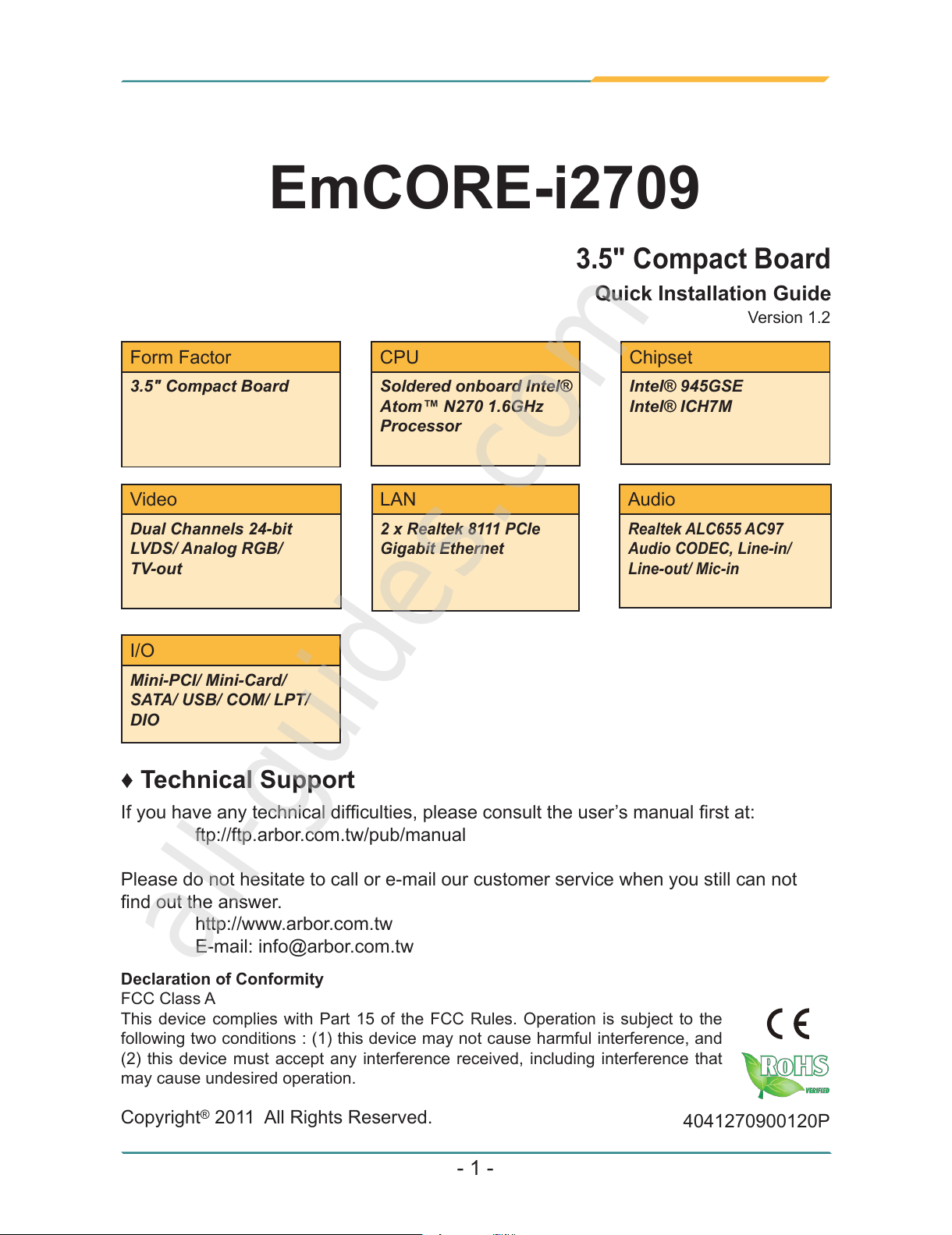

Quick Installation Guide

Version 1.2

If you have any technical difculties, please consult the user’s manual rst at:

ftp://ftp.arbor.com.tw/pub/manual

Please do not hesitate to call or e-mail our customer service when you still can not

nd out the answer.

http://www.arbor.com.tw

E-mail: info@arbor.com.tw

♦ Technical Support

EmCORE-i2709

3.5" Compact Board

Form Factor

3.5" Compact Board

Video

Dual Channels 24-bit

LVDS/ Analog RGB

TV-out

I/O

Mini-PCI/ Mini-Card/

SATA/ USB/ COM/ LPT/

DIO

CPU

Soldered onboard Intel®

Atom™ N270 1.6GHz

Processor

LAN

2 x Realtek 8111 PCIe

Gigabit Ethernet

Audio

Realtek ALC655 AC97

Audio CODEC, Line-in/

Line-out/ Mic-in

Chipset

Intel® 945GSE

Intel® ICH7M

Declaration of Conformity

FCC Class A

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions : (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

All manuals and user guides at all-guides.com

all-guides.com

- 2 -

Ordering Information

EmCORE-i2709 Intel Atom™ N270 1.6GHz 3.5" Compact Board

FCDB-1293 4 x COM ports & digital I/O daughter board

CBK-11-2709-00

Cable Kit

1 x Audio Cable

2 x COM Port Cables

1 x IDE Cable

1 x KB & MS Cable

2 x LAN Cables

1 x LPT to FDD Cable

1 x Parallel Port Cable

2 x SATA Cables

1 x TV-out Cable

3 x USB Cables

1 x VGA Cable

Packing List

Before you begin installing your Compact Board, please make sure that the following

materials have been shipped:

1 x EmCORE-i2709 3.5" Compact Board with heat sink

1 x Driver CD

1 x Quick Installation Guide

If any of the above items is damaged or missing, contact your vendor immediately.

The Installation Paths of CD Driver

Windows 2000 & XP

Driver Path

CHIPSET \CHIPSET\INF 9.11

LAN \ETHERNET\REALTEK\8111_WINXP_5764

VGA \GRAPHICS\INTEL_2K_XP_32\1432

AUDIO \AUDIO\REALTEK_AC97\Win2K_XP_A406

All manuals and user guides at all-guides.com

- 3 -

Form Factor 3.5" Compact Board

CPU Intel® Atom™ N270 CPU 1.6GHz with 533MHz FSB

Chipset Intel® 945GSE + Intel® ICH7M

System Memory 1 x 200-pin SO-DIMM Socket Up to 2GB DDR2 533MHz

SDRAM (Bottom side)

VGA/ LCD

Controller

Integrated Intel Graphics Media Accelerator 950, Dual

Channels 24-bit LVDS

Ethernet 2 x Realtek 8111 PCIe Gigabit Ethernet controllers

I/O Chips Winbond W83627HG

BIOS AMI PnP Flash BIOS

Audio Realtek ALC655 AC97 Audio CODEC, MIC-in/ Line-In/ Line-

Out

Storage

2 x Serial ATA 150MB/s HDD transfer rate

1 x IDE Ultra ATA 33, support 2 IDE devices

1 x Floppy connector share with LPT port

Serial Port 2 x COM ports

(COM1: RS-232, COM2: RS-232/422/485 selectable)

Parallel Port 1 x LPT Port (SPP/EPP/ECP mode selectable)

KBMS One 6-pin wafer connector (PS/2 interface Keyboard and

Mouse via cable)

Universal Serial Bus 6 x USB 2.0 ports

Digital I/O 8-bit programmable Digital Input/Output

Expansion Interface 1 x Mini-Card Slot

1 x Mini PCI Socket (Bottom side)

Operation Temp. -20oC ~ 70oC (-4oF ~ 158oF)

Watchdog Timer 1~255 levels Reset

Dimension (L x W) 146 x 102 mm ( 5.7" x 4.0" )

Specications

Windows 7

Driver Path

CHIPSET \CHIPSET\INF 9.11

LAN Windows 7 built-in LAN driver

VGA \GRAPHICS\INTEL_WIN7_32\1930

AUDIO \AUDIO\REALTEK_AC97\Win7_32_64_6305

All manuals and user guides at all-guides.com

- 4 -

Board Dimensions

Top View

2 2

6 4

31.80

8.84

142.77

146.00

3.17

98.78

101.96

21.97

SO-DIMM MIni PCI

11.30

6.50

Battery

-21.60

Unit: mm

All manuals and user guides at all-guides.com

- 5 -

Bottom View

47.12

32.80

8.84

98.57

Ø6.35

Ø3.10

Unit: mm

All manuals and user guides at all-guides.com

- 6 -

Jumpers/ Connectors Quick Reference

Jumpers

Label Function

JAT1 AT/ATX Power Mode Selection

JBAT1 Clear CMOS Setting

JRS1 COM2 RS-232 / 422 / 485 Selection

JVLCD1 LCD Voltage Selection

Connectors

Label Function

AUDIO1 Audio Connector

COM1 RS-232 Connector

COM2

RS-232/422/485 Connector

CON1 RS-422/485 Connector

CPUFAN Fan Power Connector

DIO1 Digital I/O Connector

IDE1 IDE Connector

INV1 LCD Inverter Connector

JFRT1 Switch

JFRT2 LED indicators

JLPC1 Low Pin Count Connector

JSMB1 External SMBus Connector

EKBMS1 Keyboard & Mouse Connector

LAN1 ~ 2 Ethernet Connectors

LLED1~ 2 LAN LED Indicators

LPT1 Parallel Port or FDD Connector

LVDS1 LVDS LCD Connector

MC1 PCI Express Mini-Card Slot

MINIPCI1 Mini-PCI Socket (bottom side)

PWR1 +12V Power Connector

SATA1~2 Serial ATA Connectors

TV1 TV-out Connector

USB1~3 USB Port Connectors

VGA1 Analog RGB Connector

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

Jumpers & Connectors Location

200

199

123 124

9 10

16 15

1 2

3 4

19 20

4344

Battery

Intel

South Bridge

ICH7M

Intel Atom

N270

Intel

North Bridge

945GSE

LVDS1

CPUFAN

TV1

JVLCD1

JAT1

PWR1

COM1

VGA1

JFRT1

EKBMS1

LLED2

LAN2

LLED1

LAN1

MC1

17 JLPC1

JBAT1

AUDIO1

19 USB3

USB2

21 USB1

JRS1

23 CON1

INV1

25 DIO1

COM2

IDE1

LPT1

SATA1

SATA2

JSMB1

SO-DIMM

(on Bottom Side)

9 10

1 2

9 10

1 2

10 9

111

MINIPCI1

(on Bottom Side)

JFRT2

All manuals and user guides at all-guides.com

- 8 -

Jumpers Connectors

JBAT1: Clear CMOS Setting (11)

Connector type: 2.00mm pitch 1x3-pin headers.

Pin Mode

1-2 Keep CMOS (Default)

23 1

2-3 Clear CMOS

23 1

JVLCD1: LCD Panel Voltage Selection (4)

The voltage of LCD panel could be selected by

JVLCD1 in +5V or +3.3V.

Connector type: 2.54mm pitch 1x3-pin headers.

Pin Voltage

1-2 +5V

23 1

2-3 +3.3V (Default)

23 1

JRS1: COM2 RS-232/422/485 Selection (23)

Connector type: 2.00mm pitch 2x3-pin headers.

Mode RS-232

(Default) RS-422 RS-485

1-2 Short Open Open

3-4 Open Short Open

5-6 Open Open Short

LVDS1: LVDS LCD Connector (1)

Connector type: DF-13-30DP-1.25V connector and

supports 24-bit dual channels.

Pin Desc. Pin Desc.

2930

2 VDD 1 VDD

4TX2CLK+ 3 TX1CLK+

6 TX2CLK- 5 TX1CLK-

8 GND 7GND

10 TX2D0+ 9TX1D0+

12 TX2D0- 11 TX1D0-

14 GND 13 GND

16 TX2D1+ 15 TX1D1+

18 TX2D1- 17 TX1D1-

20 GND 19 GND

22 TX2D2+ 21 TX1D2+

24 TX2D2- 23 TX1D2-

26 GND 25 GND

28 TX2D3+ 27 TX1D3+

30 TX2D3- 29 TX1D3-

CPUFAN: Fan Power Connector (2)

CPUFAN is a 3-pin headers for the CPU fan. The fan

must be a +12V fan.

Pin Description

1GND

2+12V

3 FAN_Detect

TV1: TV-out Connector (3)

Connector type: 2.00mm pitch 1x6-pin box wafer

connector

Composite Video

1CVBS 2GND

3Unused 4GND

5Unused 6 GND

S-Video

1Unused 2GND

3Luminance 4GND

5Chrominance 6 GND

JAT1: AT/ATX Power Mode Selection (6)

Connector type: 2.54mm pitch 1x2-pin headers.

Pin 1-2 Power Mode Selection

Short AT Mode

1 2

Open ATX Mode

(Default)

1 2

Note:

To activate the ATX power mode, you must turn

on the power button switch rst (The connector for

power button swtich is located in JFRT1).

All manuals and user guides at all-guides.com

- 9 -

COM1~2: RS-232 Connectors (8, 27)

Connector type: 2.00mm pitch 2x5-pin box headers.

Pin Desc. Pin Desc.

9 10

1 2

1 DCD# 2 RXD

3 TXD 4 DTR#

5 GND 6 DSR#

7RTS# 8 CTS#

9 RI# 10 N/C

PWR1: +12V Connector (7)

PWR1 supplies CPU operation at +12V (Vcore).

Pin Desc. Pin Desc.

2GND 4+12V

1GND 3 +12V

MC1: Mini-Card Socket (17)

VGA1: Analog RGB Connector (9)

Connector type: 2.00mm pitch 2x8-pin headers.

2 16

Pin Description Pin Description

1 RED 2 GREEN

3 BLUE 4N/C

5 Analog RGB_GND 6 Analog RGB_GND

7Analog RGB_GND 8 Analog RGB_GND

9Analog RGB_VCC 10 Analog RGB__Detect

11 N/C 12 DDC_DATA

13 HSYNC 14 VSYNC

15 DDC_CLOCK 16 N/C

EKBMS1: Keyboard & Mouse Connector (12)

Connector type: 2.0mm pitch 1x6-pin box wafer

connector.

Pin Description

1KB_DATA

2GND

3 MS_DATA

4KB_CLK

5 KB_VCC

6 MS_CLK

LLED1,2: LAN1/LAN2 LED Indicators (15, 13)

Connector type: 2.54mm pitch 2x2-pin headers.

Pin Description Pin Description

1 Active 2 +3V

3 +3V 4Link

LAN1,2: Ethernet Connectors (16, 14)

Connector type: 2.00mm pitch 2x5-pin headers.

Pin Desc. Pin Desc.

109

1 2

1TX+/ MDI0+ 2TX/ MDI0-

3RX+/ MDI1+ 4N/C/ MDI2+

5N/C/ MDI2- 6RX-/ MDI1-

7N/C/ MDI3+ 8N/C/ MDI3-

9N/C 10 N/C (Key)

JFRT1: Switch (10)

This connector provides signals for the system power

switch and reset.

Connector type: 2.54mm pitch 2x2-pin headers.

Pin Description Pin Description

1PWRBTN+ 2PWRBTN-

3 RESET+ 4RESET-

JFRT2: LED Indicators (5)

This connector provides signals for LED indicators

presenting the status of the system.

Connector type: 2 .54 mm pitch 2x2 pin headers

Pin Description Pin Description

1PWRLED+ 2PWRLED-

3 HDDLED+ 4HDDLED-

All manuals and user guides at all-guides.com

- 10 -

DIO1: Digital I/O Connector (26)

DIO1 is a 8-bit DIO connector w/ onboard 10-pin

headers, supports programmable Input / Output.

Connector type: 2.00 mm pitch 2x5-pin headers

Pin Description Pin Description

109

1 2

1DIO0 2DIO1

3 DIO2 4DIO3

5 DIO4 6 DIO5

7DIO6 8 DIO7

9+5V 10 GND

AUDIO1: Audio Connector (19)

Connector type: 2.00mm pitch 2x5-pin box headers.

Pin Description Pin Description

9 10

1 2

1 Line Left In 2 Line Right In

3 GND 4GND

5 MIC1 6 MIC2

7GND 8 GND

9 Line-out Left 10 Line-out Right

CON1: RS-422/485 Connector (24)

Connector type: 2.00mm pitch 1x4-pin box wafer

connector.

Pin RS-422 RS-485

1TX+ DATA+

2TX- DATA-

3 RX+ N/C

4RX- N/C

INV1: LCD Inverter Connector (25)

Connector type: 2.00mm pitch 1x5-pin box wafer

connector.

Pin Description

1+12V

2GND

3 Backlight on/off

4Brightness control

5 GND

USB1~3: USB Connectors (22, 21, 20)

Connector type: 2.00mm pitch 2x5-pin headers.

Pin Desc. Pin Desc.

109

1 2

1+5V 2+5V

3 USBD- 4USBD-

5 USBD+ 6 USBD+

7GND 8 GND

9GND 10 N/C (Key)

JLPC1: Low Pin Count Connector (18)

Connector type: 2.00mm pitch 2x10-pin headers

Pin Desc. Pin Desc.

1 2

19 20

1CLK 2GND

3 LFRAME 4N/C

5 LRESET 6 N/C

7LAD3 8 LAD2

9+3.3V 10 LAD1

11 LAD0 12 GND

13 N/C 14 N/C

15 +3.3V_SB 16 SERIRQ

17 GND 18 CLKRUN

19 PD 20 N/C

DE1: Primary IDE Connector (28)

Connector type: 2.00mm pitch 2x22-pin box headers.

Pin Description Pin Description

1IDE RESET 2GND

3DATA7 4 DATA8

5 DATA6 6 DATA9

7DATA5 8 DATA10

9 DATA4 10 DATA11

11 DATA3 12 DATA12

13 DATA2 14 DATA13

15 DATA1 16 DATA14

17 DATA0 18 DATA15

19 GND 20 N/C

21 REQ 22 GND

23 IO WRITE 24 GND

25 IO READ 26 GND

27 IO READY 28 IDSEL

29 DACK 30 GND

31 IRQ14 32 N/C

33 ADAD1 34 ATA66 DETECT

35 ADAD0 36 ADAD2

37 CS#1 38 CS#3

39 IDEACT 40 GND

41 +5V 42 +5V

43 GND 44 N/C

All manuals and user guides at all-guides.com

Table des matières

Autres manuels Arbor Technology Ordinateur monocarte

Arbor Technology

Arbor Technology EmETX-i2304-E3825 Manuel utilisateur

Arbor Technology

Arbor Technology EmCORE-v7002 Manuel utilisateur

Arbor Technology

Arbor Technology HiCORE-i35Q Manuel utilisateur

Arbor Technology

Arbor Technology EmETXe-a58M0 Manuel utilisateur

Arbor Technology

Arbor Technology EmETXe-i88U4-D1539 Manuel utilisateur

Arbor Technology

Arbor Technology Em104P-i6023 Manuel utilisateur

Arbor Technology

Arbor Technology EmCORE-i65M3 Manuel utilisateur

Arbor Technology

Arbor Technology HiCORE-i89Q1 Manuel utilisateur

Arbor Technology

Arbor Technology Qseven EmQ-i2401 Manuel utilisateur

Arbor Technology

Arbor Technology EmCORE-i2703 Manuel utilisateur

Arbor Technology

Arbor Technology HiCORE-i6320 Manuel utilisateur

Arbor Technology

Arbor Technology EmETXe-i92U0 Manuel utilisateur

Arbor Technology

Arbor Technology EmCORE-i90U2 Manuel utilisateur

Manuels Ordinateur monocarte populaires d'autres marques

WIN Enterprises

WIN Enterprises PL-80910 Manuel utilisateur

AXIOMTEK

AXIOMTEK SBC81206 Series Manuel utilisateur

Embest

Embest SOM-PH8800 Manuel utilisateur

SeaLevel

SeaLevel SBC-R9 Manuel utilisateur

SMART Embedded Computing

SMART Embedded Computing ATCA-8310 Manuel utilisateur

WinSystems

WinSystems PPM-LX800-G Manuel utilisateur

GIGAIPC

GIGAIPC QBiX-PPC Series Manuel utilisateur

OLIMEX

OLIMEX A10S-OLinuXino-MICRO Manuel utilisateur

Commell

Commell FS-978 Manuel utilisateur

GIGAIPC

GIGAIPC QBiP-8665A/ Manuel utilisateur

VersaLogic

VersaLogic Python EBX-11 Manuel utilisateur

Micro Computer Specialists

Micro Computer Specialists IRV-3702 Manuel utilisateur

CompuLab

CompuLab SB-A510 Manuel utilisateur

Boser

Boser HS-7321 Manuel utilisateur

Premier Farnell

Premier Farnell Embest SBC8530 Manuel utilisateur

MicroSys Electronics

MicroSys Electronics miriac SBC-LS1043A2 Manuel utilisateur

Aaeon

Aaeon UP Manuel utilisateur

Portwell

Portwell WUX Series Manuel utilisateur
