ARB SA290AA290 Manuel utilisateur
Congratulations on your purchase of a StealthBar.
Additional Kits:
-SA290CRK (Camera Housing/Radar Kit) 30 min. -SA290ALK (Aerial Mount Left Kit) 5 min.
-SA290RHK (Radar Housing Kit) 15 min. -SA290ARK (Aerial Mount Right Kit) 5 min.
-SA290FLK (Fog Light Kit) 30 min. -SAHLJ1 (High Lift Jack Point) N/A
FITTING INSTRUCTIONS
CAUTION A torque specification is required for the bolts into the StealthBar nutserts.
THESE MUST NOT BE OVERTIGHTENED.
!
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 481
SRS
AIRBAG
AS
4876.1 ADR
PROUDLY
AUSTRALIAN MADE
Warning:
• Do not attach VFPS to the vehicle using anchorages not intended for this purpose (e.g.
engine mounting bolts).
• Do not use this product for any vehicle make or model, other than those specified by the VFPS
manufacturer.
• Do not remove the plaque or label from the VFPS (StealthBar).
• Do not modify the structure of the VFPS in any way.
Note:
• Left and Right hand sides of the vehicle and StealthBar are from the view of being in the
drivers seat looking forward.
• Please take the time to read the instructions thoroughly before proceeding with fitment of the
StealthBar.
• Ensure all components, as listed in the bill of materials on the back page, are received prior to
commencing the fitment. Please retain all hardware until fit-up is complete.
• All wiring should be completed by a qualified auto electrician. SmartBar bears no
responsibility for any electrical failure caused by the incorrect fitment of the lamps.
• Ensure these fitting instructions are passed onto the vehicle owner and/or operator.
• We recommend the use of anti-seize on all threaded fittings.
Document Title:
FI-290
Application:
Ford Ranger MY22
Ford Everest MY22
Model Number:
StealthBar
SA290AA290 Standard / Non-Parking Sensor
SA290AA291 Winch / Non-Parking Sensor
SA292AA290 Standard / Parking Sensor
SA292AA291 Winch / Parking sensor
Fitting Time:
Minimum 4.5 Hours
Revision:
I (08 December 2022)

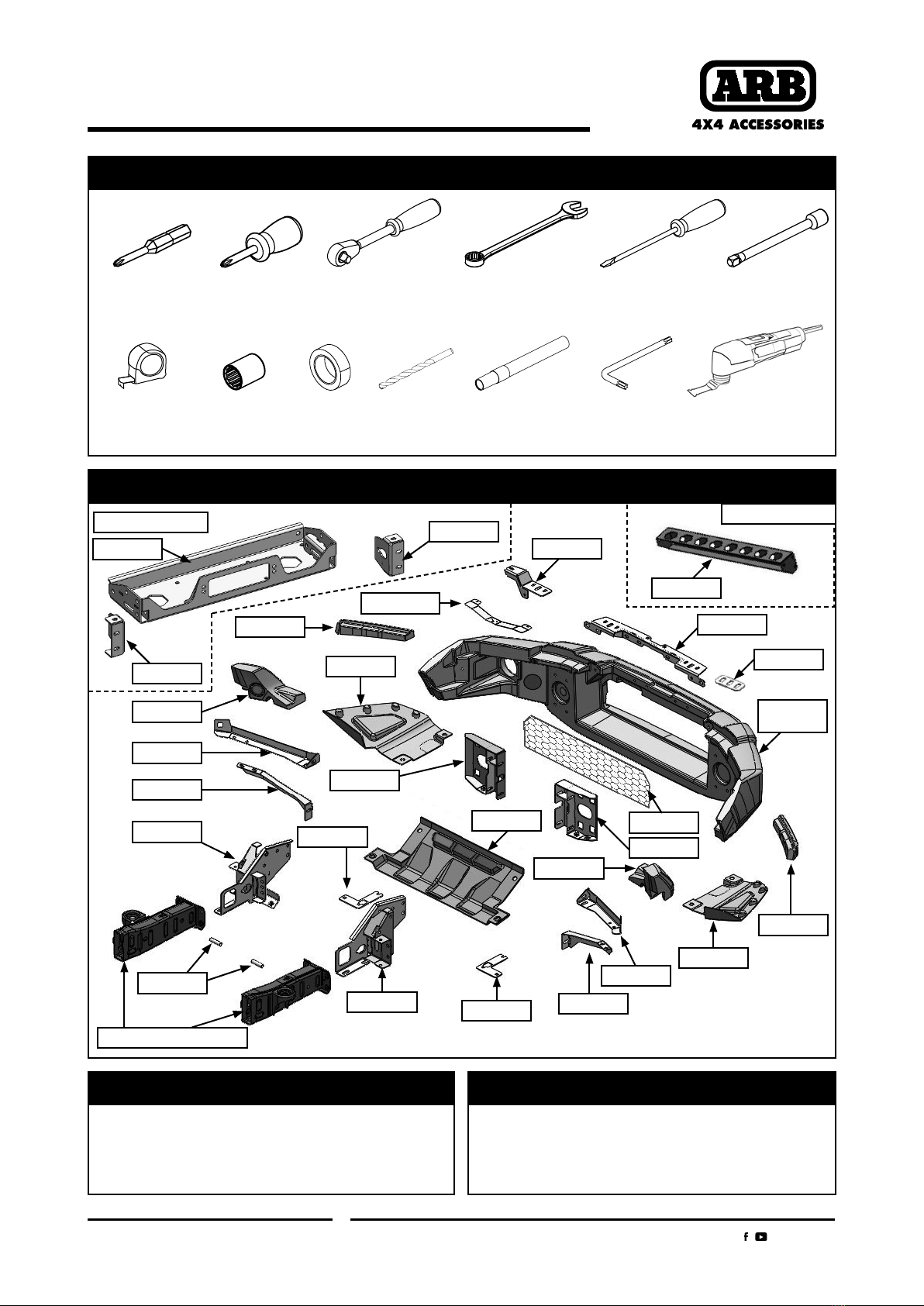

Tools Required
SmartBar and Mounting Brackets Overview - SA290BK/SA291BK
Bolt Size Torque (Nm) Torque (lb/ft)
M10 28 20
M12 55 40
Bolt Size Torque (Nm) Torque (lb/ft)
M10 44 32
M12 78 57
Torque Specs (into SmartBar Nutserts) Torque Specs (Metal to Metal Mounts)
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 482
Drill and Phillips
Head Drill Bit
Tape Measure
or Ruler
Phillips Head
Screw Driver
Socket 8, 10, 12,
14, 15, 16, 18mm
Socket Drive
Torque Wrench
(20-80Nm)
Masking
Tape
Ring Spanner 16mm
Rachet Spanner 16mm
Rachet Spanner 18mm
13mm Drill Bit
Small Flat Head
Screw Driver
Marker
Socket Extension
T20 & T40
Torx Head
Multi-Tool to Trim the
Bumper
290-MC
Vehicle Chassis Rails
290-BL
290-CR
290-CL
290-CT
290-UL
290-HL
290-HR
290-UR
290-LR
290-UM
290-LL
290-TL
290-GL
290-OR
291-WB
290-GR
290-OL
290-UM
290-TR
Winch Only
SA290 or
SA292
291-AB
290-AML
Standard Only
290-SB
290-UC
290-BR
190-ABS
290-GB
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 483

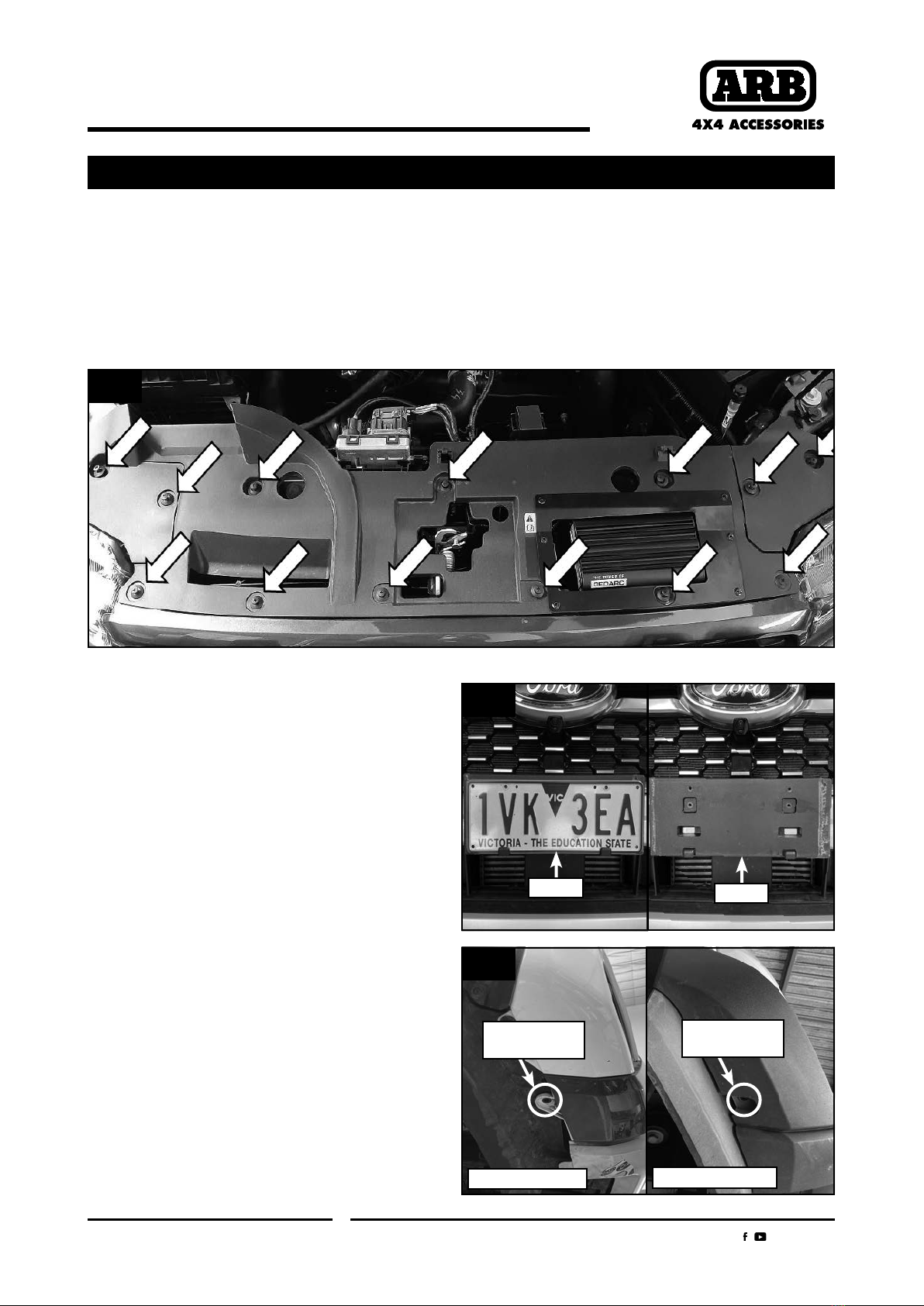

Note: Do not discard removed hardware and components until the installation is complete.
1.1 Remove Scrivets shown to remove the top cover from the vehicle.
1.2 Remove number plate and number
plate retainer from the vehicle.
Note: Keep the number plate in a safe
and secure place for re-installation.
1.2
Step 1: Vehicle Disassembly
1.1
1.3 Remove bolt under the bumper.
Repeat on the other side.
1.3
Ranger RHS Shown
Remove OE Bolt
on both sides
Everest RHS Shown
Remove OE Bolt
on both sides
Remove
Remove
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 484

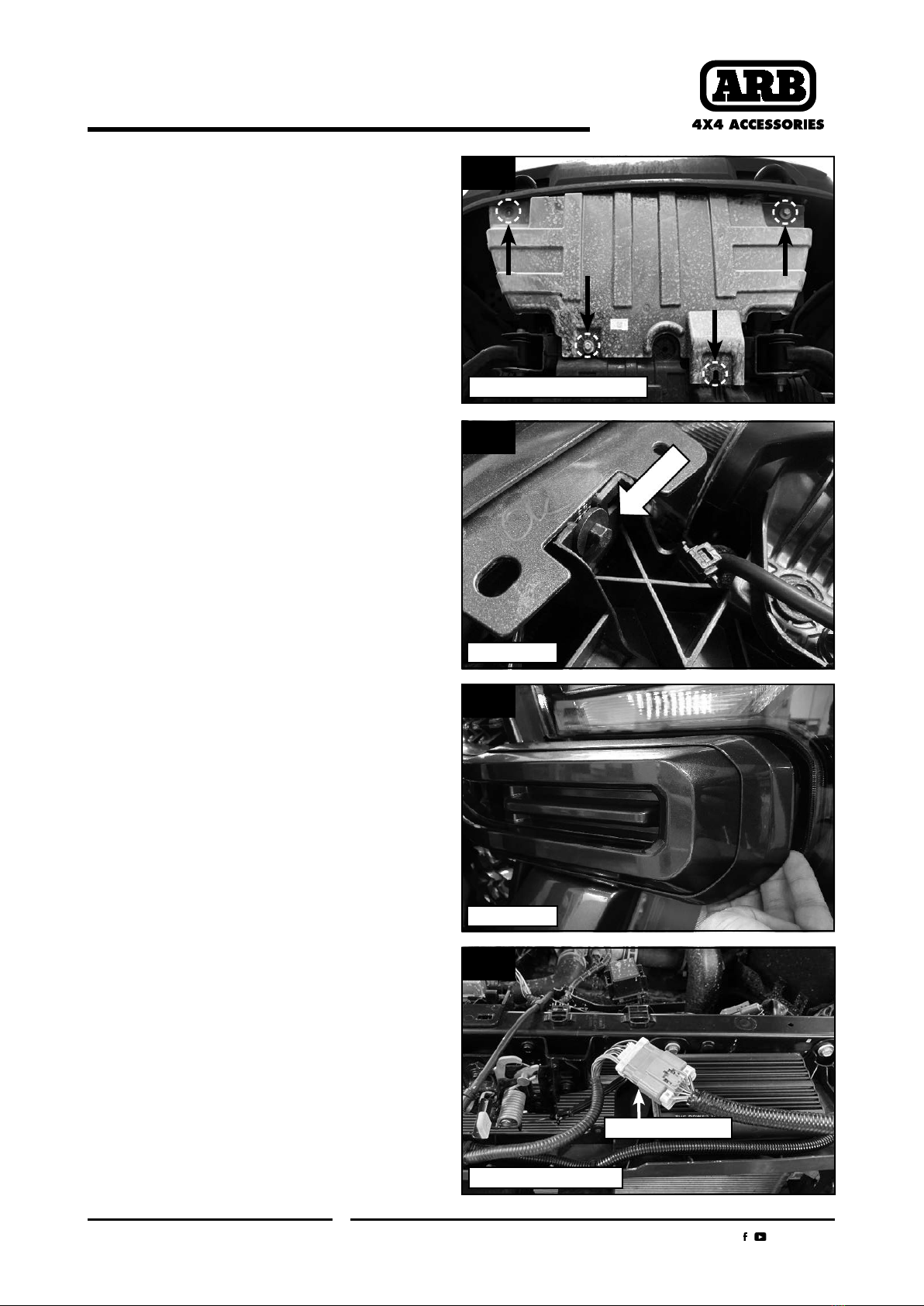

Everest Shown for reference
1.4
1.4 Remove front skid pan by removing
bolts shown.
1.5
1.5 Remove the top 2 bolts that secure the
grille to the vehicle.
Repeat on other side.
1.6
1.6 Gently unclip and remove Grille from
vehicle.
Note: Set grille aside on a soft surface to
avoid damage.
1.7
1.7 If present, disconnect main grey
connector plug on top of the grille & unclip
harness from vehicle.
Main grey connector
RHS Shown
LHS Shown
Top of the grille shown
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 485

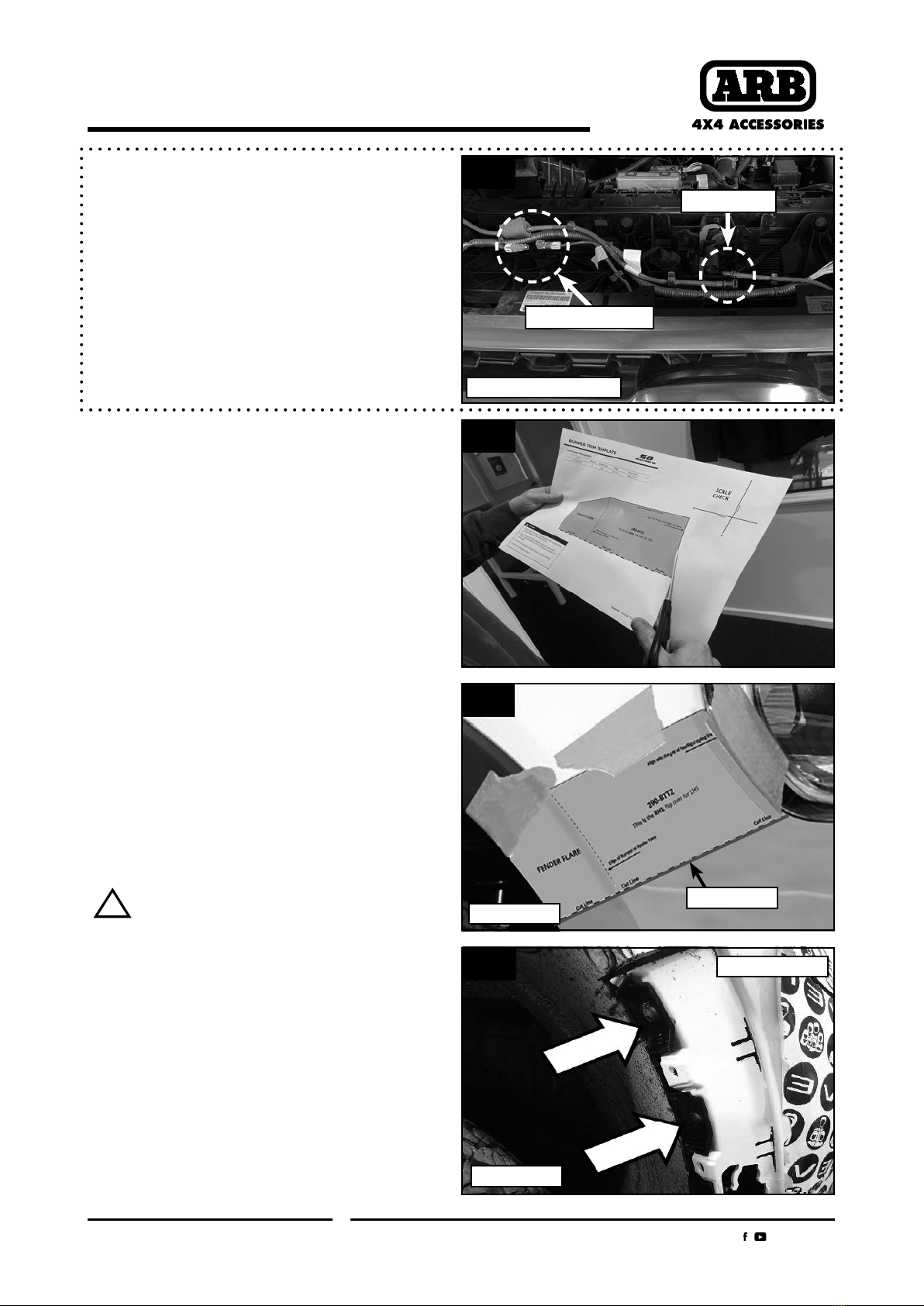

1.9 Check if the scale on the trim template
is correct. If not, contact your nearest ARB
store.
Cut the bumper trim template out.
1.9
1.10 Cover area with masking tape. Align
the bumper trim template to the vehicle.
Mark trim line as shown.
Cut along marked line, and with side cutters,
to cut the remaining bumper, 10mm next to
light.
Repeat on the other side.
Do not damage the headlights.
1.10
Mark trim line
RHS Shown
Top of the grille shown
1.8
1.8 If vehicle is equipped with front
camera, disconnect the coax camera cable,
and camera washer hose from the car. Washer hose
Coax camera cable
1.11 Removelowerwheelareocutsto
access scrivets underneath and remove.
Repeat on right hand side.
1.11
RHS Shown
Wheelarch Liner
!
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 486

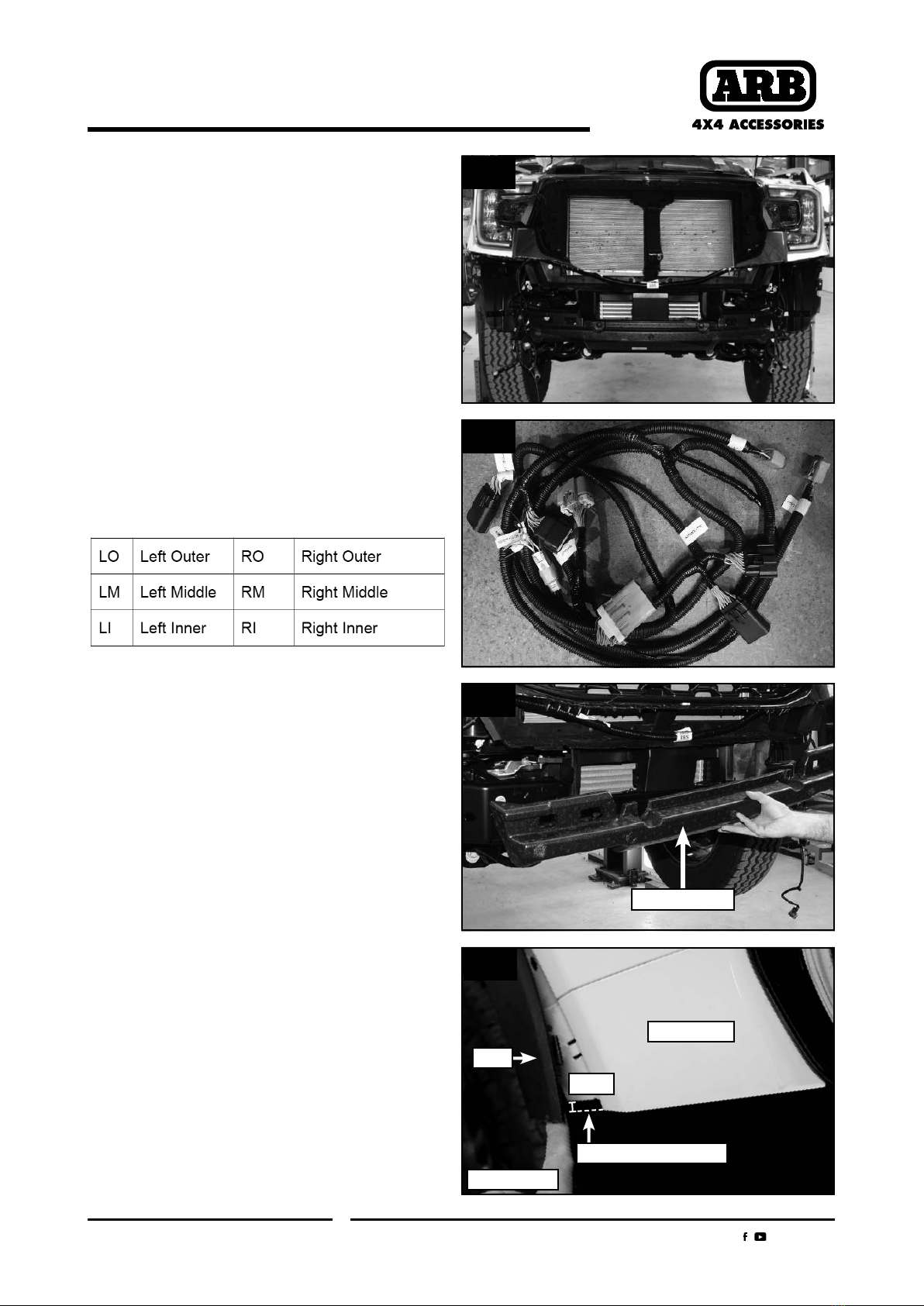

1.12
1.12 Remove the lower part of the trimmed
bumper from the vehicle.
Note: Ensure that all wiring and hardware
has been disconnected from the vehicle.
1.13
1.13 Label and remove parking sensor/fog
light harness from the vehicle.
Note: Sensors must be labelled correctly to
successfully re-install later.
1.14
1.14 Remove foam impact absorber from
chassis.
Remove
1.15 Remove Tape from previous steps.
Pullwheelarcharebackfromthebumper
trim and cut 10mm up from the trimmed
edge as shown
1.15
RHS Shown
Bumper Trim
Flare
Cut from trimmed edge.
10mm
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 487

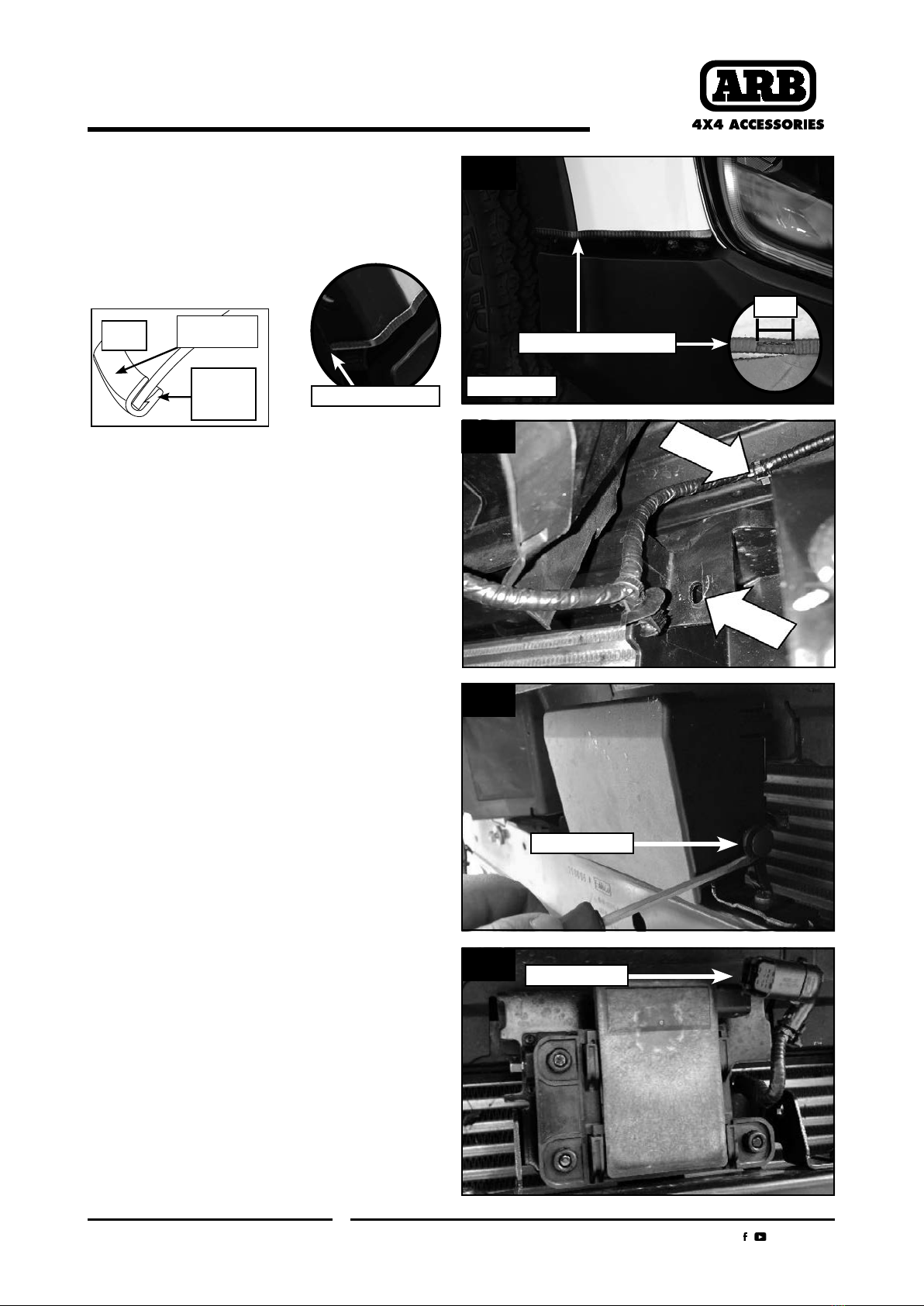

Pinch
Weld
Outside of
Bumper
Retaining
barb on
inside of
bumper
1.16 Applypinchweldtobumperandare.
Trim away excess pinch weld as shown.
Note: Recomended to cut 2cm section on the
back of the pinch weld, as shown.
Repeat on right hand side.
1.16
2cm
LHS Shown
Inside edge of pinch weld.
Trimmed pinch weld
1.18
1.18 Remove scrivets and black plastic cover
from radar module.
1.17 Locate the radar wiring loom near the
Left hand side of the vehicle’s intercooler
and unclip the christmas tree clips.
Thiswillallowtheslackrequiredtotthe
sensor to the Bar.
Remove
1.17
1.19
1.19 Disconnect radar wiring.
Disconnect
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 488

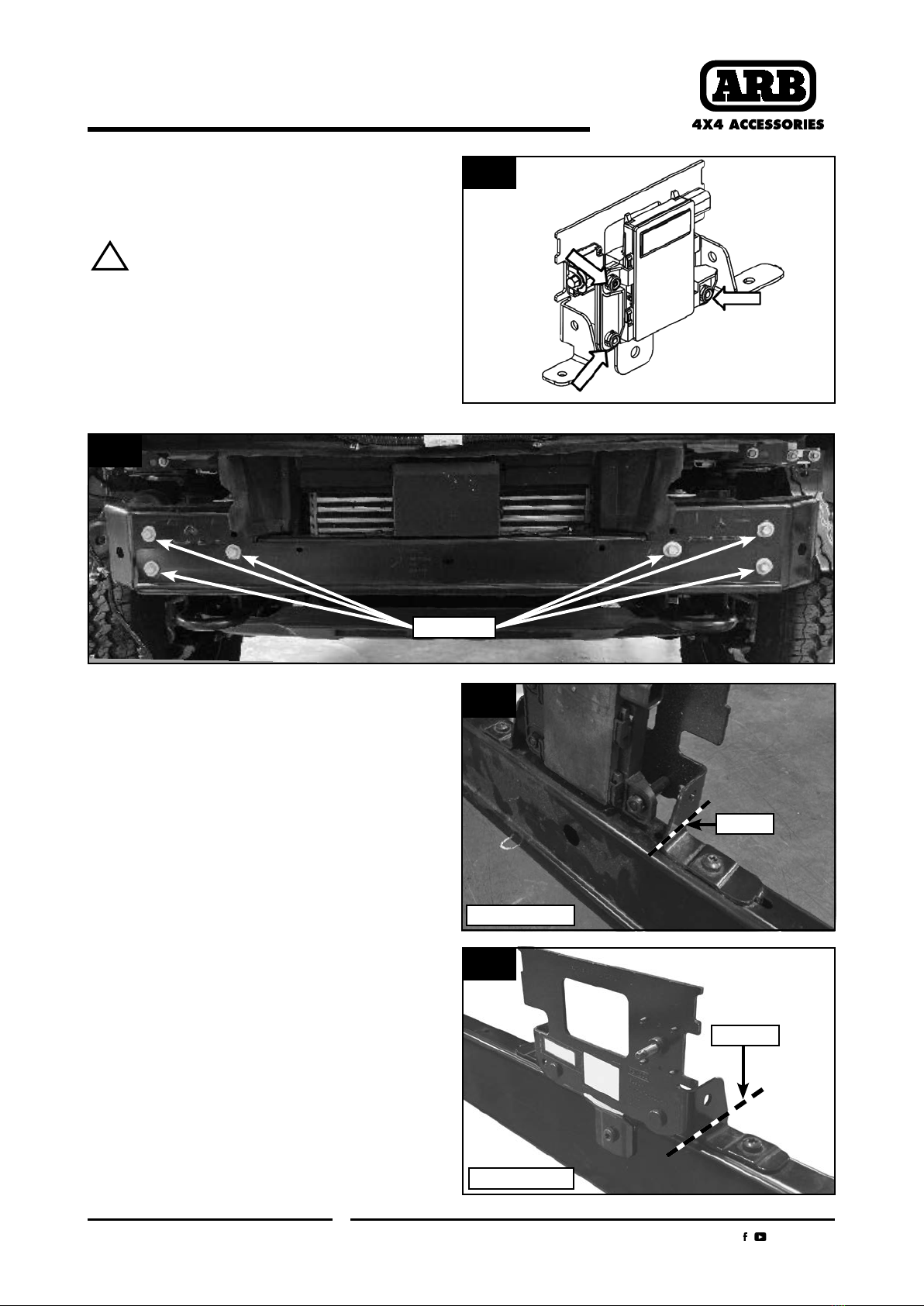

1.20
1.20 Remove radar from bracket by gently
unclipping radar from ball point mounts as
shown.
DO NOT DAMAGE THE RADAR
Note: Store radar in a safe and safe place for
re-installation.
!
1.22a Cut the OE radar bracket as shown.
Front LHS Shown
1.22a
Cut Line
1.21 Remove from crash beam from the
vehicle.
1.21
OE Bolts X6
1.22b Cut the OE radar bracket as shown.
Discard the crash beam
Back RHS Shown
Cut Line
1.22b
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 489

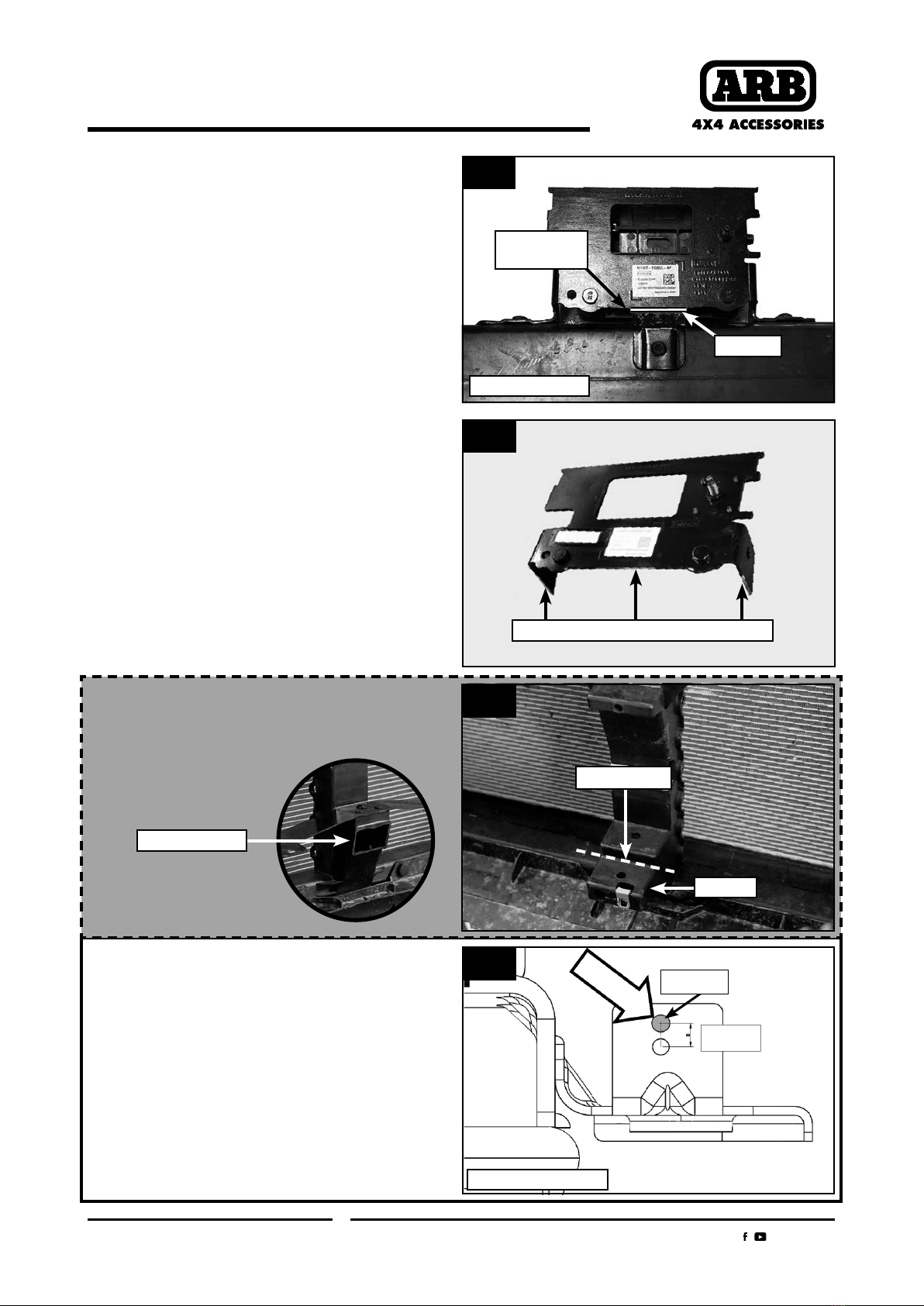

1.23 The cut radar bracket should now
appear as shown.
Touch up the cut surface with rust
preventative paint (not supplied).
Put the cut bracket aside for re-installation
in later steps.
1.23
Apply rust preventative paint to cut surface
1.24
Remove
Finished Cut
1.28
Ford Ranger MY22 Only
1.25a Measure, mark and drill a 6mm
diameter hole in the lower intercooler
brackets, 8mm above the original hole.
1.25a
Cut Line
RHS Towpoint Shown
Winch Kit Only
1.24 Trim the front of the centre grille
support mount.
⌀6mm
8mm
1.25
1.22c CuttheOEradarbracketothecrash
beam along the cut lines shown. 1.22c
Cutushedto
this edge
Cut Line
Behind crash beam
SmartBar - Fitting Instructions FI-290-I © Copyright W. www.smartbar.com.au E. [email protected] P. +61 8 8384 0292 - 4810

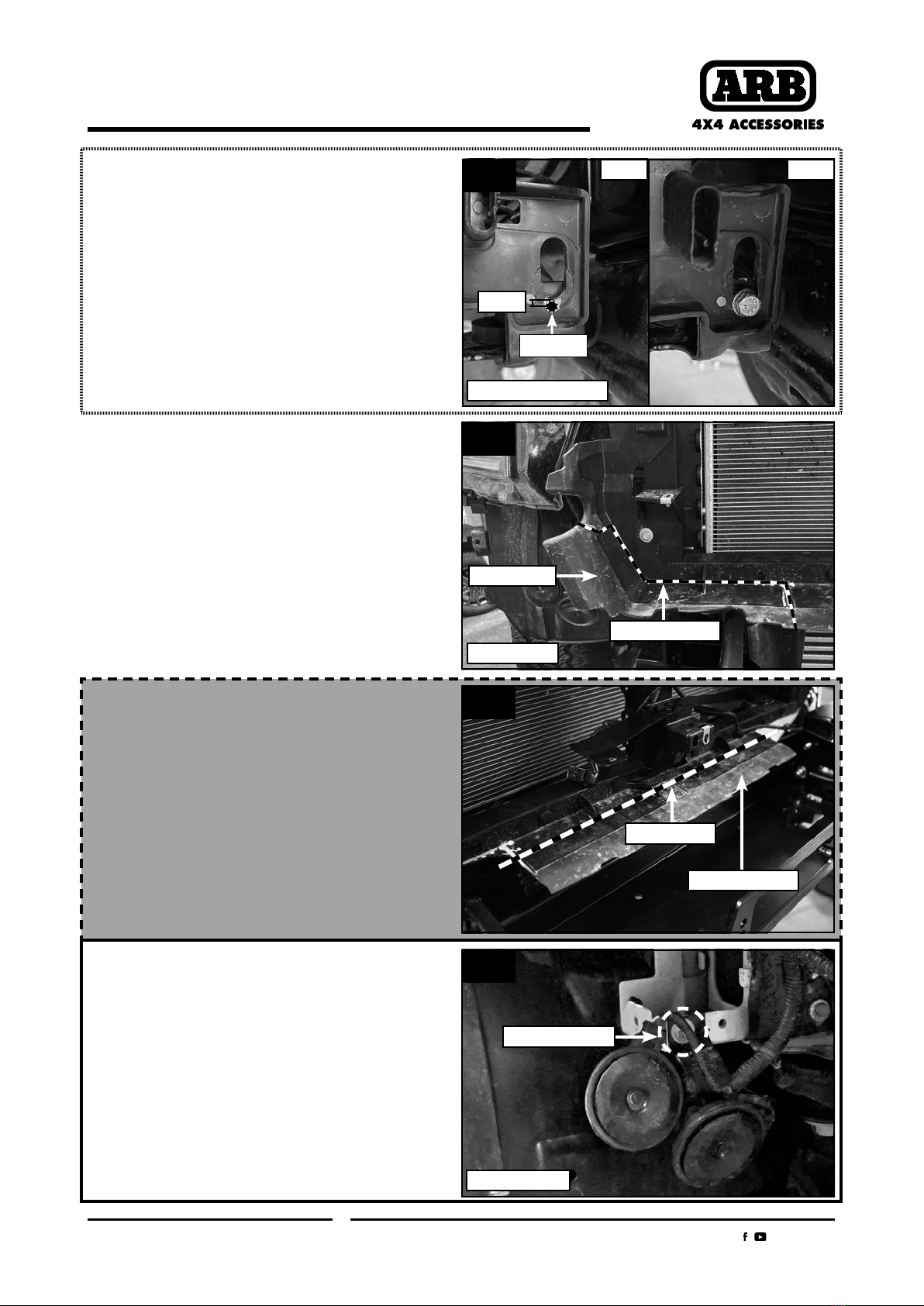

1.26
1.26 Cut Airdam as shown and repeat on
left hand side.
Cut Line
Remove
RHS Shown
Winch Kit Only
1.27 Trim front of radiator air dam.
1.27
Cut Line
Remove
1.28
Ford Ranger MY22 Only
1.28 Loosen the horn retaining brackets and
relocate to clear the wing brackets as shown.
Re-tighten to 9Nm.
RHS shown
Relocate here
Ford Everest MY22 Only
1.25b Measure, mark and drill a hole in the
lower slot of the intercooler cover as shown.
1.25b
LHS Towpoint Shown
Before After
⌀8mm
4mm
