Aquatic Serenity studio 24 Manuel utilisateur

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and speciﬁcations are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

January 2008

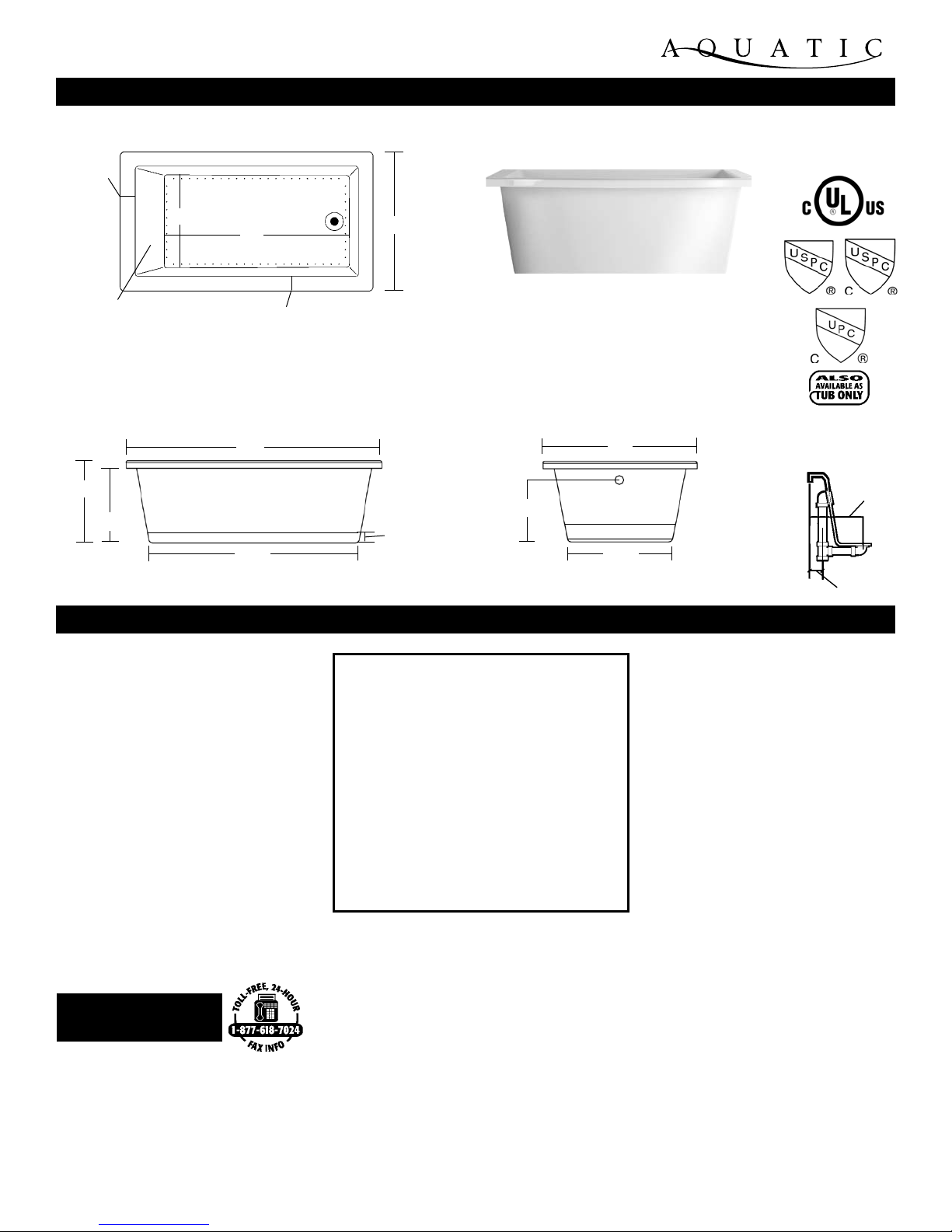

Rough-In Plumbing

Measurements

SErENITy STudIO 24

SErENITy STudIO MODEL # AI24AIR6636F / AI24AIR6636FTO (Tub Only)

GENERAL SPECIFICATIONS:

Tub Size 66” x 36” x 25 1/2”

168 cm x 91 cm x 61 cm

Bathing Well 44” long

22 1/2” wide

21” interior depth

Maximum Water Depth 17”

Shipping Weight 283 lbs. / 129 kg

Tub Weight Filled 966 lbs. / 439 kg

Tub Weight Only 225 lbs. / 102 kg

Gallons to Overow 89 gal. / 337 L

ELECTRICAL SPECIFICATIONS:

Blower/Heater 1 HP; 10.5 AMP; 120V

Requirement 15 AMP; 120V, separate circuit

required protected w/ Class A GFCI

Air Bath System:

- 71 Air Jets

- 1 HP Variable Speed Remote Air Blower with 20-Minute Timer

- 600 Watt Air Heating System

- Electronic Control Package with Wave and Pulse Features

- Automatic Purge and Dry Cycle

- Waterproof Remote Control with Infrared Sensor and 25’ cord

Aquatic Quality Features:

- Slip Resistant Floor

- Air Channels Lined with Antimicrobial Coating

- Extra Deep Bathing Well

- Durable, Easy to Clean, Lucite® Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

STANDARD EQUIPMENT:

• Comfort Pillow - Oval or Rectangle

• Waste and Overow for Freestanding Models

- Chrome, Polished Brass, Satin Nickel,

Polished Nickel, Oil Rubbed Bronze or White

• Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading xture manufacturers.

OPTIONAL EQUIPMENT:

Each Serenity Studio model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air tempera-

ture will be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air coming

from the air jets will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.

Deck

Width

3 1/2”

Deck Width 3”

44”

22 1/2” 36”

36”

25 1/2”

22 1/4”

Back Angle 26º

Fax-On-Demand

Document # 1004

66”

52 1/2”

3 1/4”

23 1/2”

25 1/2”

2 3/4”

10 1/2”

Note: The interior of bathing well and outside of bathing well can each

be specied in a different color. Only one premium color upcharge will be

applied if one or more premium colors are used.

Note: This model requires a remote blower location. The connection for the

air blower is under the tub; the blower may be placed up to 15 feet away

and connected by piping under the oor. Please refer to the Owner’s Manual

for detailed installation instructions. Document #1184 on our Fax-on Demand

System or on our website at www.aquaticwhirlpools.com.
