10. At the nearest cold treated water tap nearby remove the faucet screen, open the faucet and let water run a few
minutes or until the system is free of any air or foreign material resulting from the plumbing work. Close the water tap
when water runs clean, then proceed to start up instructions.
BRASS NUT BLUE LOCKING CLIP
PLASTIC NUT 3/8” PLASTIC TUBE
INSERT

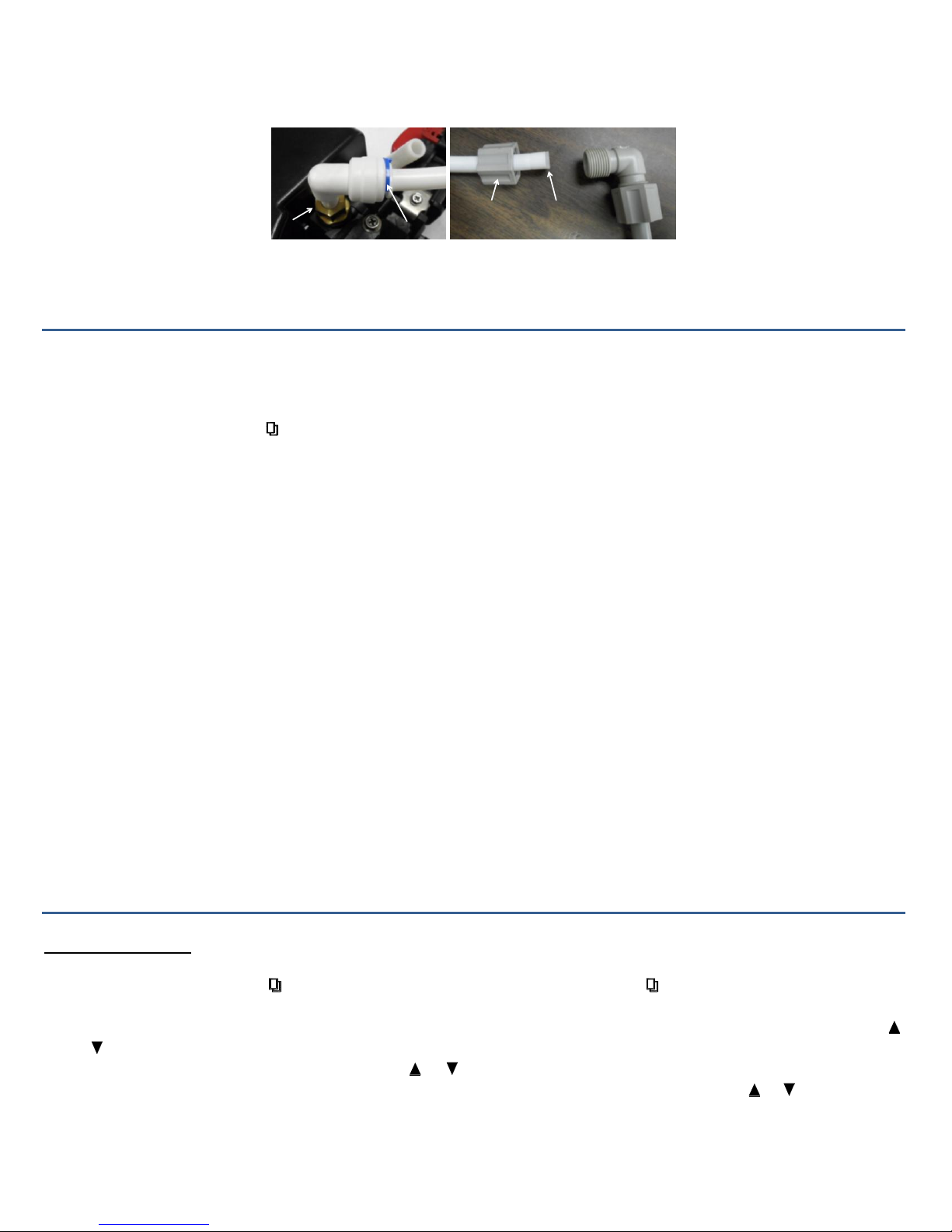

Figure 7. Brine Line Connections View
Start-Up Instructions
1. Ensure inlet and outlet of bypass are in closed positions.
2. Plug the valve into an approved power source. When power is supplied to the control, the screen may display
“INITIALIZING WAIT PLEASE” while it finds the service position.
3. If screen is locked, press “ MENU”for 3 seconds to unlock screen. Press SET/REGEN “”button and hold for 3
seconds to initiate a manual regeneration and advance the valve to the Backwash position.
4. Open the inlet on the bypass valve slowly and allow water to enter the unit. Allow all air to escape from the unit, once
water is going to the drain, close the inlet valve of the bypass, unplug the power cord and allow the media to soak for
30 minutes.
5. Plug the power cord back into the power source, the screen will display “INITIALIZING WAIT PLEASE” while it finds the
service position. Press “” SET/REGEN” and hold for 3 seconds to initiate a manual regeneration and advance the valve
to the Backwash position. Slowly open the inlet valve of the bypass until fully open then allow water to run to drain for
the entire 15 minute backwash cycle. Check water running to drain to ensure it is clear before moving to step 6.
6. The valve will automatically advance to the brine/rinse cycle, check the water level in the brine tank to insure the valve
is drawing brine properly.
7. Press any button to advance to the RINSE position. Check the drain line flow. Allow the water to run for 3-4 minutes or
until the water is clear.
8. Press any button to advance to the REFILL position. Check that the valve is filling water into the brine tank. Allow the
valve to refill for the correct amount of time as displayed on the screen to insure a proper brine solution for the next
regeneration.
9. Press any button to advance to the SERVICE position. Open the outlet valve on the bypass, then open the nearest
treated water faucet and allow the water to run until clear, close the tap and replace the faucet screen.
10.Add salt into the brine tank.
11.Program hardness and people into controller using Level One Programming Instructions.

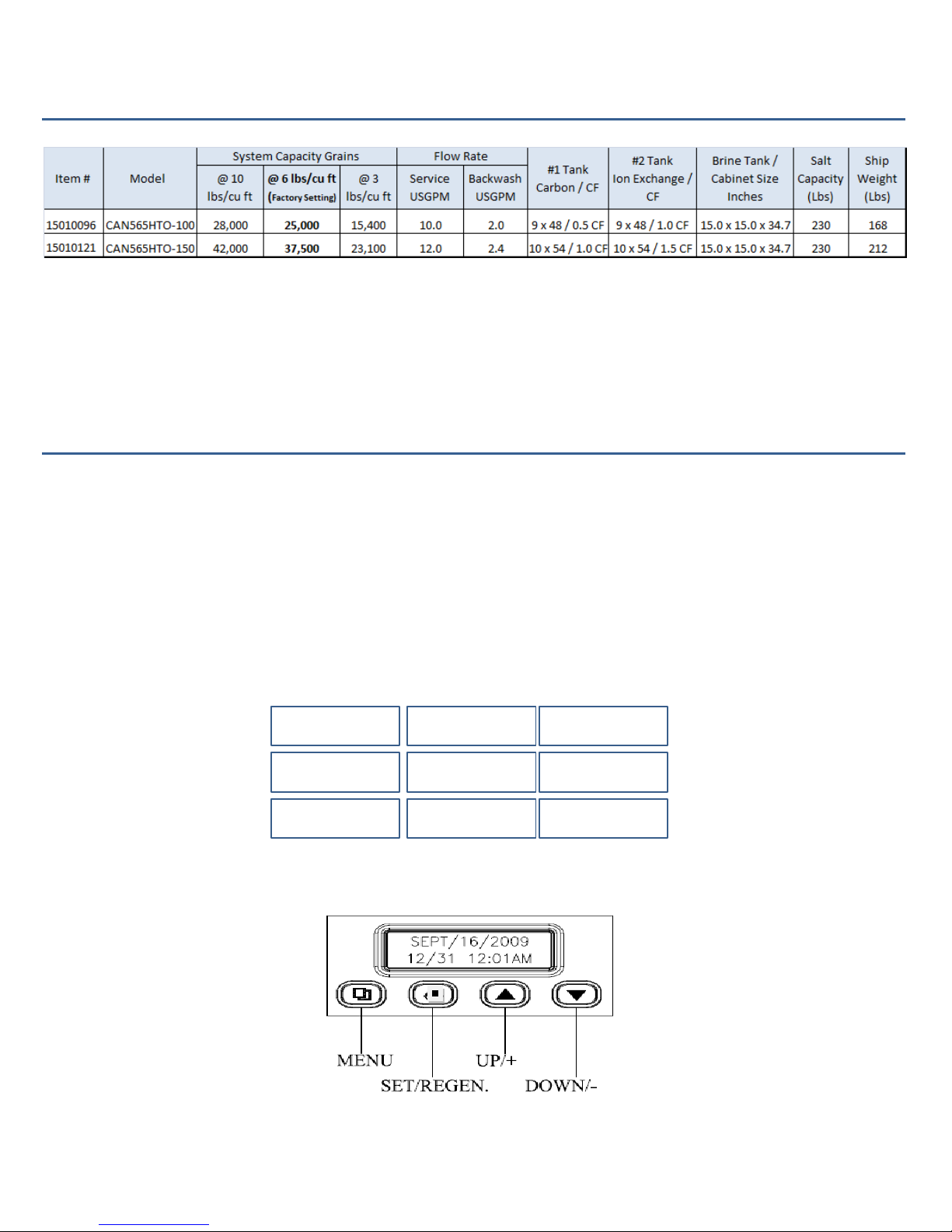

Level I User Programming
Setting Current Time
1. If screen is locked, press “ MENU”for 3 seconds to unlock screen. Press “ MENU” again to enter level one
programming mode and adjust CURRENT TIME.
2. Press “SET/REGEN” to adjust hours. When you have entered the change value mode, the curser will blink. Press “
or UP OR DOWN”arrows to change the hour values. Press “SET/REGEN”again to accept the hour value and
advance to change the minutes value. Press ““ or UP OR DOWN”arrows to change the minute values. Press “
SET/REGEN”again to accept the minute values and advance to adjust the AM/PM values. Press “or UP OR DOWN”
to change the AM/PM value. Press “SET/REGEN”again to accept the AM/PM value and exit. When you have exited
the change value mode, the curser will stop flashing.
