Owner’s Manual
EQ-FE20
Whole House
Water Filter
Iron Filter
TABLE OF CONTENTS
Box Contents ................................................................................................................ 1
System Conguration.............................................................................................. 2–3
Use & Care .................................................................................................................... 4
Installation Steps...................................................................................................... 5–9
Troubleshooting Guide ............................................................................................... 9
Performance Data Sheet........................................................................................... 10
Warranty ............................................................................................................... 11–12
Water for Life® Program............................................................................................ 13
EQ-FE20
Meet clean, healthy water. Your new Aquasana Whole House Iron
Filter was expertly engineered to reduce iron commonly found in well
and city water.
Enjoy the peace of mind that comes from knowing our award-winning
water lter technology is working for you.
Whole House Water Filter
Iron Filter

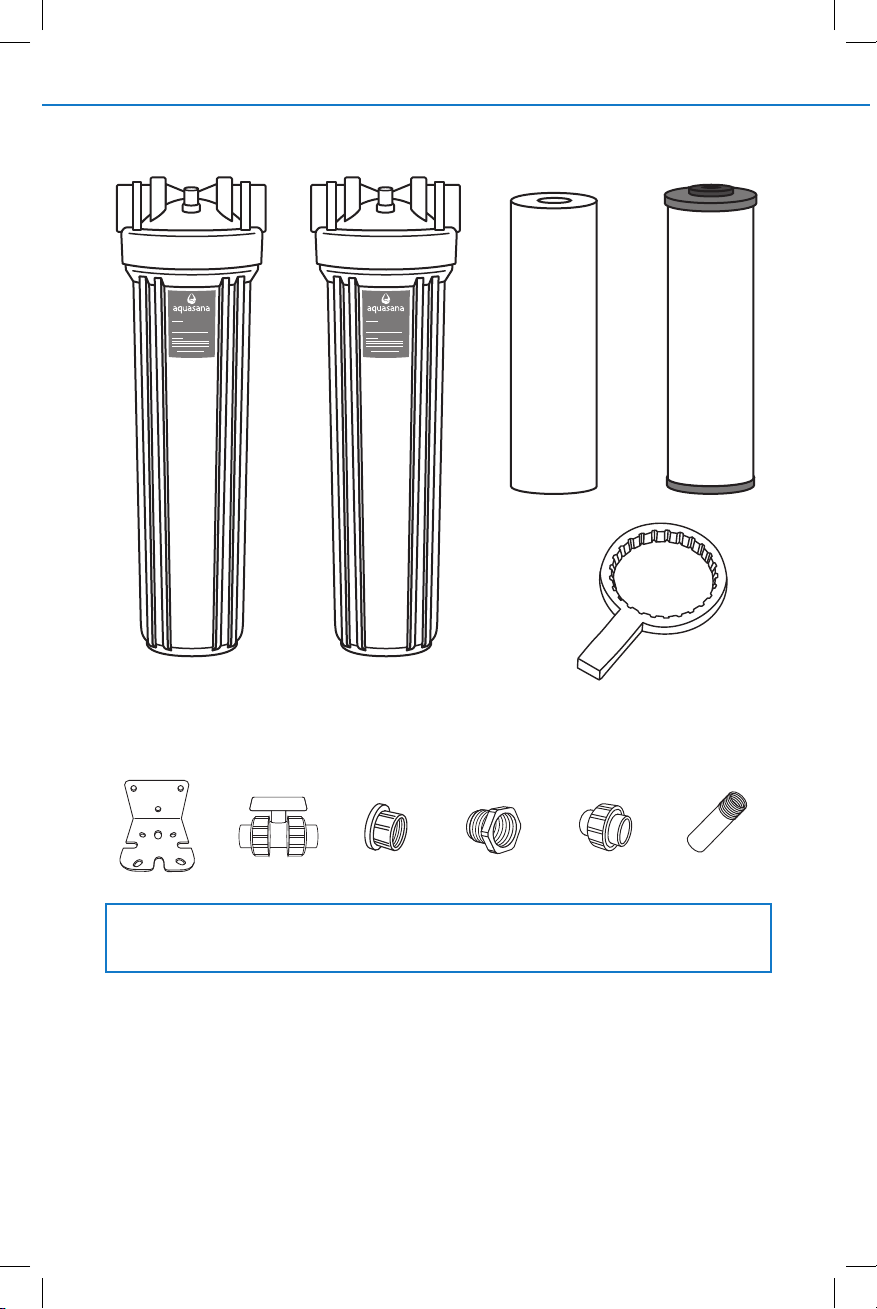

BOX CONTENTS 1
Shut-O
Valve
3"
Nipples (5)
Slip
Unions (2)
Reducer
Bushing
Threaded Valve
Adapters (2)
Sump
Wrench
Support
Bracket (2)
• NSF certied plumber’s tape
• Adjustable wrench
• Pipe cutter
Tools recommended for installation:
Parts and pieces included with your system will vary depending on your specic order.
Please call Customer Service with any questions or concerns 866-662-6885.
• Allen wrench 5mm
• NSF approved PVC primer and glue
• Copper wire & grounding clamps
(if copper pipes are present)
Additional tools may be required depending on desired setup and location of system.
Pre-Filter Iron Filter Pre-Filter
Cartridge
Iron
Cartridge
Pre-Filter Iron Filter

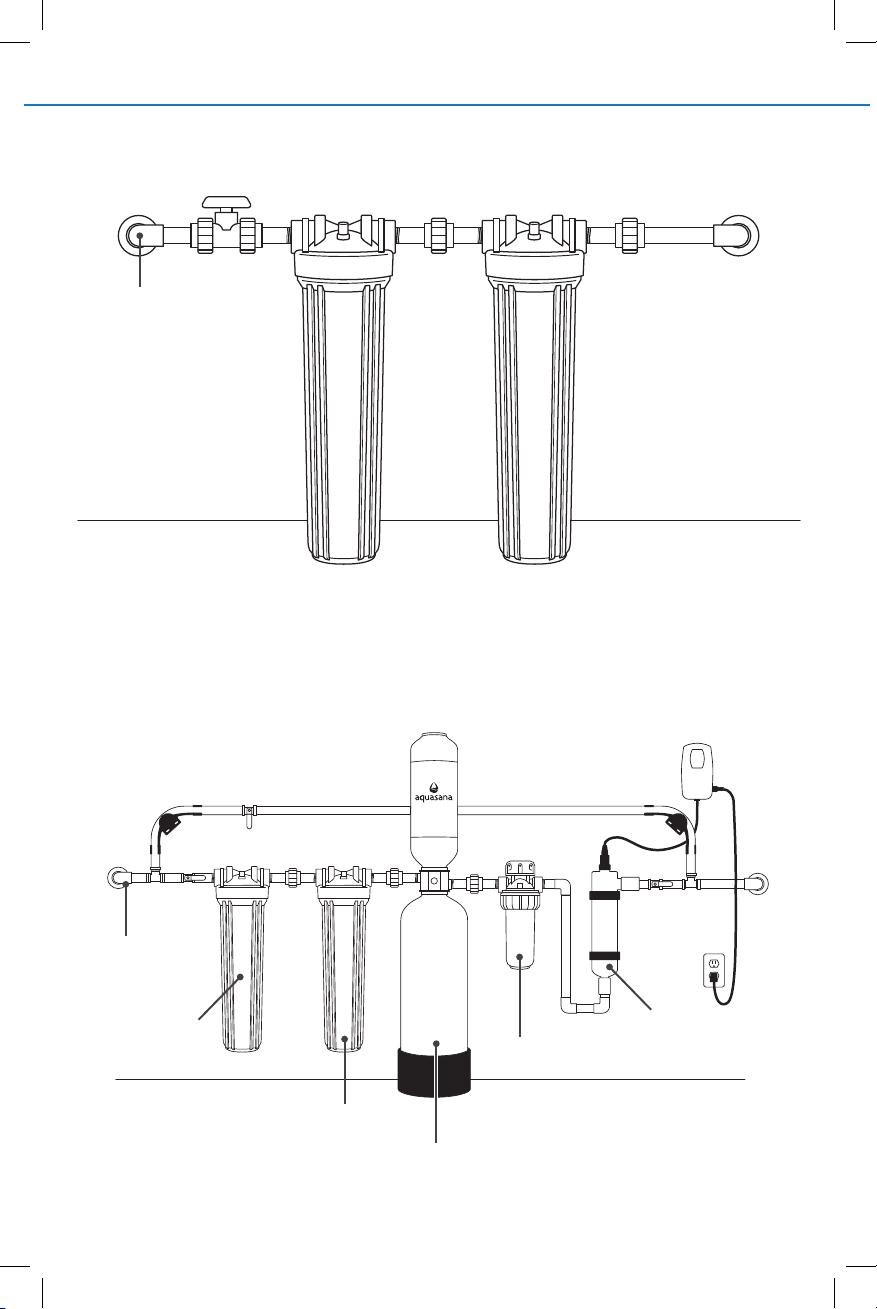

2SYSTEM CONFIGURATION2
Stand-Alone Iron Filter System
Note the correct sequencing below.
Complete Water Filtration System
Installation shown below includes a bypass loop.
Rhino®Water
Filter System
Iron Filter
10" Post-Filter
Pre-Filter UV Filter
Iron FilterPre-Filter
Incoming
Water Supply
Incoming
Water Supply
Before installing
• Lay out system in appropriate conguration. Improper sequence
of equipment will aect performance and could possibly damage
your system.
• Pick an appropriate installation location. Dimensions of systems vary.
– Iron Filter System with Well Water Rhino:
54" x 57" (LxH)
– Iron Filter System with Salt-Free Conditioner + Well Water Rhino:
66" x 57" (LxH)
• Install housings at appropriate height for easy lter changes.
- Iron Filter System: 30" high
- Iron Filter System + Rhino Water Filter: 37.5" high
– If attaching to a Rhino Well Water system, it should be installed at a
minimum height of 37.5" to align inlets.
• For all installations: Anticipate the need for additional parts and pieces
including but not limited to pex tubing, clamps, and mounting screws
to install unit properly (available at a local home improvement stores or
through your plumbing contractor). Due to the varieties of home design,
not all congurations can be addressed in this guide.
• DO NOT install this lter where the line pressure may exceed 100 psi.
The operating pressure range for this lter is between 20psi – 100psi.
• Install on cold water lines only 40°– 90°F (4.4º – 32.2ºC).
• Installation of the ltration system must comply with existing state and
local plumbing codes. Aquasana and its manufacturer are not liable for
consequential or incidental damages due to improper installation.
• DO NOT install the unit on its side. It must be installed upright
to maximize contact with media bed.
SYSTEM CONFIGURATION 3
2USE & CARE4
Read all precautions and installation instructions carefully and completely
before installing.
Precautions
• Properly tighten all ttings to
ensure a leak-free assembly.
• NSF certied plumber's tape
(thread sealing tape) is the
only sealer that can be used on
threaded ttings. DO NOT use
pipe dope or PVC primer/glue
on threaded ttings. Exposure
to these compounds will damage
nipples causing leaks.
• DO NOT sweat ttings near lter
housings or any plastic parts.
• Piping and lter housings must
be properly supported with pipe
hangers.
• Unit must be installed in an area
where the main water line enters
your home, before connecting to
the water heater. DO NOT install
after a water heater or on the
hot water line.
• It is recommended your system
be installed indoors and out of
direct sunlight. Prolonged
exposure to light can weaken
plastic components, resulting
in lter housing failure. If this
is not possible and the system
is outdoors or in a sunny area,
the unit must be protected from
both direct sunlight and freezing
temperatures.
• If installing on metallic plumbing,
two grounding clamps and #4
copper wire are essential for
safety.
• Some local codes may require the use of
a licensed plumber or certied installer
when disrupting a potable water line.
• In areas with high pressure, a pressure
relief valve and a water hammer
arrestor may be necessary.
Cleaning
The exterior of your ltration system
can be cleaned with warm, soapy water.
Rinse well with fresh, clean water.
Replacements
This lter system is designed and tested
for use with genuine Aquasana parts
including replacement lters and all
hardware. Use of parts from other
manufacturers may result in loss of
contaminant reduction performance,
system damage, or failure. Use of parts
from other manufacturers will also void
your warranty. Please visit aquasana.com
for replacement installation and parts.
A Pre-Filter and Iron Filter are included with
your system. Sediment levels vary from one
location to another. It is recommended to
replace your lters every 6 months. If the
ow rate has noticeably decreased, replace
your lters sooner.
Model: EQ-FE20
Iron Filter Replacement: EQ-FE20-R
Additional Replacements:
20" Pre-Filter: EQ-PRE-204-R
NOTE: Never use chemical cleaning
products on the system’s exterior surface
as they may damage the housing.
Read all precautions and installation instructions carefully and completely
before installing.
Replacements
This lter system is designed and tested
for use with genuine Aquasana parts
including replacement lters and all
hardware. Use of parts from other
manufacturers may result in loss of
contaminant reduction performance,
system damage, or failure. Use of parts
from other manufacturers will also void
your warranty. Please visit aquasana.com
for replacement installation and parts.
A Pre-Filter and Iron Filter are included with
your system. Sediment levels vary from one
location to another. It is recommended to
replace your lters every 6 months. If the
ow rate has noticeably decreased, replace
your lters sooner.
Model: EQ-FE20
Iron Filter Replacement: EQ-FE20-R
Additional Replacements:
20" Pre-Filter: EQ-PRE-204-R
INSTALLATION STEPS 5
Filter Sequencing
1. Pre-Filter must be installed rst
followed by the Iron Filter and
any additional add-ons (Salt-Free
Conditioner, Rhino tank, Post-Filter,
UV Filter, etc.). Measure distance
for all components and mark pipe
accordingly.
2. Unscrew and remove tops of the
Pre-Filter and Iron Filter housings.
3. Remove lter cartridges from lter housings and inspect to ensure
that the lters have not been damaged and there is no plastic or other
objects stuck to the lters.
1
2
WARNING
Before installing, lay out system in appropriate conguration. Improper sequence of
equipment will aect performance and could possibly damage your system. DO NOT install
after the water heater or on the hot water line. Components and installation will vary.
Turn o the main water source prior to installation. Drain water from lines
to relieve pressure by turning on a faucet inside your home.
Select Location
Incoming
water supply Outgoing
water supply
Ensure proper spacing to t Pre-Filter, Iron Filter, and any optional
add-ons (Salt-Free Conditioner, Rhino tank, Post-Filter, and UV).
Pre-Filter
Cartridge
Iron
Cartridge
Filtration System Add-Ons Preparation

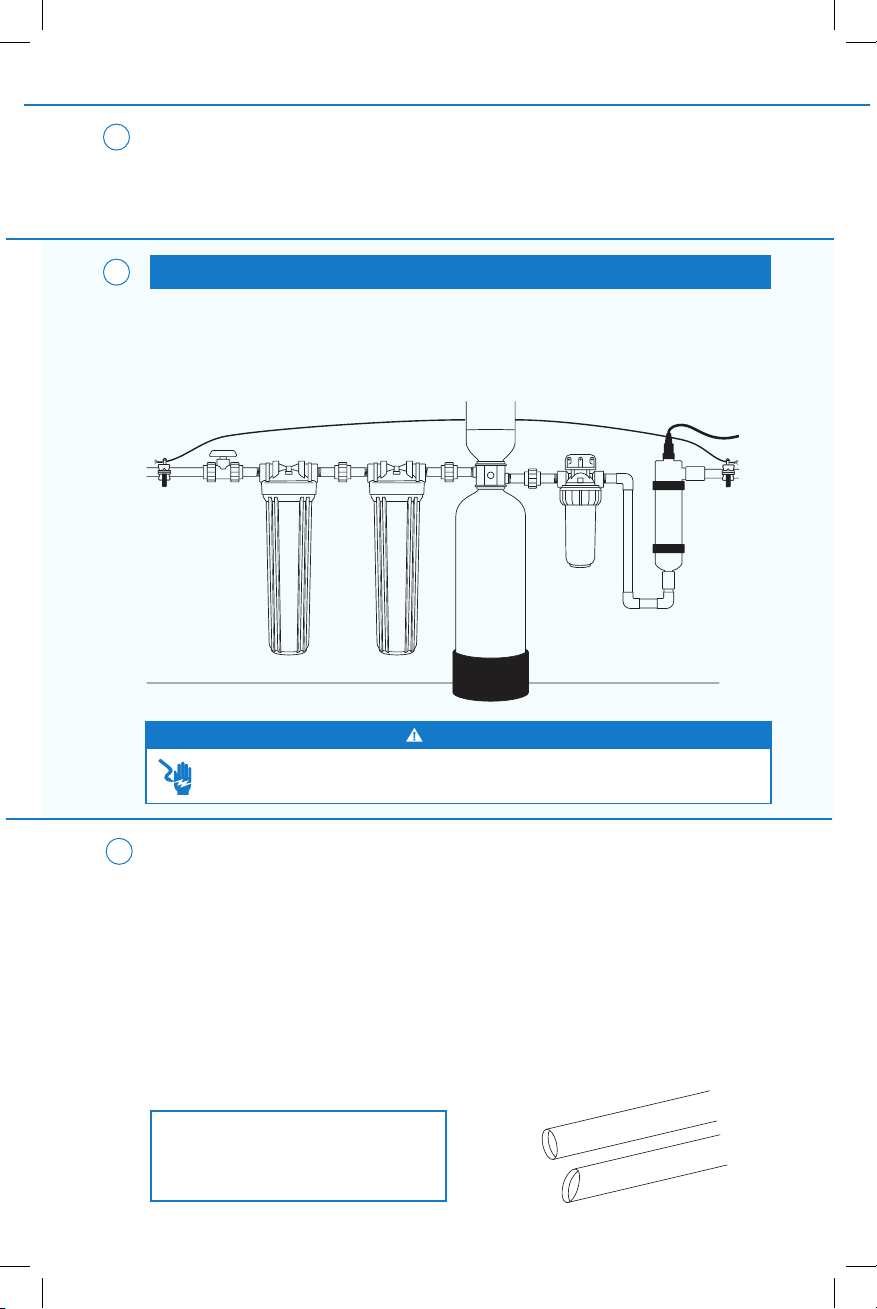

If you’ve added any additional components to your ltration system,
stop now and read the separate, individual manuals for those systems
in their entirety.
3
When installing on metallic plumbing, ensure you take the following
precautions. Securely install two (2) grounding clamps and a #4 copper
wire (not included) across the location where the system will be installed.
Tightly clamp at both ends, as shown in the illustration.
Ground
Clamp
Ground
Clamp
Ground Wire
WARNING
ELECTRICAL SHOCK HAZARD
Prior to installation on metallic plumbing, securely install two grounding clamps and a #4 copper wire
per installation instructions. Failure to follow these instructions can result in death or electric shock.
4COPPER PIPES ONLY (proceed to Step 5 for PVC Pipes)
Cut Pipes
1. Using a pipe cutter, cut into the main water supply line along the
marked sections from step 2 to install the shut-o valve and clean ends
of pipe. Ensure there are no burrs, sharp edges, or deep scratches. Cut
tubing as straight as possible with a utility knife, or an appropriate pipe
cutter for copper tubing or PVC.
2. If you are installing a bypass loop, now is the time to plan accordingly
and install (recommended, not included).
3. Loosely t shut-o valve to calculate proper spacing of components.
5
NOTE: DO NOT cut more pipe than
necessary. You can cut more pipe
later if needed.
CORRECT
INCORRECT
2INSTALLATION STEPS6
Congure System
1. Fit Pre-Filter and Iron Filter into the desired location.
6

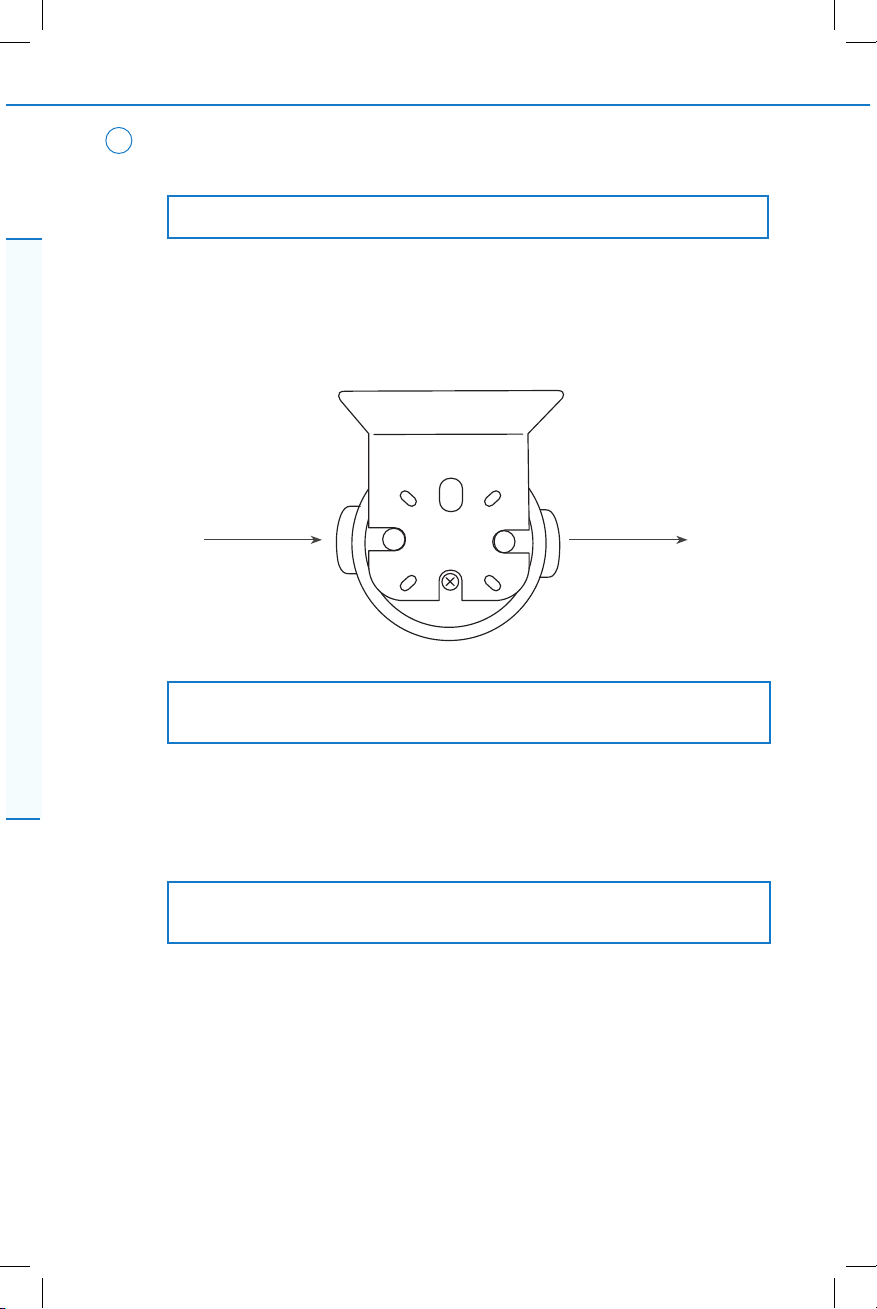

NOTE: The caps are marked with “IN” and “OUT” on the top of the housing.
NOTE: If you need to position the ow direction to the right or left, the
bracket will need to be turned 180 degrees.
NOTE: Ensure wall material is stable enough for mounting purposes. The
lter housing will become very heavy when full of water.
2. Using the provided screws, mount the brackets to the sump caps in
accordance with desired ow direction. Hand tighten, and then use an
Allen wrench to complete tightening.
3. Mount the brackets and caps to the wall using appropriate fasteners for
your wall material. Screws used to mount brackets to the wall are not
provided.
Incoming
water supply
Outgoing
water supply
TOP VIEW OF BRACKET & FILTER
INSTALLATION STEPS 7
NOTE: If only installing
the Stand-Alone
System, there will be
an extra 3" nipple.
Connect System
7
Iron FilterPre-Filter
Shut-o
Valve
Reducer
Bushing
(optional)
Union
Nipple Nipple
Nipple Nipple
Union
Pre-Filter Iron Filter

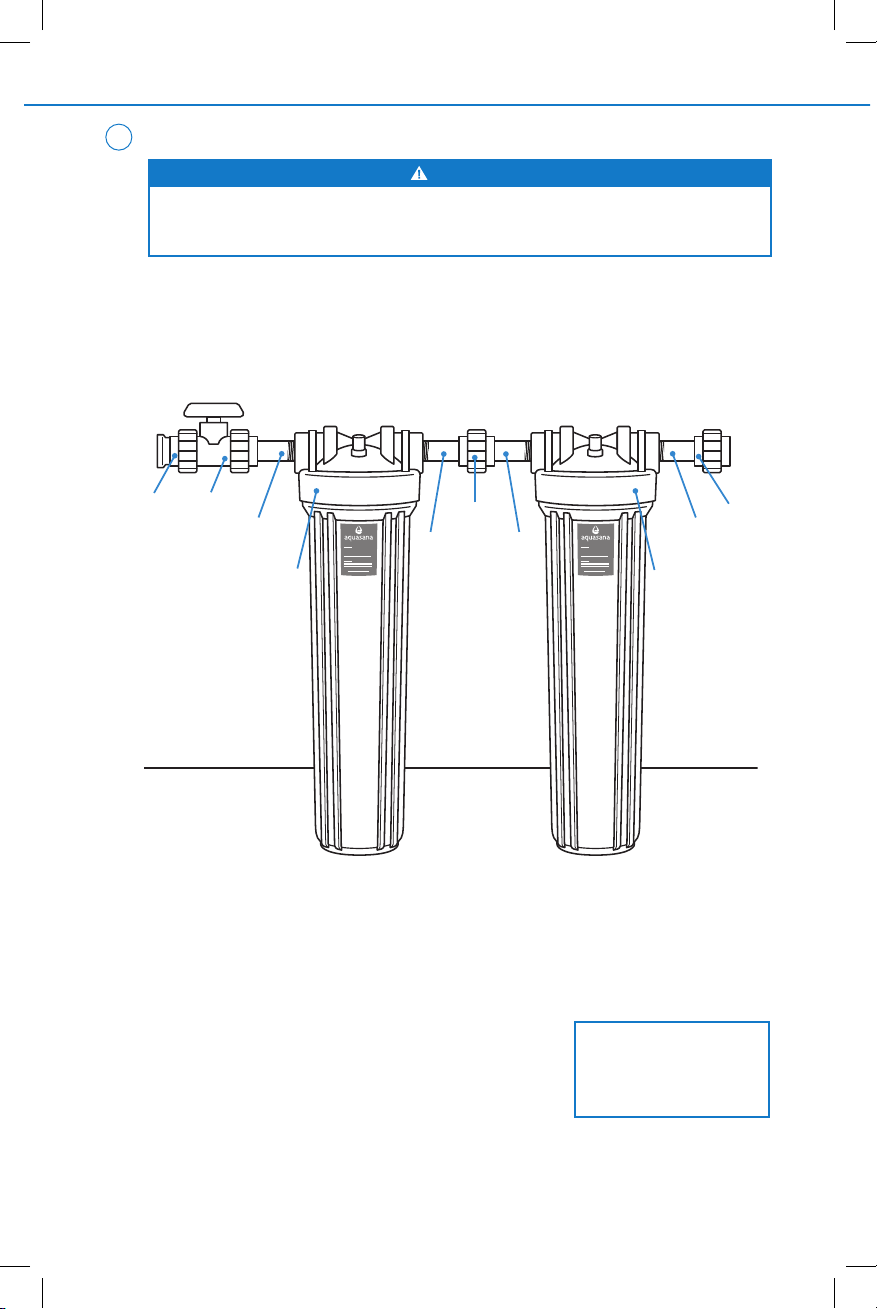

1. Review the diagram below for proper order of parts. If incoming water
supply line is 1", now is the time to use the supplied reducer bushing
and threaded valve adaptor to reduce to ¾".
2. Wrap the pipe nipples with NSF certied plumber's tape clockwise (2-4
wraps).
3. Connect parts together according to diagram using proper materials
per manufacturer instructions (glue, threaded ttings, etc.).
4. If you are installing a Complete Filtration
System, connect the additional parts and lters
now. Use the owner's manuals provided with
those products for installation instructions.
WARNING
Properly connect system together accordingly (slip ttings, barbed ttings, NSF certied PVC
glue, etc.). All parts must ow through the “IN” port in the correct direction of water ow.
2INSTALLATION STEPS8
Table des matières
Autres manuels Aquasana Système de filtration d'eau
Aquasana
Aquasana EQ-300 Manuel utilisateur
Aquasana
Aquasana EQ-400 Manuel utilisateur
Aquasana
Aquasana Claryum Direct Connect Manuel utilisateur
Aquasana
Aquasana AQ-RO3-R Manuel d'utilisation et d'entretien
Aquasana
Aquasana Claryum 2-Stage Manuel utilisateur
Aquasana
Aquasana SC200-A Manuel utilisateur
Aquasana
Aquasana AQ-CWM2-B Manuel utilisateur
Aquasana
Aquasana AQ-SFRO-S1S3 Manuel utilisateur
Aquasana
Aquasana AQ-UV-10C Manuel utilisateur
Aquasana
Aquasana OptimH2O EQ-OPTM Manuel utilisateur
Aquasana
Aquasana Rhino Chloramines Max Flow WH-1021 Manuel utilisateur
Aquasana
Aquasana WELL WATER Rhino EQ-WELL-UV Manuel utilisateur
Aquasana
Aquasana Claryum AQ-4000W Manuel utilisateur
Aquasana
Aquasana AQ-SFRO-S2 Manuel utilisateur
Aquasana
Aquasana AQ-CWM-RB1 Manuel
Aquasana
Aquasana AQ-SFRO-REMIN Manuel utilisateur
Aquasana
Aquasana EQ-400 Manuel utilisateur
Aquasana
Aquasana OptimH2O AQ-RO-3 Manuel utilisateur
Aquasana
Aquasana EQ-10000 Manuel utilisateur
Aquasana
Aquasana Rhino Well 1 Water with UV Manuel utilisateur
Manuels Système de filtration d'eau populaires d'autres marques
Wisy
Wisy LineAir 100 Manuel utilisateur
Schaffner
Schaffner Ecosine FN3446 Series Manuel d'utilisation
Pentair
Pentair FLECK 4600 SXT Guide de l'utilisateur
H2O International
H2O International H20-500 Manuel utilisateur
Renkforce
Renkforce 2306241 Manuel utilisateur
Neo-Pure
Neo-Pure TL3-A502 Manuel utilisateur
