AQUA SPA RAINBOW 9600 Manuel utilisateur
©
Design and Specifications are subject to change without notice
2010 All rights reserved.
PLEASE SAVE THIS MANUAL
FOR FUTURE REFERENCE
OWNER MANUAL
Chair 9600
RAINBOW
Chair 9700
FOOT-SPA
Patent #D610697, #D600950
Table of Contents
Safety and Precautions
INSTALLATIONS
Attaching Seat
Jet Assembly
Plumbing Connections
1-2
Identifying Parts 3-4
7-8
9-10
Warranty & Service 15
6
Owner Manual
Operations and Use
Cleaning & Maintenance
11-12
13-14
Foot-spa Clearance 5
SAFETY & PRECAUTION
1
Thank you for purchasing the Rainbow spa from Aquaspa. Please carefully read the instructions before installing the
spa. Carefully follow the instructions, your spa will give you years of beauty and service.
This product is to be connected to a branch circuit outlet protected by a Class A GROUND FAULT CIRCUIT
INTERRUPTER (GFCI), and the GFCI shall be tested regularly for continued protection and correct
operation. If a Class A GFCI protected outlet is not available, DO NOT USE THIS PRODUCT! Please
contact a licensed electrician for installation of a Class A GFCI according to local electric codes, or equivalent.
THIS PRODUCT IS FOR IN DOOR USE ONLY
DISCONNECT POWER SUPPLY CORD BEFORE SERVICING AND CLEANING
!!
Foot-spa must be installed by a licensed plumber and electrician in accordance with local codes. Plumbing and
Electrical Installation instructions must be adhered to in order for the warranty to be in effect and to insure the utmost
in safety. Chair and spa have a maximum seating capacity of 350 pounds.
The foot-spa is not intended to be stood in or used as a step. The portable foot-spa model is movable, standing in tub
or using as a step may cause severe damage to the unit as well as possible serious injury to the person.
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING:
1. Read and follow all instructions
2. DANGER. To reduce the risk of injury, do not permit children to use this unit unless they are supervised at all
times
3. Use this unit only for its intended use as described in this manual. Do not use attachments that are not
recommended by the manufacturer.
4. Never drop or insert any object into any opening.
5. Do not block jets during whirlpool operation.
6. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.
7. The clean jet motor is magnetically driven and is insulated twice. Therefore it does not require to be bonded.
Save these instructions
1. Excessive water temperature is dangerous and should be checked BEFORE use.
2. Maximum temperature of the water should never exceed 100 degrees F.
3. Always enter and exit the Foot Spa slowly and carefully.
4. NEVER bring and / or operate any electrical devices into or near the Foot Spa.
If a crack occurs in the glass bowl, DO NOT manually handle the bowl unless the proper attire is worn.
Under no circumstances must the bowl be used by your customers as you can be held accountable for
any injury that may occur.Aquaspa is not liable for any injury that may occur.
Warning
!!
Warning
!!
Warning
!!
SAFETY & PRECAUTION
2
GROUNDING METHODS
Because this unit must be connected to a circuit with a ground-fault circuit interrupter (GFCI), DO NOT use a grounding
adapter.
The use of a grounding adapter is prohibited in Canada by Part I of the Canadian Electrical Code.
GROUNDING INSTRUCTIONS
This appliance must be plugged into an outlet equipped with a ground-fault circuit interrupter. The ground-fault interrupter
can be in the out-let shown in illustration A or in the circuit breaker (fuse) box. If your outlet or circuit breaker (fuse) box is not
equipped with a ground-fault interrupter, you must have your electrician install one.
In the event of an electrical short-circuit, the ground-fault circuit interrupter will turn off the electrical power to the unit
immediately, greatly reducing the likelihood of serious injury. This appliance is for use with a nominal 120-volt circuit and has
a grounding plug that looks like the plug illustrated in the sketch. The outlet must be properly installed and grounded in
compliance with all local codes and ordinances.
If it is necessary to use an extension cord, use only a three-wire extension cord that has a three-blade grounding plug and a
three-blade grounding plug and a three-slot receptacle that will accept the plug on the appliance. Replace or repair a
damaged cord.
OPERATION AND USE INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS.
1. IMPORTANT! At the end of the day, ALWAYS turn the main power OFF!
2. DANGER: To reduce the risk of injury, do not permit children to use this unit unless they are closely supervised
at all times.
3. CAUTION: This unit should not be used by persons with open wounds, cuts or sores on their feet or legs, or by
persons with poor circulation, or by persons with heart conditions. If in doubt, the client should consult with his
or her physician.
4. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended
by the manufacturer
5. Do no operate with a damaged cord or plug. If unit is malfunctions or is damaged in any
manner, contact an authorized service representative for examination or repair.
6. Never drop or insert any objects into any opening.
7. Do not block jets during pedicure operation.
8. Water temperature should be checked before use. Water temperature should never exceed 104 degrees
Fahrenheit.
9. Never bring any electrical devices into the unit or operate electrical devices near it.
10. The unit must be connected to a supply circuit that is protected by a ground-fault circuit interrupter (GFCI).
11. Connect the unit only to a properly grounded outlet. See grounding instructions.
12. Close supervision is necessary when the unit is used by, on or near children or invalids.
COMPLIANCE WITH LOCAL CODES OR
INSPECTIONS IS THE RESPONSIBILITY OF
THE PURCHASER AND/OR INSTALLER
IDENTIFY YOUR FOOT-SPA
3
1
2
3
4
56
7
8
12
13
14
10
11
1. Glass Bowl
2. Hand Spray
3. Back Cushion & Massage
4. Headrest Pillow
5. Wooden Armrest
6. Flip-out Manicure Tray
7. Seat Cushion
8. Adjustable Footrest
9. Front Control Panel
10. Jet
11. Drain
12. Drain Control
13. Water Control
14. Jet Control
9
Control Panel
Front
Back
4
IDENTIFY YOUR FOOT-SPA
55’’
’27 ’
32’’
43’’
15’’
SEAT OPERATION
SPA DIMENSION
1
2
3
Armrest can be raised up/down
Reclining
Sliding
5

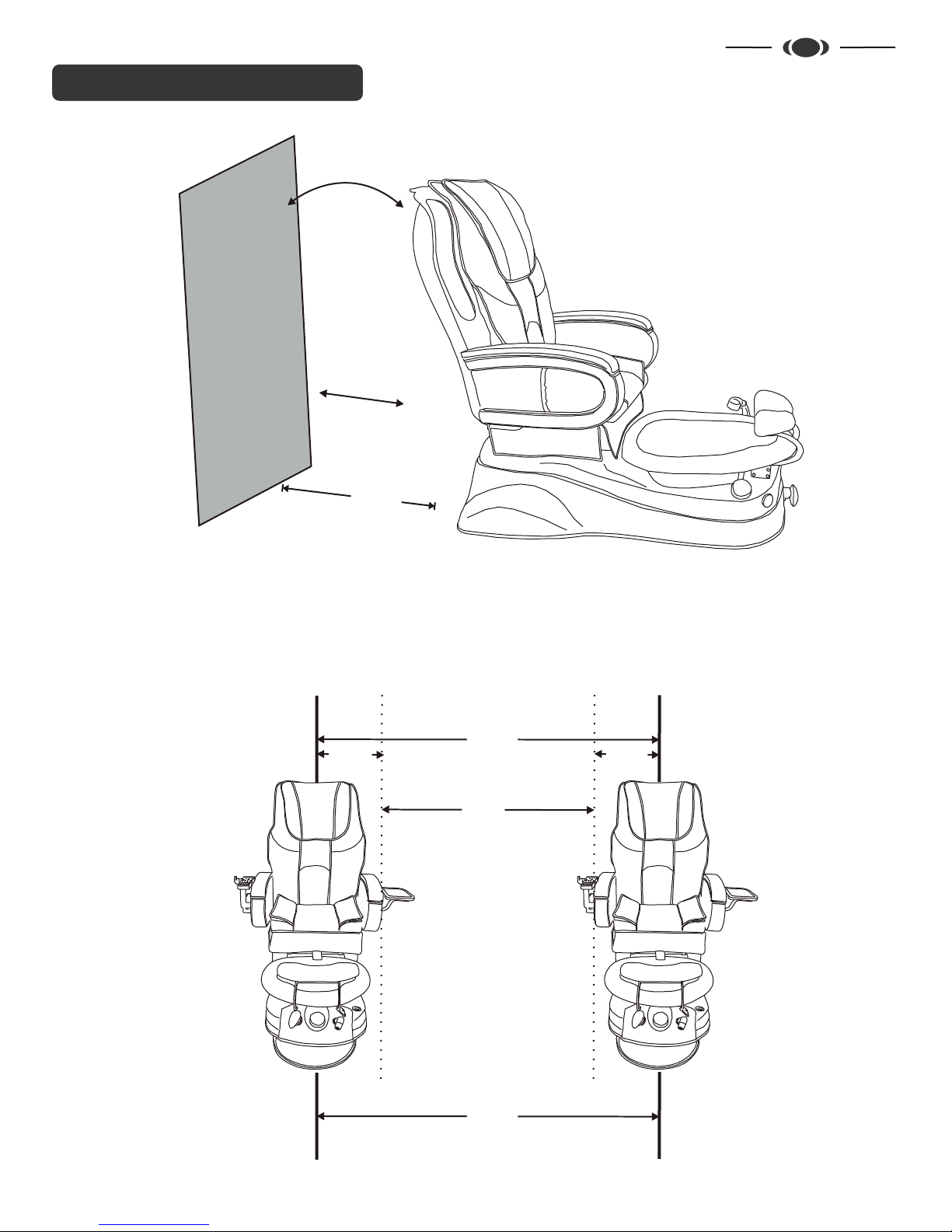

FOOT-SPA CLEARANCE
Wall
16’’
60’’
60’’
16’’
16’’
28’’
Foot-spa #1
Center Center
Foot-spa #2
TYPICAL FOOT-SPAS
Clearance
WALL CLEARANCE
6
INSTALLATIONS
Align the seat with the pre-drilled holes on
the base then tightly secure with the nuts
and bolts provided.
Attach trays or remote stand to armrest
with screws provided
Attaching The Seat to The Base
7
INSTALLATIONS
Cleanjet Unit Removal
Plate & Anchors located on tub/bowl wall
Impeller Housing
Top Plate
Wall
Ball
Washer
Anchor Pins
To remove the jet unit from tub/bowl.
Gently pull out the jet unit from the anchor pins
To remove the jet unit components.
Turn the top plate counter-clockwise in the arrow direction
Jet Unit Components
To install the jet unit. Assemble all jet unit components in order as before removal, snap the jet unit onto the anchor pins located on tub/bowl
wall securely.
Note: All jet unit components must be assembled in sequence of order to avoid malfunction.
Screws
Please call manufacturer for repair or replacement
8
INSTALLATIONS
Place the plastic liner firmly inside the glass bowl as shown
in the Fig.1
Align the impeller unit onto the anchor pins and snap
it onto the base plate as shown in Fig.2
To remove, gently pull out the impeller unit as shown in Fig.3
from the base plate and pull up the plastic liner.
To avoid risk of infection disease, discard the liner after
each use
Fig.2
Plastic Liner perforated
by the pins
Thin Plastic Liner
Impeller Unit
Plastic Liner
Hole in the heavy plastic liner
Heavy plastic liner
Piece of thin plastic sealed
to the heavy plastic liner
Base Plate fixed to motor behind
Fig.1
Glass Bowl
Fig.3
Poly Liner Installation
Anchor Pins
