Aqua Creek Products F-MTYPD8S Manuel utilisateur

Mighty Lifts

Shallow Deck

Pedestal

USE THIS MANUAL FOR PART #’s:

F-MTYPD8S / F-MTYPD18S / F-MTY1PDS

F-MTY2PDS / F-MTY3PDS / F-MTY4PDS

MANDATORY

LEAVE THIS MANUAL WITH LIFT OWNER

Read and follow all instructions.

Lift safety can only be ensured if the lift is installed and

operated according to these instructions.

• NEVER

permit children to play on or around the lift

•

DO NOT

allow children to use the lift without adult

supervision

• NEVER

apply direct water pressure to the electronics

• NEVER

use the lift with a dry pool

Check entire box and all packing materials for parts. Before beginning assembly, read the

instructions and identify parts using the figures and parts listed in this document.

It is critical that all parts be carefully inspected prior to installation. If any damage occurred in

transit, Aqua Creek Products, LLC must be notified within three days of receipt of unit.

Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s

warranty and may affect the safety of the user.

READ CAREFULLY

9889 Garrymore Ln

Missoula, MT 59808

888-687-3552 | +1-406-549-0769

www.aquacreek.com

1 OF 6

10/26/2020 12:35:29 PM

INV00752

INV00677

INV01579

INV01169

INV00388

INV00723

08 - INV02301

12 - INV02293

18 - INV02519

24 - INV02295

36 - INV02297

48 - INV02299

FIGURE 01

DETAIL C

SCALE 1 : 3

INV00723

INV02361

INV01170

INV01582

DETAIL B

SCALE 1 : 2

INV00470

INV00608

INV00736

DETAIL A

SCALE 1 : 2

INV01188

INV01169

INV00733

NOT SHOWN

PEDESTAL - FOR MIGHTY LIFTS

PART NO.

QTY.

DESCRIPTION

SEE ABOVE

WELDMENT HEIGHT - PER ANCHOR

INV01169

WASHER - FLAT 1/2"

INV01170

WASHER - FLAT 1/4"

INV00733

NUT - NNL 1/2"-13

INV00736

NUT - NYL #10-24

INV00388

BOLT - HEX 1/2"-13x1 1/2"

INV01188

WASHER - ET 1/2"

INV00752

JIG PLATE FOR PRO SERIES LIFTS

INV00608

GROUNDING LUG

INV00470

BOLT- SHCS #10-24x3/4"

INV00677

LABEL #97 - PROPER DISTANCE

INV00723

NUT - HEX 1"-8 ZINC

INV01579

ANCHOR INSERT, 1" DIA x 4" LONG

INV01582

ANCHOR INSERT, 1" DIA x 4" LONG, BB

INV02361

SCREW - PH 1/4"-20x1/2" BRASS

INV00868

BLACK CAP FOR ANCHOR INSERTS

INV00303

ANTI-SEIZE, PACKET, 5GRAMS #09975

2 OF 6

10/26/2020 12:35:29 PM

12"

48"

36"

24" MINIMUM

44" MAXIMUM

36 3/4" MINIMUM

56 3/4" MAXIMUM

63 1/16"

69 5/16"

16 1/2" MINIMUM

36 1/2" MAXIMUM

POOL WALL

ADA REQUIRED

CLEAR DECK SPACE

DECK

FIGURE 02

Installation: ADA Requirements

ADA REQUIREMENTS (For Commercial Applications):

The Mighty lift is completely ADA compliant when installed correctly.

The installation must meet the following requirements:

• Clear deck space dimensions (see FIGURE 1)

• Install lift a minimum of 24 inches from the pool edge

(For curved pool walls contact Aqua Creek for placement)

• Deck slope no greater than 1:48

• The seat must be submerged at least 18 inches into the water.

•The lift should be installed at a location with 42-48 inches of depth (deck to pool foor)

NOTE: Other requirements may be necessary based on local code requirements. The anchor system

should be bonded according to NEC Section 680 and/or local code requirements.

3 OF 6

10/26/2020 12:35:29 PM

12"

OVERLAP

0" EDGE OF SLAB

REFERENCE SETBACK

DISTANCE RANGE

(PAGE 3)

66" SQUARE

2" CLEAR - TYPICAL

4" MINIMUM

45" MAXIMUM

5" MIN.

12" POOL FACE

3" CLEAR

TYPICAL

D D

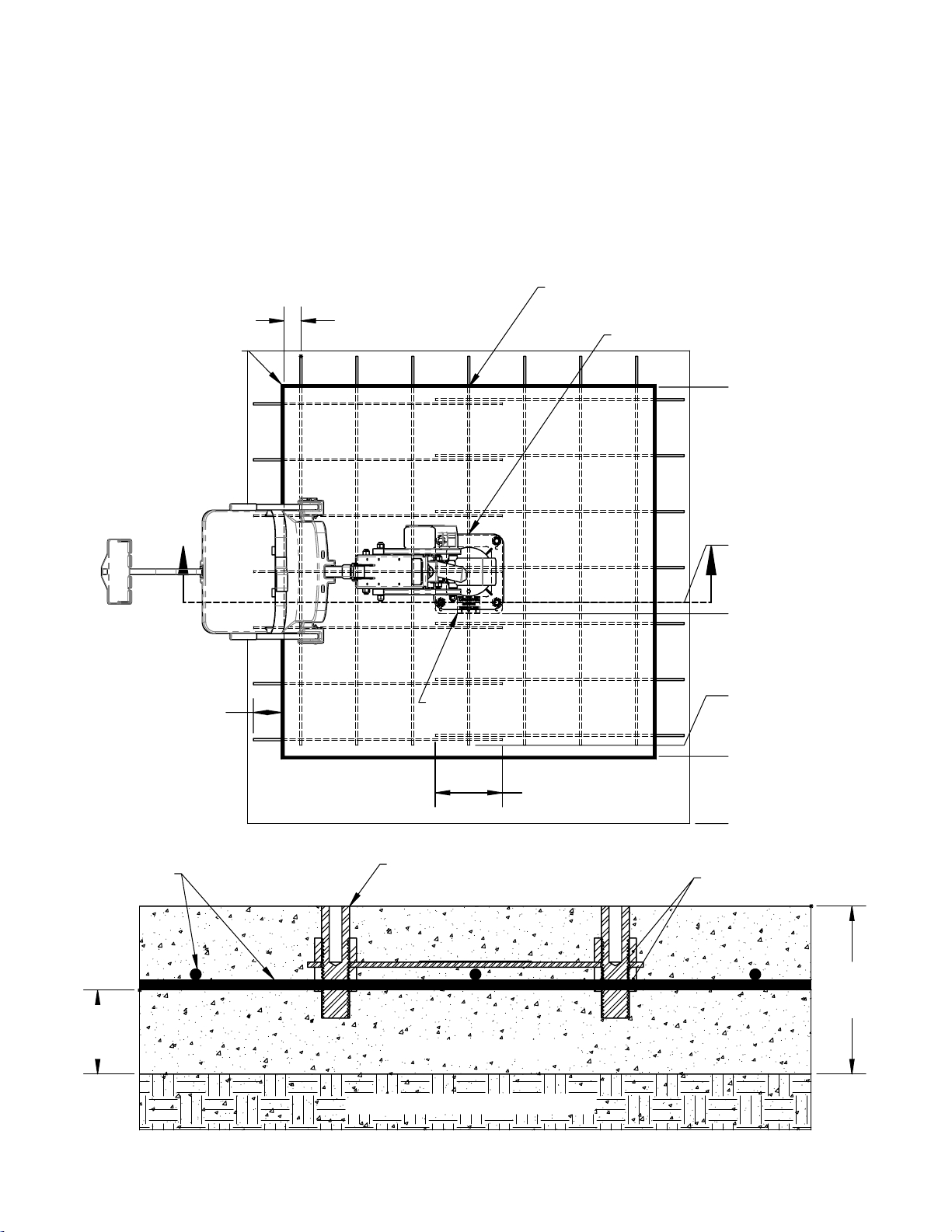

FIGURE 03

SCALE 1 : 20

8-AWG SOLID-COPPER WIRE - BY OTHERS

(ATTACHED TO BONDING-GRID)

BONDING LUG

1/2" EXPANSION

MATERIAL - BY OTHERS

SETBACK/DIRECTION

LABEL

THICK

CLEAR

SECTION D-D

SCALE 1 : 4

#3 REBAR EACH WAY

- BY OTHERS

FLUSH WITH

FINISHED

DECK

2500PSI MINIMUM

NUT - HEX 1"-8 ZINC

COMPACTED GROUND

Anchor Installation

New Construction

NOTE:

For Installations where a new deck is being poured, or where a dedicated pad is being poured just for the pool

lift, the concrete must satisfy the ADA requirements outlined on page 3 of this manual.

Your pool deck must be at least 5'-6"x5'-6"x6". It must be reinforced with 7 sticks of #3 rebar E-W, 3" clear (min.)

from the top and bottom of the footing.

4 OF 6

10/26/2020 12:35:29 PM

BOLT - HEX 1/2"-13x1 1/2"

WASHER - FLAT 1/2"

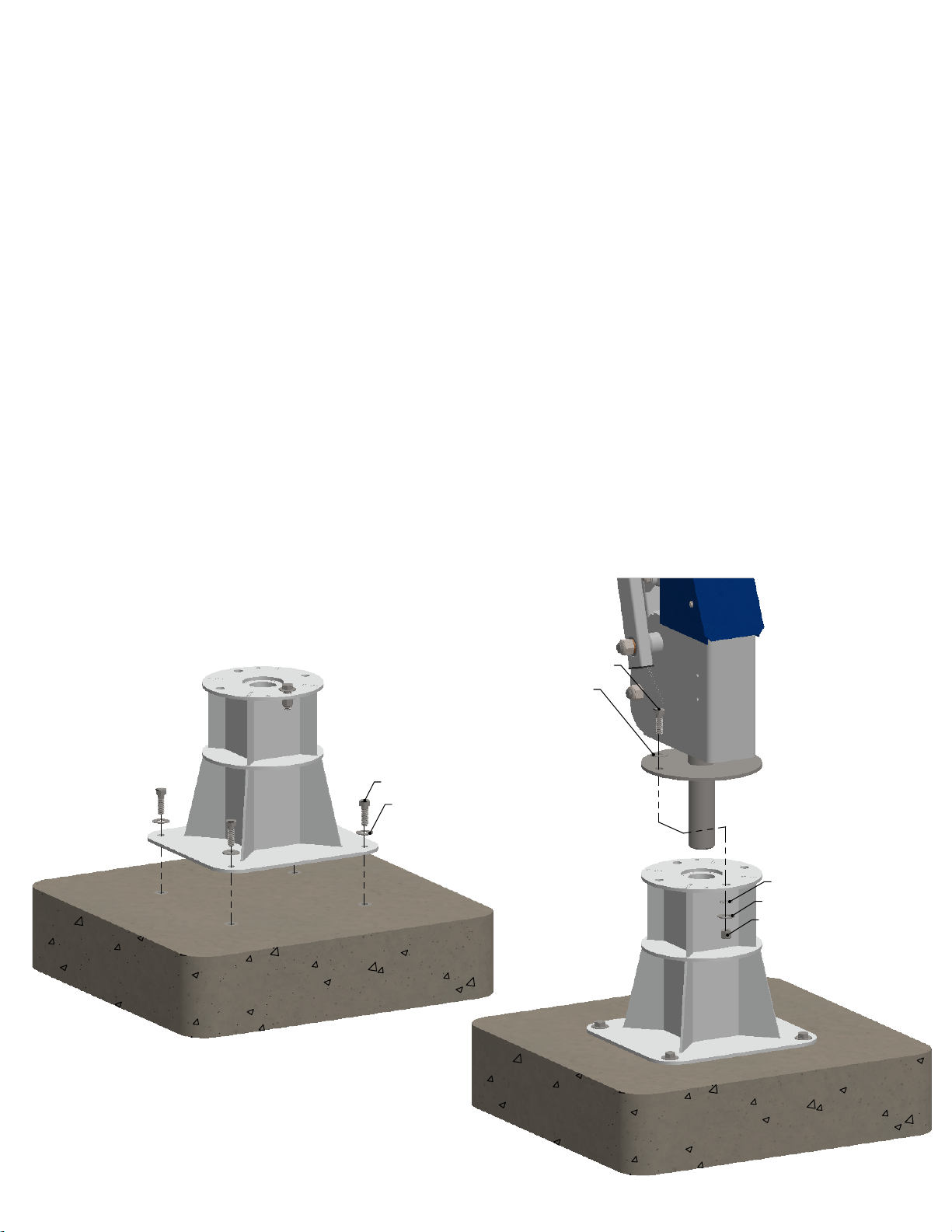

FIGURE 04

FIGURE 05

BOLT - HEX 1/2"-13x1 1/2"

WASHER - FLAT 1/2"

WASHER - ET 1/2"

WASHER - FLAT 1/2"

NUT - NNL 1/2"-13

Remove 1 nut from each anchor insert. Place the anchor inserts through the larger hole of the anchor jig plate.

Thread the removed nuts back onto the anchor inserts. The anchor plate should be sandwiched between the two nuts

on each anchor insert.

SEE SECTION D-D

Install rebar in the open area of the deck.

SEE FIGURE 03 & SECTION D-D

Set the anchor system in place. Make sure the center of the large anchor jig plate holes aren’t set back further

than the max distance provided on page 3.

Make sure the top of each anchor body is flush with the

FINISHED

deck surface. Each anchor body can be

adjusted individually by turning the nuts with a large wrench.

Bond the anchoring system by using the bonding lug on the anchor plate. Bond the system according to your

local code requirements.

SEE FIGURE 03

(See NEC Article 680.26)

Pour your concrete and finish the pool deck surface.

SEE FIGURE 03

Once the concrete has cured your lift is ready to be mounted to the anchoring system.

SEE FIGURE 04 & 05

Anchor Installation

New Construction

5 OF 6

10/26/2020 12:35:29 PM

Anchor Installation: Saw-cut Retro-fit

You Will Need:

• Concrete saw with diamond blade

• Tape measure

• 4’ long straight edge or chalk line

• Sledge hammer

• Cold chisel

• Torpedo level

• String Line

• Concrete & concrete finishing tools

• #3 rebar

Remove 1 nut from each anchor insert. Place the anchor inserts through the larger hole of the anchor jig

plate. Thread the removed nuts back onto the anchor inserts. The anchor plate should be sandwiched between

the two nuts on each anchor insert.

SEE SECTION D-D

Mark out a section of the pool deck you are removing. Plan on removing at least 5'-6" x 5'-6" x 6" deep. It

must be reinforced with 7 sticks of #3 rebar E-W, 3" clear (min) from the top and bottom of the footing.

Cut along your marks with a diamond blade concrete saw.

Using the sledge hammer, break up the concrete within the area you cut and remove the pieces.

Install rebar in the open area of the deck. Tie the rebar into the existing deck if possible.

SEE FIGURE 03

Set the anchor system in place. Make sure the center of the large anchor jig plate holes aren’t set back

further than the max distance provided on page 3.

Using the string line or a straight edge, make sure the top of each anchor body is level with the

FINISHED

deck surface. Each anchor body can be adjusted individually by turning the nuts with a large wrench.

Bond the anchoring system according to your local code requirements by using the bonding lug on the

anchor plate.

SEE FIGURE 03

(See NEC Article 680.26)

Pour your concrete and finish the pool deck surface.

SEE SECTION D-D

10.

Once the concrete has cured, your lift is ready to be mounted to the anchoring system.

SEE FIGURE 04 & 05

6 OF 6

10/26/2020 12:35:29 PM
