Series 65A Smoke & Heat Detectors

Installation Instructions

General

These instructions apply to the 4" mounting base, part no 45681-200, the 6" mounting base,

part no 45681-220, the low proﬁle base, part no 45681-232 and the 6" E-Z Fit base, part no

45681-251, for installing Series 65A smoke and heat detectors.

Installation

These products must be installed in accordance with the applicable NFPA standards, local

codes and jurisdictional authorities. Failure to follow these instructions may result in failure

of the detectors to report an alarm condition. Apollo Fire Detector Limited is not responsible

for detectors which are improperly installed, maintained and tested.

Before installing these products check the continuity, polarity and insulation resistance of

all wiring. Check that siting is in accordance with the ﬁre system drawings and conforms to

all applicable local codes such as NFPA 72.

Use 3" octagonal box for direct connection to the base. 4" octagonal and 4" square boxes

may be used with proper UL listed mounting brackets. When mounting on a wall, install 4" to

12" from the ceiling. Use 3M Weatherban 606 Non-Flammable sealing compound (or equiv-

alent) to seal ﬁeld wiring conduit opening in the electrical box, this will reduce the stacking

effect. Secure the base to the electrical box with appropriate screws. Do not overtighten

the screws. The raised mark on the side of the base indicates the direction of the detector

LED when ﬁtted. Connect the shield, if required, to the SHIELD terminal on the base.

39214-118/Rev 6A

©Apollo Fire Detectors Ltd 1994–2011

Apollo Fire Detectors Ltd, 36 Brookside Road, Havant, Hants, PO9 1JR, UK

Tel +44 (0)23 9249 2412 Fax +44 (0)23 9249 2754

Email: techsales@apollo-ﬁre.co.uk Website: www.apollo-ﬁre.co.uk

In the USA: Apollo America, 821 Ulrich Ave, Louisville, KY 40219, USA

Tel: (502) 964-6565 Fax: (502) 964-6229

Email: infoUSA@apollo-ﬁre.com Website: www.apollo-ﬁre.com

From control panel

L1 IN

–R

L1OUT

L1 IN

–R

L1OUT

L1 IN

–R

L1OUT End-of-line

device

L1 IN

–R

L1OUT

L1 IN

–R

L1OUT

L1 IN

–R

L1OUT End-of-line

device

Remote LED

–

From control panel

–

SHIELD SHIELD SHIELD

Remote LED

Wiring

CAUTION: Do not use looped wire under terminal L2. Break wire run to provide supervision

of connections.

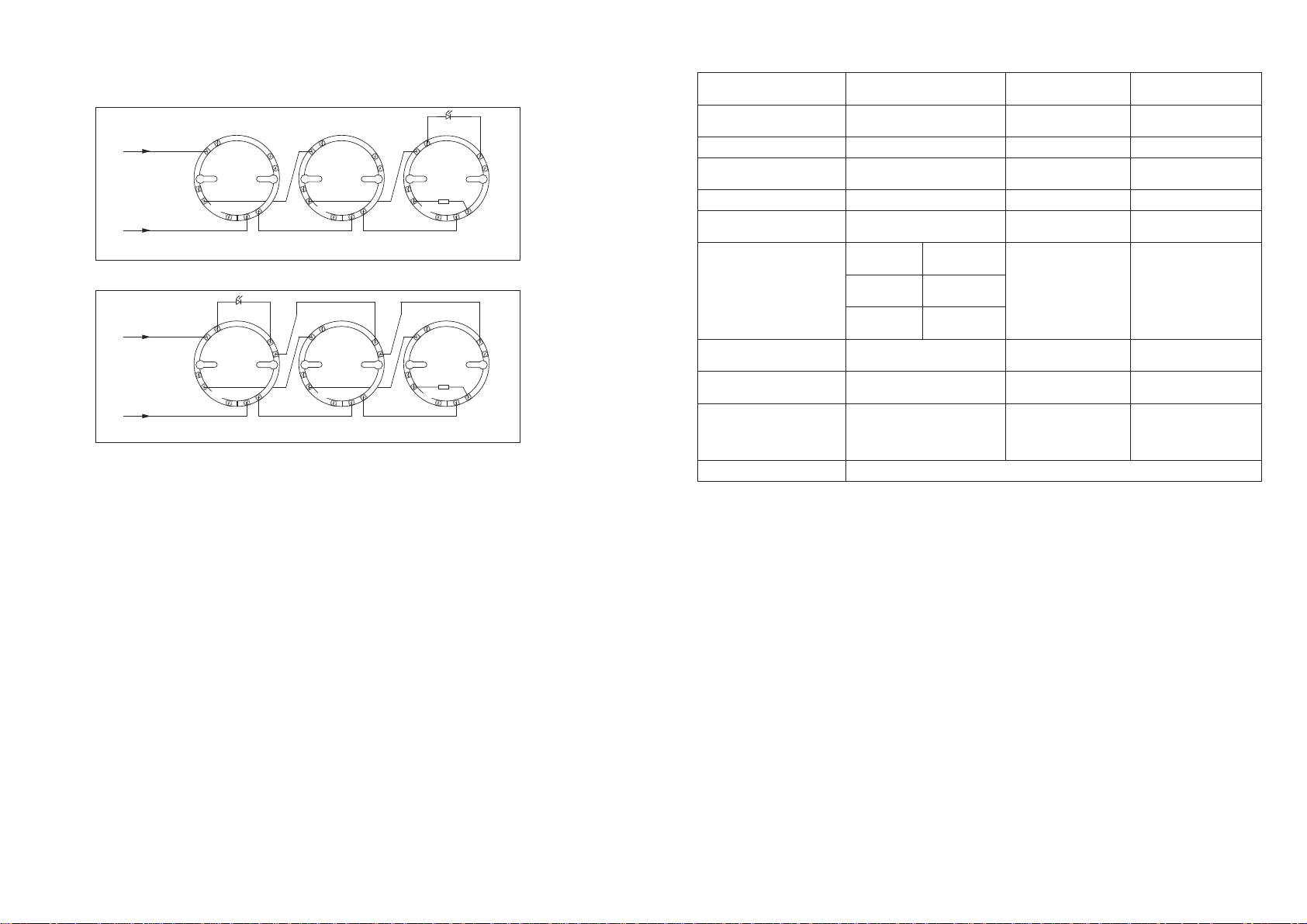

Fig 1 Wiring diagram of Series 65A zone

Fig 2 Wiring diagram of Series 65A zone with common remote indicator

The above instructions cover the following base model:

45681-200 4" mounting base

45681-220 6" mounting base

45681-232 low proﬁle base

45681-251 6" E-Z Fit base

Technical Data

Detector Model No 55000-138, 139, 140, 141,

142, 143, 144, 145, 146

55000-225, 226, 227 55000-325, 326, 327,

328

Detector Type Heat Rate-of-Rise/Fixed

Temperature

Ionization Photoelectric

Working Voltage 9–33V DC 9–33V DC 9–33V DC

Maximum Alarm Current 17mA at 9V, 52mA at 24V 17mA at 9V, 52mA

at 24V

17mA at 9V, 52mA

at 24V

Surge Current 0mA 0mA 0mA

Supervisory Current 40–50μA at 9V, 45–55μA

at 24V

40–50μA at 9V,

45–55μA at 24V

40–50μA at 9V,

45–55μA at 24V

Heat Element Rating 55000-138,

139, 140

Ordinary

(135ºF/57ºC)

N/A N/A

55000-141,

142, 143

Ordinary

(170ºF/77ºC)

55000-144,

145, 146

Intermediate

(200ºF/93ºC)

Compatibility Identiﬁer 55000-138, 139, 140, 141,

142, 143, 144, 145, 146

55000-225, 226, 227 55000-325, 326, 327,

328

Test Method Magnet or hair dryer Magnet or Gemini

501

Magnet or Gemini

501

Installation Temperature Minimum 32ºF (0ºC)

Maximum at least 20ºF

(11ºC) below rating

Minimum 32ºF (0ºC)

Maximum 158ºF

(70ºC)

Minimum 32ºF (0ºC)

Maximum 140ºF

(60ºC)

Control Panel Refer to www.apollo-ﬁre.co.uk for compatible panels
