Apogee Caliper Manuel utilisateur

Instructions for exchange of the bass slides in a APOGEE

CALIPER, DUETTA

Caveat:

The exchange of a bass slide is not for the inexperienced handyman. Some

skills, technical understanding and experience in working with tools is

Prerequisite for the success of the exchange.

We take no responsibility for damaged or crumpled foil and poor

sound results after installation.

With careful work, and sufficient technical expertise is the result of

compared to the original.

What do you need?

Tool: Hammer

a good bit set with Zollbits

Elektrotacker

Superglue

double-sided tape

Screwdriver

Silicone

Velcro strips

5 pcs 5mm spacers (wood)

Punch 8 mm

a 2-meter table

Cutting knife

Measurement: Multimeter

Microphone

Audio software for frequency measurement

Preparation

Make sure you order the correct film. We supply the left and right

separately.

In addition, the films for the signature/reference models are not the same as the

standard models.

Check the contents of the delivery.

Included:

1 Bass Panel

1 set of damping strips

1 tube Aluminiumlot

1Manual-CD

soldering iron

scrapers

To change

Screw the feet of

Speakers and put it on the

Back.

Make sure that the

Connecting sockets with damaged

will.

Loosen with a 1 / 8 inch bit, the

two screws on the bottom of the

cover.

Take off the lid. This

the Velcro fasteners on the inside

solved. It may be that there is something

is difficult.

Only courage to raise, you can

Velcro dots at the end again

.Detach

Now turn to the loudspeaker

and note the color of the

tweeter ribbon cable.

Loosen now with a 1 / 8 inch bit, the

lead of the tweeter.

Now you can again with a 1/8

custom bit of the four screws

tweeter ribbon remove.

Place it afterwards to a safe

location and make sure that no

magnetic objects in its

come close.

Now you remove with a 3mm

bit first the lower and

upper crossbar. These are not

bonded but only loosely screwed on.

Next remove all

bolts from the lateral

bars.

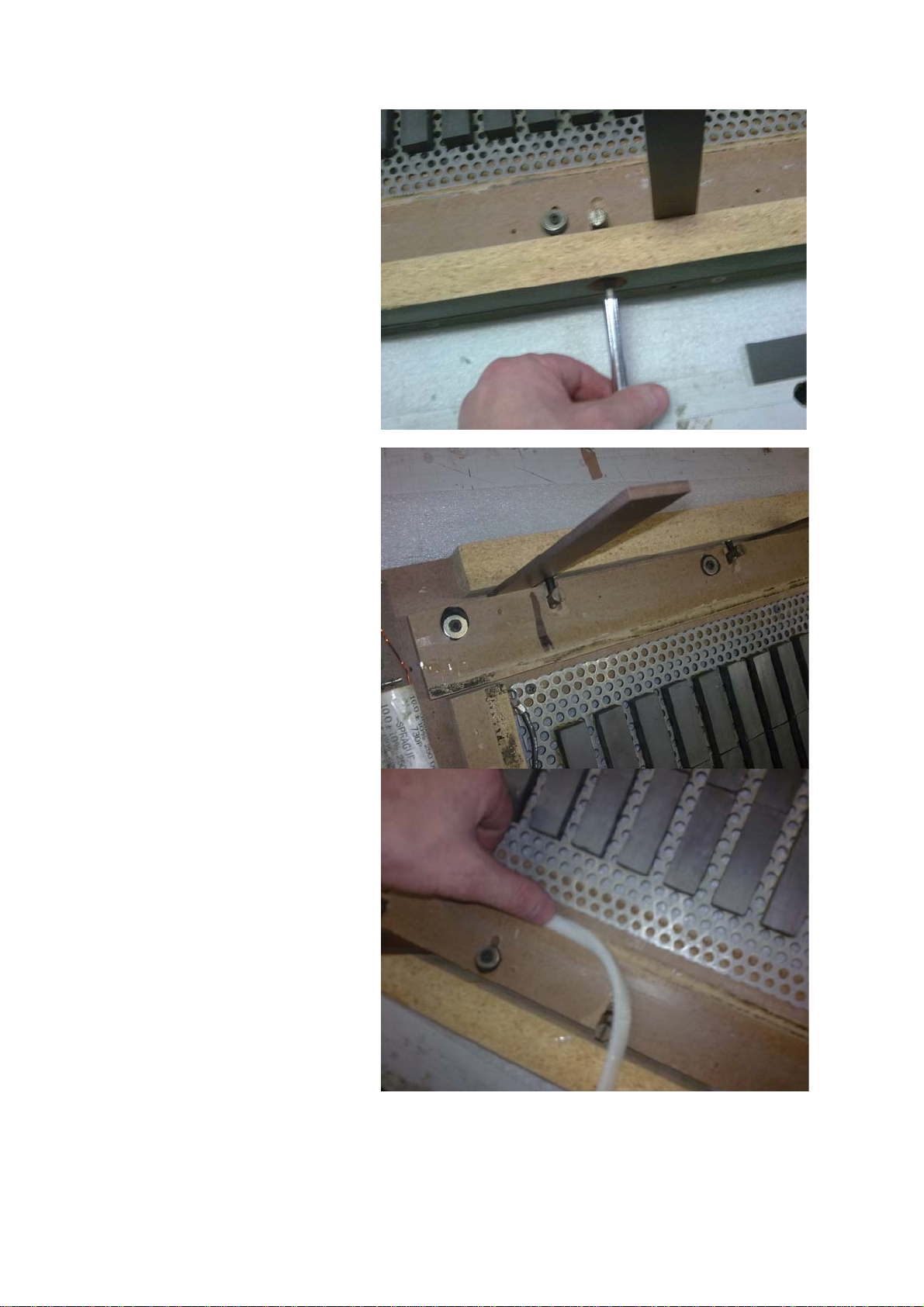

The lateral ridges are

bonded. To remove the bonding

the solution is to use a

correspondingly large

screwdriver and

drive it with cautious

hammer blows between

both braces. Make

sure that you do not

split the wood.

Try on both sides

to loosen the adhesive.

Now you can carefully

lift the sidebar with the foil.

Do the same with the

another sidebar.

Now remove the old

panel and scrape with a

putty knife the rest of the

silicone and film remains from

the wooden frame.

Use the scraper to remove

even the old foam residue

which remains on the

wooden frames.

The upper parts of the framework

must be thoroughly cleaned.

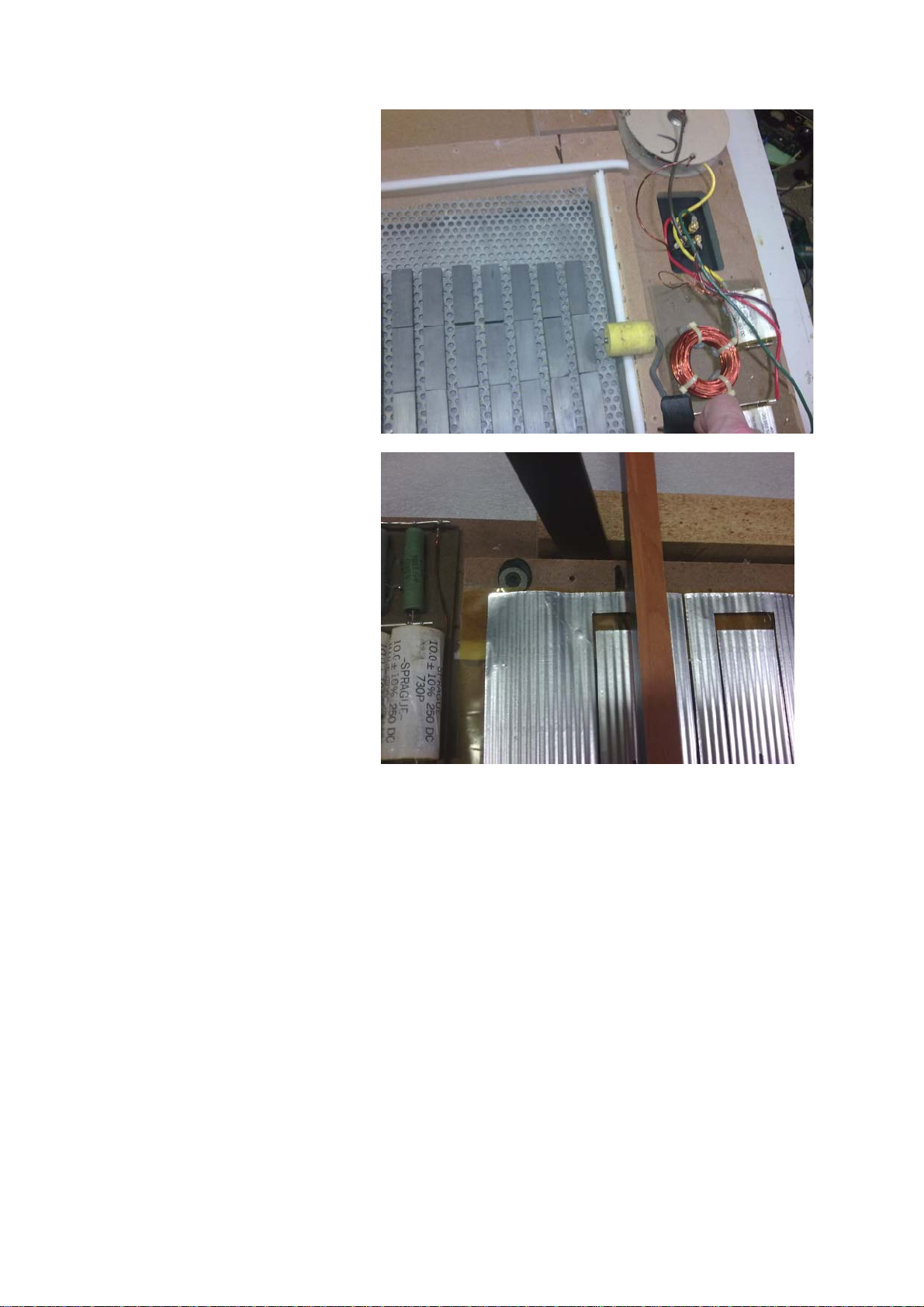

Next, loosen the

wiring of the

crossover and remove

the remaining aluminum and

tape strips.

Now relax the side-mounted

screws until you effortlessly to

5 mm wide spacers between the

frame and clamping bar can be

used. Insert next to each

clamping screw a spacer.

Now glue all around the supplied

foam rubber strips into the

recesses provided for and press

everything carefully with the role.

Now select it middle of the first

and last with the help of a

magnetic strip Eddings on the

wood frame. This is important to

be able to the tracks of the films

precisely position. Often, these

markings are however already

available.

Now carefully place the bass

slide in the frame and align the

foil on both marks at the top and

bottom. Make sure that while the

film is not creased.
