AOR AR2700 Manuel utilisateur

Fitting the RU2700 recording option to the AR2700 receiver

The fitting is recommended to be carried out in an experienced specialist receiver

workshop.

1. Removetherear batterycompartment cover

fromthe AR2700 receiver.

2. Removethebatteries (if fitted).

3. Removethetwo black selftapping screws

fromthe lowersectionofthebattery

compartment. Storeina safe place.

4. Removethe two screwsfromtheboththe

left&right sidepanels(only therearcase

halfscrews needberemoved).

5. Easethetwo casehalves apart, becareful not

tostrain the speakerconnecting wires.

Unplugthe speakerconnecting plugfromthe

PCB.

Thefrontcase halfcomprisesof theLCD,keypad,

side keys & speaker.

Therearcase halfcomprisesof thetoppanel, I.F.PCB,

R.F.PCB andbattery compartment.

6. TheI.F.PCBneedsto be removed,be careful notto

damagethe battery connectingleads astheyare

solderedinplace.

Pulloffthe threeknobsfor theVOL,SQL & DIALand

removethe three lockingnuts usingapair oflong nosed

pliersetc.

7. Removethetwo (long)selftapping screwswhich are

holdingthebottom edgeofthe I.F.PCB.

8. LifttheI.F. PCB clearof the cabinet(startby liftingthebottom oftheI.F.PCBso that

thecontrolswill passbackward through thetop panel holes). TheDC leads remain

attachedtothe I.F.PCB sobecareful torestrictmovement toaminimum.

9. Turnthe I.F.PCB up-side-downand referto thediagramoverleaf...

1/2

2/2

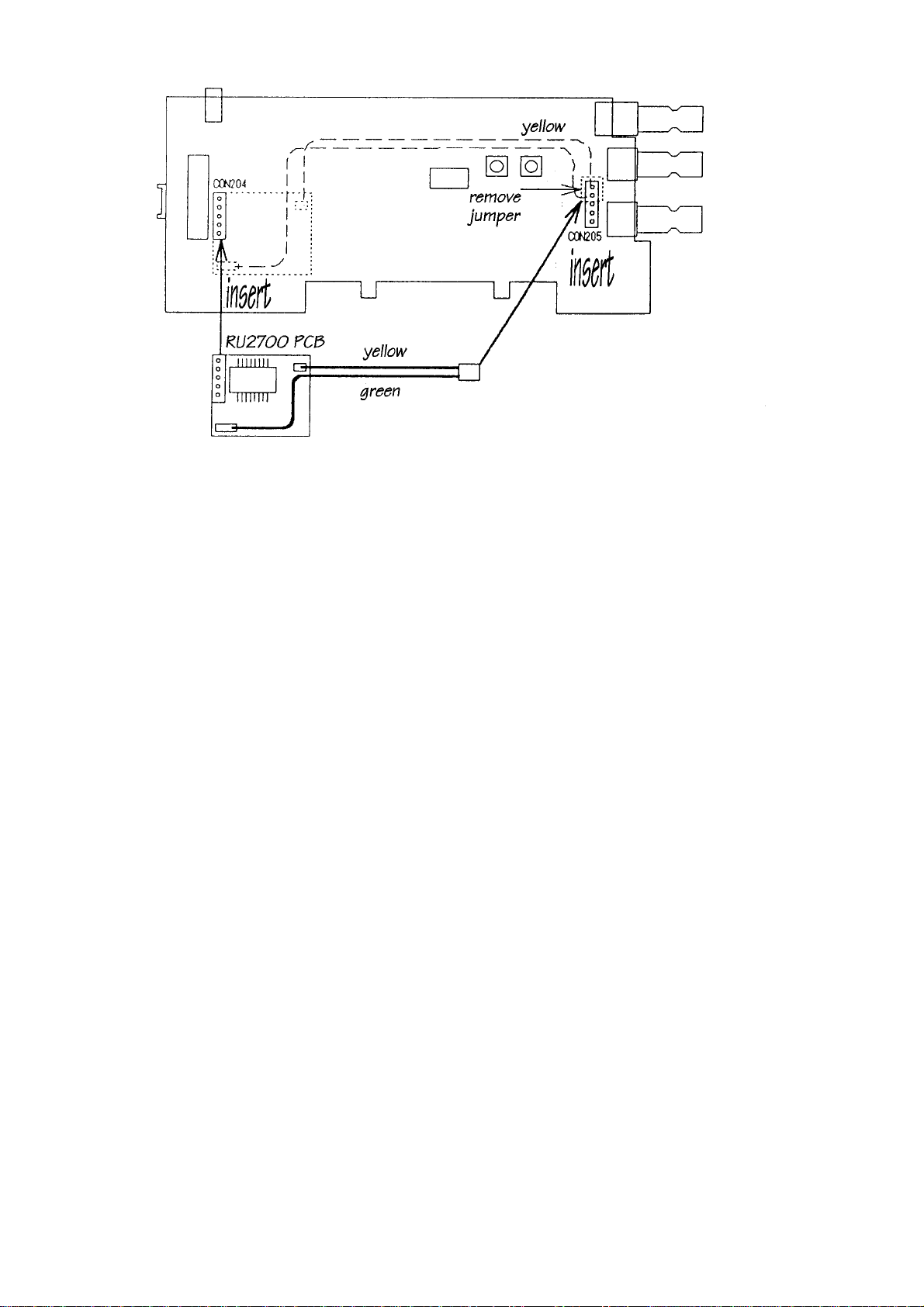

10. Fitthe RU2700PCBto connector "CON204"ofthe I.F.PCB, be careful notto

misalignthepins (lookat both endsof the connectorwhen fitted tocheck).

11. Removethe2-pin jumperfrom connector "CON205"of the I.F.PCBandinsert the

2-pinconnectorfrom the RU2700PCB so thattheyellow wire isnearest the edgeof

theconnectorstrip. The threeright hand of"CON205" are notused.

12.Reassemble the receiver.

13. The record / playback facility is used as described in section 13 (page 55) of the

operatingmanual. Ifthe optiondoes not setup straight away(no "REC" flagand no

audio)thenenable theoption using theinformation provided insection 13 (page55)

ofthe operatingmanual.

i.e.Switch0n holdingthe"0" keytoenter engineer mode.

Switch Off again.

Switch On holding the "5" key.

Usetherotary dial to change"Off"to "On" thenpress[ENT]

Thereceiverwill softreset, then willoperate normally. TESTIT!

Note: If the above is not carried out, the set's audio will be muted!!!

END

AOR LTD, 2-6-4 Misuji, Taito-ku, Tokyo 111, JAPAN

Tel: 03 3865 1681
