INSTALLATION GUIDE
Mobile Signal Repeater
Anytone AT6200 GW
GSM, 3G | 900/2100MHz
Coverage: 1000 m2

Preface
This user’s manual describes the installation and maintenance of wide band consumer boosters. Please do read user
manual carefully before installing and maintaining repeaters. The information in this manual is subject to change without
prior notice.
1. Safety Warnings
Users must follow the principles below:
Repeater should follow system requirements; assure good grounding and lightning protection.
The power supply voltage of repeater should meet security requirements; any operation shall be carried out only
after turning off power in advance. Only the professional is authorized for the operation.
Do not dismantle machine, maintain or replace its components by yourself, because this way the equipment may
be damaged and you may even get an electric shock.
Do not open the repeater, touch the module of the repeater, or open the cover of the module to touch electronic
component. The components will be damaged due to electrostatic.
Please keep away from heating equipment, because the repeater dissipates heat during working. And do not
cover a booster with anything that influences heat dissipation.

2. Introduction and Reasons for Weak Cellular Signals
Cell Phone Signal Booster is a perfect solution for providing improvement of cellular signal reception inside a house, office,
restaurant, VIP Room, apartment, building or shopping mall.
Generally cell phones cannot pick up or maintain a strong cellular signal due to one of the two following reasons:
1. Location of the Nearest Base Station – Base stations are used to provide broad coverage. However there are many
areas in which signal strength gets reduced due to topographic peculiarities or local Governmental restrictions regarding the
height or location of base stations. Rural areas generally have fewer base stations than urban regions.
2. Natural and Man-Made Obstructions – Signal strength can also be negatively affected by trees, hills, buildings, weather
and other obstructions. You may be relatively close to a base station but still unable to make a call. This often occurs inside
houses, offices and other buildings with stucco, concrete or metal walls that may block the signal.
The Signal Booster works with two antennas. An Indoor antenna communicates with your cell phone and an Outdoor
antenna communicates with the base station (BS). The Outdoor antenna receives a signal from the BS and sends it through
the cable to the Signal Booster, where it gets amplified and re-transmitted by the Indoor antenna throughout a building.
When the Indoor antenna picks up a signal from your cellular device, the Signal Booster amplifies that signal and transmits it
through the cable to the Outdoor antenna and back to the BS.
(Note: The Signal Booster will only operate if there is an adequate signal to amplify.)

3. Model Description
AT6200 GW dual band repeater is a unique equipment which comprises functions of two separate boosters: GSM and 3G.
Correspondingly, this boosterimproves a mobilesignalat two different frequenciesat a time -900 MHz + 2100 MHz. It
makes the dual band booster suitablefor allthe European and othermobile providers all aroundthe world.The
coverage zone of the booster is1000 m2(11000 ft2) whichallows using it in big houses, restaurants, supermarkets or
office buildings.
AnyToneAT6200 GW mobile cell phone signal boosteris designed for both GSM signal amplification, or better call
reception, and improvement of 3G signal: mobile Internet, video calls and mobile TV.
The boostercorresponds to the modern technical standards and has beenCE and RoHS certified.
Buy thisdevice now and get the opportunity toexpand yoursignal coverage effectively!
The booster comes in a complete kit with antennas and cablesnecessaryforinstallation of the system.The installation
processwon ᤀ琀 cause a problem, as the deviceextremely easy in use. Allyou need is to connectthe booster with outdoor
andindoor antennas with the help of cables and plug itinto a power supply. In 5-7 seconds the signal will improve ensuring
100% covered area.
Safety of the mobile cell phone signal booster for humans is guaranteed. Moreover, too intensive radiation emissions froma
mobile phonewill be reducedafter the booster will stabilizethe mobile signalin the area.
AnyTonedual band booster is a best equipment for improving both signal of a mobile phone and internet connections!
Our Professional Support Team is always ready to answer all your questions.
Watch the videos below tounderstand the principle according to which a dual bandbooster functions and learn whatthepackage with
AT6100 GW includes.

4. Specification
Indoor coverage: 1000 m2
Up-link freq: 890-915 MHz & 1920-1980 MHz
Down-link freq: 935-960 MHz & 2110-2170 MHz
Up-link Gain: 60 dB
Down-link Gain: 70 dB
Power supply: AC 220V/110V/200 mW
Working toC: 25 - +55
Humidity: 5-95%
Size (mm): 359x204x48
Booster Weight: 4.6 kg
Package Weight: 9.0 kg
dBm: 27

5. Repeater system overview
The picture below shows how simple and fast booster installation is and how effectively it works.
A Yaggi or panel antenna (it depends on the booster model and its power), as donor/outdoor antenna, is installed at the top
of the roof to pick up good mobile signals from the base station, and sends them through the cable to the booster where the
signals get amplified significantly; and then the output signals are distributed throughout the area by the indoor/server
antenna. Clear phone calls or high speed mobile data are immediately achieved within the area.
A repeater kit includes:
Outdoor Antenna:
Outdoor panel or wide band Yaggi is recommended.
Function: To pick up outside signals from the base station and send them by cable to the repeater; outdoor antenna
also transmits the uplink signals from the repeater back to the base station.
Indoor Antenna:
It is mounted inside a building to transmit the improved signals throughout the coverage area.
Cables: Сoaxial cables for indoor and outdoor antennas.
Mountings: Special mountings for antennas and the booster (depends on a booster model)
Power Supply

Optionally:
Splitters or couplers: when the building structure is too complicated or there is big loss due to thick walls or other
reasons, splitters or couplers shall be used so that more antennas can be installed in separate zones to distribute the
signals to each corner of the coverage area.
Additional indoor antennas: when the building structure is too complicated

6. Antennas and Cables Setting Up
6.1. Outdoor antenna installation
The repeater’s main function is to improve weak RF signals in an area. The formula is: Input power + Gain= Output power.
The signal strength from an outdoor antenna directly affects the efficiency of the indoor coverage. It is very important to
choose the correct outdoor antenna location in order to get the best signal.
Testing signal strength received by an outdoor antenna using a mobile phone:
The mobile phone shall display full bar signals in location where the outdoor antenna is installed
Phone calls or data transmission shall be smooth and stable. It is recommended to test the signal 3 times in location
where an outdoor antenna is to be installed

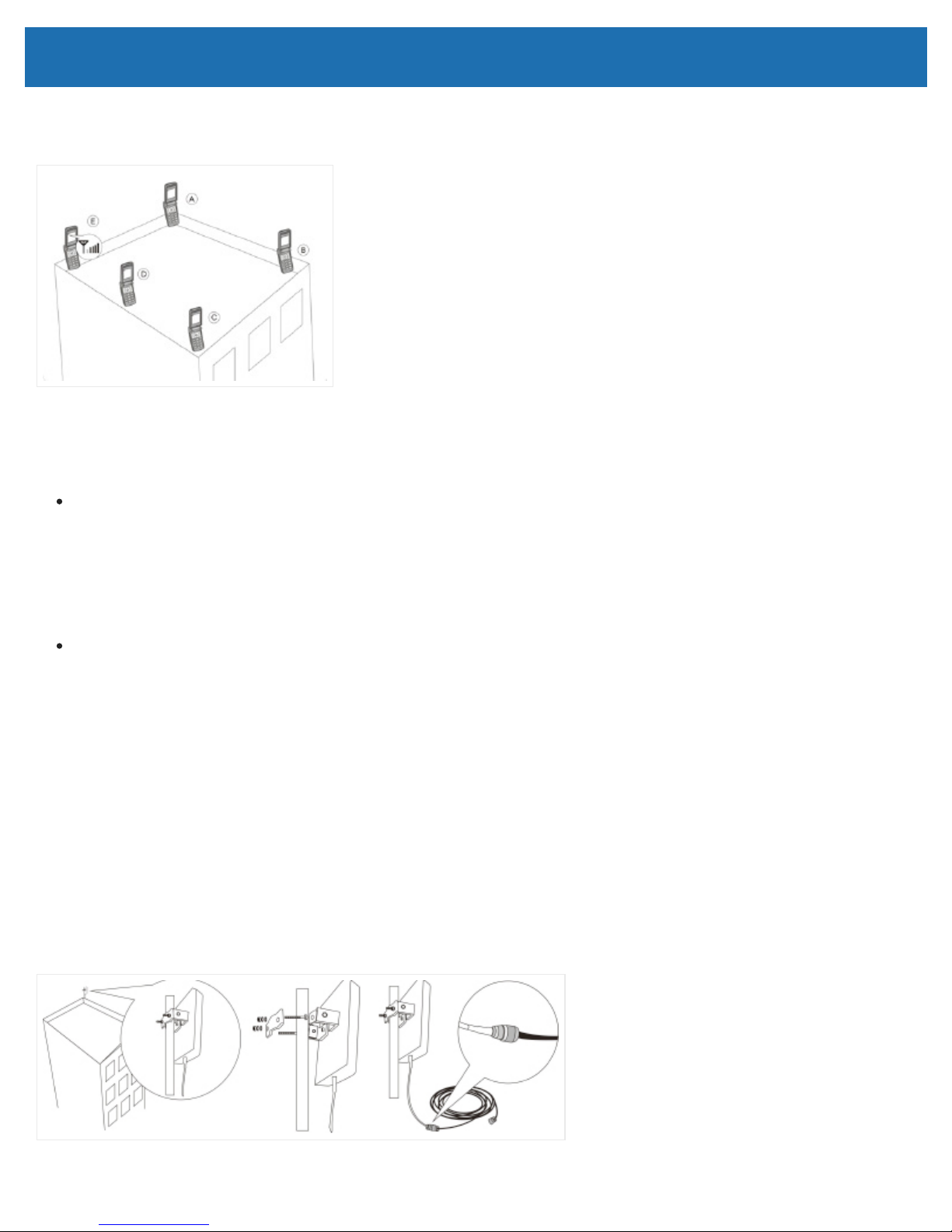

As shown from the illustration above, you should test the signals in points from A to E, and select a best place that
displays full bar signals.
Outdoor antenna installation Requirements:
Outdoor antenna should be installed on the roof of the house or in some other place where your mobile device is
within coverage zone. Mobile signal should be as strong that at least three-four bars are indicated on your phone
display.
Outdoor antenna should be fixed in straightly.
It is necessary to waterproof connectors of the outdoor antenna and feeder lines.
Repeater is a two-way signal amplifier. So proper isolation between outdoor antenna and indoor antenna is necessary
in order to avoid self-oscillation. A perfect example of self-oscillation is when you take a MIC and a loudspeaker for
example; if they are too close to each other, it could cause big noise.
If isolation can’t be achieved due to limited distance, the roof of the building, walls or any other barriers can be used
between antennas to increase isolation.

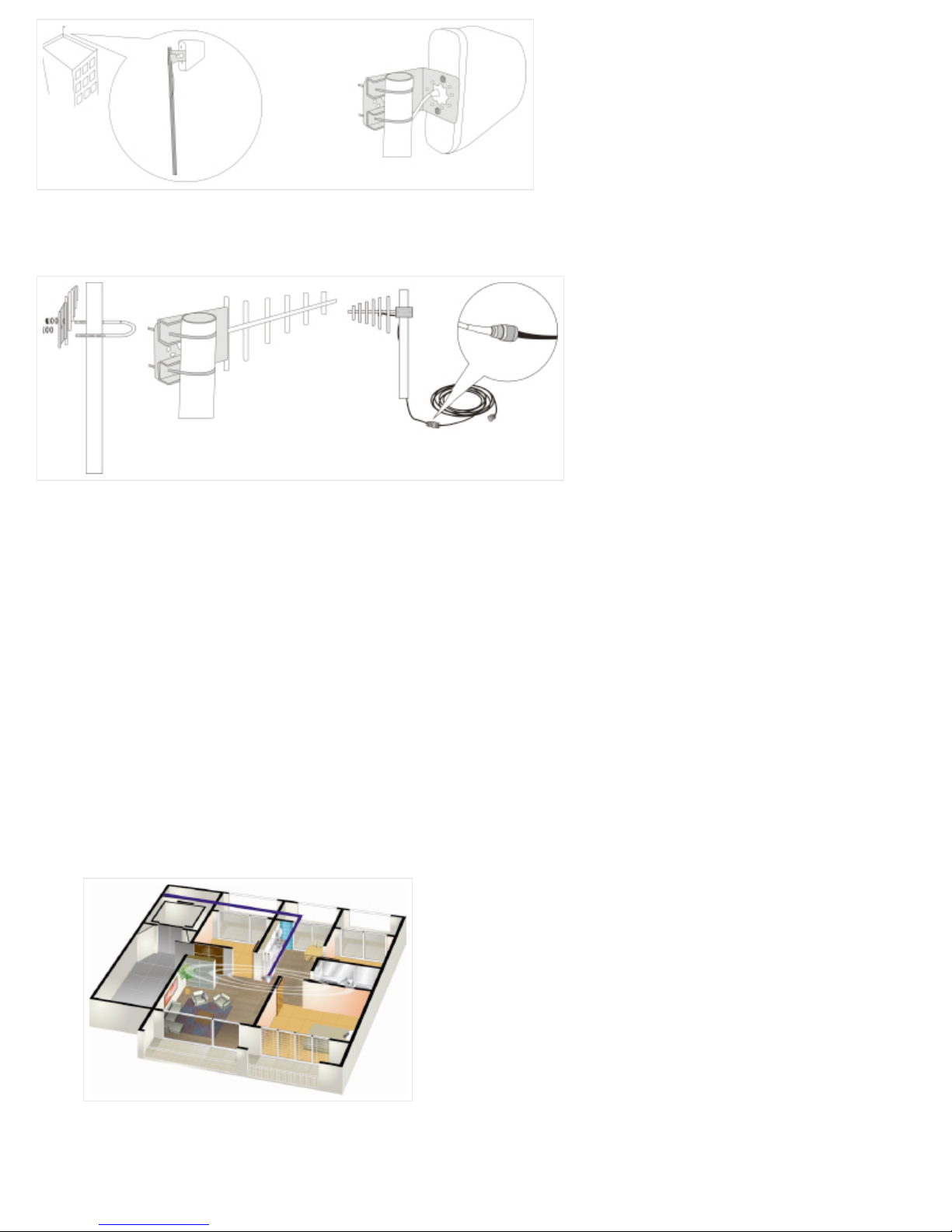

Installation of a panel antenna as an outdoor antenna
Installation of a wide directional antenna as an outdoor antenna

Installation of a Yaggi antenna as an outdoor antenna
6.2. Cable layout and connector assembly
1. Keep the type, specifications, routing direction, location and curvature radius of cables in compliance with the model
requirements. Place cables in correct order, bend them smoothly, and protect the surface from any damage.
2. Place RF cables separately from power cables. Take proper isolation measures if they have to be placed on the same
cable racks owing to the site condition restrictions.
3. Fasten all connection parts of the whole system in correct order, from the antenna to repeater interfaces, and make
sure that the electrical interfaces are well contacted. Give waterproof treatment to outdoor connection parts.
4. Take lightning protection measures for the antenna and feeder system in accordance with the system requirements.
Avoid deforming the antenna feeder where grounding clips are placed, and give waterproof treatment to the feeder.
6.3. Indoor antenna installation
Correct antennas types shall be used according to the site conditions and the requirement.
1. Omni antenna (ceiling Omni or whip antenna) shall be installed in the center and radiate all directions.
2. It is better to use a directional panel antenna or Yaggi antenna when the area shape is long and narrow (corridors,
long row of houses in two sides, tunnels or elevators or rural open space).

Requirements to indoor antenna installation:
indoor antenna should be 5 meter distance from an outdoor antenna
indoor antenna should be at least 2 meters above the ground
indoor antenna should be fixed vertically with the ground.
