Anycom EDR-AP Manuel utilisateur
1
ANYCOM Technologies AG
www.anycom.com
2
■ Table of Contents
1. EDR-AP KEY FEATURES ..................................................................................... 3
2. PART CHECKLIST .............................................................................................. 3
3. PRODUCT DESCRIPTION ..................................................................................... 4
4. SPECIFICATION ................................................................................................ 5
5. CONTROLS AND FUNCTIONS [BUTTON/LED/PEAR PANEL] ......................................... 6
6. EDR-AP INSTALLATION ...................................................................................... 9
7. CAUTION ........................................................................................................ 11
8. CONFIGURATION USING WEB INTERFACE ............................................................... 12
3
■ EDR-AP Key Features
zEDR-AP supports Bluetooth LAP / PAN / DUN / OPP Gateway.
zEDR-AP provides a built-in web server for convenient configuration.
zEDR-AP support private leased lines, ADSL/VDSL modems using PPPoE and cable modems (DHCP).
■ Part Checklist
Please check and make sure that you have the following package contents.
Item Q’ty Use
EDR-AP Body 1 EDR-AP main body
User Manual 1 User guide that explains features, functions and
implementation examples
Antenna 1 Bluetooth Antenna
Power Adapter 1 EDR-AP power supply device (5V 1A)
LAN Cable 1 Cable that connects EDR-AP and Internet Modem
4
■ Product Description
Please check and make sure that you have all the following package contents.
5
■ Specification
Name Description
Output Power 15 ~ 20 dBm
Rx Sensitivity 85 dBm
Channel 79 CH
Antenna 2.4GHz Band 1/2λSleeve Dipole Antenna
Frequency 2402 ~ 2480 MHz
Modulation FSK, QPSK
Adaptor 5V 1A
Max Current 560mA
Operating Temperature -20℃~55℃
6
■ Controls and Functions
▌ Button
Name Description
Button If you press this button, the LED (Green) blinks and EDR-AP goes to discoverable and pairable
mode.
7
▌LEDs
Name Color Status Description
ON Power is ON and Bluetooth is normal state mode
BLINK Other device is connected and new device is under pairable
mode
STATUS Red
OFF Power is OFF or Bluetooth is abnormal state mode
ON TCP/IP communication is able mode
BLINK TCP/IP communication is disable mode
WAN Green
OFF Not connecting with the Ethernet
* When EDR-AP restarts, every LED blinks several times
8
▌ Rear Panel
(From the left to the right side)
Name Description
RESET
Press this button for more than three seconds to restore the original factory default setting of
EDR-AP
(Reboot: press under three-seconds)
5V1A Connect the Power Adaptor
WAN Connect to private leased line, ADSL/VDSL modem, cable model using LAN cable (UTP
Cable)
9
■ EDR-AP Installation
Please check the port location of the rear panel and then follow the steps below to install the EDR-AP properly.

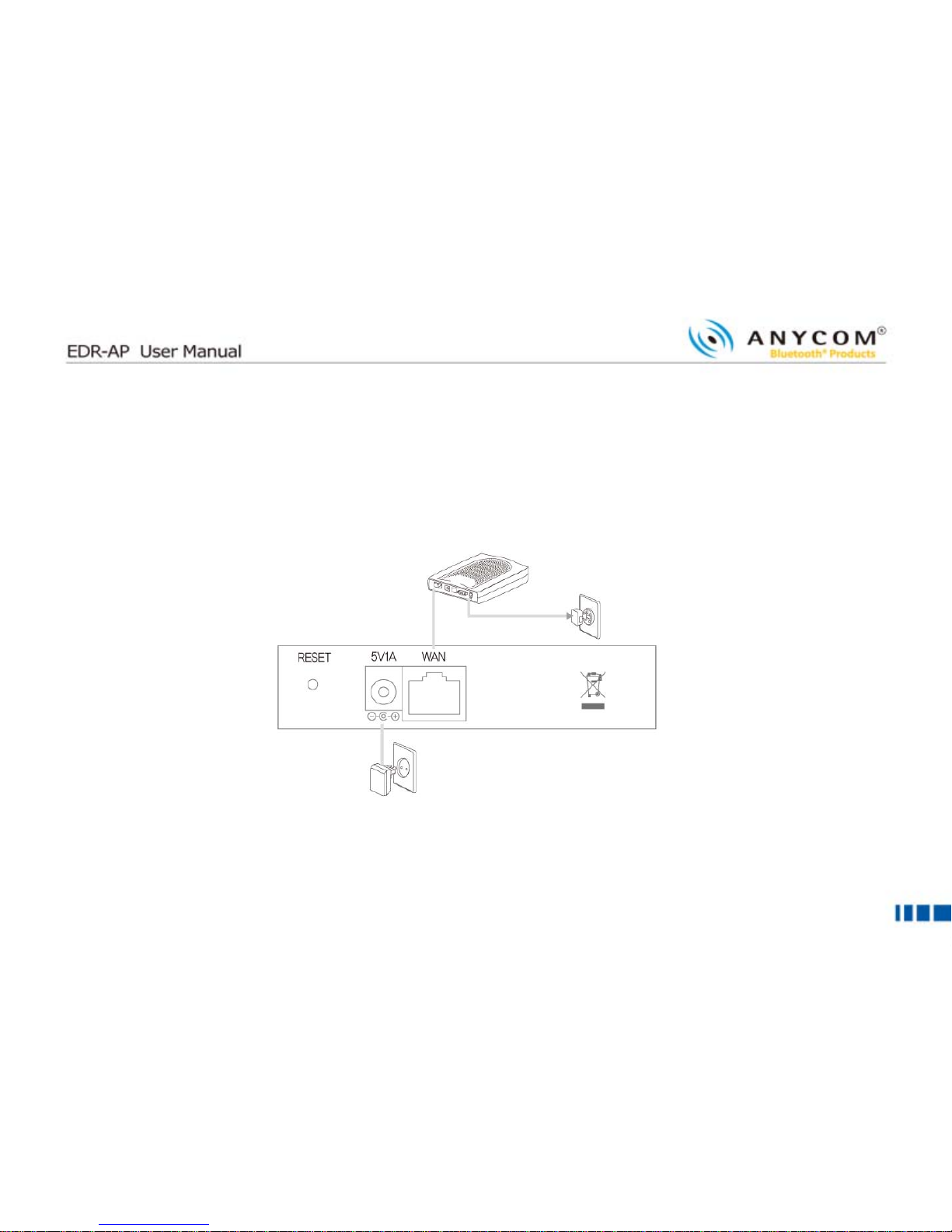

▌ Ethernet Network Connection
Let’s check the Network cable connection to use the high-speed internet service.
Modem
① Pull out the cable from the Ethernet (LAN) port of ADSL modem and connect it to the WAN port at the EDR-AP’s
rear panel.
② Connect the power adaptor to the “POWER” port at the EDR-AP rear panel.
10
③ Connect antenna provided to antenna connecting jack at the side of body. When you connect antenna, twist it on
carefully and lastly push it strongly.
