Antec EA-650 PLATINUM Manuel utilisateur

EA-650 PLATINUM POWER SUPPLY

USER’S MANUAL

EARTHWATTS PLATINUM SERIES

EA-650 PLATINUM POWER SUPPLY

Antec’s EarthWatts Platinum is one of the most efficient PSU series ever created. With an 80 PLUS® PLATINUM

rating, the highest efficiency mark for power supplies, this PSU achieves up to 93% efficiency and gives you savings

unheard of from other power supplies. By using the EA-650 Platinum, you can reduce your electricity bill up to

25%. A 3 year Antec Quality warranty, a whisper-quiet 120mm DBB fan controlled by Antec’s renowned Thermal

Manager and CircuitShield™’s industry-leading 7 levels of protection make the EA-650 Platinum one of the best

choices available. Get the power you need, save money and help protect the environment with Antec’s EA-650

Platinum!

STANDARDS AND FEATURES

The connectors and power specifications of the EA-650 Platinum PSU are all compatible with ATX12V v2.32 and

EPS12V v2.92 specifications. The EA-650 Platinum features Universal Input, which automatically senses when you

connect the power supply to any AC power source between 100 - 240V without setting a voltage switch. This

power supply also features Active Power Factor Correction (PFC), which improves the power factor value of the

power supply by altering the input current wave shape, helping to power transmission across the grid.

SYSTEM PROTECTION

A variety of industrial-grade safety circuitry will help protect your computer: Over Current Protection (OCP), Over

Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection

(OPP), Surge & Inrush Protection (SIP) and Brown-Out Protection (BOP). Sometimes the PSU will “latch” into a

protected state. You will need to power off the PSU and clear the fault before it will function again. There are no

user-replaceable fuses in your EA-650 Platinum.

80 PLUS® CERTIFICATION

80 PLUS® certification is the most widely recognized

independent standard in power supply efficiency. An 80

PLUS® certified power supply uses less energy and

generates less heat to stay cooler, run quieter and last

longer. The EA-650 Platinum has been 80 PLUS®

PLATINUM certified to be at least 89% efficient at a wide

range of operating loads; this will lower your operating

costs and help protect the environment.

POWER OUTPUT

To see the output capacity and regulation for each different voltage, see table 1.

TABLE 1

Output Voltage

Load Max.

Regulation

Ripple & Noise

+3.3V

20A

±5%

< 50 mV

+5V

18A

±5%

< 50 mV

+12V1

30A

±5%

< 120 mV

+12V2

30A

±5%

< 120 mV

+12V3

30A

±5%

< 120 mV

+12V4

30A

±5%

< 120 mV

-12V

0.3A

±10%

< 150 mV

+5VSB

±5%

< 50 mV

TABLE 2

Cable Quantity

Connectors

+12V Rail

Description

x 1

+12V3

24-pin main connector

x 1

+12V2

8 (4+4)-pin ATX12V/ EPS12V

x 2

+12V4

8 (6+2)-pin PCI-E

x 3

x 1

+12V1

Molex + FDD

x 3

x 1

+12V1

SATA + Molex

x 3

+12V1

SATA

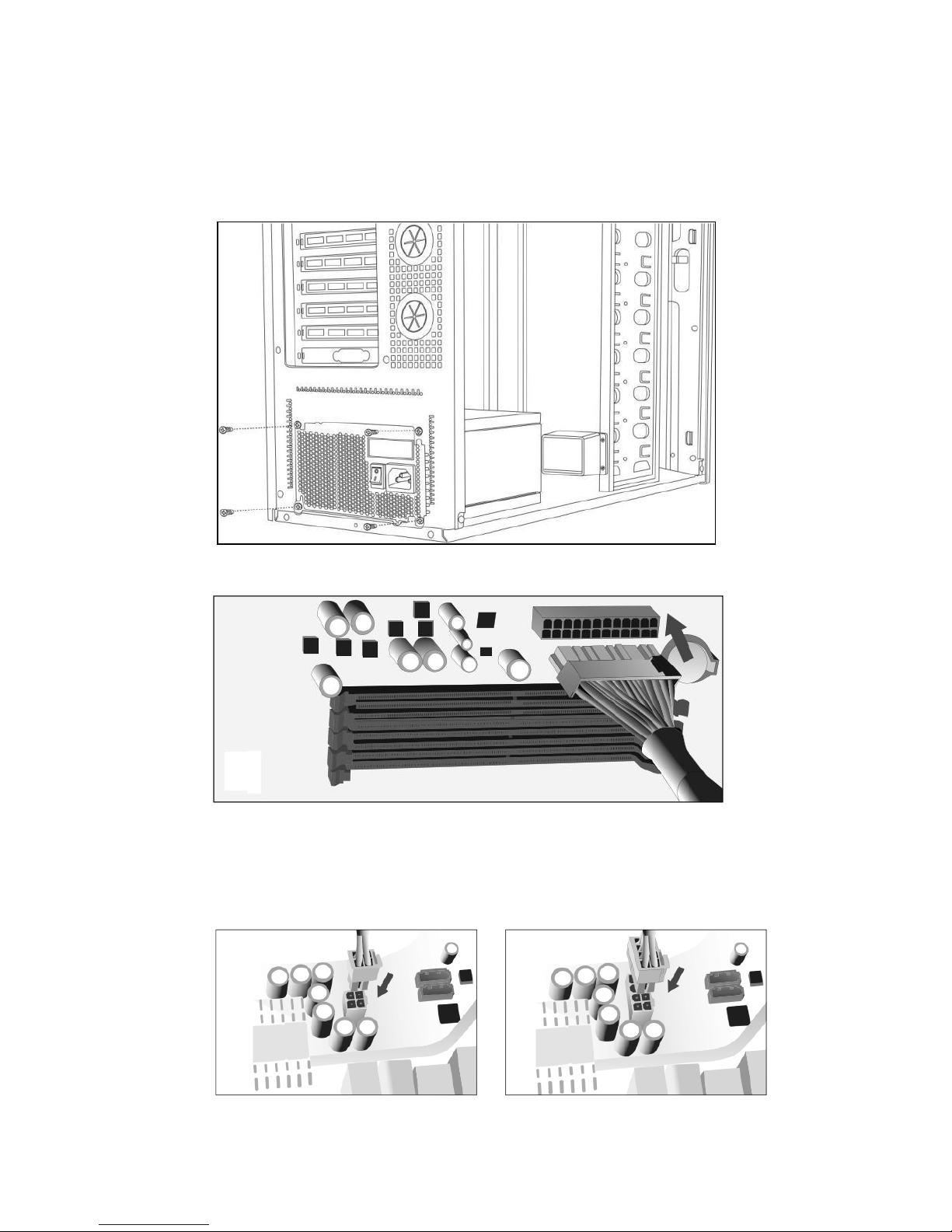

INSTALLATION:

1. Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case

manual if you are unsure where the power supply should be installed.

2. Connect the 24-pin main power connector to your motherboard.

3. Connect the 8-pin or 4+4-pin connector for the CPU. If your motherboard has an 8-pin socket with a cover on

some of the openings, we recommend that you remove the cover and use the 8-pin connector.

Note: Please also refer to your motherboard user’s manual for any special instructions.

4. Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with

your PSU.

5. PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient, making

the hardwired connector the preferred choice. More powerful cards use multiple connectors, including the

advanced 8-pin PCI-E connector. The 8-pin PCI-E connector on the PSU can be used as either a 6- or 8-pin

connector.

6. Hard drives, optical drives (CD/DVD/BluRay™) and other accessories will use either the older 4-pin Molex

connector or the newer 15-pin SATA connector. 4-pin Molex connectors have two black, one yellow and one

red wire. The SATA connector has an additional orange power wire.

7. When you have all the connections secured, turn the switch on the PSU to the “|” position.

Technical Support:

www.antec.com/support

US & Canada

1-800-22ANTEC

nasupport@antec.com

Europe

+49-(0)40-226-139-22

[email protected]m

Asia

apsupport@antec.com

Visit us on Facebook for contests, information & support:

USA & Canada

facebook.com/AntecInc

Europe

facebook.com/AntecEurope

Australia & New Zealand

facebook.com/AntecAU

India

facebook.com/AntecIndia

facebook.com/AntecUK

Antec, Inc.

47900 Fremont Blvd.

Fremont, CA 94538

USA

tel: 510-770-1200

fax: 510-770-1288

Antec Europe B.V.

Stuttgartstraat 12

3047 A Rotterdam

The Netherlands

tel: +31 (0) 10 462-2060

fax: +31 (0) 10 437-1752

www.antec.com

Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing

errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.

REPRODUCTION IN WHOLE OR IN PART WITHOUT WRITTEN PERMISSION IS PROHIBITED.

V1.0
